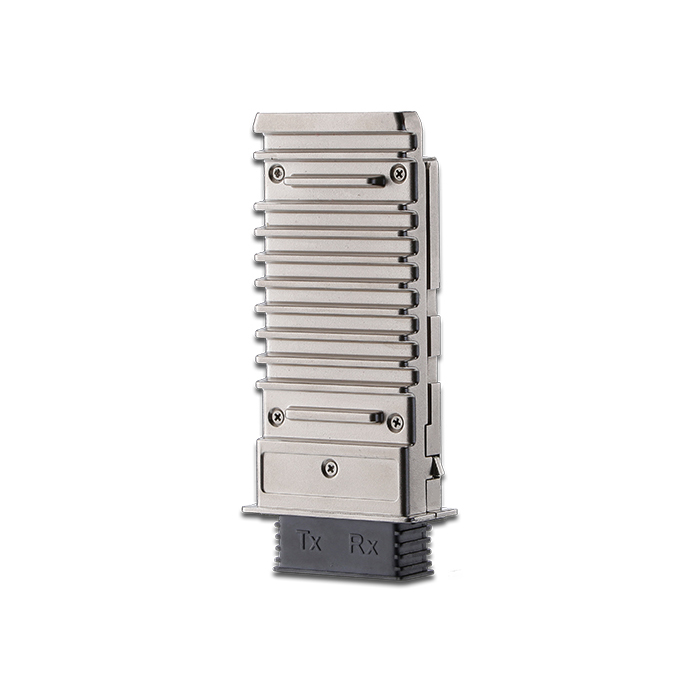

EX2CxxX-4SCD40
10Gbps CWDM 1470~1610nm 40KM X2 Transceiver
Features
XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s
Cooled CWDM EML laser
Hot Z-Pluggable
SC-Duplex Optical Receptacle
MDIO, DOM Support
Pin Photo-detector
Compliant to X2 MSA 3.0
Power dissipation < 4W
Mechanical Footprint: 4.76” L x 1.42” W x 0.46” H
Compliant to IEEE 802.3ae 10GBASE-ER Application
Case operating temperature: 0 to 70 °C
Applications
IEEE 802.3ae as 10GBASE-ER, X2 MSA Release3.0
Description
ETU-Link 10Gb/s X2 transceiver module EX2CxxX-4SCD40 is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA. The EX2CxxX-4SCD40 is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and De-mux with clock and data recovery (CDR).This version of ETU-LINK Inc. transceiver line uses an cooled CWDM EML Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-ER of the IEEE 802.3ae.
