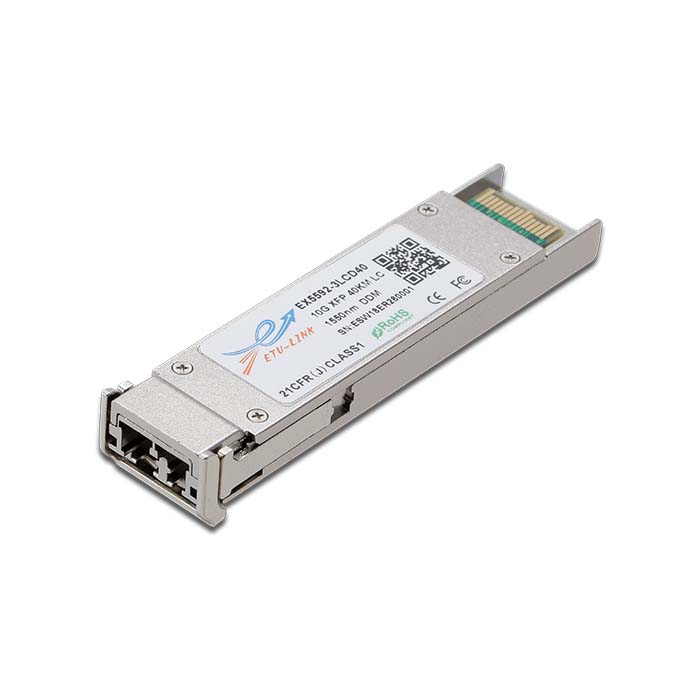

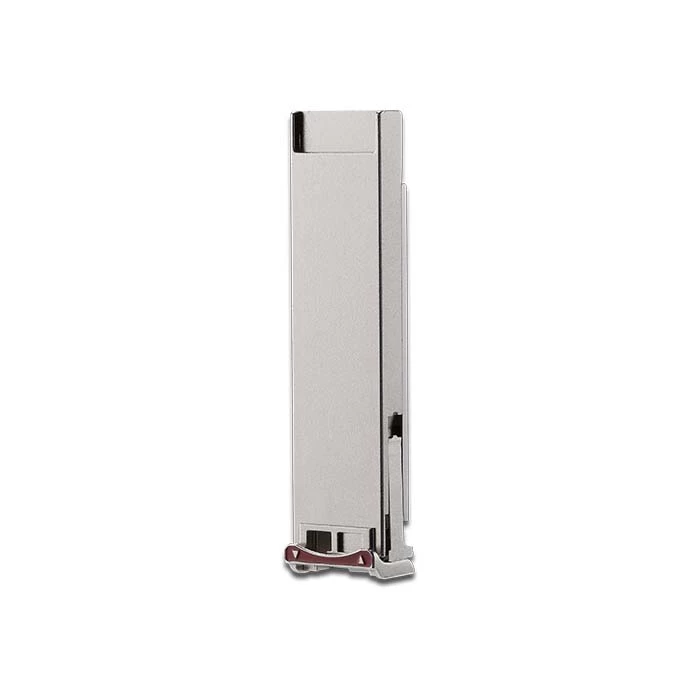

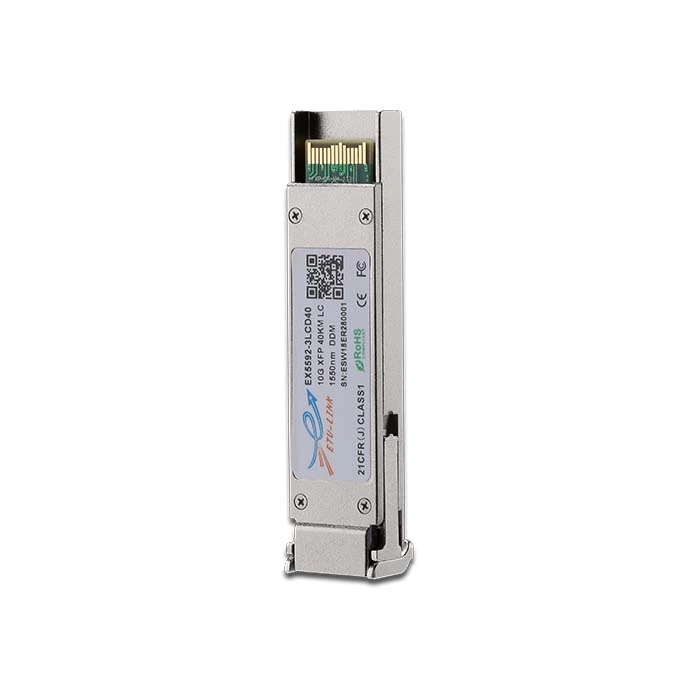

10G XFP ZR Transceiver

Description: The ETU-Link XFP Modules provide customers a variety of 10Gigabit Ethernet and Packet-over-SONET/SDH connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Facebook Twitter Pinterest LinkedIn 分享

EX55X-3LCD80

10Gbps 1550nm 80KM XFP Optical Transceiver


FEATURES

  • Hot-pluggable XFP footprint
  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • Supports Lineside and XFI loopback
  • RoHS-6 Compliant (lead-free)
  • Power dissipation <2.5W
  • Case temperature range: -5°C to 70°C
  • Maximum link length of 80KM
  • Cooled 1550nm EML
  • APD Receiver
  • Full Duplex LC connector
  • No Reference Clock required
  • Built-in digital diagnostic functions
  • Standard bail release mechanism

APPLICATIONS

  • 10GBASE-ZR/ZW 10G Ethernet
  • 80KM 10G Fiber Channel
  • SONET OC-192 &SDH STM 64

PRODUCT DESCRIPTION

  • ETU-LINK’s EX55X-3LCD80 Small Form Factor 10G (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae and 10G Fiber Channel 80KM. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceivers are RoHS compliant and lead free per Directive 2002/95/EC3.
