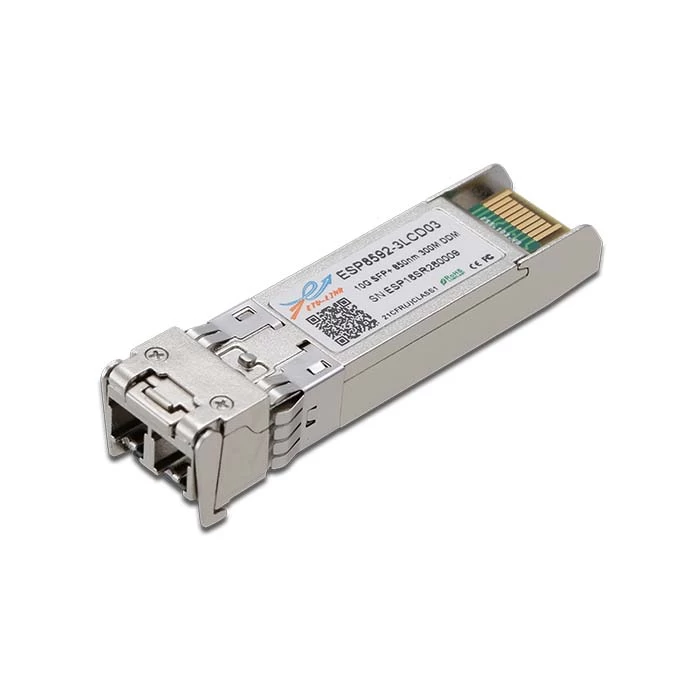

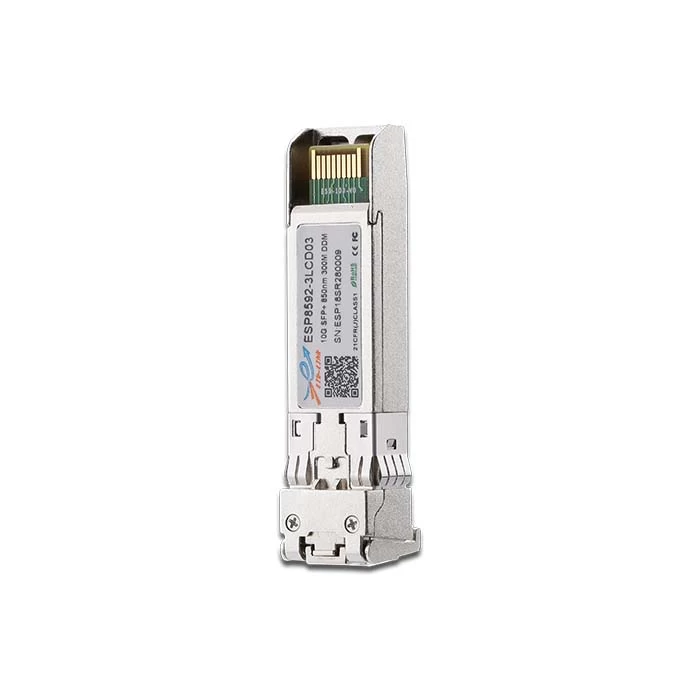

10GBASE-SR SFP+ 850nm 300M Transceiver

Ø Optical interface compliant to IEEE 802.3ae

Ø Electrical interface compliant to SFF-8431

Ø Hot Pluggable

Ø 850nm VCSEL transmitter, PIN photo-detector

Ø Maximum link length of 300m on 2000MHz/km MMF

Ø Operating case temperature: 0 to 70 °C

Ø Low power consumption

Ø Maximum link length of 300m on 2000MHz/km MMF

Ø All-metal housing for superior EMI performance

Ø Advanced firmware allow customer system encryption information to be stored in transceiver

Ø Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Ø RoHS6 compliant (lead free)

Ø 10GBASE-SR at 10.3125Gbps

Ø 10GBASE-SW at 9.953Gbps

Ø Other optical links

This 850 nm VCSEL10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125μm or 62.5/125μm multimode optical fiber (Table 1).
