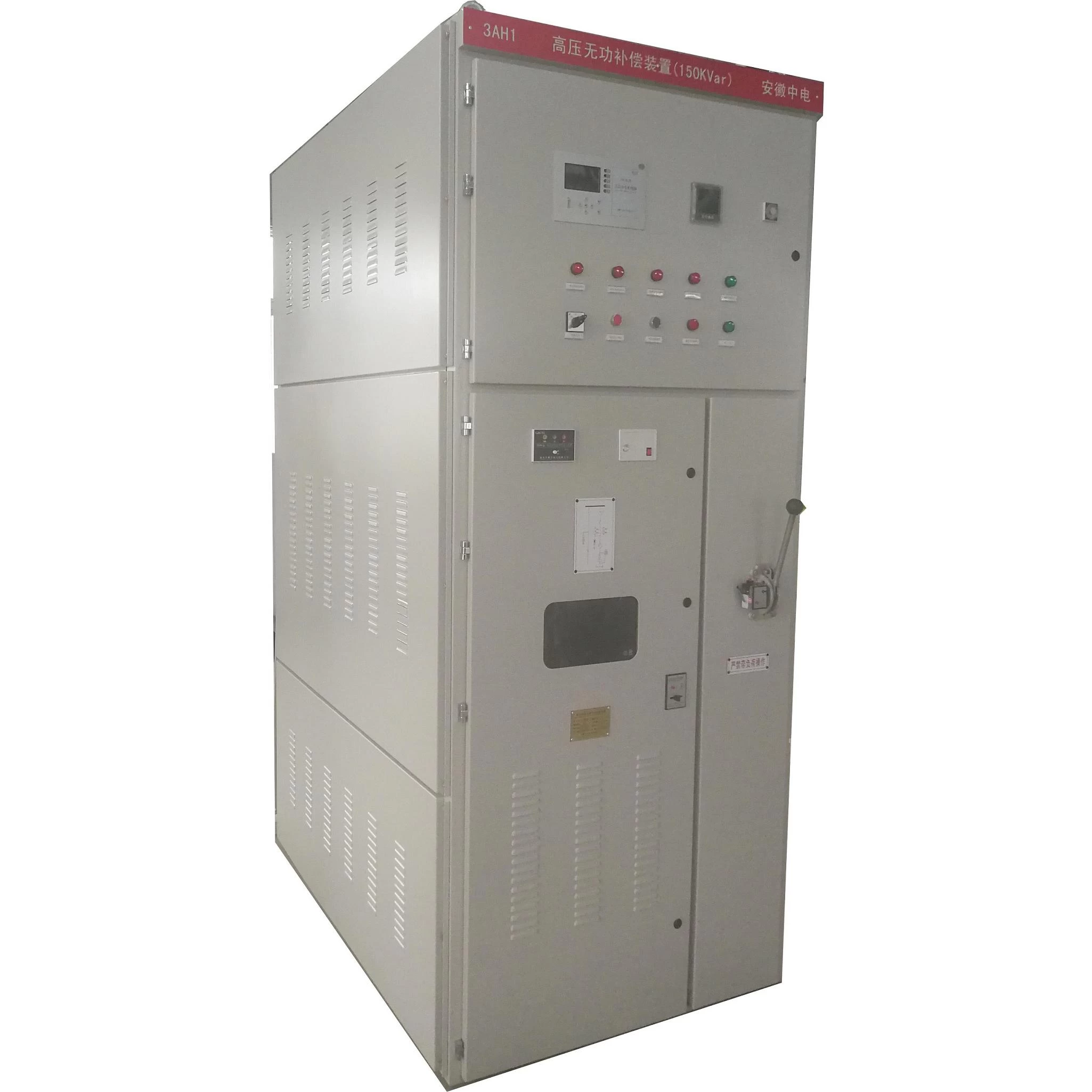

Overview of 10kV APFC Panel
10KV Automatic Power Factor Correction Panel based on SVC aims to improve power factor and enhence power quality, utilising capacitors to
offset usually inductive loads(motors). SVC APFC system increase the efficiency of power supply,
delivering immediate cost savings on electricity.
ZD-GWJ 10Kv automatic power factor correction panels with filters : can detect the reactive power needed by the system in real time,compare it with the set value, carry on the automatic intelligent capacitor-switching on/off, make the reactive power of the system achieve dynamic balance, in order to improve the power factor of the system, stabilize the system voltage.
Following are effect before and after power factor correction
Technical Specification of 10kv APFC Panel
|
Name
|
10kv Automatic Power Factor Correction Panel
|
|
Model
|
ZD-GWJ-6/10-
|
|
Rated Voltage
|
10Kv
|
|
Connection Type
|
Three phase three wire, Three phase four wire
|
Rated Frequency
|
50/60HZ
|
|
Step Capacity
|
100,200,300kVAr
|
Rated Capacity/panel
|
1200kVAr
|
Power Factor
|
0.9
|
Switch
|
Vacuum Contactors
|
Capacitance Tolerance
|
-5%, +10%
|
Reactance ratio
|
6% 12% or customerized
|
Switching
|
Automatic switching Capacitors
|
Storage temperature
|
-40~85 °C
|
Working temperature
|
-25~55 °C
|
Humidity
|
≤95%,non-condensate
|
Dimension (mm)
|
800(1200)*800(1200)*2200(2400)
|
Installation
|
Indoor, free standing
|
Altitude
|
<1500m without de-rating
|
Certification
|
ISO9001,CCC, Type Test Report
|

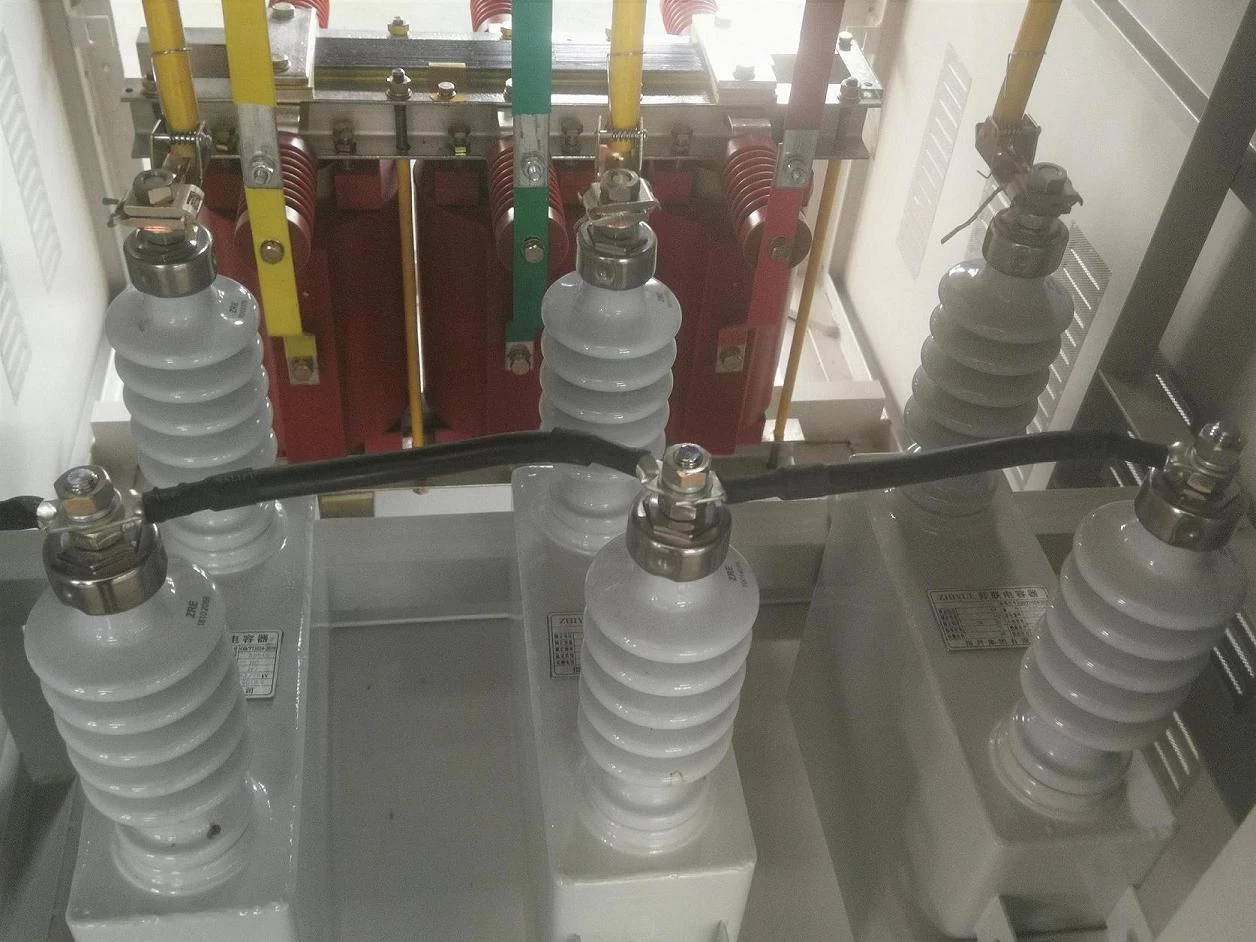

10Kv APFC PANEL Capacitors and Reactors
Features of 10kV APFC Panel
■Fast return on investment through lower power costs
Power factor correction reduces the reactive power in a system. Power consumption and power costs drop in proportion.
■Effective use of installation
An improved power factor means that an electrical installation operates more economicall (higher effective power for the same apparent power).
■Improved voltage quality
■Reduced voltage drops
■Optimum cable design
Cable cross-sections can be reduced with improvement of power factor (less current). In existing installations for instance, extra or higher power can be transmitted.
■Reduced transmission losses
The transmission and switching devices carry less current, i.e. only the effective power, meaning that the ohmic losses in the leads are reduced.
Application of 10KV APFC Capacitor banks
ZDDQ automatic capacitor banks are widely used for fluctuating loads such as motors, variable frequency drives, melting furnace from Steel Rolling mills,Chemical industry,Cement plant, Suger plant, Textile, Hospitals, Hotels, Building segment,Automobile industry,Oil and gas industry, public grid etc.
