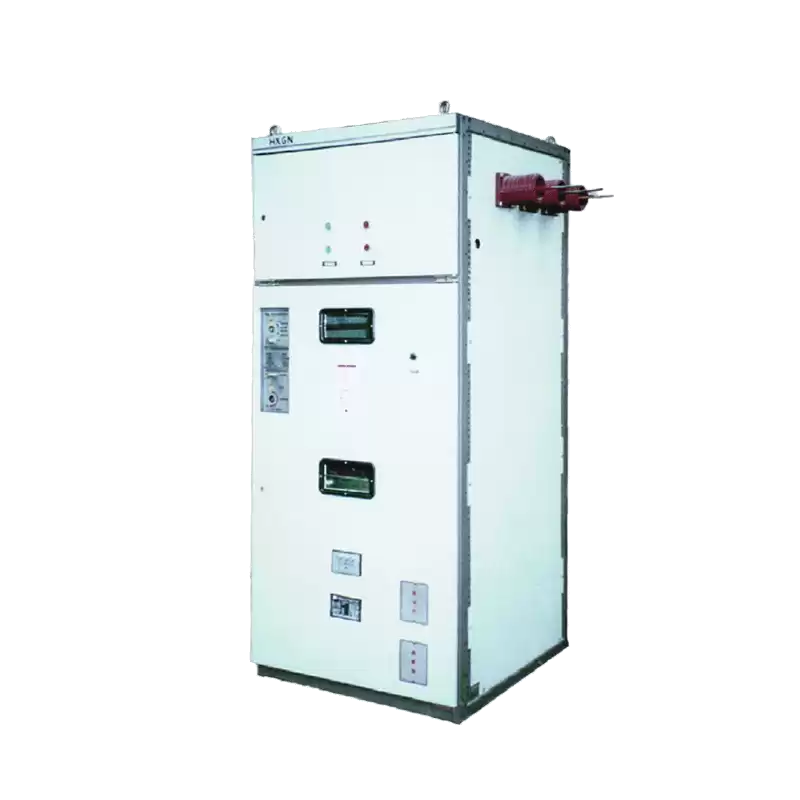

10kV Box-Type Fixed Metal-Clad Switchgear HXGN15-12ZF

The HXGN15(A)-12ZF(R) fixed metal-clad switchgear is tailored for high/medium voltage 10kV AC power distribution networks. Engineered for load current switching and short-circuit current interruption, it combines manual and electrically operated mechanisms to enhance safety and operational reliability. Its robust design makes it ideal for industrial facilities, substations, and commercial applications, ensuring efficient power management and fault protection.

Facebook Twitter Pinterest LinkedIn 分享







  • HXGN15-12ZF Box-Type Fixed Metal-Clad Switchgear Features
  • #
    Metal Enclosure
    Provides robust protection and safety for the electrical components.
  • #
    Flexible Operation
    Equipped with manual and electric spring mechanisms for easy handling.
  • #
    Safety Interlocks
    Designed with safety interlocks to prevent unauthorized or accidental operations.
  • #
    Minimal Maintenance
    Designed to reduce the frequency and complexity of maintenance tasks.
  • #
    Compact Design
    Space-efficient, making it suitable for various installation environments.















  • Specifications



Rated Voltage 12kV
Rated Current 630A
Main Bus Current Inlet Cabinet 630A
Outlet Cabinet 125A(Maximum)
Rated Short-Time Withstand Current 20kA
Rated Short-Circuit Duration Time 4s
Rated Peak Withstand Current 50kA
Rated Short-Circuit Closing Current  50kA
Rated Active Load Breaking Current 630A
Rated Closed Loop Breaking Current 630A
Rated Cable Charging Current 10A
Rated Short-Time Withstand Current of Grounding Switch 20kA
Rated Short-Circuit Duration Time of Grounding Switch 4(2)
Rated Peak Withstand Current of Grounding Switch 50kA
Rated Peak Closing Current of Grounding Switch 50kA
Rated Power Frequency Withstand Voltage (1min) Phase-to-Phase / Phase-to-Ground / Vacuum Breaker 42kV
Isolation Breaker 48kV
Rated Lightning Impulse Withstand Voltage Phase-to-Phase / Phase-to-Ground / Vacuum Breaker 75kV
Isolation Breaker 85kV
Mechanical Life Vacuum Load Switch 10000Times
Earthing Switch/Isolation Switch 2000Times
Transfer Current  3150A
