10kV Box-Type Fixed Metal-Clad Switchgear XGN Series

The XGN Series comprises two models: the XGN2-12 and XGN40-12, tailored for 10kV, 50Hz power systems. These modular metal-clad switchgears are engineered for efficient power reception, distribution, and protection, offering adaptability for diverse operational requirements. With robust designs and advanced technologies, they provide reliable performance in power plants, substations, industrial facilities, and urban grid systems. The XGN Series ensures high safety standards, easy installation, and minimal maintenance, making it an ideal choice for modern energy distribution networks.

Facebook Twitter Pinterest LinkedIn 分享

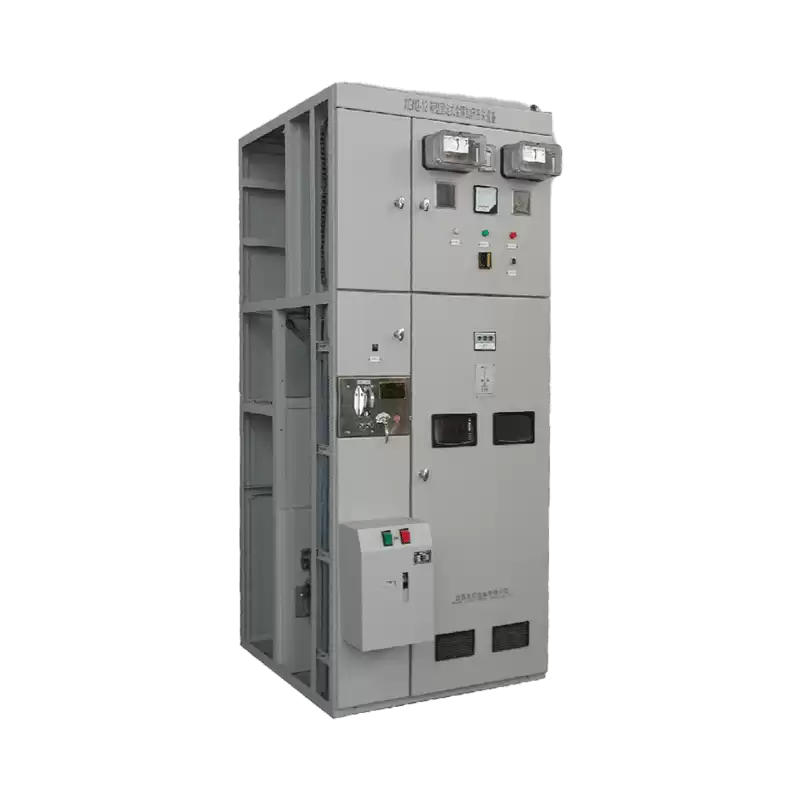

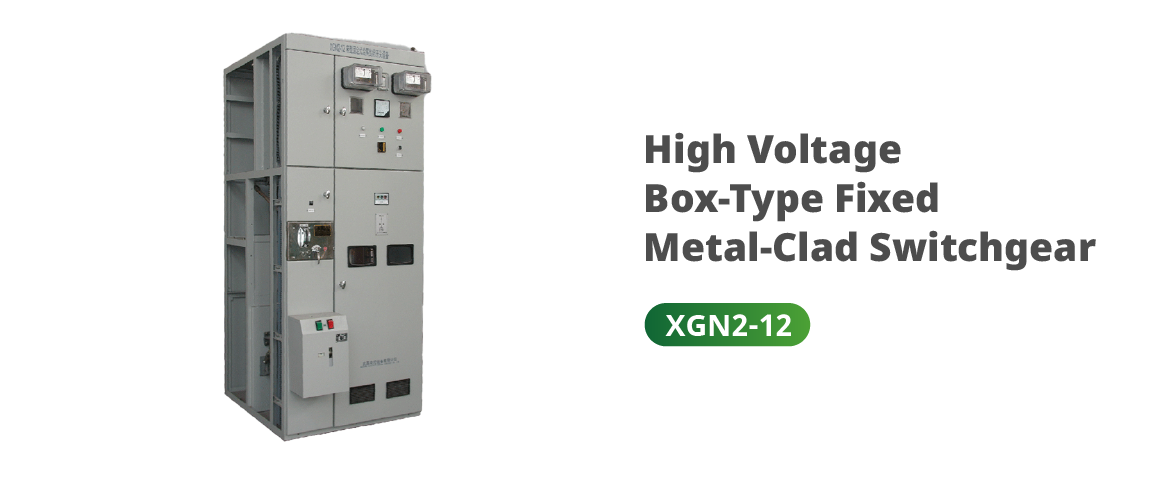

  • XGN2-12 Box-Type Fixed Metal-Clad Switchgear Features
  • #
    Robust Construction
    Fixed, metal-enclosed design with reliable insulation and isolation for enhanced safety.
  • #
    Flexible Breaker Options
    Equipped with ZN8A-10 vacuum circuit breakers, with CD10/CD17 electromagnetic options and CT8/CT17/CT19 spring mechanisms available.
  • #
    High Safety Standards
    Compliant with IEC62271-200 and GB3906 standards, featuring five interlock functions to prevent operational errors.
  • #
    Durable Components
    Includes GN30-10 rotary disconnect switches and high-current isolators, supporting both single bus and double bus configurations.











  • XGN2-12 Specifications



Rated Voltage 3.6/7.2/12kV
Rated Current 630/1000/1250/2000/2500/3150A
Rated Short-Circuit Breaking Current 20/31.5/40kA
Rated Short-Time Withstand Current (4s) 20/31.5/40kA
Rated Peak Withstand Current (4s) 50/80/100kA
Rated Short-Circuit Closing Current (Peak Value) 50/80/100kA
Ingress Protection Rating IP2X
Operating Mode Electromagnetic, Spring-Charged













  • XGN2-12 Application Scenarios



Industrial Power Plants



Substations



Commercial Power Systems



Frequent Operation Environments

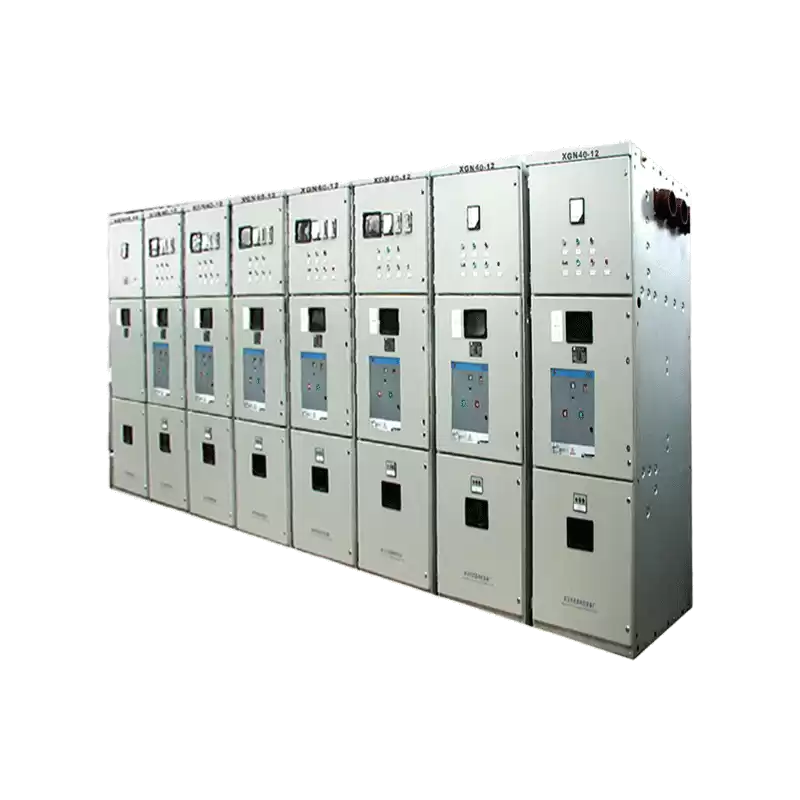

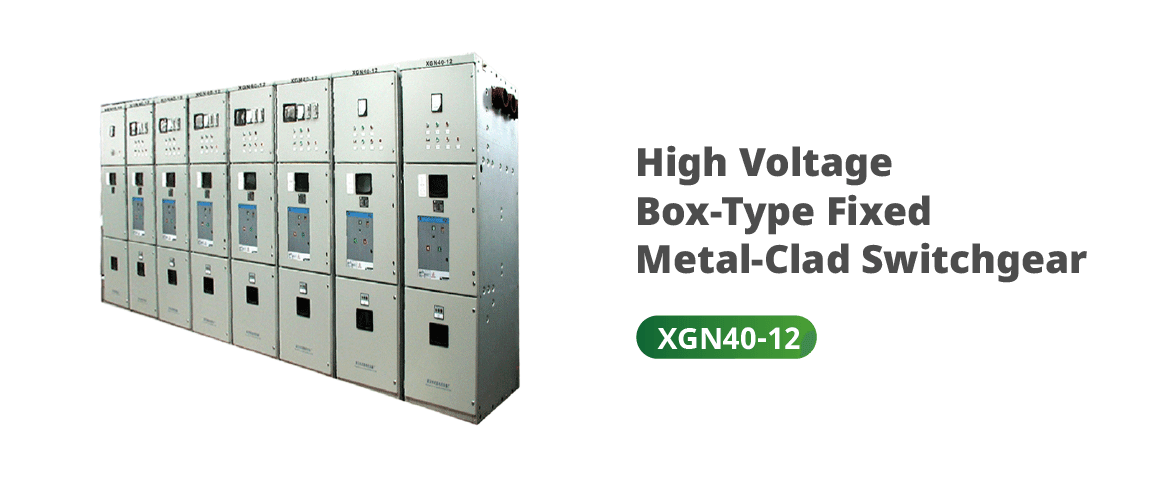

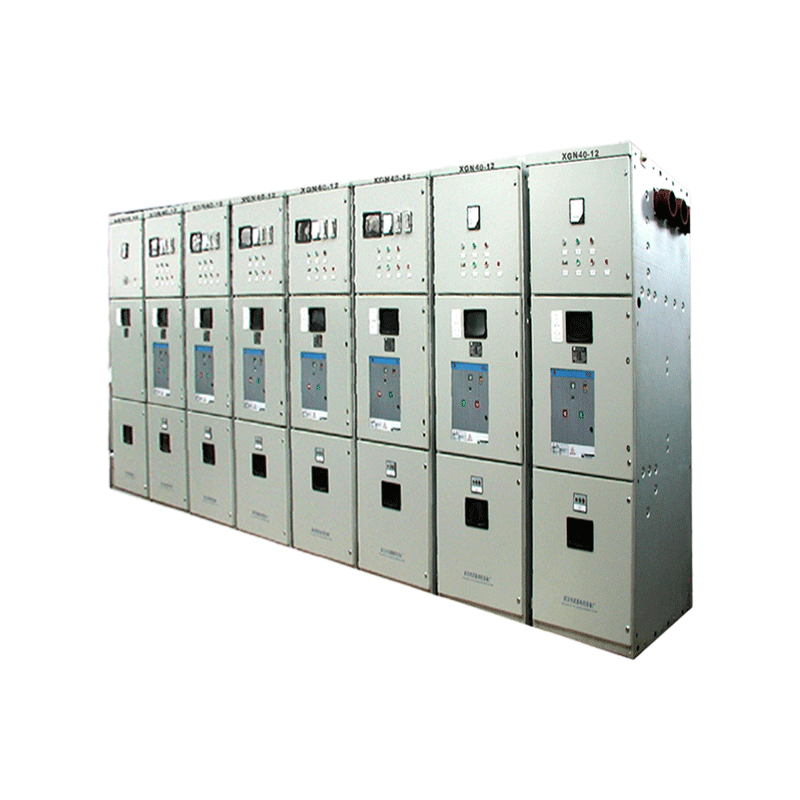

  • XGN40-12 Box-Type Fixed Metal-Clad Switchgear Features



     *Five Prevention refer to: Preventing Closing under Load, Preventing Opening under Load, Isolation Protection, Grounding Protection, Door Interlock Protection











  • XGN40-12 Specifications



Rated Voltage 3.6/7.2/12kV
Rated Current 630/1000/1250kA
Rated Frequency 50Hz
Rated Short-Time Withstand Current 16/31.5/40kA
Rated Peak Withstand Current 40/80kA
Rated Short-Circuit Duration Time 4s
Rated Breaking Current 16/31.5/40kA
Ingress Protection Rating IP3X
Rated Insulation Level Main Circuit Rated Power Frequency Withstand Voltage (1min) 44.5kV
Rated Lightning Impulse Withstand Voltage 79.5kV
Auxiliary Circuit Rated Power Frequency Withstand Voltage (1min) 2000V
Rated Voltage Of Auxiliary Circuit AC220/110V;DC220/110V













  • XGN40-12 Application Scenarios



Industrial Facilities



Commercial Buildings



Substations













  • XGN40-12 / XGN2-12 Battle Card



XGN2-12 VS. XGN40-12
Fixed metal-enclosed design Design and Construction Compact and lightweight construction, making it suitable for indoor use
Flexible breaker options with ZN8A-10 vacuum circuit breakers Breaker Options Advanced VS1 or VSm vacuum circuit breakers for enhanced performance
Provides a more traditional layout Maintenance Accessibility Higher breaker chamber for convenient maintenance
