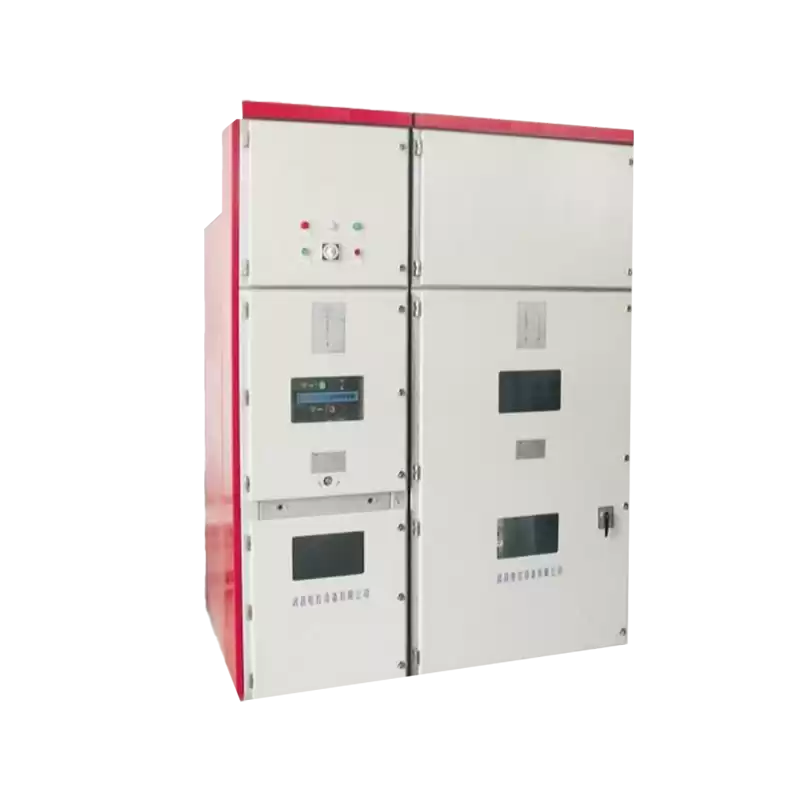

10kV Compact Withdrawable Metal-Clad Switchgear XYN20-12

The XYN20-12 compact box-type withdrawable switchgear is engineered for 3.6–12kV, 50Hz indoor power systems. Designed for reliable power reception, distribution, and control in space-constrained environments, it integrates the strengths of XGN2-12 and KYN28A-12 models. Featuring advanced insulation, safety mechanisms, and modular design, it ensures optimal functionality for industrial facilities, substations, and urban power grids. Its versatility and efficient performance make it a preferred choice for modern energy systems.











  • XYN20-12 Compact Withdrawable Metal-Clad Switchgear Features
  • # Efficient Layout

    Allows for wall-mounted positioning, front installation, and maintenance. Equipped with a removable vacuum circuit breaker and conveniently placed fixed components like current transformers for easy servicing.
  • # Space-Saving Design

    Standard model (800mm width, 1200mm depth) and compact model (650mm width, 1050mm depth), reducing the overall footprint.
  • # Air Insulation

    Fully air-insulated, ensuring reliable operation with minimal space requirements, ideal for primary and secondary substations and high-voltage distribution rooms.











  • Specifications



Rated Voltage 12kV
Rated Current 1250A
Rated Frequency 50Hz
Rated Short-Time Withstand Current 31.5kA
Rated Peak Withstand Current 80kA
Rated Short-Circuit Duration Time 4s
Rated Short-Circuit Breaking Current 31.5kA
Ingress Protection Rating IP3X
Rated Insulation Level Main Circuit Power Frequency Withstand Voltage (1min) 42kV
Impulse Withstand Voltage 75kV
Auxiliary Circuit Power Frequency Withstand Voltage (1min) 2000V
Rated Voltage Of Auxiliary Circuit AC220/110V;DC220/110V
Dimensions(W*D*H) 800/650*1200/1050*2400mm















  • Application Scenarios



Substations



Commercial Power Systems



Frequent Operation Environments
