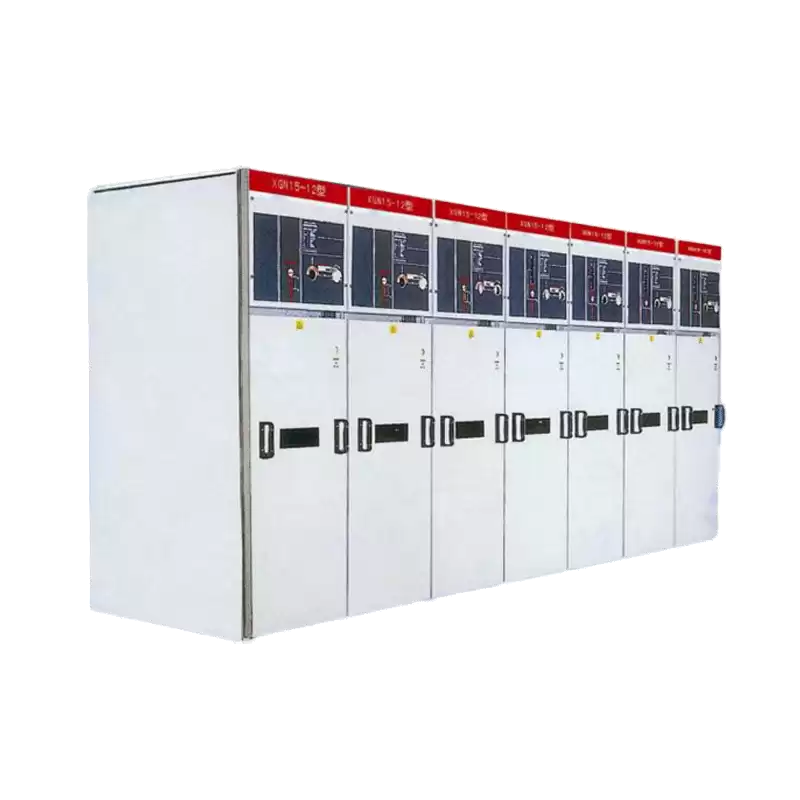

10kV Modular Metal-Clad Switchgear XGN15-12

The XGN15-12 Modular Metal-Clad Switchgear is a state-of-the-art solution for AC 50Hz, 10kV distribution networks. Designed for efficient electrical energy distribution, it combines advanced international technologies with a modular structure for easy installation and maintenance. This next-generation high-voltage switchgear ensures reliable performance in industrial and commercial applications, meeting stringent safety and quality standards. With proven durability and comprehensive testing certifications, it is ideal for power plants, substations, industrial parks, and other demanding environments.









  • XGN15-12 Modular Metal-Clad Switchgear Features
  • #
    Reliable Performance
     Effectively interrupts low-value inductive and capacitive currents.
  • #
    Durable Construction
    Made from galvanized aluminum-zinc, achieving IP3X protection and reliable anti-misoperation features.
  • #
    Compact & Lightweight
    Designed for ease of operation and maintenance, featuring a compact structure that enhances reliability.
  • #
    Minimal Maintenance
    Short arc duration and quick insulation recovery for long life and minimal upkeep.
  • #
    High-Quality Components
    Utilizes original ABB SFL-12/24 type or equivalent SF6 switchgear for main switches and operating mechanisms, with both manual and electric operation modes.















  • Specifications





Rated Voltage 12kV
Rated Frequency 50/60Hz
Main Busbar Rated Current 630A
Rated Short-Time Withstand Current of Ground Circuit(3s) 20kA
Rated Peak Withstand Current of Main Circuit and Ground Circuit 50kA
Rated Short-Circuit Withstand Current of Main Circuit and Ground Circuit 50kA
Rated Breaking Operations of Load Switch 100Times
Rated Transfer Current 1700A
Maximum Rated Current of Fuse 160A
Breaking Current of Fuse 31.5-50kA
Mechanical Life 5000Times
Rated Power Frequency Withstand Voltage (1min,Effective Value) 42kV(Phase-to-Phase / Phase-to-Ground)
48kV(Isolation Breaker)
Rated Lightning Impulse Withstand Voltage (Peak Value) 75kV(Phase-to-Phase / Phase-to-Ground)
85kV(Isolation Breaker)
Secondary Circuit Rated Power Frequency Withstand Voltage(1min) 2kV
Ingress Protection Rating IP3X

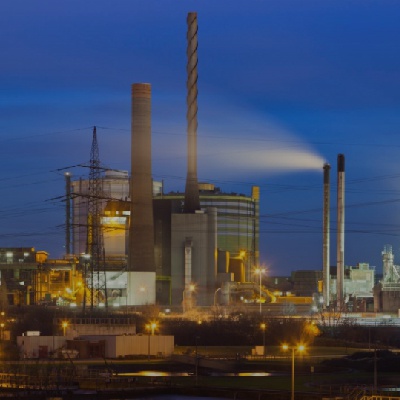

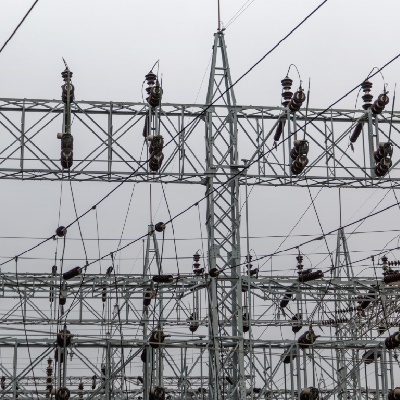

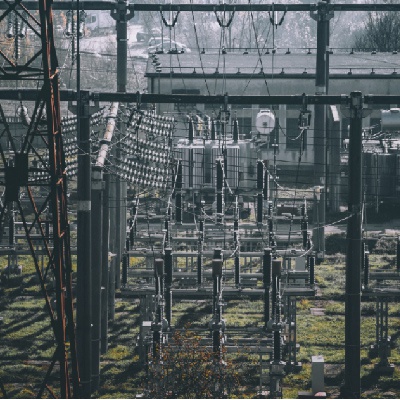

  • Application Scenarios
