10kV Protective Fixed Metal-Clad Switchgear GG-1A(F)

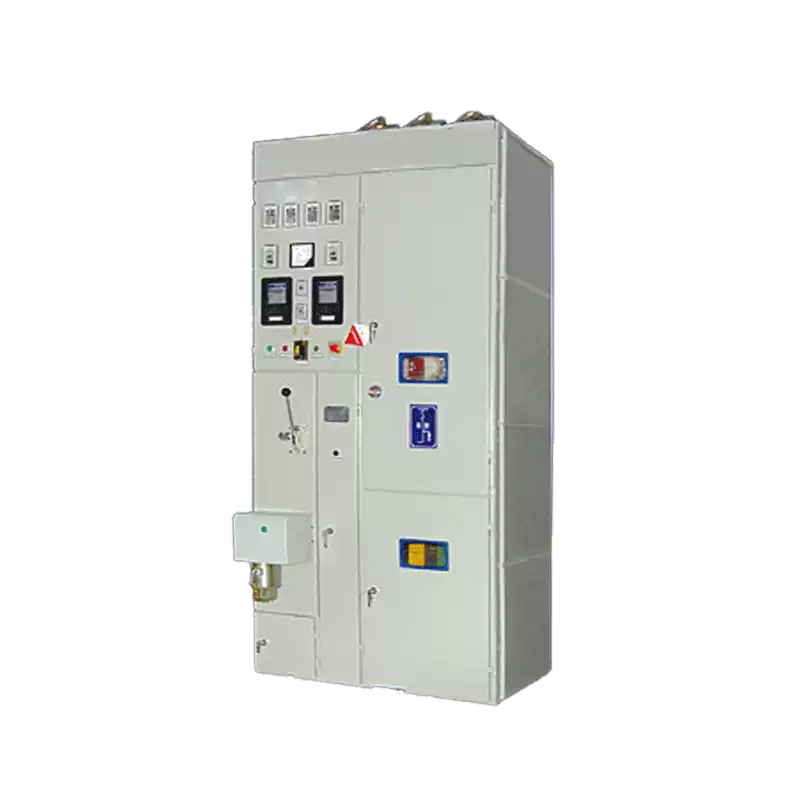

The GG-1A(F) Fixed Metal-Clad Switchgear is a high-performance solution for high-voltage applications ranging from 3kV to 10kV. Engineered for the reliable starting, control, and operation of high-voltage motors, it ensures stable performance in industrial environments such as factories, power plants, and mining operations. Featuring a durable metal-clad design, it provides enhanced protection, operational safety, and long-term reliability. With its compact structure and ease of maintenance, the GG-1A(F) switchgear is ideal for critical power systems requiring high efficiency and minimal downtime.

Facebook Twitter Pinterest LinkedIn 分享

Description

GG-1A(F) Protective Fixed Metal-Clad Switchgear Features

Durable Construction
Welded steel frame with thin steel panels ensures robust protection and a spacious layout, separating upper (breaker and relay rooms) and lower (cable room) sections for better organization.
Enhanced Safety Mechanisms
Anti-misoperation mechanisms prevent unintended access or operation, while an IP2X rating safeguards against intrusion from small animals and foreign objects.
System Isolation & Insulation
Independent isolation of primary and secondary devices with a 125 mm air insulation distance, utilizing reinforced insulation for enhanced safety.
User-Friendly Design
Operational doors and a 600 mm cable height enhance ease of use and simplify installation, making it accessible for operators.

Specifications

Rated Voltage		3-10kV
Rated Frequency		50Hz
Rated Current		Up to 3000A
Rated Insulation Level	Rated Power Frequency Withstand Voltage (1min)	24/32/42kV
	Rated Lightning Impulse Withstand Voltage	40/60.75kV
Rated Thermal Withstand Current (4S)		20/25/31.5/40kA
Rated Dynamic Withstand Current (Peak Value)		50/63/80/100kA
Rated Short-Circuit Breaking Current		20/25/31.5/40kA
Rated Short-Circuit Closing Current (Peak Value)		50/63/80/100kA
Enclosure Ingress Protection Level		IP2X
