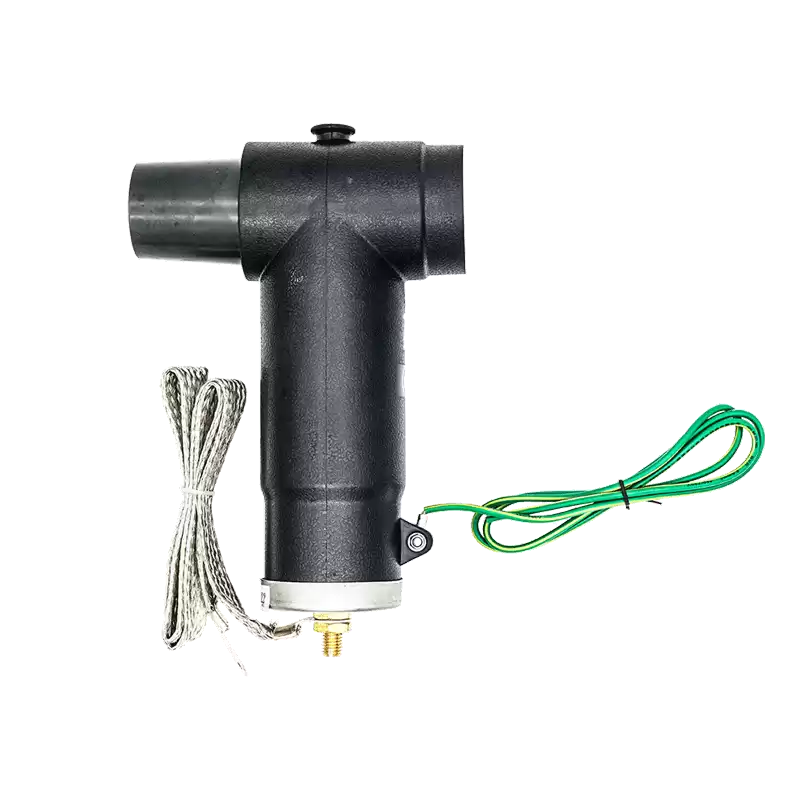

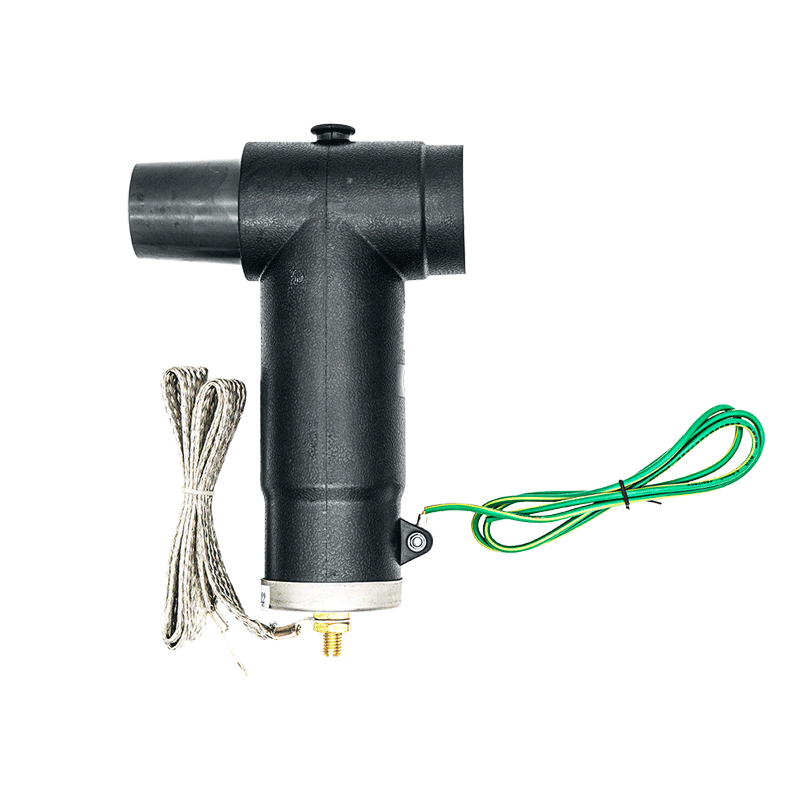

10kV Screen Rear Arrester European Type Cable Accessories

The 10kV Screen Rear Arrester is a high-performance, fully insulated, touch-safe, and shielded device, crafted from premium EPDM for waterproof and moisture-proof protection. Designed to protect electrical equipment from lightning strikes and over-voltage, it ensures reliable surge protection in harsh conditions. Ideal for use in cable branches, ring main units (RMUs), and medium-voltage networks, it provides essential protection for both indoor and outdoor applications.

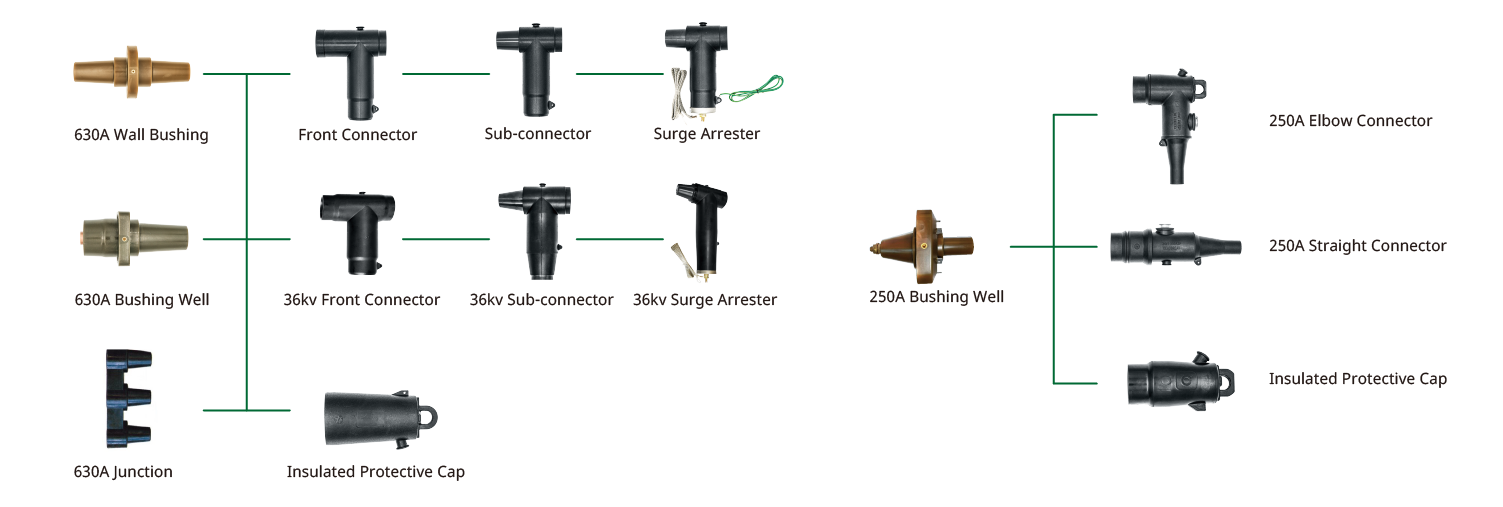

  • IEC Standard European Type Cable Accessories Overview
















  • 10kV Screen Rear Arrester Series

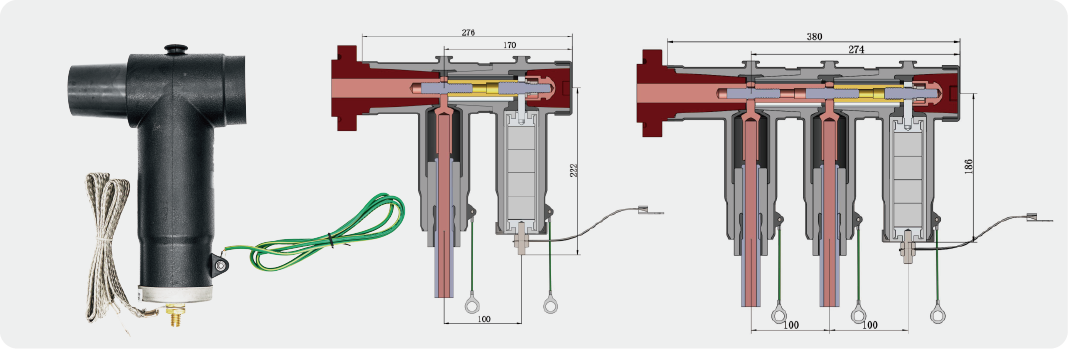

CEE KBLQ 10/27 Front Connector

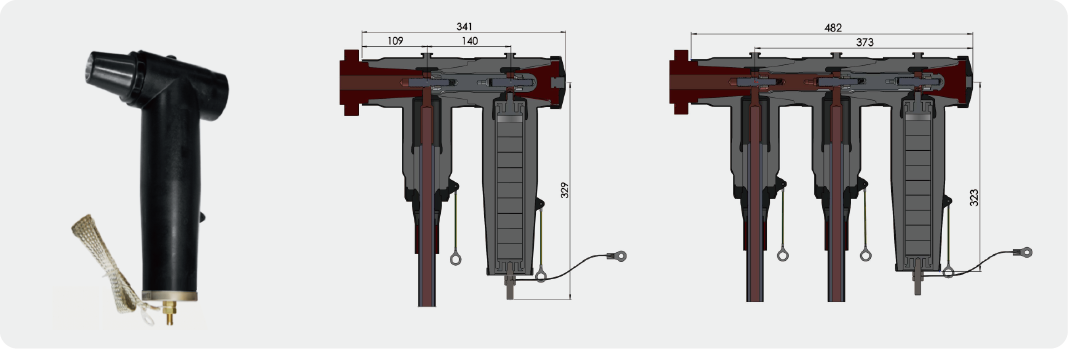

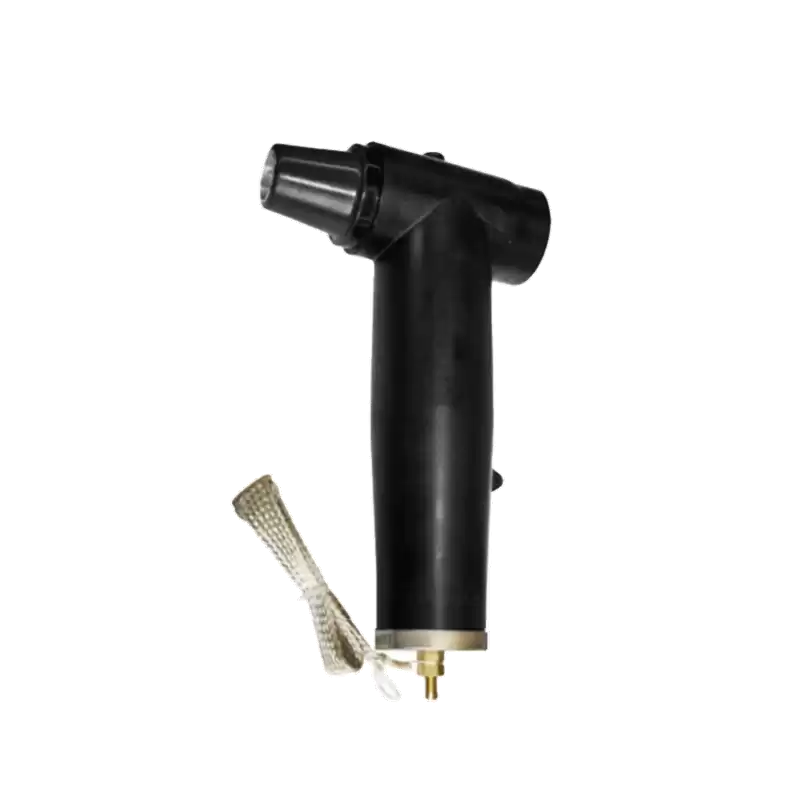

CEE KBLQ 26/66 Front Connector

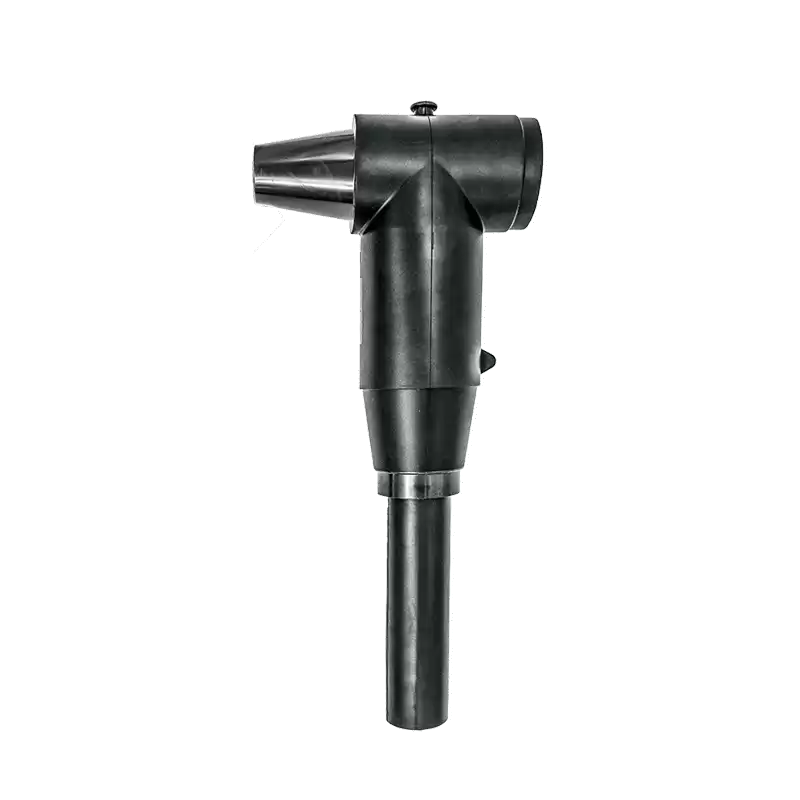

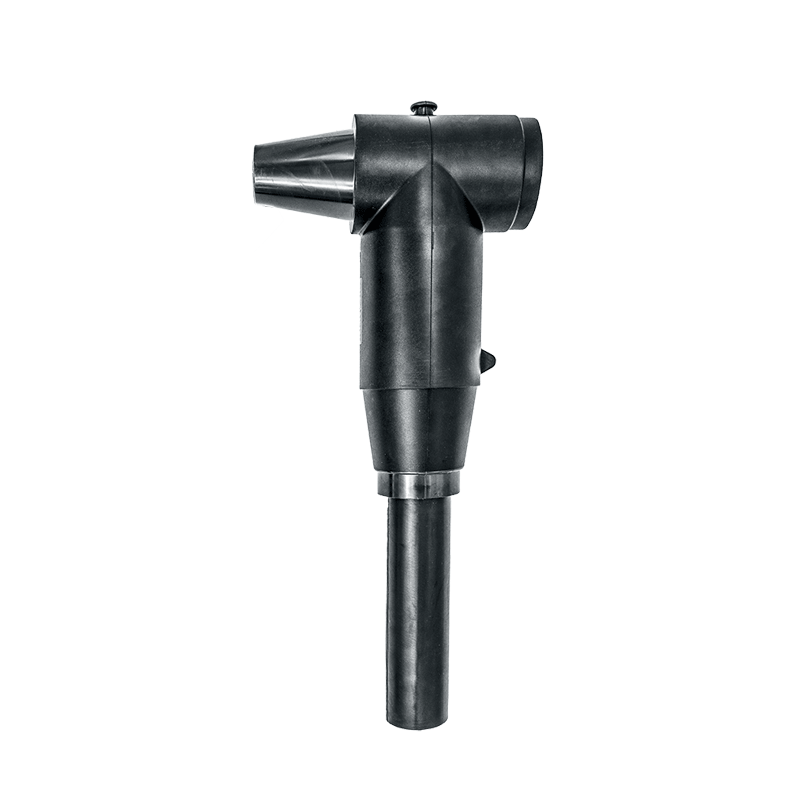

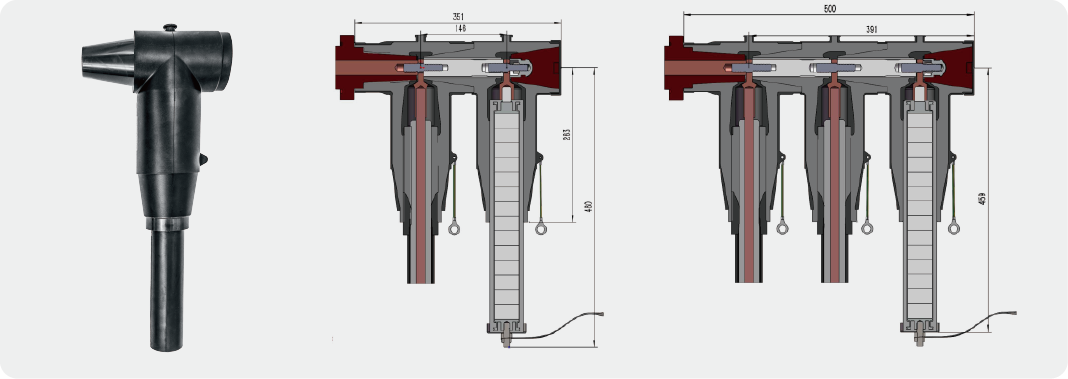

CEE KBLQ 54/134 Front Connector















  • Features

Safety & Protection

Applications

Compact,  Fully Shielded, and Toch-Safe

High-Quality EPDM Housing, Waterproof, Moisture-Proof

Protect Electric Apparatus from Lightning and Over-Voltage

Ideal for Ring Main Units and Cable Branches















  • Specifications







CEE KBLQ 10/27
CEE KBLQ 10/30



CEE KBLQ 17/45
CEE KBLQ 17/50
CEE KBLQ 24/66 CEE KBLQ 34/85 CEE KBLQ 54/134
Rated Voltage 17KV 17KV 26KV 34KV 51KV
Continous Operation Volatage 13.6KV 13.6KV 20.8KV 27.2KV 40.8KV
Nominal Discharge Current 5KA 5KA 5KA 5KA 5KA
At D.C. 1mA Voltage U1mA ≥24KV ≥24KV ≥37KV ≥48KV ≥73KV
Leaking Current at D.C.0.75 U1mA ≤50μA ≤50μA ≤50μA ≤50μA ≤50μA
2ms Rectangular Withstand Current  150A 150A 150A 150A 400A
Max Residual Voltage (5kA Lighting Impulse) 45KVp 45KVp 66KVp 85KVp 134KVp
