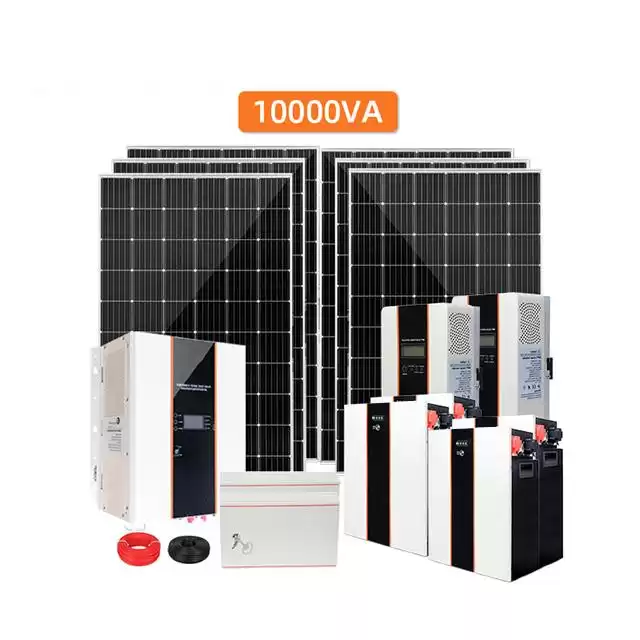

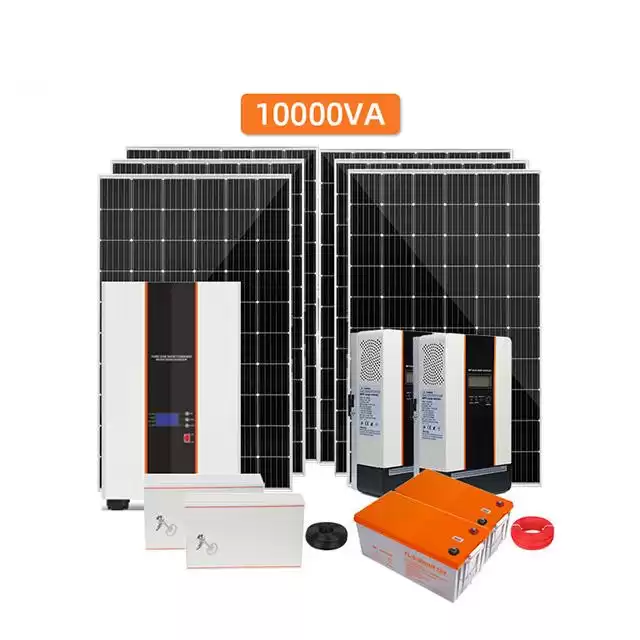

FOTOVO 10KVA Off Grid Solar System Power Plant Design Solution
Product Description
Brief Introduction

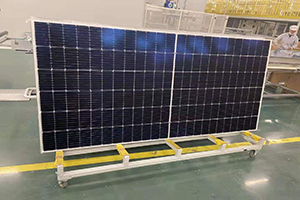

(1)Solar cell module
Solar modules is a major part, but also the value of the highest solar power system components, its role is to convert the sun's radiant energy to DC power.
(2)Solar Charge Controller
Solar Charge Controller, also known as "PV Controller", whose role is issued by the solar cell module to adjust and control power, maximize battery charge, and played a battery charge protection, over-discharge protection effect. Place in a large temperature difference, solar controller should have temperature compensation function.
(3)Battery
Its main task is battery energy storage in order to ensure that the load-day electricity at night or rainy.
(4) Battery Box and Wires
Battery box is helpful for storage and usage of battery. And we choose special PV wires for the solar power system.
(5)Off-grid inverters
Off-grid inverter is the core component of off -grid power system, is responsible for converting direct current to alternating current for AC load use. In order to improve the overall performance of photovoltaic power generation system to ensure long-term stable operation of the power station, the inverter performance is very important.
Advantages of Off Grid Solar System
1.All systems has LCD digital display.(Can see the system working condition, such as system voltage, system power,charge current,etc)
2.All systems have AC and DC output,and also have AC charger function for backup.
3.When the electricity off, it can switch automatically and take use of battery power to run load.When power on it also can switch automatically and
take use of main power (utility electric/generator electric),at the same time charging battery.
4.The inverter is pure sine wave inverter,it can load inductive load such as air condition very smooth .
5.Each component has single chip detect which protected itself.(Over-voltage protection ,low-voltage alarm.overload protection ,over-heat protection ,short-circuit protection,etc)
6.Battery for option , there are many kinds of battery you can use in the system , not only using our battery .
7.Solar power system can update configuration easily, we will provide a professional advice for you according to your inquiry.
8.Easy installation ,we will provide the install files and data to you .
9.Competitive price with high quality solar power system , professional technology and more function than other company
10.Long lifespan, due to quality system components.
Equipment Parameters
|
ITEM
|
NAME
|
DESCRIPTION OF GOODS
|
QUANTITY(SETS)
|
|
1
|
inverter
|
48V 10KVA OFF GRID POWER INVERTER, WITH BY PASS CHARING FUNCTION AND AC/DC PRIORITY ADJUSTABLE
|
1
|
|
2
|
solar panel
|
450W 30V MONO SOLAR PANEL, WITH HIGH EFFICIENCY CELLS
|
24
|
|
3
|
lithium battery
|
48V 10KWH SOLAR LITHIUM IRON PHOSPHATE BATTERY
|
3
|
|
4
|
junction box
|
PV junction box for solar panel, 6 IN 1 OUT
|
2
|
|
5
|
cable
|
CABLE FOR 10KVA CONNECTION
|
1
|

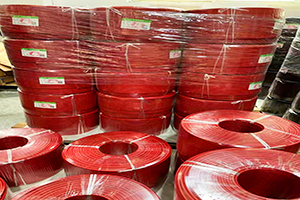

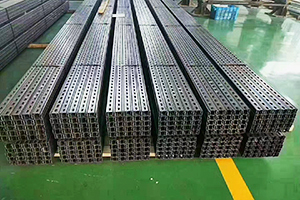

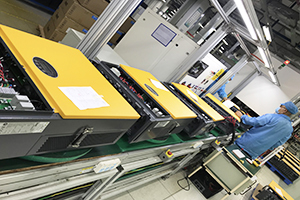

Factory&Delivery
|
|
|
|
|
|
|
|
We have Wooden&Pallet&Single Carton Package for customer,welcome to inquiry.
|

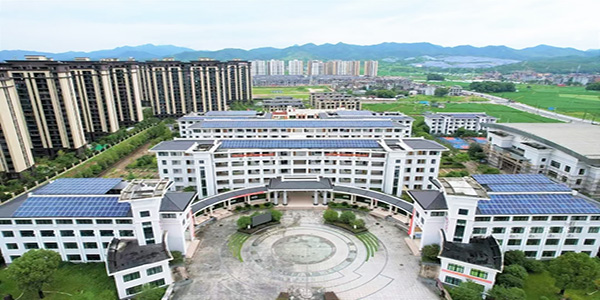

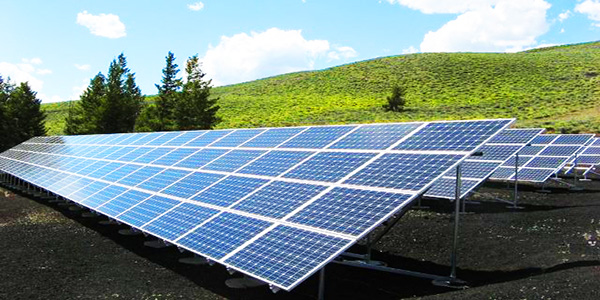

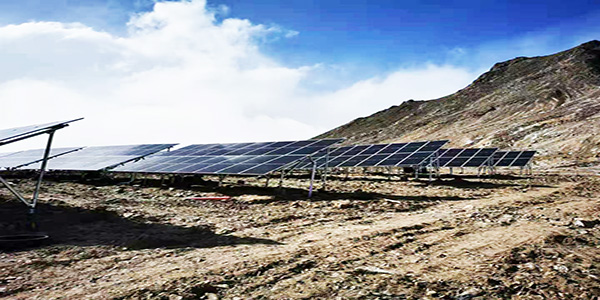

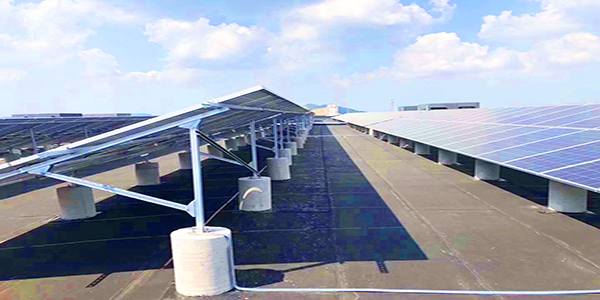

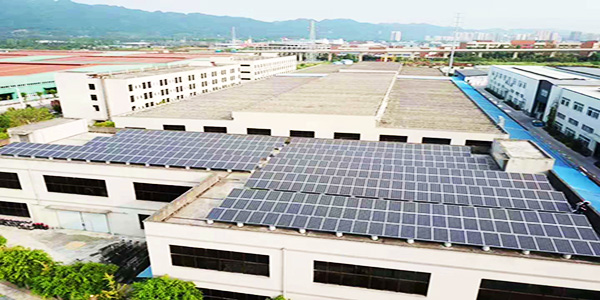

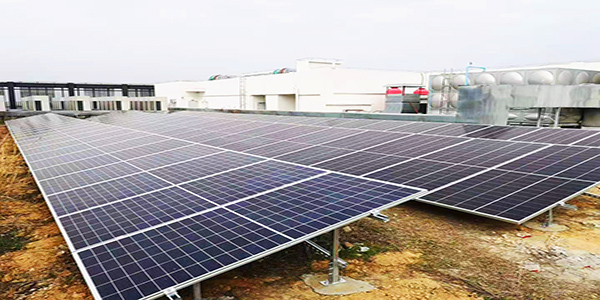

Global Projects
|
|
|
100 kw project in Australia.
|
50kw project in Finland.
|
|
|
|
30kw project in Anhui,China.
|
22kw project in Mexico.
|
|
|
|
200KW project in tibet,China.
|
1MW project in Poland.
|
FAQ
|
1.If you can design my roof mounting structure?How can i get it?
A:yes ,we are professional in solar mounting system.Please send us your high-definition picture and size of the roof,we will work on it.Thank you!
2.Can the off-grid system be configured according to my home electricity consumption?
A:Of course.We provide professional customized services for our customers.
3.Are your certifications complete?
A:Sure,We have exported systems to more than 30 countries, covering Europe, America, Asia, Africa and Australia. The certification is very complete .
4.Do you still sell hybrid solar system?
A:Yes,we sell hybrid solar system.Please check our website or send inquiry to us.
5.How do your company deal with the problem on quality?
A:Our company has been doing this industry for more than 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
|
