Features
Bypass charging function,AC charge available when the unit off
90-280V AC Widely input voltage
Grid electricity and battery power priority is optional.
Higher charge current and adjustable
Communicate with our MPPT charge controller.
Intelligent protection, high class of security.
Data Sheet
|
Model
|
IVPM10048
|
|
DC Input Voltage
|
48V
|
|
Rated output power(VA)
|
10000VA 8000W
|
|
Rated output power(W)
|
8000W
|
|
Input voltage waveform
|
Sine(public facility or generator)
|
|
Rated input voltage
|
220vac
|
|
Grid low voltage
|
90Vac±7Vac
|
|
Grid low voltagerecovery voltage
|
100Vac±7Vac
|
|
Grid high voltage
|
280Vac±7Vac
|
|
Grid high voltage recovery voltage
|
270Vac±7Vac
|
|
Max input voltage
|
280Vrms
|
|
Rated input frequency
|
50Hz/60Hz
|
|
Grid underfrequency
|
40±1Hz
|
|
Grid underfrequency recovery
|
42±1Hz
|
|
Grid overfrequency
|
65±1Hz
|
|
Grid overfrequency recovery
|
43±1Hz
|
|
Output waveform
|
Synchronize with input voltage
|
|
Overload protection
|
Air switch protection
|
|
Output short circuit protection
|
Air switch protection
|
|
Efficiency(grid)
|
≥95%
|
|
Switching time(AC TO DC)
|
15ms Typical value
|
|
Switching time(DC TO AC)
|
15ms Typical value/30ms special value
|
|
Through battery free
|
NO
|
|
Grid max bypass current
|
60A
|
|
Charging parameter
|
|
Rated input voltage
|
220Vac
|
|
Input voltage range
|
90-280Vac
|
|
Rated voltage output
|
Depending on batty type
|
|
Max charging current
|
80A
|
|
Adjustable charging current range
|
0-80A
|
|
Initial voltage of the battery
|
Breaker
|
|
Charging short circuit current
|
63A
|
|
Breaker size
|
Dependent on battery type or self-defined
|
|
Overcharge protection
|
Yes
|
|
MPPT Charging&Grid Charging(MPPT built-in controller is option)
|
|
Max PV open circuit voltage
|
195V
|
|
PV voltage working range
|
60-195VDC
|
|
Max input power
|
6600W
|
|
Max mains charging current
|
120A
|
|
Max charging current(mains+solar energy)
|
200A
|
PRODUCT LINE
COMPANY INFORMATION

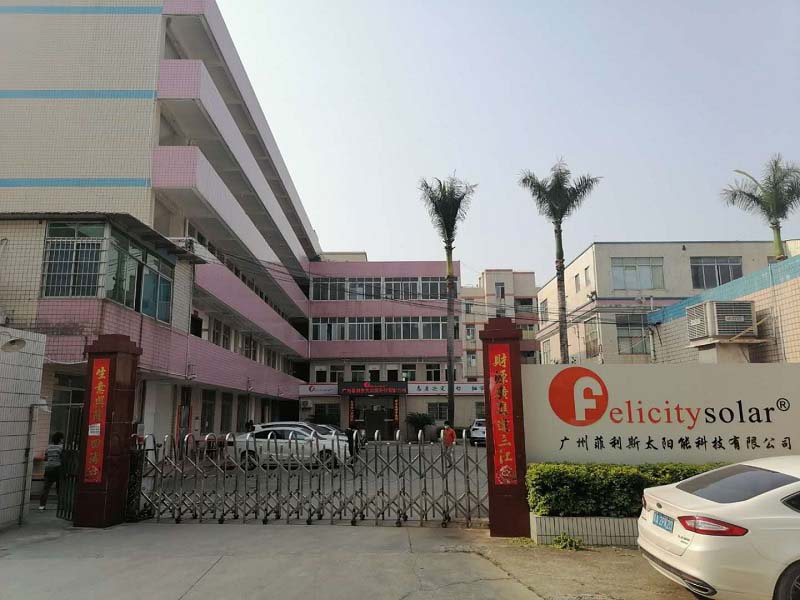

Established in 2007, Felicity solar is an integrated company with sophsticated R&D team, experienced production lines, mature sales department, skillful installation engineers and after-sales service.
FAQ
Q1:What is different between IVPL 10KVA and IVPM 10KVA Inverter？
A1:There is 120A MPPT controller bulit in IVPM10KVA, No controller in IVPL10KVA
Q2: how is the lifespan of this inverter ？
A2: Normally, it is over 5 years
Q3:How many years warranty period？
A3:We provide 2 years warranty for solar inverter.
Q4:What's the lead time?
A4:Sample lead time:7 days.Order lead time:25-30 days
Q5:Where is your factory located? How can I visit there?
A5:Our factory is located in Guangzhou City, Guangdong Province, China,All our clients from home or abroad, are warmly welcome to visit us!
