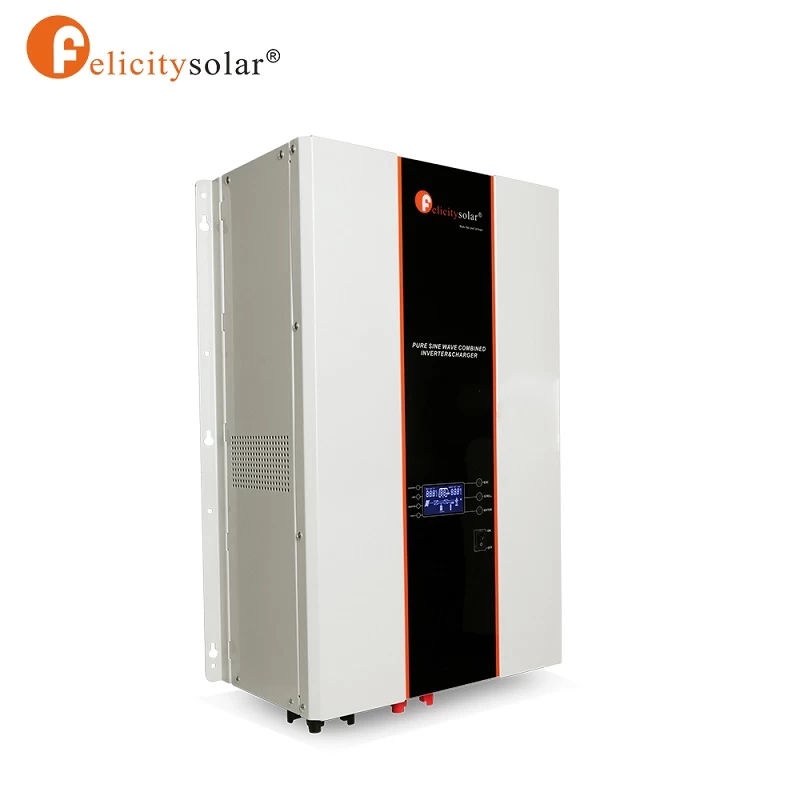

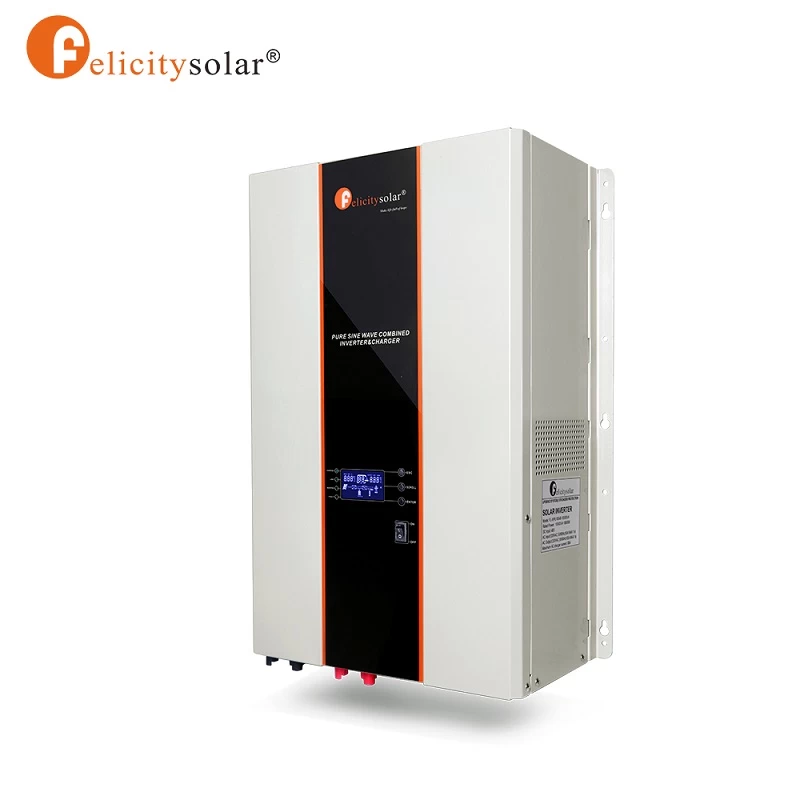

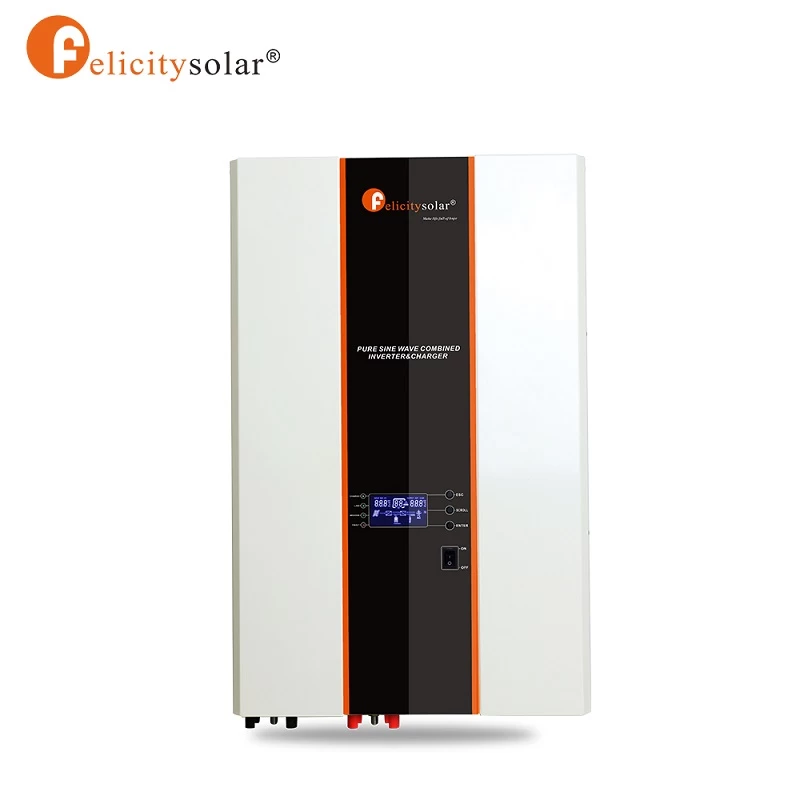

Solar inverter, or converter, or PV inverter converts the variable DC output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be off-grid electrical network. It is a critical balance of system–component in a solar power system, allowing the use of ordinary AC-powered equipment
Advantage
●Bypass charging function: when the unit off, it can be activated with bypass output
and can charge the battery.
●High charging current, max charging current can be set to 80A for 10048,Easy and
clear to set 0A, 10A,20A,30A, 40A,50A,60A,70A,80A.
●Wide range of AC input voltage: the range of AC input voltage is 90-280V. It can be
better compatible with generator working. It is rare to have wide range input voltage for
the power frequency inverter.
●Electricity and battery priority is optional: customer can choose Electricity or battery priority
according to their needs.
Data Sheet
|
Model
|
IVPL10048
|
|
DC Input Voltage
|
48V
|
|
Rated output power(VA)
|
10000VA 8000W
|
|
Rated output power(W)
|
8000W
|
|
Input voltage waveform
|
Sine(public facility or generator)
|
|
Rated input voltage
|
220vac
|
|
Grid low voltage
|
90Vac±7Vac
|
|
Grid low voltagerecovery voltage
|
100Vac±7Vac
|
|
Grid high voltage
|
280Vac±7Vac
|
|
Grid high voltage recovery voltage
|
270Vac±7Vac
|
|
Max input voltage
|
280Vrms
|
|
Rated input frequency
|
50Hz/60Hz
|
|
Grid underfrequency
|
40±1Hz
|
|
Grid underfrequency recovery
|
42±1Hz
|
|
Grid overfrequency
|
65±1Hz
|
|
Grid overfrequency recovery
|
43±1Hz
|
|
Output waveform
|
Synchronize with input voltage
|
|
Overload protection
|
Air switch protection
|
|
Output short circuit protection
|
Air switch protection
|
|
Efficiency(grid)
|
≥95%
|
|
Switching time(AC TO DC)
|
15ms Typical value
|
|
Switching time(DC TO AC)
|
15ms Typical value/30ms special value
|
|
Through battery free
|
NO
|
|
Grid max bypass current
|
60A
|
|
Charging parameter
|
|
Rated input voltage
|
220Vac
|
|
Input voltage range
|
90-280Vac
|
|
Rated voltage output
|
Depending on batty type
|
|
Max charging current
|
80A
|
|
Adjustable charging current range
|
0-80A
|
|
Initial voltage of the battery
|
Breaker
|
|
Charging short circuit current
|
63A
|
|
Breaker size
|
Dependent on battery type or self-defined
|
|
Overcharge protection
|
Yes
|

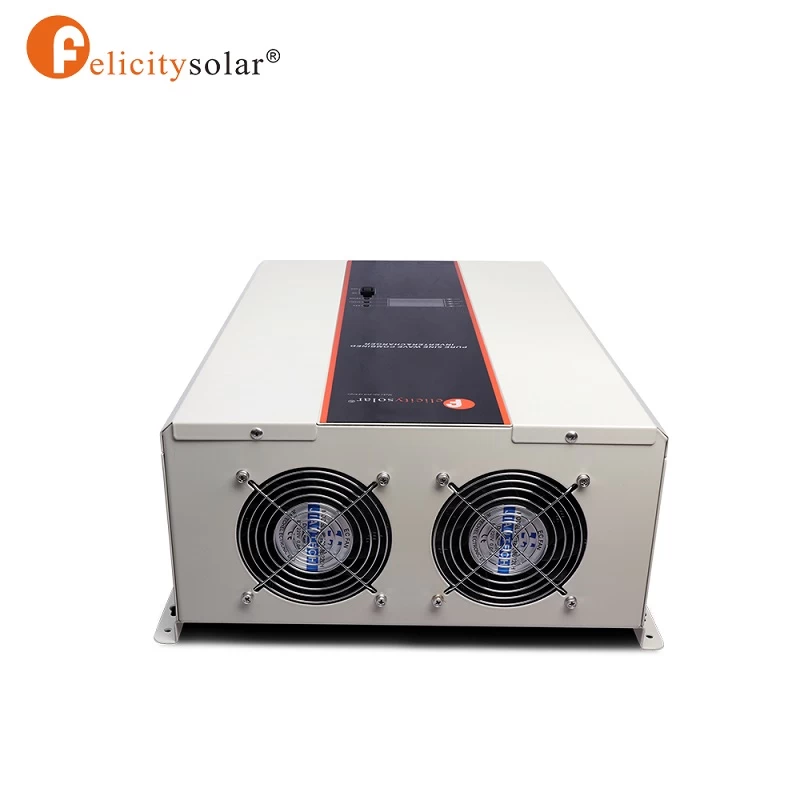

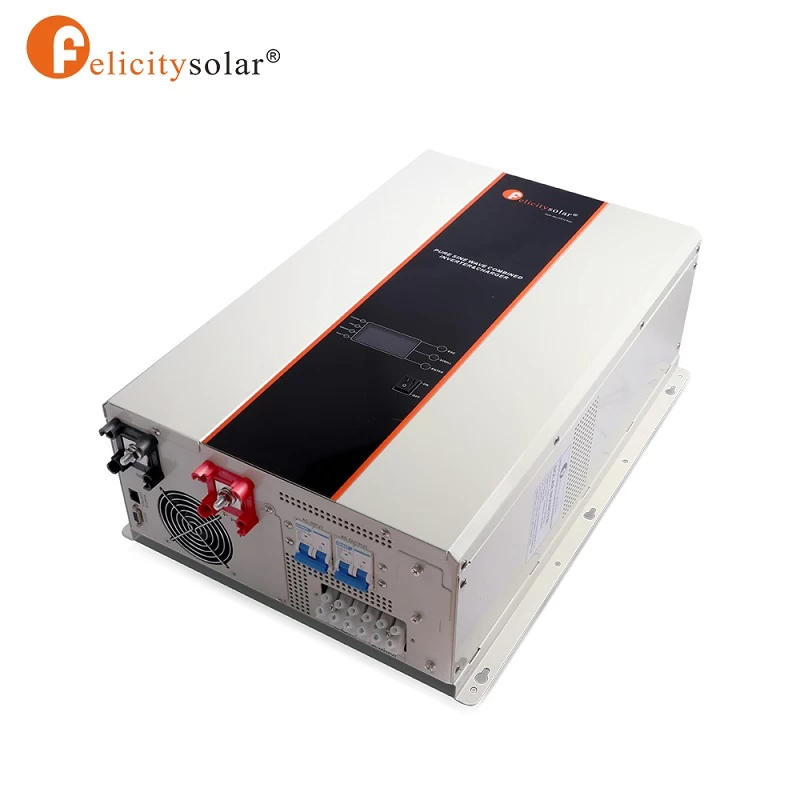

PRODUCT VIEW

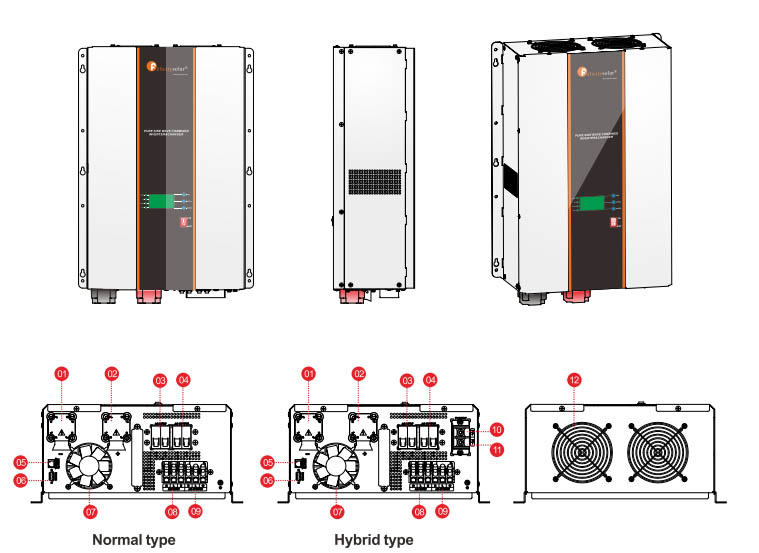

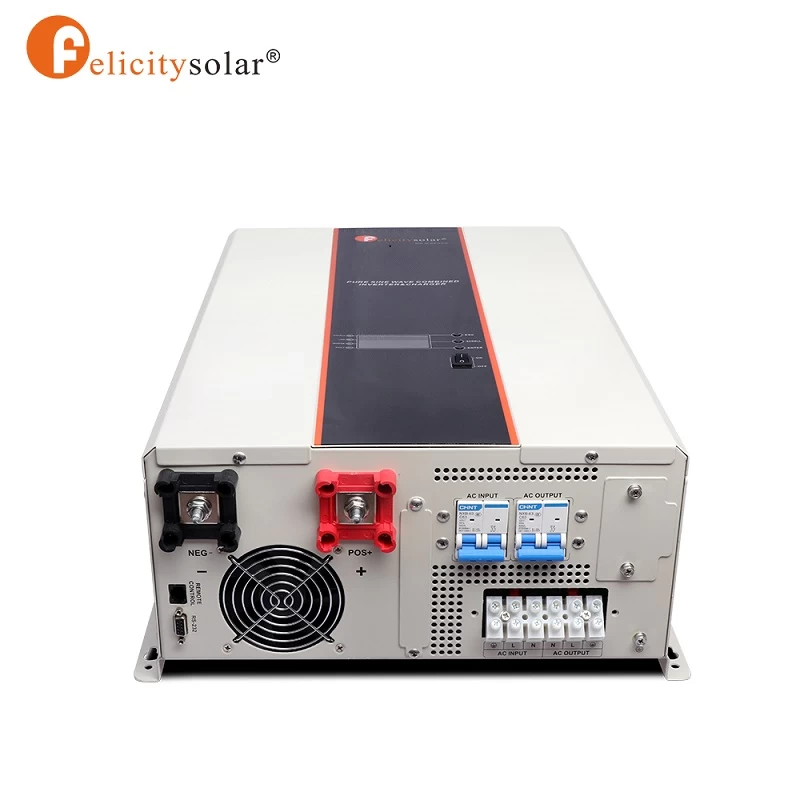

1. Battery negative terminal
2. Battery positive terminal
3. AC Input breaker
4. AC Output breaker
5. Remote control
6. RS-232
7. Fan
8. AC Input terminal
9. AC Output terminal
10. PV positive terminal
11.PV positive terminal
12. Fan

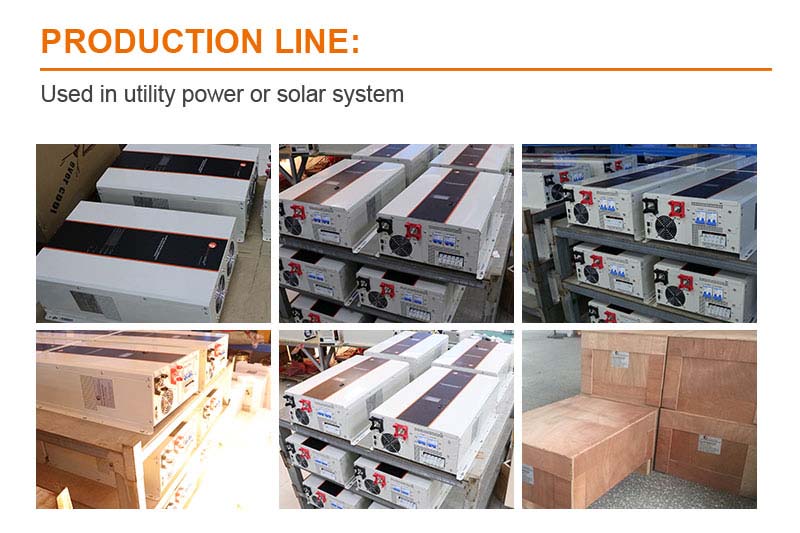

PRODUCT LINE
