10KW 100A Lithium battery smart charger
1.Product Introduction:
10KW 100ALithium Intelligent Charger represents the culmination of years of field application, research and development, and the application of power electronic technology.
This cutting-edge product sets new standards in the world of battery chargers, offering a plethora of advantages that will transform the way industries operate.
- *High Input Power Factor:* Our charger boasts a high input power factor, ensuring that energy is efficiently utilized, saving you time and resources.
- *Low Input Current Harmonic:* With low input current harmonic, the charger minimizes electrical disturbances, enhancing the overall performance of your equipment.
- *High Efficiency:* The 10KW 100A Charger is designed for optimal efficiency, reducing energy waste and keeping your operations cost-effective.
- *EMC Performance:* Enjoy the benefits of exceptional EMC performance, guaranteeing that your charging process remains smooth and trouble-free.
- *Simple Process:* The charger's user-friendly design simplifies the charging process, making it accessible to all users, regardless of their experience level.
- *High Standardization Degree:* Benefit from a product that adheres to industry standards, ensuring compatibility with various applications.
- *High Reliability:* Count on the 10KW 100A Charger's outstanding reliability, reducing downtime and maintenance costs.
- *Beautiful Appearance:* Our charger isn't just high-performing; it's aesthetically pleasing, enhancing the look of your workspace.
- *Wide Applicability:* This charger is far superior to other products in its category, making it ideal for use in transportation, industry, logistics, and more.
2.Technical Parameters：
|
Item
|
Parameter index
|
|
Input technical parameters
|
|
Input voltage
|
Three-phase five-line (A B C N PE) / three-phase four-wire (A B C PE) AC380V± 15% [Actual line system is subject to material objects]
|
|
Frequency
|
45Hz~65Hz
|
|
Input current
|
<25A
|
|
Power factor
|
≥0.9
|
|
Current distortion
|
≤5%
|
|
Output technical parameters
|
|
Maximum voltage
|
DC100V
|
|
Maximum current
|
100A
|
|
Maximum power
|
10KW
|
|
Output voltage range
|
30~100VDC
|
|
Limit the range of current adjustable
|
10A-100A
|
|
Efficiency
|
>90%
|
|
Voltage ripple
|
<3%
|
|
Current ripple
|
<3%
|
|
Voltage regulation accuracy
|
5‰
|
|
Current regulation accuracy
|
1%
|
|
Charging curve
|
BMS given
|
|
Working environment conditions
|
|
Operating ambient temperature
|
-20~45℃ regular work; 45~70℃ reduced output.
|
|
Storage temperature
|
-40~70℃
|
|
Relative humidity
|
0~95%
|
|
Altitude
|
≤2000m Full load output
|
|
Defencive function
|
|
Input protection
|
Input undervoltage, input overvoltage
|
|
Output protection
|
Output overvoltage, output short circuit, battery reverse connection
|
|
Overtemperature protection
|
Over-temperature inside the module protects shutdown.
|
|
Abnormal protection
|
Abnormal power device protection shutdown
|
|
Emergency stop protection
|
When an uncontrollable abnormality occurs, the shutdown can be forced through the emergency stop button
|
|
Interface
|
|
CAN interface
|
1 way
|
|
485 interface
|
The 7-inch touch screen can support 1 way
|
|
Human-computer interaction
|
|
Display mode
|
7-Inch touch screen、Segment code screen【Specific to the actual customized selection shall prevail】
|
|
External shape and protection
|
|
Case size
|

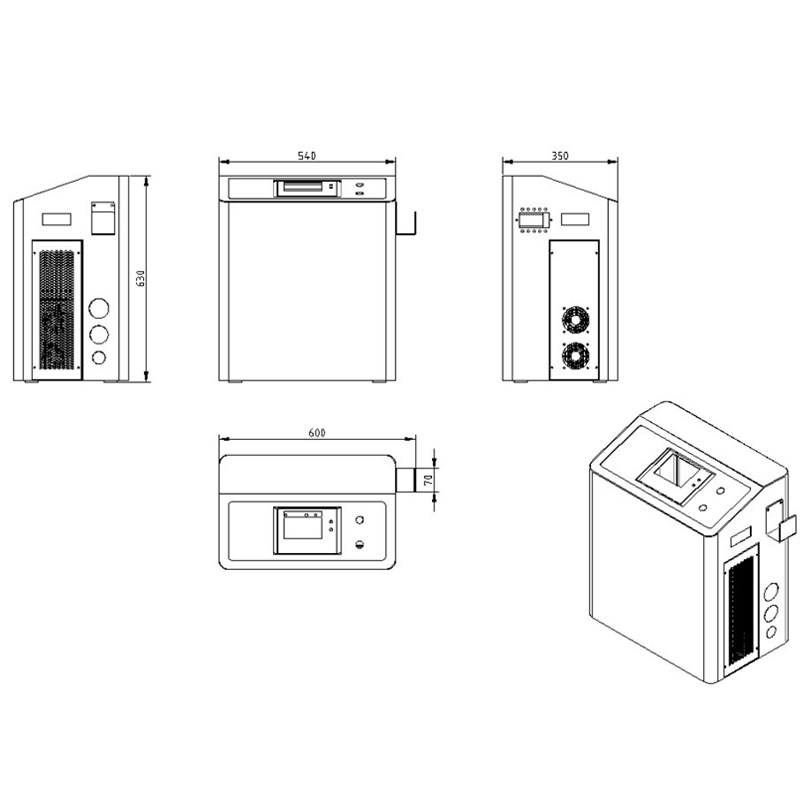

External size (host) 540 (L) 350 (W) 630 (H)
|
|
Levels of protection
|
IP21
|
|
Other
|
|
Heat dissipation mode
|
Forced air cooling
|

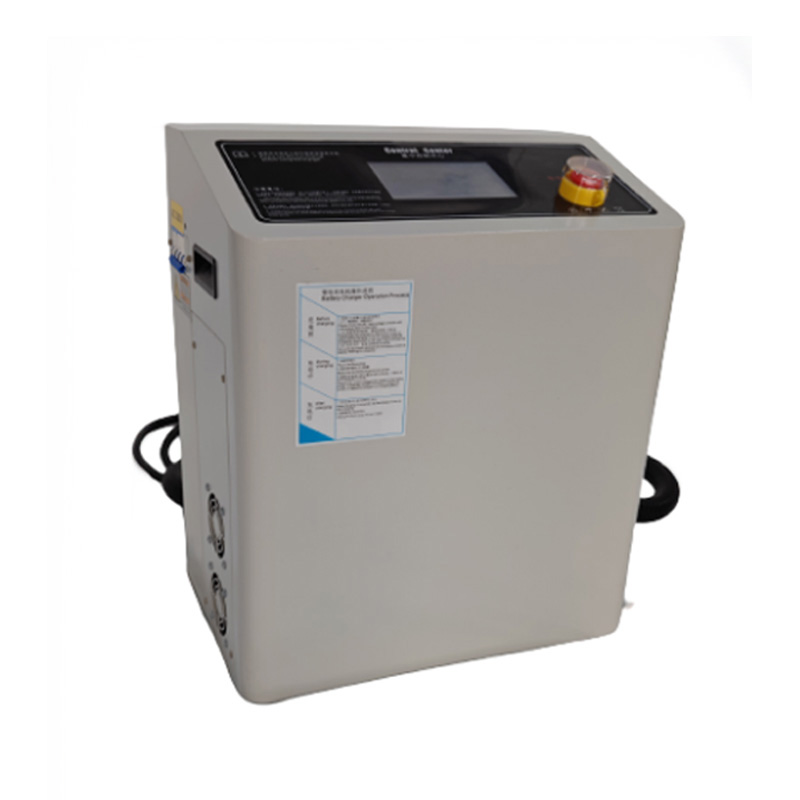

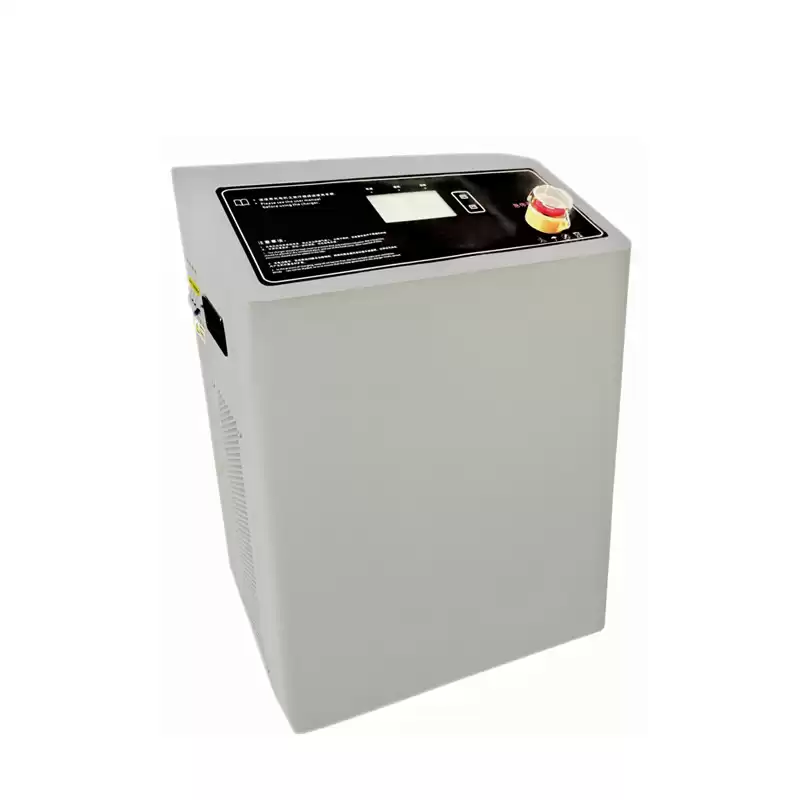

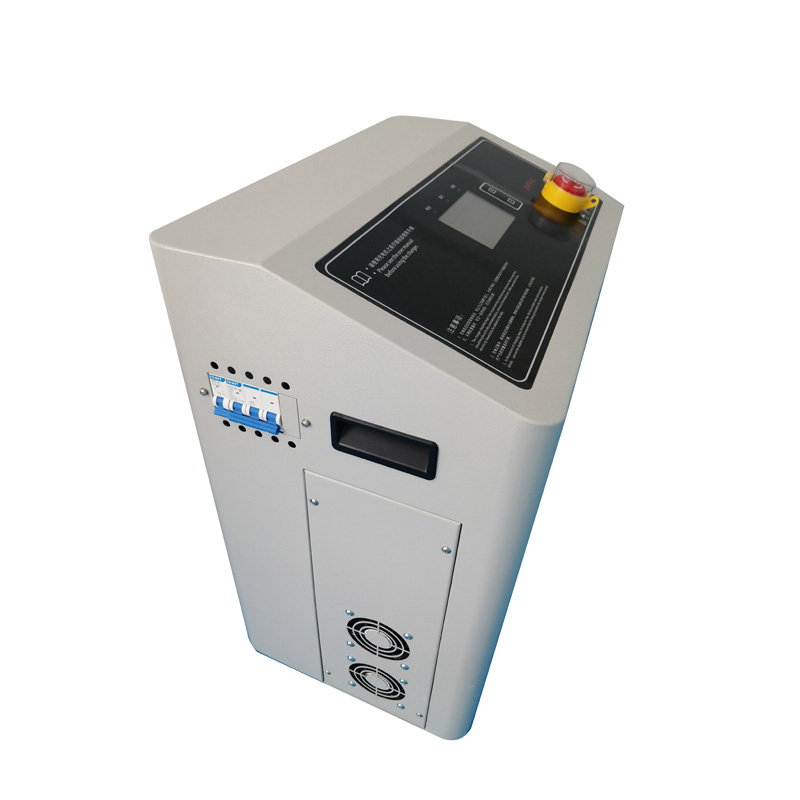

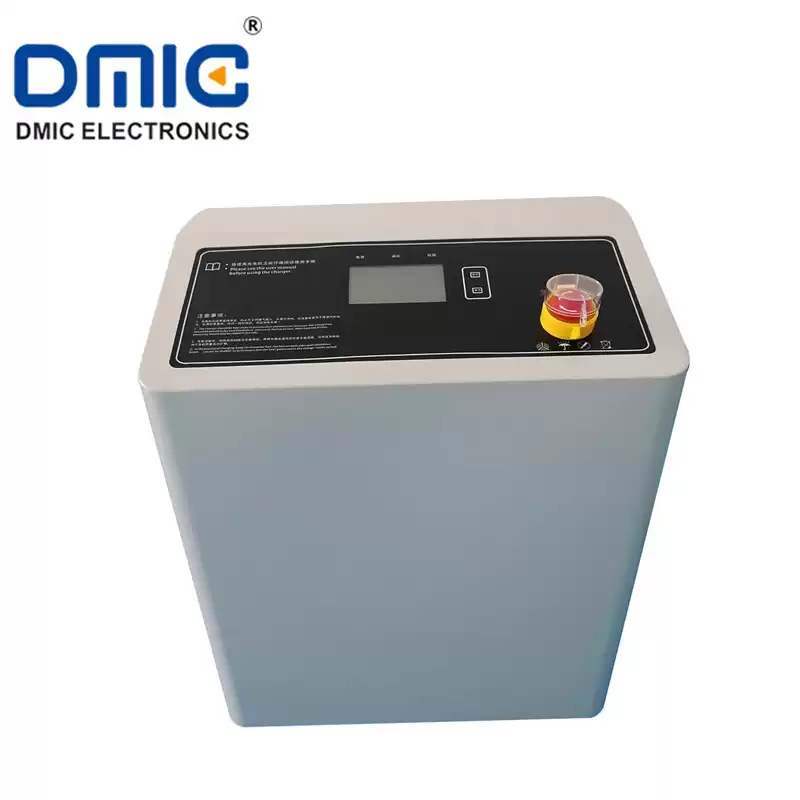

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
