10kw 3 Phase Professional Hybrid Inverter for Home Use

Smart hybrid inverter in hybrid solar system for home energy storage. We have full certificates for hybrid solar inverter.


  • Warranty10 YEARS
  • Certificate UL,TUV,CE,IEC

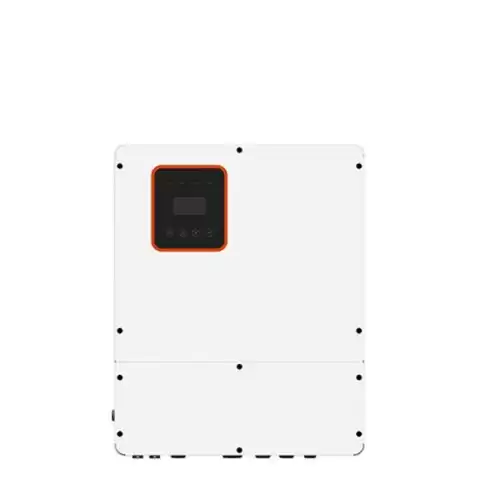

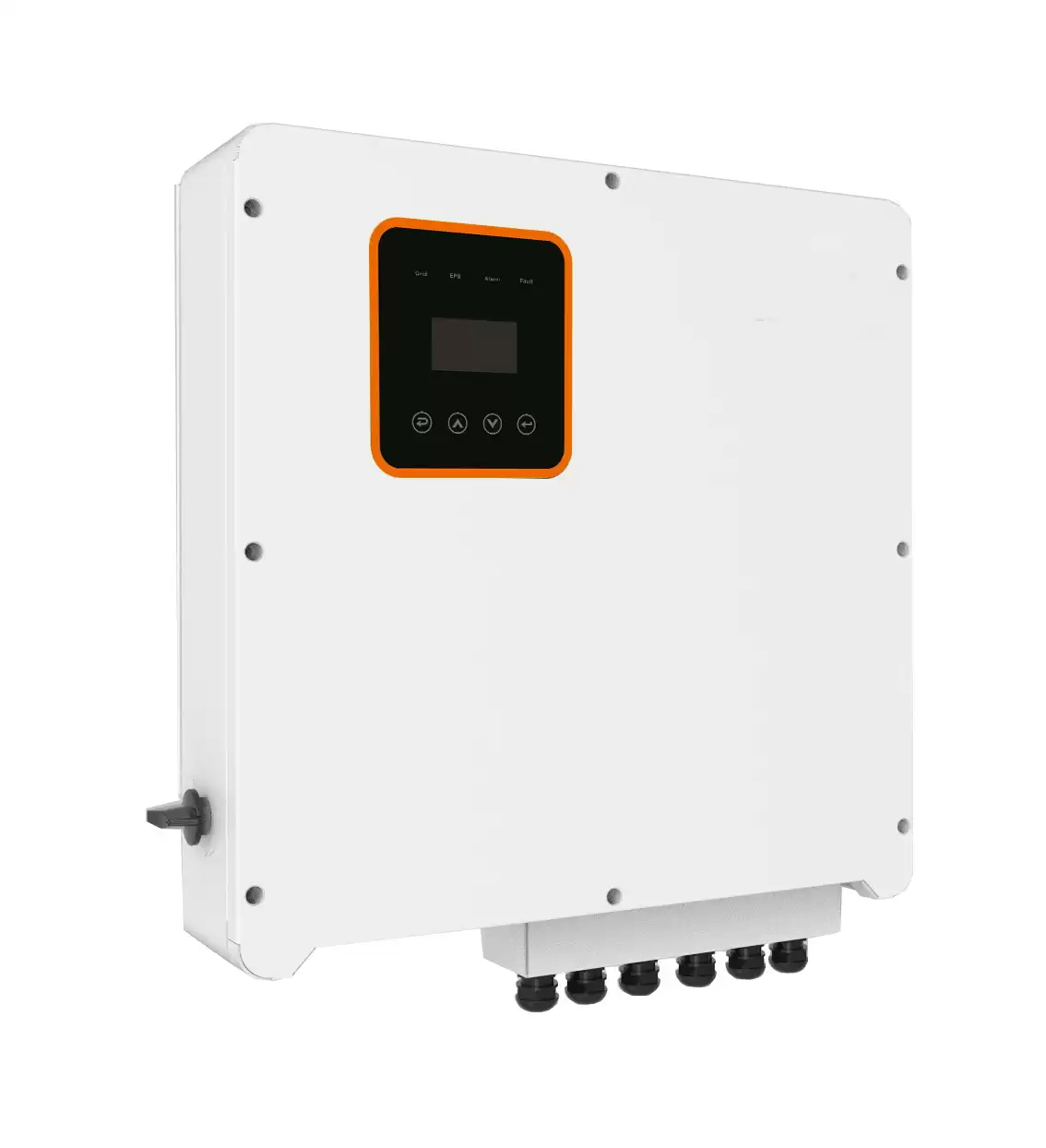

FOTOVO 10kw  Hybrid Solar Inverter(AC Three-phase)

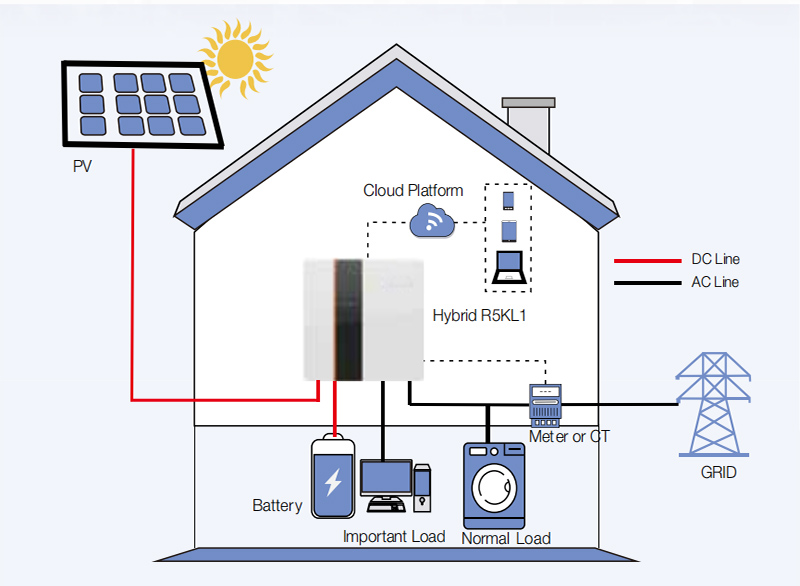

System Wiring Diagram

  • Intelligent energy management system for home.
  • Power dispatching and demand side response management.
  • Distributed virtual power station management.


Technical Details


Model GSH6.6kw GSH8.8KW GSH11KW
PV input
Max.input power 7.8kw 10.4kw 13kw
Max.PV voltage 1000V
MPPT range 125V-850V
Max.input current 12.5A*2
MPPT tracker/strings 2/1 2/1 2/1
AC output
Max.output power 6.6KVA 8.8KVA 11KVA
Max.output current 9.5A 12.7A 15.9A
Norminal voltage/range 400VAC/360Vac-440Vac
Frequency 50/60hz
PF 0.99lagging-0.99leading
THDI <3%
AC output topology 3W+N+PE
Battery
Battery voltage range 125V-600V
Charge/discharge current 50A 50A 50A
Max.Charge/discharge power 6.6KW 8.8KW 11KW
Battery type Lithium-ion/Lead-acid
Communication interface CAN/RS485
EPS output
Max.output power 6.6KVA 8.8KVA 11KVA
Rated voltage 400Vac
Rated current 9.5A 12,7A 15.9A
Rated frequency 50/60hz
Automatic switchover time <20ms

Packing&Delivery

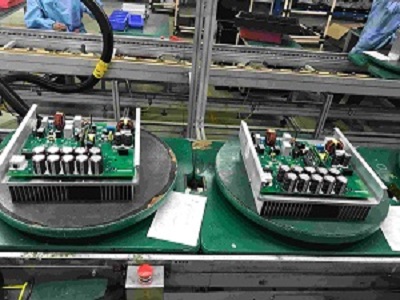

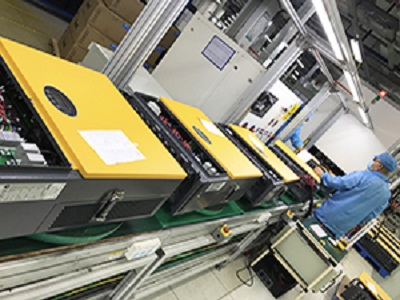

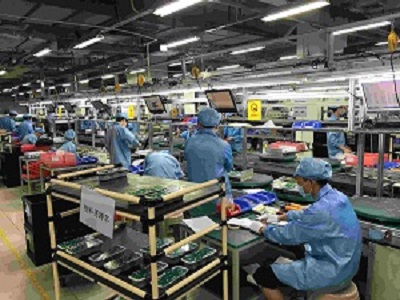

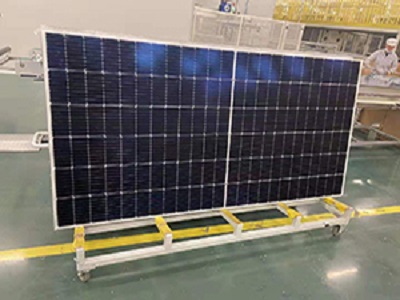

Factory

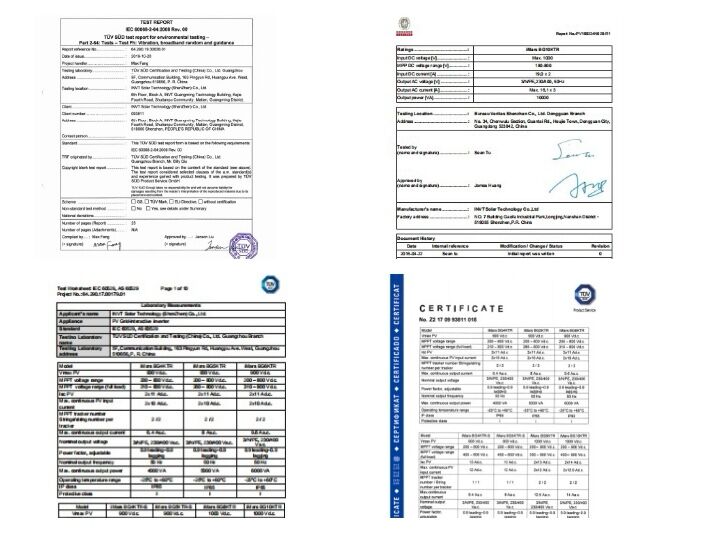

Certicification


FAQ

1..Are your Hybrid solar inverter certifications complete?

A:Sure,We have exported hybrid systems to more than 30 countries, covering Europe, America, Asia, Africa and Australia.  The certification is very complete .

2. What if the power generation system shows abnormal power output?

A: 1. whether the module is over-matched 2. whether the module is shaded 3. whether the module is abnormal 4. whether the module orientation and inverter working mode 5. whether the grid connection distance is appropriate.

3.The advantages of home photovoltaic system?

A: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small investment, big income; zero pollution; Low maintenance costs.

4.How do your company deal with the problem on quality?

A:Our company has been doing this industry for more than 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
