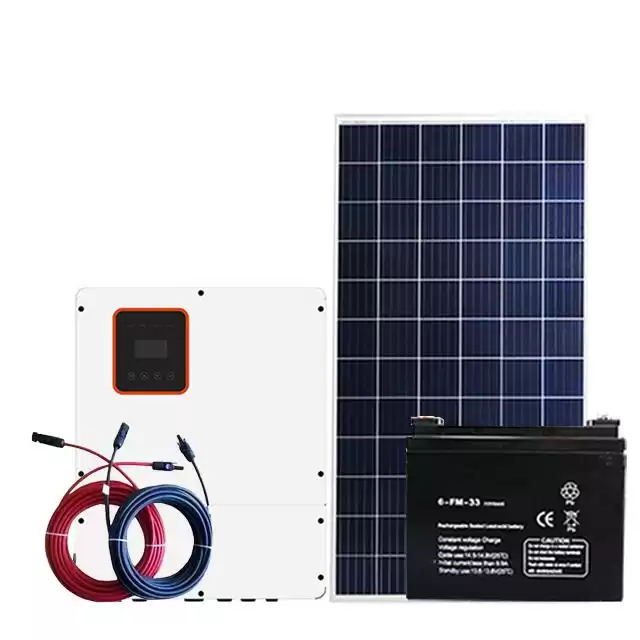

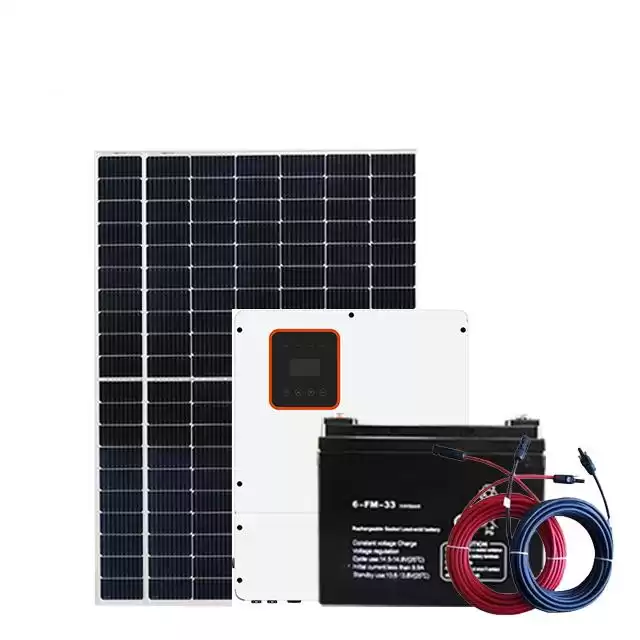

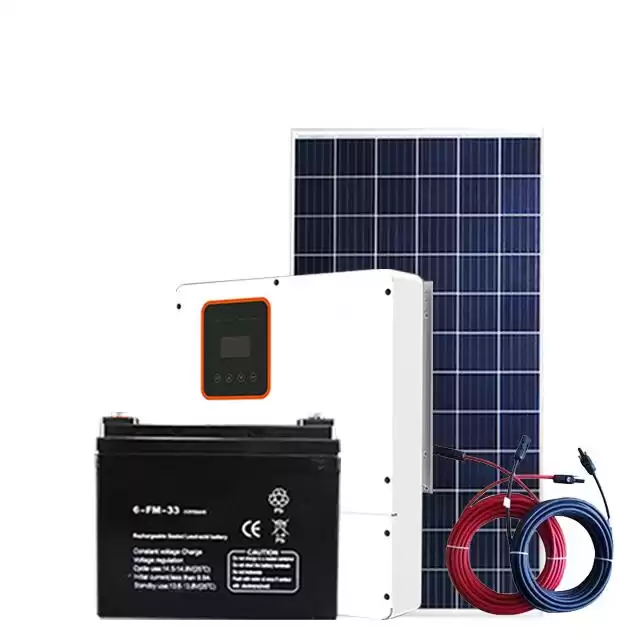

Greystone 10kw 120V/240V Hybrid Solar Power Home System For Energy Storage (UL Standard)

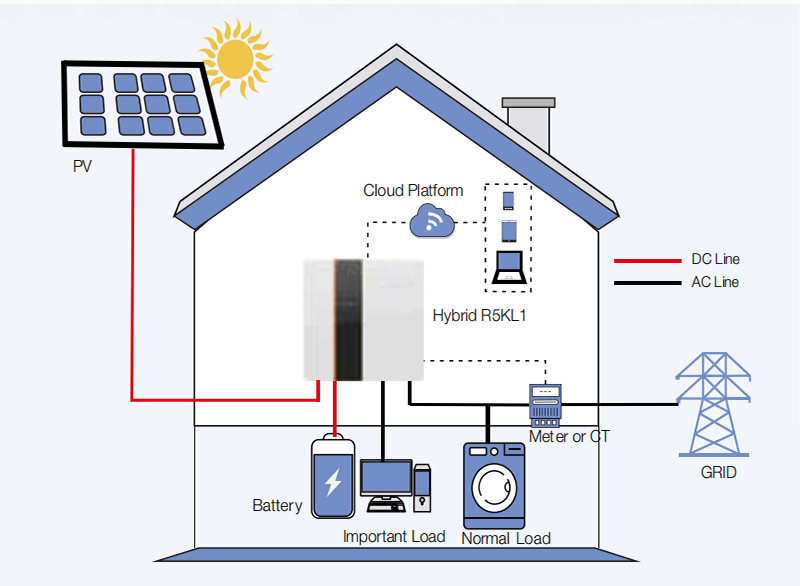

System Wiring Diagram
-
Compatible with lithium-ion batteries or lead-acid batteries.
-
Family intelligent energy management.
-
Power dispatching and demand response management.
-
Distributed virtual power plant.
|
Technical Details
10kw Hybrid Solar Power System Configuration List
|
|
Item
|
Model
|
Description
|
Quantity
|
|
1
|

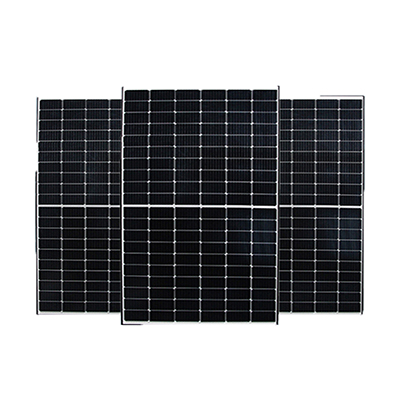

Solar Panel
|
Half cut mono 455W solar panel
|
22pcs
|
|
2
|

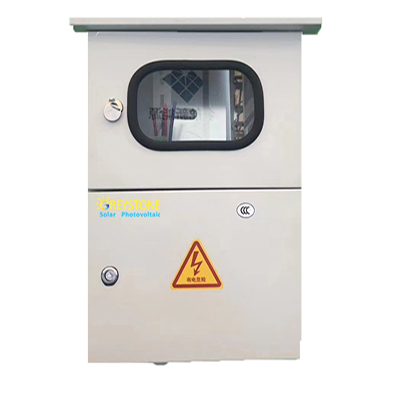

AC Distribution Box
|
Optional
|
1pc
|
|
3
|
Lithium Battery or Lead Acid Battery
|
15.2KWH
|
1set
|
|
4
|

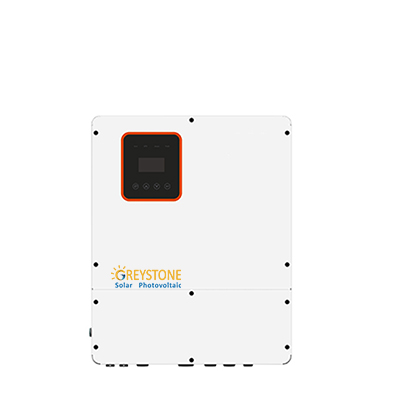

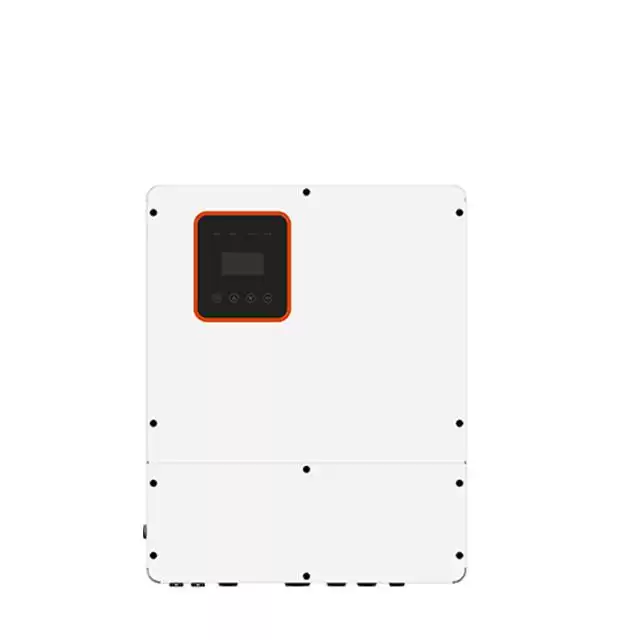

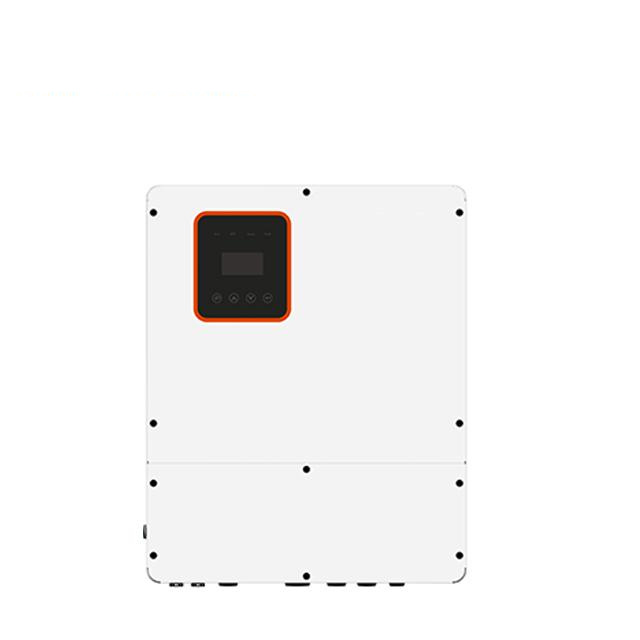

Hybrid Inverter
|
7.6KVA
|
1pc
|
|
5
|
Mounting Supporrt
|
Roof/Ground
|
1set
|
|
6
|

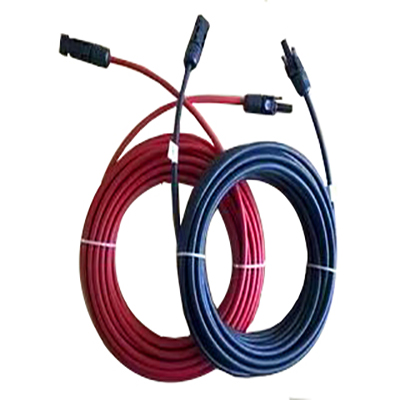

PV Cable
|
4mm² PV cable
|
100m
|
|
7
|
Connector
|
MC4
|
4 pairs
|
|
>Perc/Bifacial/Shingled solar panels are available.
>25-year linear warranty.
>High transmissivity,low-iron tempered glass.
>Class A,tested in TUV.
|
|
>120V/220V AC voltage.
>10kw Power.
|
|
|
>Maximum efficiency up to 98.2%
>4 independent MPPT design, making full use of light energy in different directions.
>Distributed virtual power station management node.
>Remote monitoring of computers and mobile phones.
|
|
>2V,12V Gel Battery.
>48V lithium battery is available.
>50%DOD,1422 circle times.
|
|
|
>PV Cable 4mm ² 6mm ².
>AC Cable.
>Length can be customized.
|
|

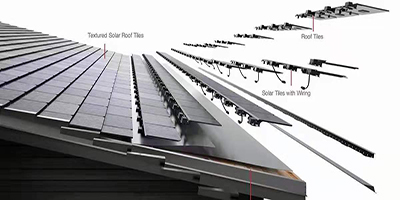

>Tile Roof /Metal Roof/RC Roof is available.
>Solar Carport Solution
|
|

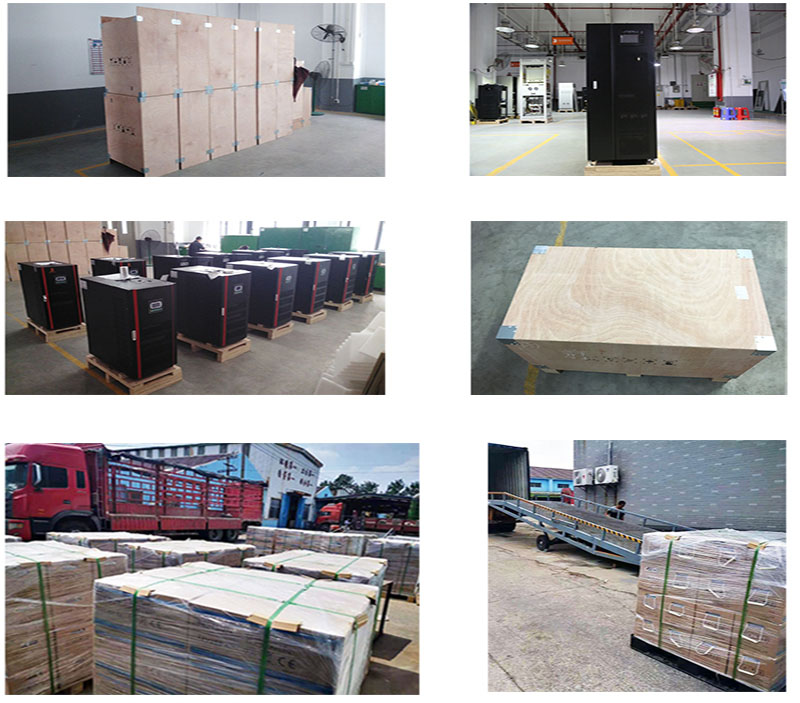

Packing&Delivery

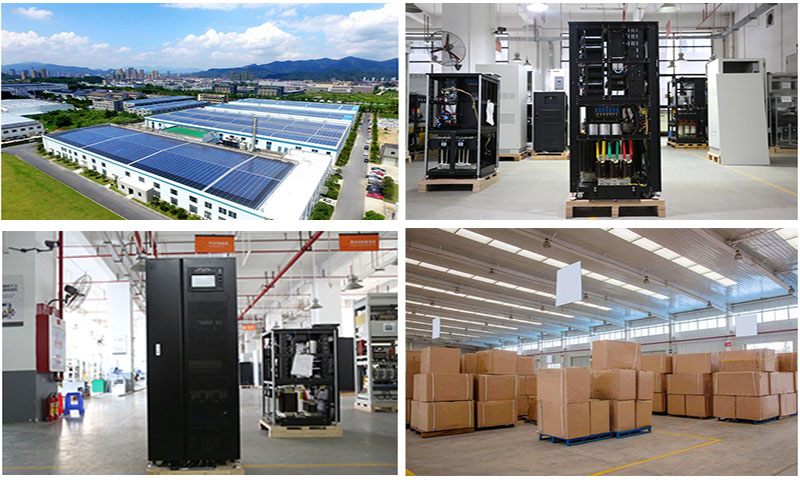

Factory
