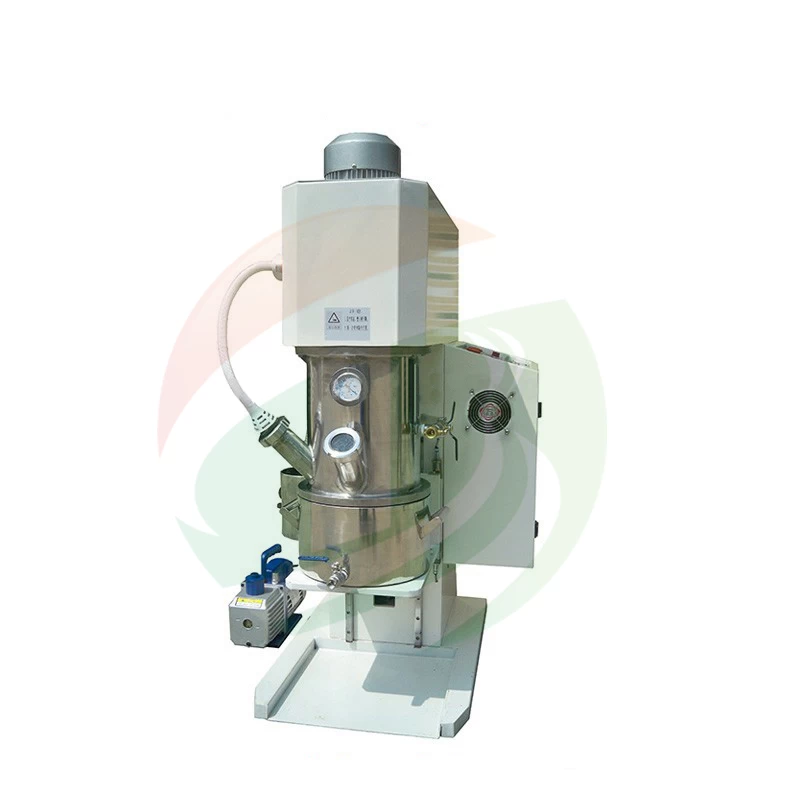

10L Capacity Planetary Mixer Machine For Lithium Battery Paste Mixing
SPECIFICATIONS
1 This TOB-PVM-10LPlanetary vacuum mixermachine is a set of vacuum mixing, dispersion of efficient equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc
2 Thislab planetary mixer Mixing motor adopts transmission frequency adjustment,
can choose different rotational speed and torque according to different process, different viscosity.
3 Thevacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and
ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
|
Model
|
Planetary Vacuum Mixer TOB-PVM-10L
|
|
Source voltage
|
AC 380V, 50HZ
|
|
Power
|
4500W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Rotation speed
|
0-1400 r/min, Through the inverter speed control
|
|
Revolution speed
|
0-70r/min
|
|
Effective volume
|
10L, 1-10 Liters Customized according request
|
|
Design volume
|
15L
|
|
Mixing barrel
opening mode
|
Deceleration motor driven fill rises
|
|
Mixing barrel size
|
Φ310mm(Diameter)*200mm(Hight)
|
|
Mixing time set
|
0-99H can be set, auto stop when finish with vacuum
|
|
Weight
|
About 360kg
|
|
Dimension(H*L*W)
|
1800*1200*800mm
|
|
Advantage
|
10 liters 304 stainless steel container with high accuracy
Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours.
Double Step Rotary Vane Vacuum Pump is included for immediate operation
Programmable controller to set time, speed, rotation direction.
With time setting function
Double blade design, make the material up and down around, mixing battery paste rapidly
|
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
