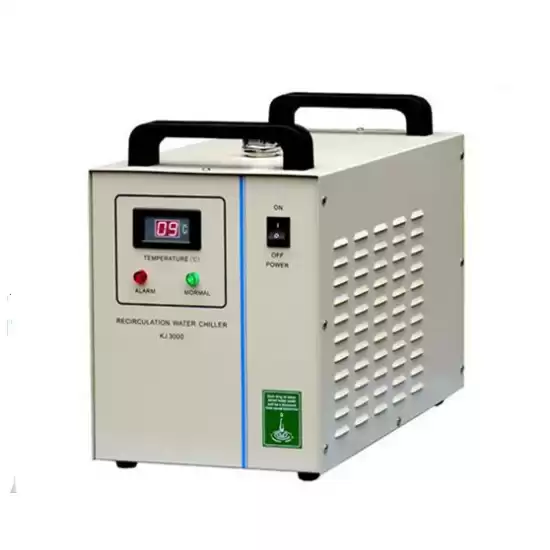

10L/min Flow Lab Forced Air Cold Water-cooled Chiller
TMAX-KJ3000 is a CE certified Forced air cold Water-cooled Chiller that provides a clean, environmentally friendly and reliable source of temperature-controlled fluid for closed loop systems up to 10L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This 9 Liters chiller provides high cooling capacity via air cold radiator at low cost and has a convenient digital reading and setting display.
Specification
|
Power Supply
|
AC 100-120V or AC 208-240V can be selected in options bar (50/60Hz).
|
|
Current
|
0.45A
|
|
Cooling Method &
Capacity
|
Cooling via radiator and cooling fan
Cooling Capacity: 50W/°C via
Note: No target tempertaure. Temperature cannot go below room temperature due to the cooling method.
Fixed high temperature alarm: 60°C
|
|
Temperature
|
Digital Current Temperature display
Temperature accuracy: ± 1 °C
Built in temperature alarm
|
|
Max. Pump Head
|
10 meters (14psi)
|
|
Pipe connectors
|
· Φ 12mm PTC connector
· 8mm I.D, 12mm O.D. polyurethane tube is included
|
|
Water Flow Rate
|
10 Liters / minute
|
|
Water Tank
|
· 9 Liters made of stainless steel
· Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.
· Use coolant instead of water for longer service life.
· Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
|
|
Protection
|
Protected from overflow alarm
|
|
Overall dimension
|
47 X 27 X 37 cm (L x W x H)
|
|
Shipping Dimension
|
40" x 22" x 23"
|
|
Shipping Weight
|
50 lbs
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Compliance
|
CE approval
|
|
Application Notes
|
· This chiller is using thermolysis cooling method. Thus, the chiller can't cool the temperature lower than ambient temperature. (e.g the room temperature is 14 °C. The minimum temperature cooled by the chiller is 14 °C). Please consider the KG5000 water chiller if you want the temperature to be lower than ambient temperature.
· Must use. Rust Protection coolants to prevent rust and corrosion The use of tap water is prohibited.
· Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction
|

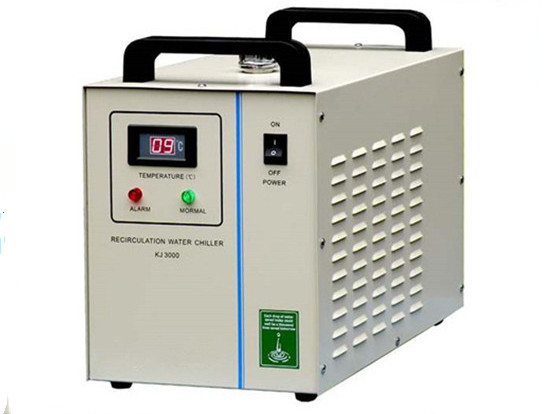

Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
