10M-40M Clear Span Warehouse Tent

10M-40M Clear Span Warehouse Tent is fire proof, water proof and wind (snow) load



10M-40M Clear Span Warehouse Tent

Superb Tent’s temporary and permanent modular structure solutions designed for a variety of warehouse applications enabling storage activities to continue throughout the year whatever the season is. There are no internal pillars for our 10M-40M Clear Span Warehouse Tent, so the goods and products can put freely which allows maximum usable space. So aluminum structure tents are a better choice comparing to wooden or steel structures. In terms of fire proof, water proof and wind (snow) load.


Clear Span Warehouse Tent's Cover:

● Kedered roof fabric and sidewalls provide weather-proof tight coverings.

● Bar tensioning roof & sidewalls system.

● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.

Clear Span Warehouse Tent's Features:

● No exterior guy ropes or staking required.

● No poles inside, 100% interior space be used.

● Roof and gable vent is available.

● Relocatable, easy to install, dismantle and transport.

● Full line accessories available.


Clear Span Warehouse Tent's  Frame:

● No maintenance required.

● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.

● All steel connectors including small parts have galvanized finishing above 60um.

● Modular character for diverse combination and expansion.

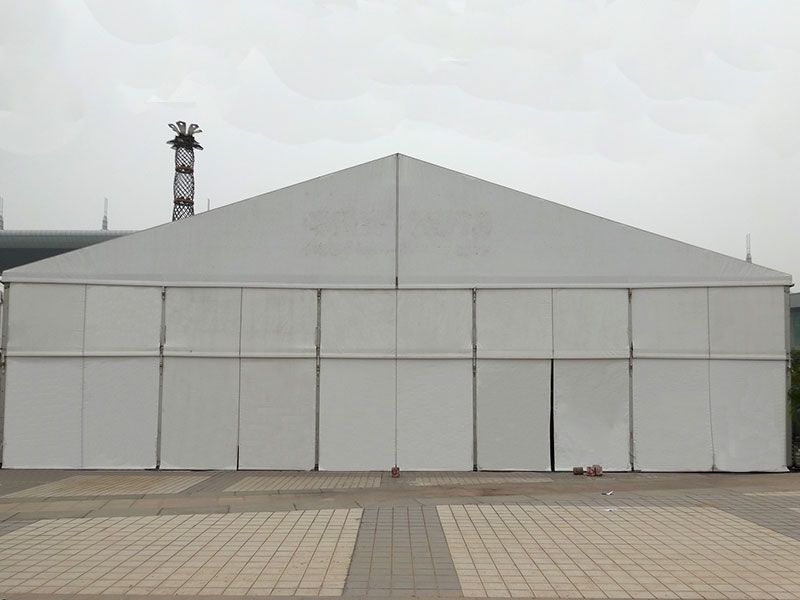

40M Clear Span Warehouse Tent

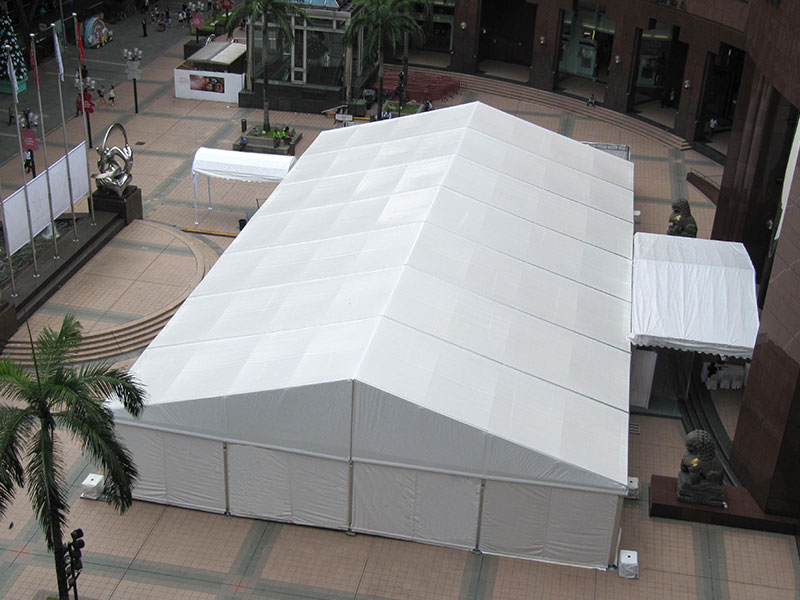

Clear Span Warehouse Tent

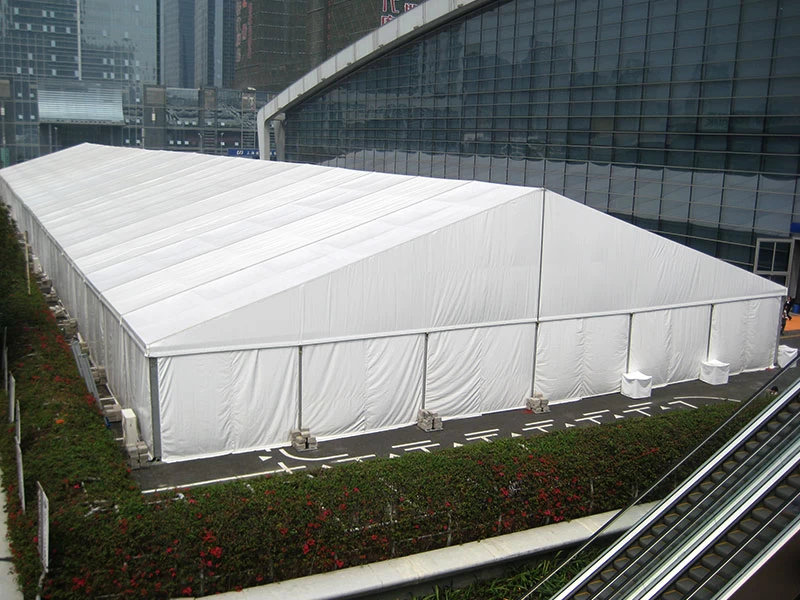

10M-40M Warehouse Tent


The Specification of 10M-40M Clear Span Warehouse Tent:

Type

Span (m)

Side height (m)

Ridge height (m)

Bay Distance (m)

Roof Pitch

Longest Component (m)

Wind Load (km/h)

XLS20/4-5

20

4

7.2

5

18°

10.7

100

XLS25/4-5

25

4

8

5

18°

10.7

100

XLS30/4-5

30

4

8.9

5

18°

10.7

100

XLS40/4-5

40

4

10.5

5

18°

11.5

100

Main frame Profile

300x120x5mm4-channel)

Eave Connection

Hot-dip Galvanized Twin Steel Plate

Roof Fixing

Bar Tension

Frame Material

Hard Pressed Extruded Aluminum 6061/T6

Cover Material

Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
