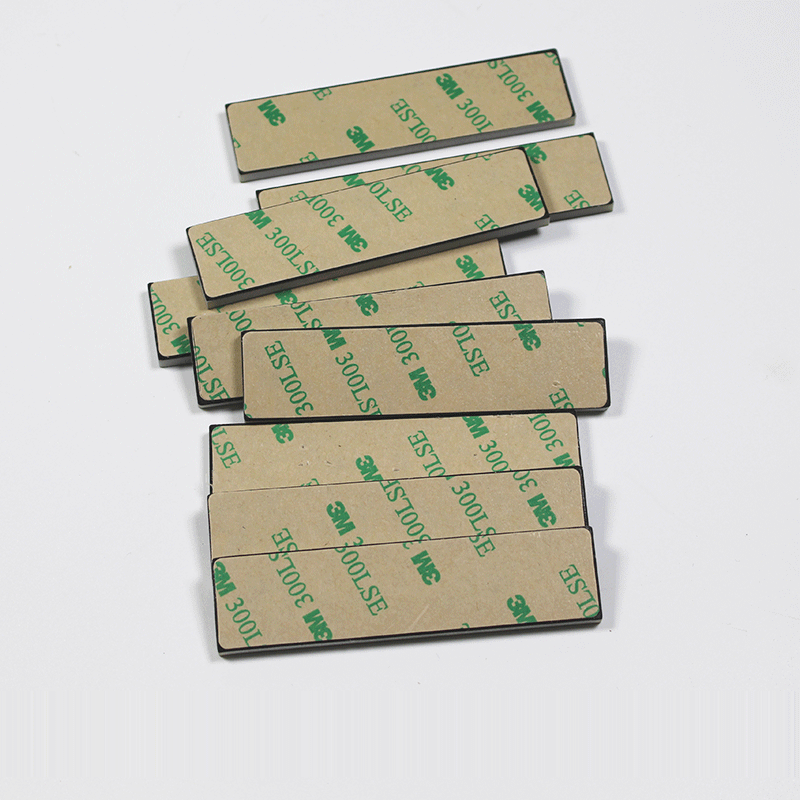

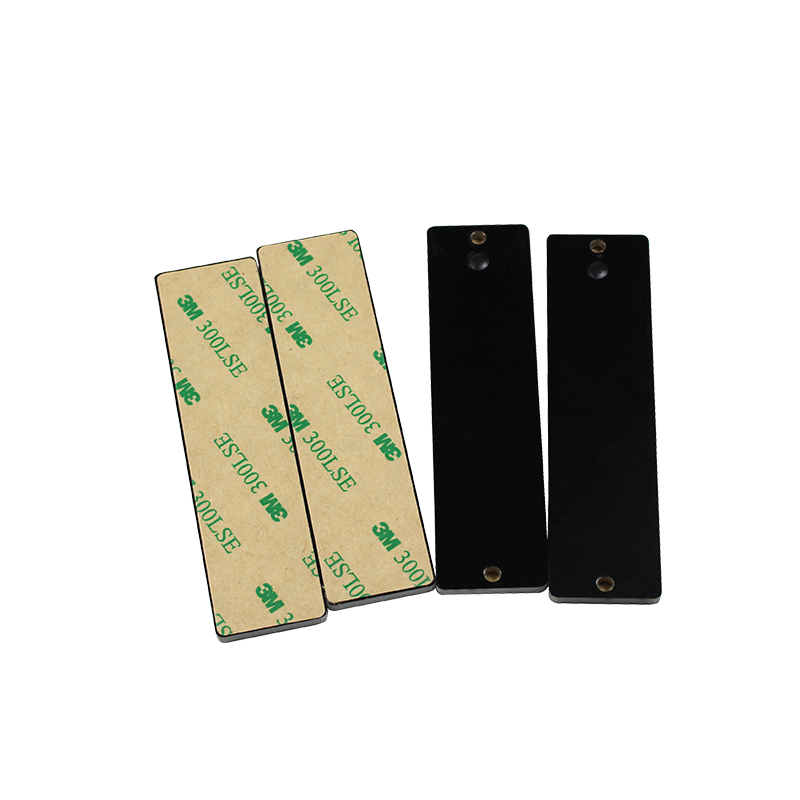

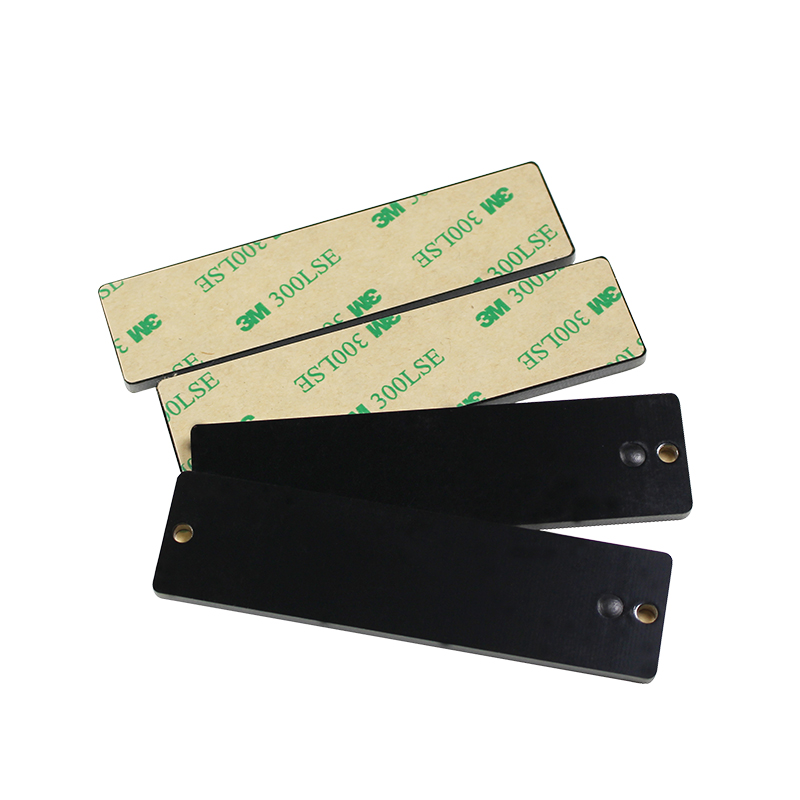

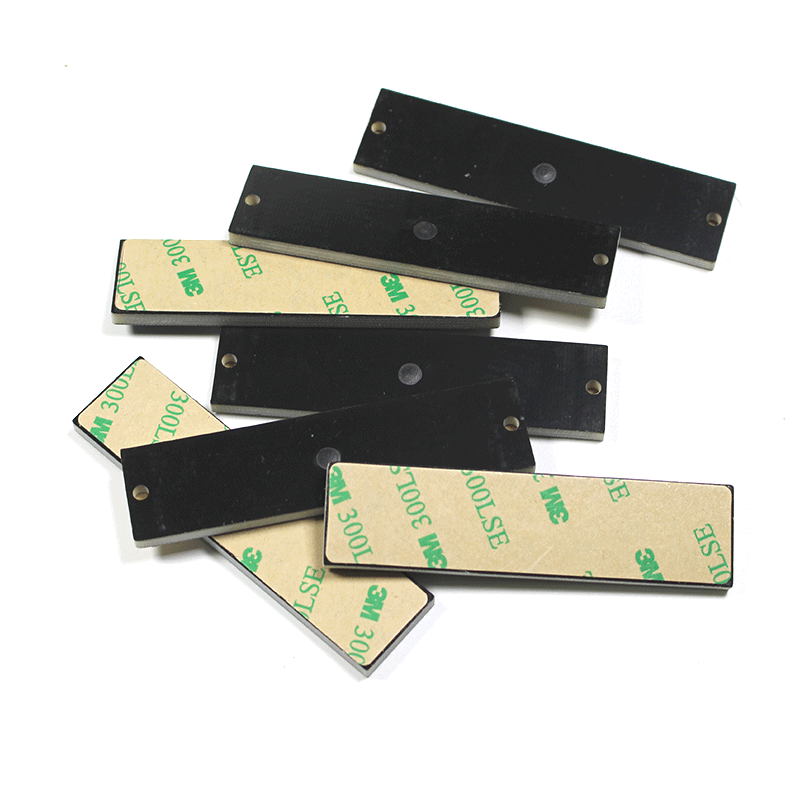

10M Long Range Passive RFID On metal Sticker Tag For Warehouse Management System
This UHF PCB Anti-metal Tag is widely used in indoor asset management, inspection management, and tool management. 10M Long Range Passive RFID On metal Sticker Tag For Warehouse Management System( depend on the reader you order)
80x20MM UHF on metal Tag Advantage:
Logistics warehousing management like information management, tracking, and counting.
|
ISO |
EPC Class1 Gen2; ISO18000-6C |
|
frequency |
902-928MHz |
|
Chip |
Monza 4QT |
|
memory |
EPC 128bits |
|
writable |
yes rewritable |
|
memory lead time |
fifty years |
|
Warranty |
1year |
|
Material |
FR4 |
|
Color |
black |
|
Size |
80x20*3mm |
| Temperature |
-25C~ +160C |
|
Storage temperature |
-30 C~ +110 C |
|
Save humidity |
5%～95% |
| Adhesive |
3M 300LSE |
|
weight |
~1g |
|
package |
500pcs/bag |
|
Drop test |
Hih 1Meter /200times |
|
Alcohol test |
95%Concentration alcohol test passed |
|
Gasoline test |
NO. 92 test passed |
|
High and low temperature alternating test |
-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test |
|
RoHS |
yes |
|
IP degree |
IP65 |
| Fixed RFID reader on metal surface (JT-8290A) |
about 10Meter |
|
Handheld reader on metal surface(JT-901) |
about 5M ( JT-901 RFID handheld reader) |
|
Polarization direction |
Linear Polarization |
|
Text |
100% tested it before we send out |
Tool management;
IT facility chassis management;
Metal container management;
Management of office equipment and facilities with metal casings indoors and outdoors;
Personnel inspection management;
Fixed asset management
