10t P125 Hydraulic Rising Effective topless tower crane
1. 10t topless tower crane, Jib=60m, Max Load=10T; Tipload=1.5T
2. hydraulic lifting tower crane/flat top topless construction tower crane
3. China-made high quality 10t tower crane, China tower crane manufacturers with best price
4. high efficiency, CE approved, ISO and GOST certification, oversea service available
Safety devices: 1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device 9): black box
The eight advantages about the topless tower crane
1, the toplesstower crane reducethe dismounting requirements, lower weight, low mounting height, dismount eachmast at a time in the air, save the labor cost, safety and fast.
2, it is suitable for crossoverwork of the cranes, without the tower cap and pull rod, the safety will beincreased when there need the crossover work.
3, It is suitable for thespecial requirement about the height, such as airport nearby, tunnel, workshop,and the construction site with high-tension cable.
4, It is suitable for theconstruction site that has the requirement about the crane boom, it can be usedas internal climbing crane in the high-rise buildings, irregular roof or smallareas.
5, It is very convenient fordismounting in the restricted construction site, dismount each crane boom at atime by manual.
6, The steel structure of craneboom has long using life and high safety standard.
7, The crane boom is goodapplicability, high-usage,the design of the topless tower crane boom is easyfor realizing the serialization and standardization. Reduce the design andmaking cost.
8, Low design cost, shortcycle, can much better satisfy the multiple demands of the customers.
Feature
|
Topless Tower Crane
|
Model Number
|
P125
|
Type
|
Stationary/Traveling/Climbing
|
Application
|
Construction
|
Standard mast
|
1.6*1.6*3m or 2*2*3m
|
Rated Loading Capacity
|
1.5-10t
|
Max. Lifting Load
|
10t
|
Radius
|
61.7m
|
Span
|
2.5~60m
|
Max. Lifting Height
|
39.8m
|
Rated Lifting Moment
|
1250KN.M
|
Ballast boom
|
17.15m
|
Power
|
380V/50HZ,440V/60HZ
|

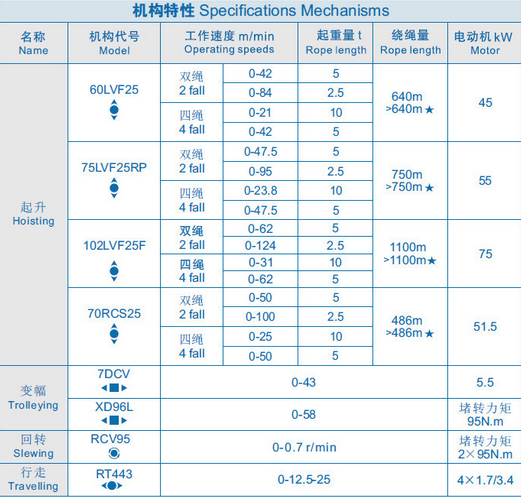

Hoisting mechanism
|
60LVF25 or 70RCS25
|
steel
|
Q345B manganese steel
|
certificates
|
CE, Russian GOST and ISO9001 certificate
|
Origin
|
China
|
Color
|
Red,yellow
|
Why choose us
1.Cooperative professional tower crane manufactures in China
2.Exported to more than 30 countries with ISO9001&CE Certifications
3.Hydraulic self-climbing mechanism
4.Variable-frequency slewing mechanism
5.Varialbe-speed frequency PLC control System
6.Operation data display screen
7.Various safety devices
8.Safety monitoring system (Black Box)
