10t QTZ160P(6516) Hydraulic Self-Rising Flat-top Construction Tower Crane

QTZ160P(6516) Hydraulic lifting Flat head construction tower crane, topless type, max load 10t, boom length 65m with tip load 1.6t. Quality is high and price is favorable. Topless type is more convenient and applicable for multiple tower cranes operation.



10t QTZ160P(6516) Hydraulic Self-Rising Flat-top Construction Tower Crane

1.Flat top tower crane/hydraulic lifting tower crane/flat head tower crane/topless construction tower crane

2. Large Capacity 10t max load, long working radius 65m with tip load 1.6t.

3. China-made high quality tower crane, China good tower crane manufacturers with best price.

4. high efficiency, CE, ISO, GOST certificates, oversea service available

Technical data

The rated lifting moment

1600KN.M

The max lifting capacity

10t

The jib length

65m

The radius

3-65(m)

The tip load

1.6t

Main chord

200*200*20(angle steel)/135*135*12(square steel)(mm)

Mast section

2.0*2.0*2.8/2.0*2.0*3.0(m)

Slewing angle

540°

Material

Q345B Mn steel

Work T

-20°C~+40°C

Mechanism specification



hoisting

Hoisting speed

fall



2

4

speed

m/min

33

55

105

16

27

53

Corresponding load

t

5

5

2

10

10

4

power

KW

37

slewing

Slewing speed

r/min

0.7

power

N.m

5.5*2

derricking

Derricking speed

m/min

55/27.5/9.6

power



N.m



5.0/3.7/1.3

jacking

Jacking speed

m/min

0.55

power

KW

7.5

Power total

KW

 60.5


Advantages:

1): the material is Q345B Mn steel, has the superior hardness andtenacity.

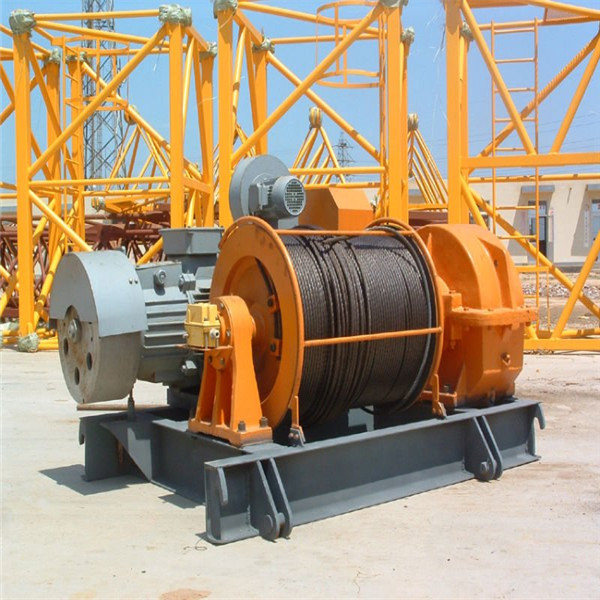

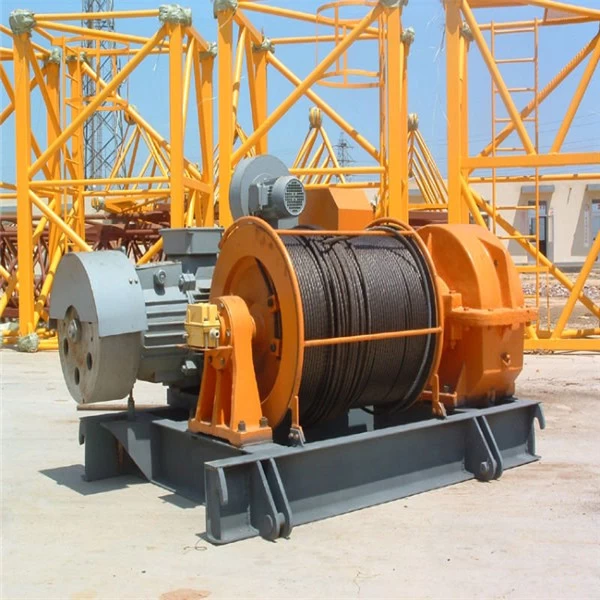

2): the lifting mechanism. It adopts coiling frequency motorand mono-speed ratio decelerator, good speed-adjusting performance, steadyoperation and high efficiency.

3): the trolleying mechanism. The range-change structure drivesthe dolly to change range on the horizontal arm, with good positioningperformance

4): the slewing mechanism. Planet gear deceleratortogether with moment-limiting hydraulic coupler, which ensure highload capacity, steady starting and reliable operation

5): the hydaulic increasing mast section mechanism. and can risethe height according to the actual biulding height.

6): the safety devices.  It has lifting height limiter, dollyrange-change limiter, moment limiter, weight limiter, slewing limiter, etc

Commercial terms:

Delivery time: 20 workdays after receiving 30% advanced payment

Payment term: 30% T/T in advance, 70% T/T before shipment date

Package: standard packing in 40" HQ container

Trade term: FOB(Qingdao) or CNF or CIF

Warranty: 12 months after the shipment date
