10W 5V 2A single output switching power supply small size enclosed model
Description:
K13-U10S series is samll size single output enclosed model type switching power supply,88-264V ac input and 10W 5V dc output voltage power supply,100% full load burn-in test,high efficiency,long life and high reliability.
Features:
1, High efficiency 10W switching power supply, low temperature rise;
2, Built-in filters, low output noise 5VDC 2A power supply ;
3, Wide range of AC input voltage;
4, Short circuit, overload, overvoltage protection;
5, 5Vdc 10W single output smps,enclosed model and samll size.
Parameter
|
|
Item NO
|
K13-U10S5
|
K13-U10S12
|
K13-U10S15
|
K13-U10S24
|
|
Output
|
Output Voltage
|
+5V
|
+12V
|
+15V
|
+24V
|
|
Rated Current
|
2A
|
1A
|
0.8A
|
0.5A
|
|
Current Range
|
0-2A
|
0-1A
|
0-0.8A
|
0-0.5A
|
|
Rated Power
|
10W
|
12W
|
12W
|
12W
|
|
Ripple
|
50mVp-p
|
100mVp-p
|
100mVp-p
|
120mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
800ms, 30ms, 16ms/115VAC 300ms, 30ms, 50ms/230VAC
|
|
Input
|
Input Voltage Range
|
88~264V AC,100~370VDC
|
|
Input Current
|
0.3A/115V,0.15A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
78%
|
84%
|
84%
|
85%
|
|
Inrush Current
|
30A@230V
|
|
Leakage Current
|
<0.3mA@240V
|
|
Protection
|
Over Load Protection
|
105~150%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
Hiccup,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
MEET UL1012
|
|
Withstand Voltage
|
I/P-O/P,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254,EN55022 CLASS B
|
|
Others
|
Dimension
|
70*39*30mm(L*W*H)
|
|
Weight
|
0.15kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

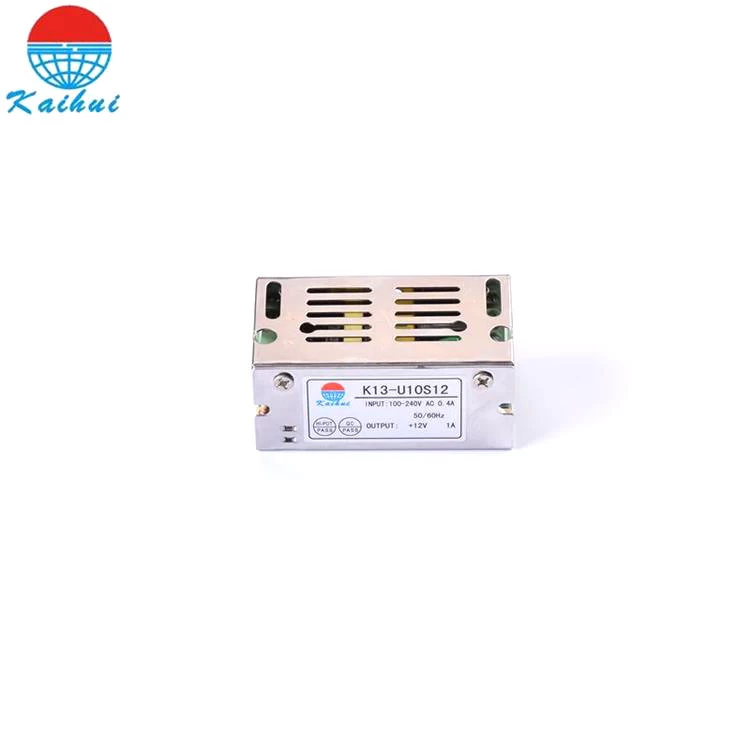

Product picture:
