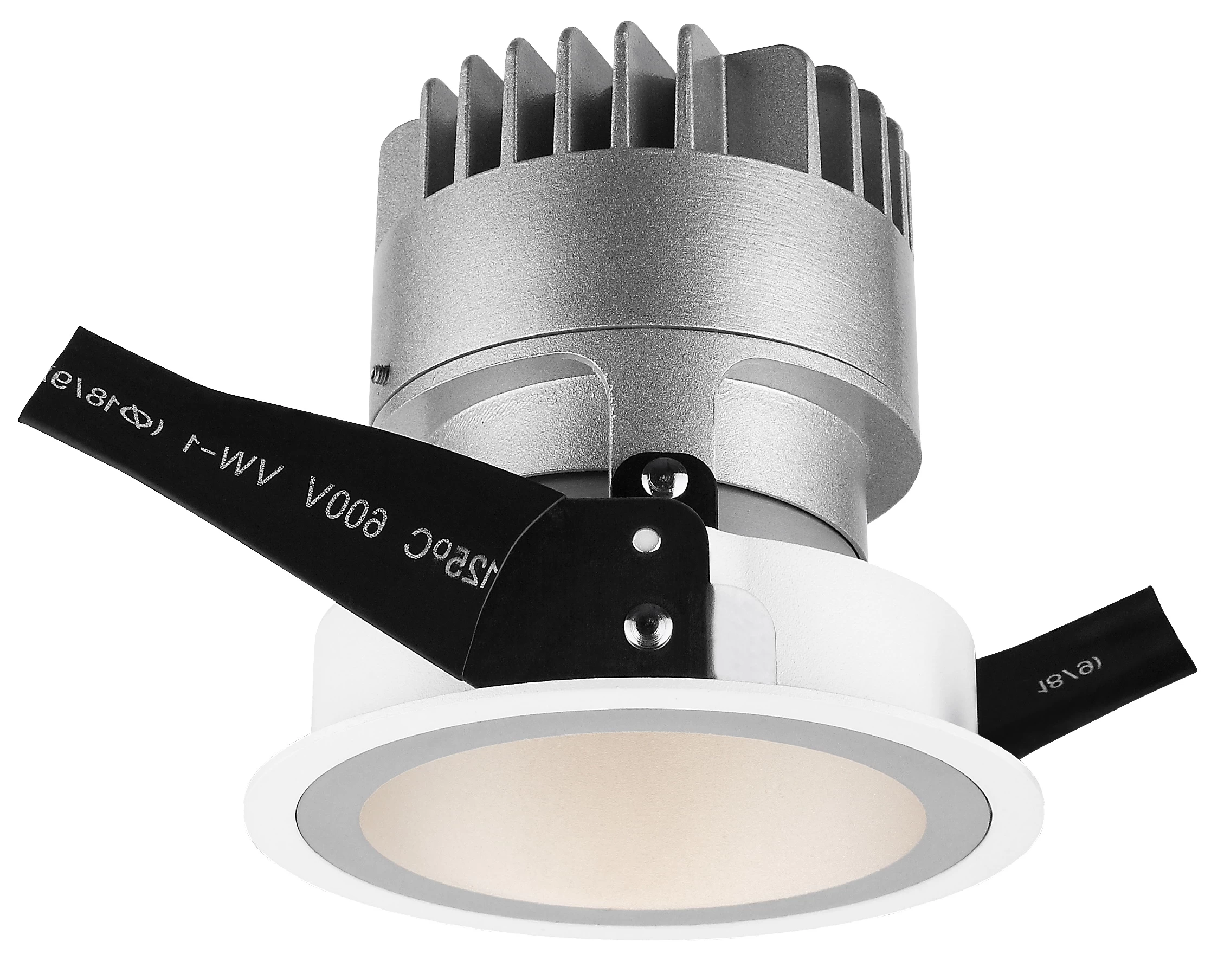

10W Fixed LED BAW recessed down light

  • This led recessed downlight contains an aluminum die-cast front and a pure aluminum heat sink,completes with powder coating;
  • By using the new generation of COB LED chip,this prodduct creates extreme low heat and offers an excellent lumen performance.

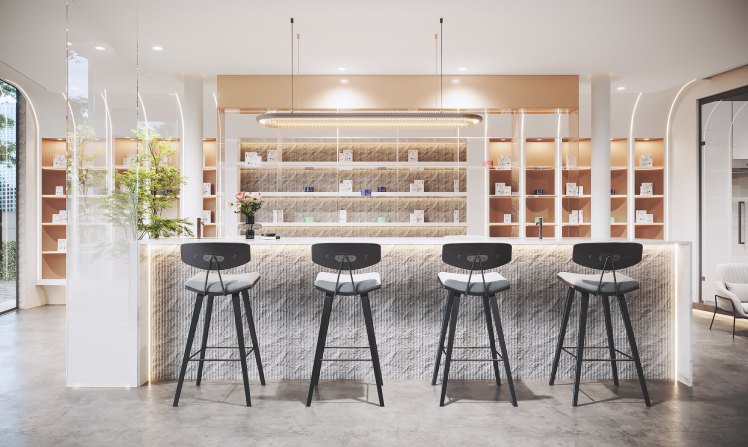

  • It is suitable for bars, star-rated hotels, entertainment places, homes, etc.

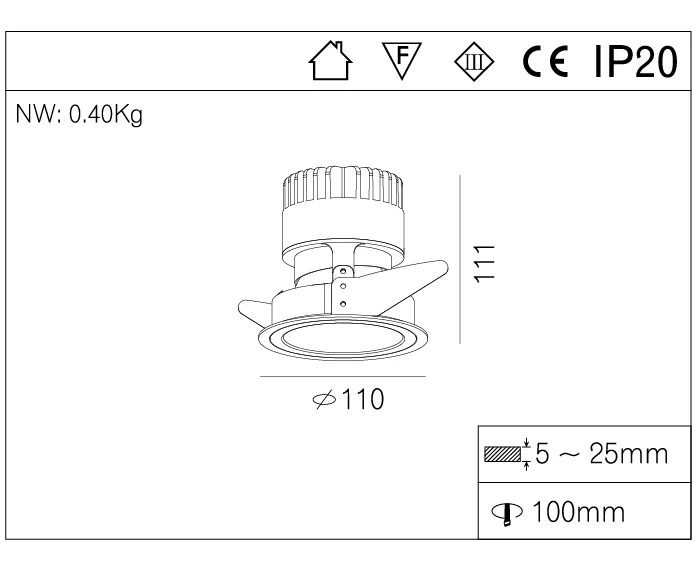

  • Product SizeDia.110*111mm
  • Materialaluminum
  • Light sourceCOB
  • Lamp Power10w
  • Finish
  • Lumen
  • CRI90
  • CCT
  • Beam angle
  • CutoutDia.100mm
  • IP Rate

Model number

 R3B0363

Installation

 Recessed light

Power

10W

Light source

 COB

Lumen

800lm

Material

Aluminum

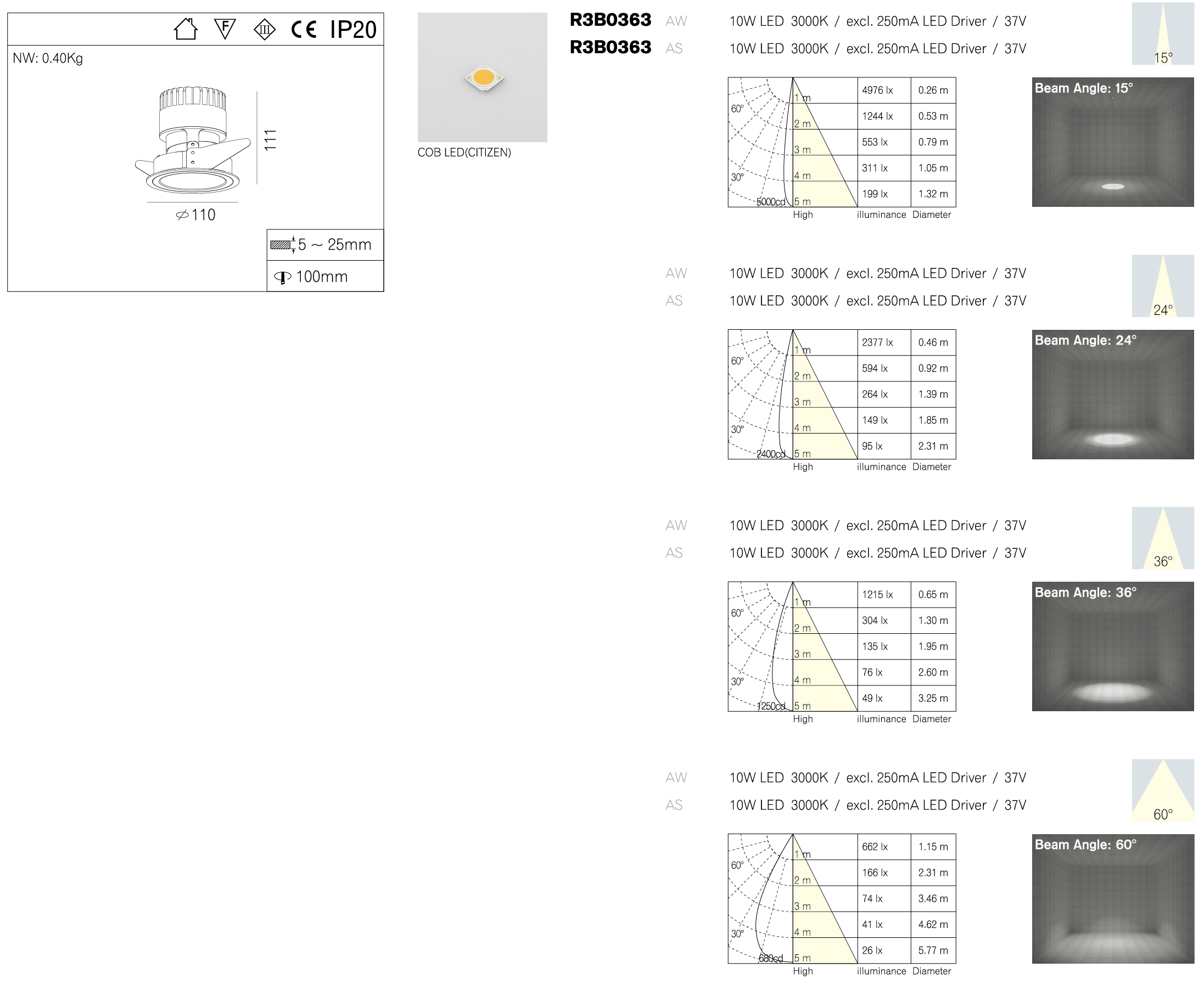

Beam Angle

15°/24°/36°/60°

Electric Data

DC 37V  250mA

CCT

2700K/3000K/ 4000K/5000K

Finish

Texture:White、Black、Silver

IP

IP20

Certification

 CE、STD、RoHS

CRIRa>)

>90

Cutout shape/size

  100 mm

Class

Class III

Requirements

 1-10V/SCR/DALI

10W LED downlight

  Application


lighting application cafe  lighting application club  lighting application hotel  lighting application office area  lighting application residence  lighting application restaurant  lighting application shopping mall  lighting application showroom  lighting application stroe  lighting application Villa
