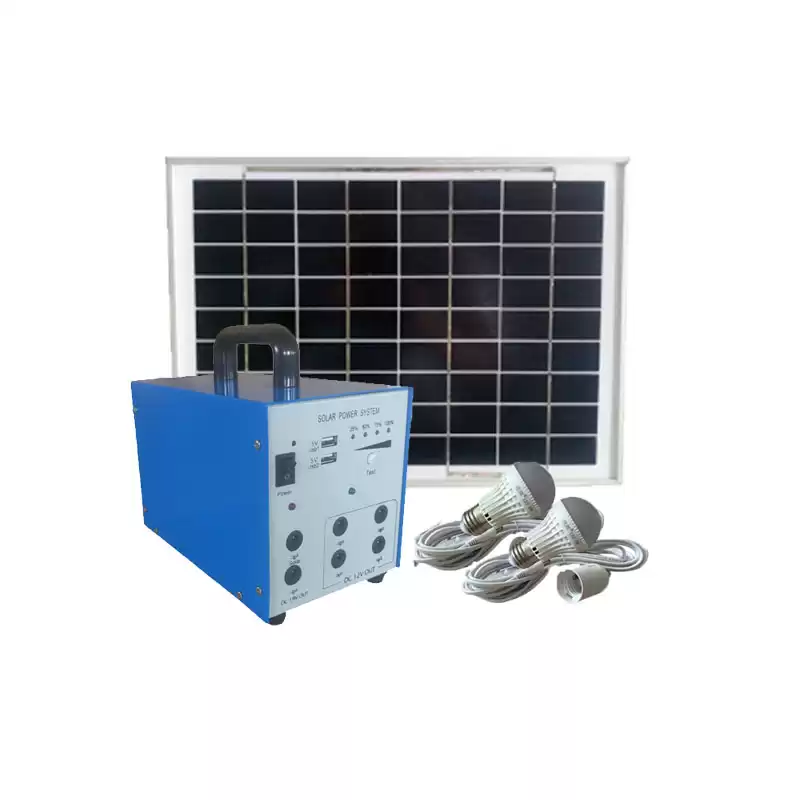

10w Portable Off-grid Solar Power System
10W Solar Power System Specifications:
|
Controller System Host
|
Type
|
High-efficiency PWM controller
|
|
Controller specification
|
12V/5A
|
|
Protective function
|
Stop charging (HVD): 14.2V Over discharge protection (LVD): 10.8V
|
|
Indicating function
|
Battery indicator, solar charging indicator, mobile phone charging indicator
|
|
12VDC output hole
|
4PCS
|
|
5VDC output hole
|
2PCS
|
|
Size
|
217*130*145mm
|
|
Packaging Size
|
270*180*300mm
|
|
Weight
|
3.72Kg
|
|
Full set weight
|
5.82Kg
|
|
Solar Panel
|
Solar panel power
|
10W
|
|
Size
|
285*350*20mm
|
|
Battery
|
Type
|
Deep-cycle maintenance-free lead-acid battery
|
|
Lithium battery capacity
|
12V 4AH
|
|
Accessories
|
12V/3W LED bulb
|
2PCS (3W LED lamp is equivalent to 30W incandescent lamp brightness )
|
|
LED Light wire
|
2PCS (Each line is 5 meters long)
|
|
Solar panel wire
|
5m
|
|
AC charger
|
/
|
10W Solar Power System Feature:
The control unit has a built-in 12V 4Ah battery and an automatic solar charge controller to manage the charging process and prevent overcharging.
The system is very convenient to use and install, integrated design, easy to operate, plug and play, suitable for indoor and outdoor use.

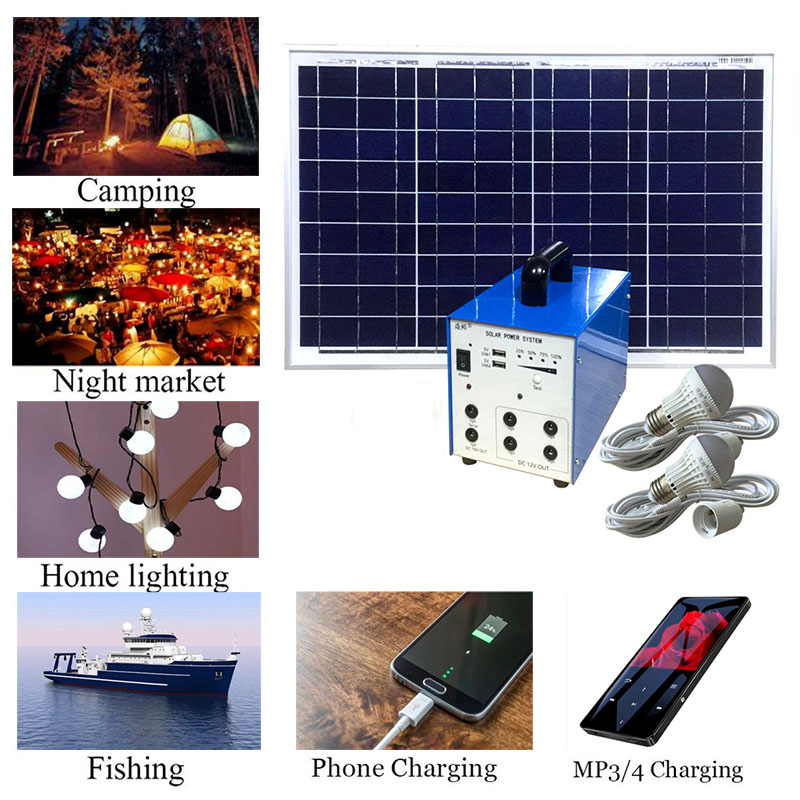

Application Field:
Sheds, horse farms, boats, caravans, RVs, electronic fences, camps, yurts, multi-panel off-grid power supplies for small buildings, remote telecommunications, mobile food stores, etc. Independent off-grid solar power supply.
