10W Portable Small 12V DC solar power system

We are professional DC solar power system products manufacturer and supplier.

We provide different kinds of small solar power systems, portable solar power systems, simple installation, wide-ranging applications, preferential prices, and quality assurance.


  • CertificateRoHS, CE, Patent
  • Warranty25Years
  • OEM/ODMYes
  • Voltage12V
  • Battery Capacity4AH
  • Product NameOff grid solar system

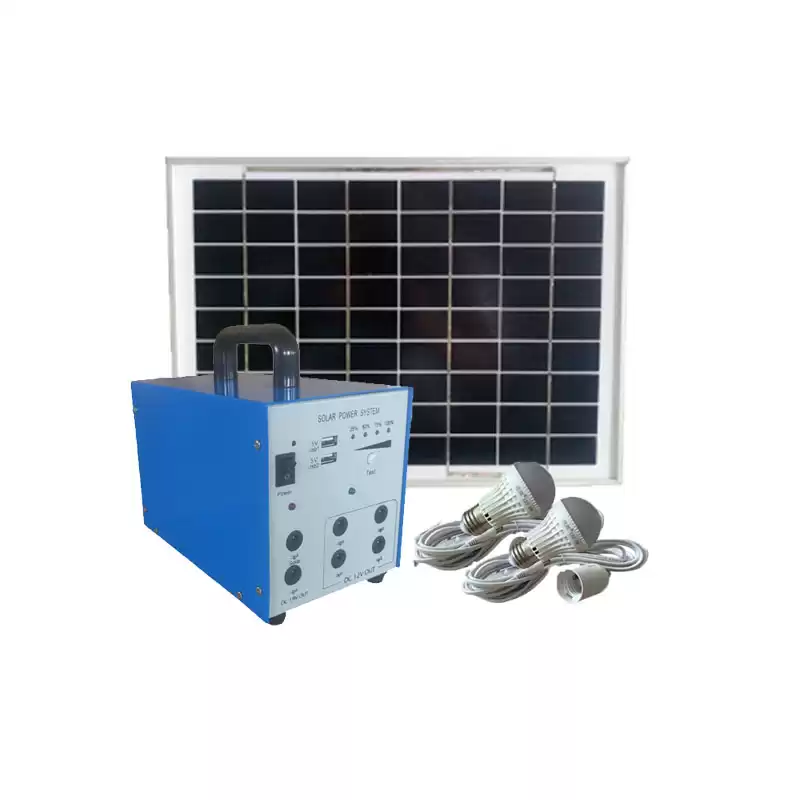

10W Portable Small 12V DC solar power system

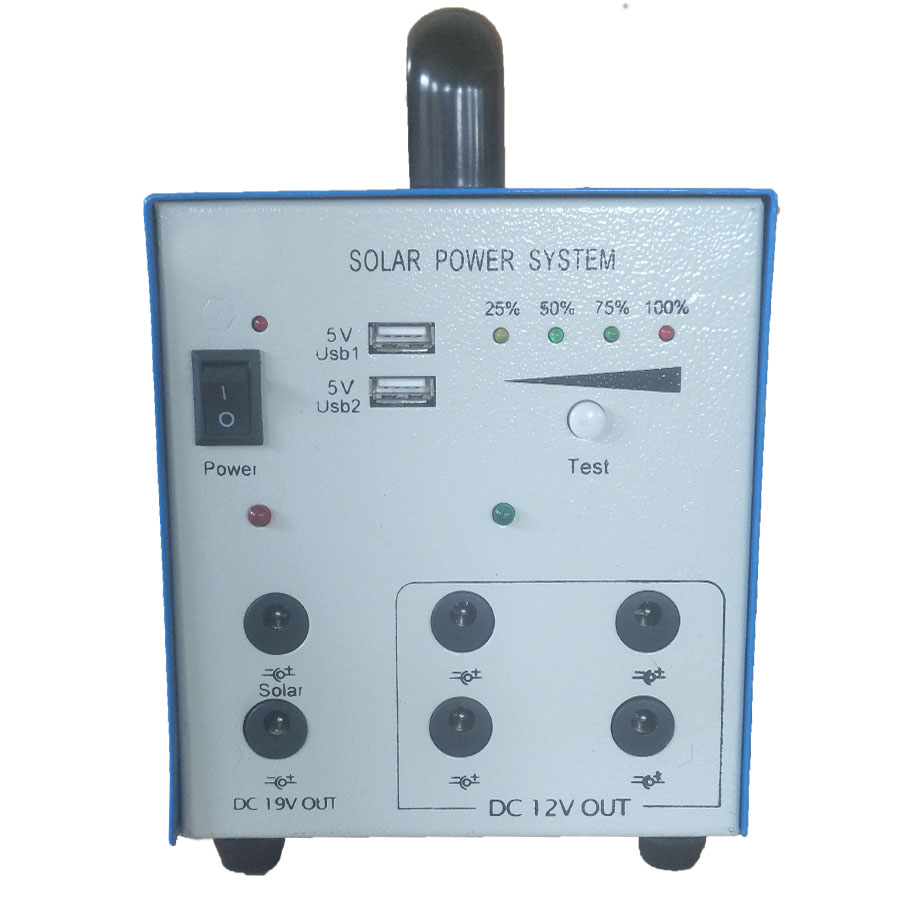

This small 12V DC solar power system has a 12V 5A high-efficiency PWM controller, which can support daily home lighting, mobile phone charging, and laptop charging.


It is usually used to provide emergency power supply for the family. This portable solar system is an ideal choice when the local power supply is insufficient or the electricity bill is expensive, or when it is located in a remote mountainous area and is out camping.


Product Specifications:

10W Portable Small 12V DC solar power system
Controller System Host Type High-efficiency PWM controller
Controller specification 12V/5A
Protective function Stop charging (HVD): 14.2V Over discharge protection (LVD): 10.8V
Indicating function Power indicator, solar charge indicator,Mobile phone charging instructions
12VDC output hole 4PCS
5VDC output hole 2PCS
Size 217*130*145(mm)
Packaging Size 270*180*300(mm)
Host Weight 3.72Kg
Full set weight 5.82Kg

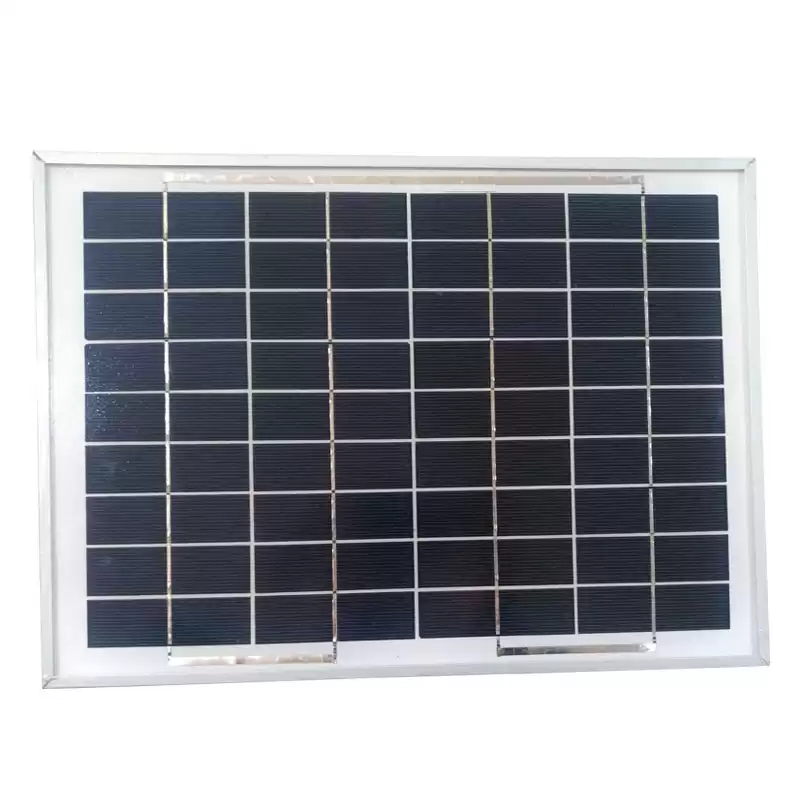

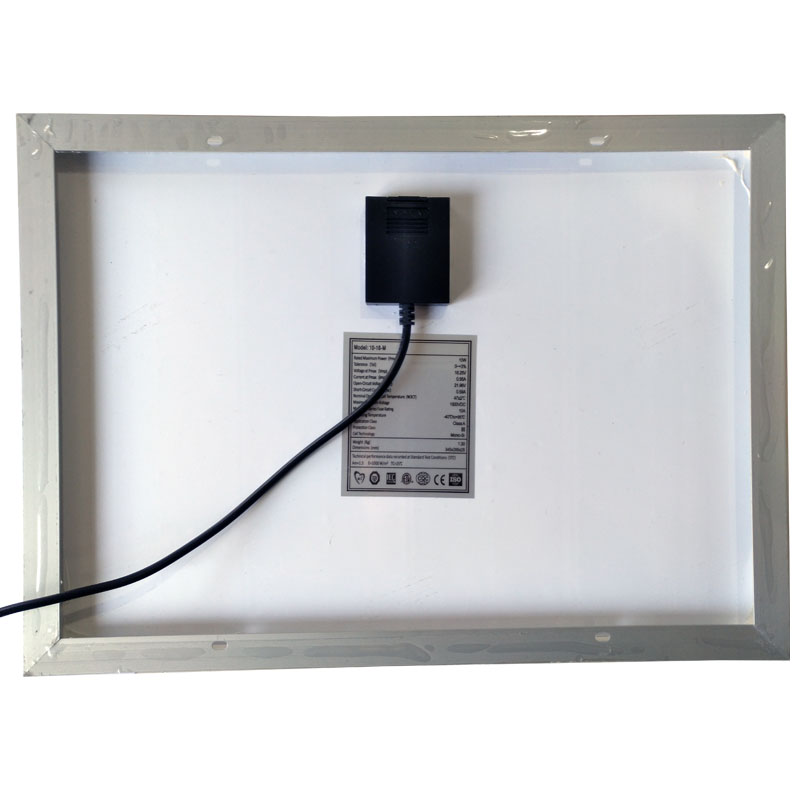

Solar Panel Solar panel power 10W
Size 285*350*20(mm)
Battery Type Deep-cycle maintenance-free lead-acid battery
Lithium battery capacity 12V 4AH
Accessories 12V/3W LED bulb 2PCS (3W LED lamp is equivalent to 30W incandescent lamp brightness )
LED Light wire 2PCS (Each line is 5 meters long)
Solar panel wire 5m
AC charger /

* All accessories are equipped according to the ordered products and user needs.

* Your requirements can be customized.



Applications:



Factory & workshop:



Welcome to contact us for more details, most competitive price and best service for you!



Product Tags off grid solar home system          off grid solar systems for homes          solar pv home lighting system          portable solar pv system          emergency solar power systems
