10W RF Coaxial Fixed Attenuator with BNC Male to Female DC-3GHz/4GHz 1-30dB Avaliable

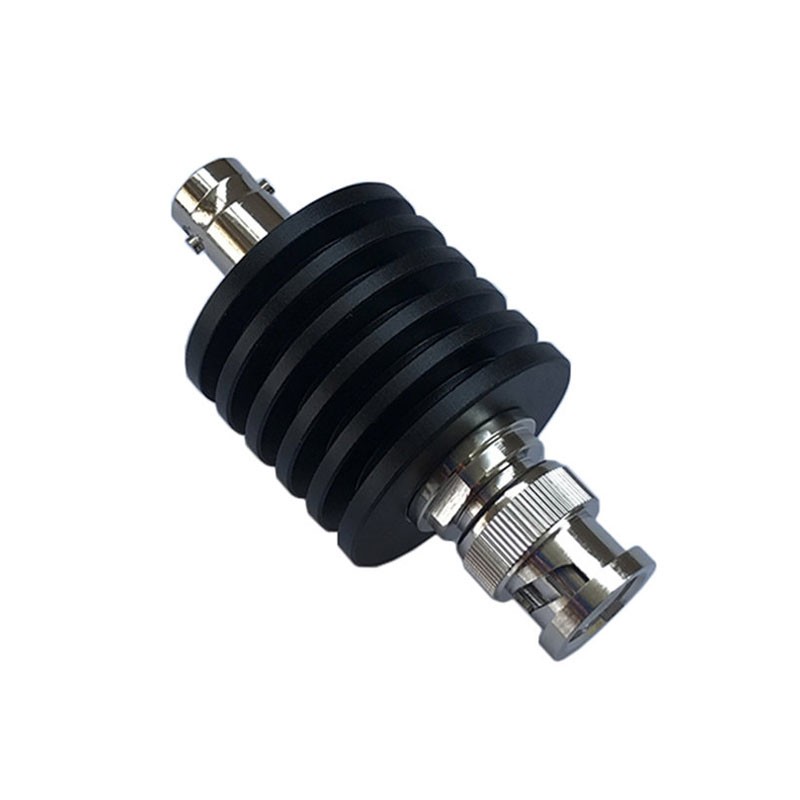

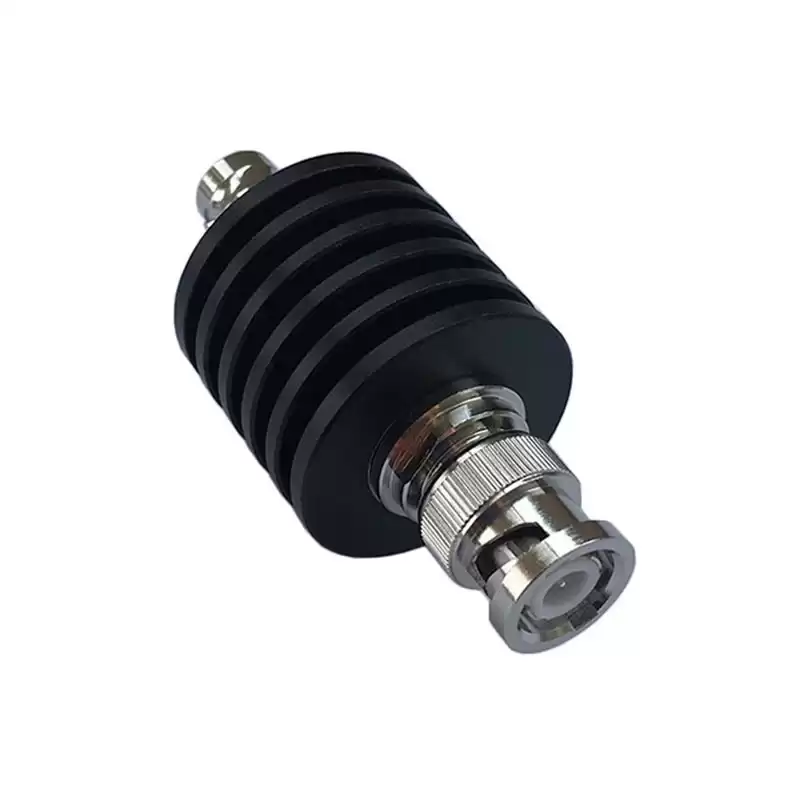

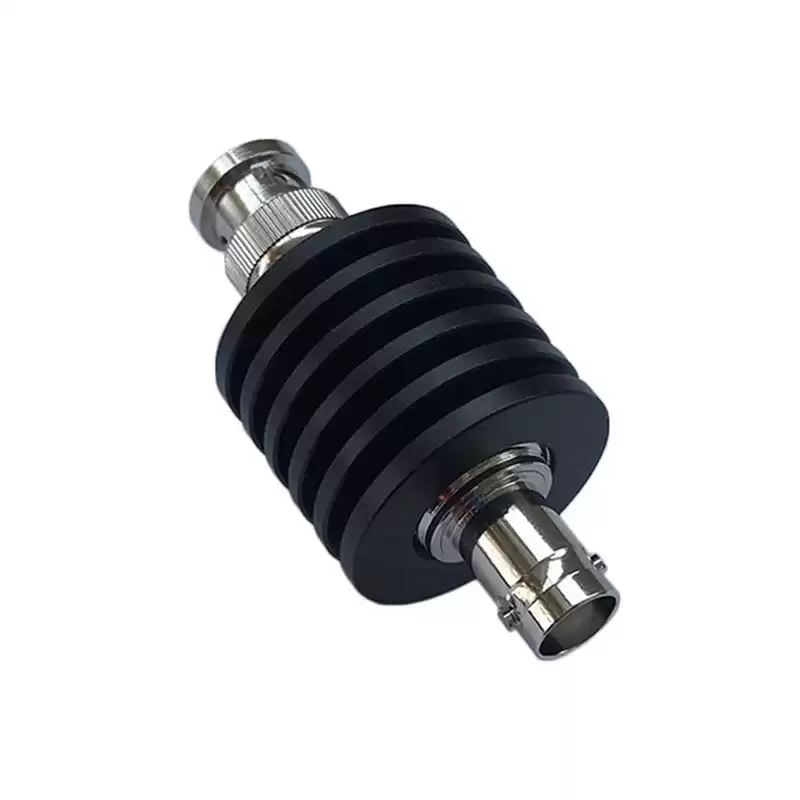

The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's BNC Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 10W BNC to BNC Attenuator has a BNC male gender on side 1 and a BNC female connector on side 2. attenuation Max value is 40dB, frequency Max is 4GHz.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~3GHz/4GHz |
| Connector |
BNC Male to Female |
| VSWR |
≤1.25 |
| Power |
10W |
| Impedance |
50Ω |
| Attenuation value |
1-40dB |
| Attenuation |
1, 3, 5, 6, 10, 15, 20, 40dB is available
1-10dB.±0.5dB,15-30dB±1dB, 40dB±1.5dB |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Stainless Steel,Passivate or Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
Applications
- In-door distribution system
- Shortwave communication
- Hopping radio
- Radar
- Electronic navigation
- Electronic confrontation
