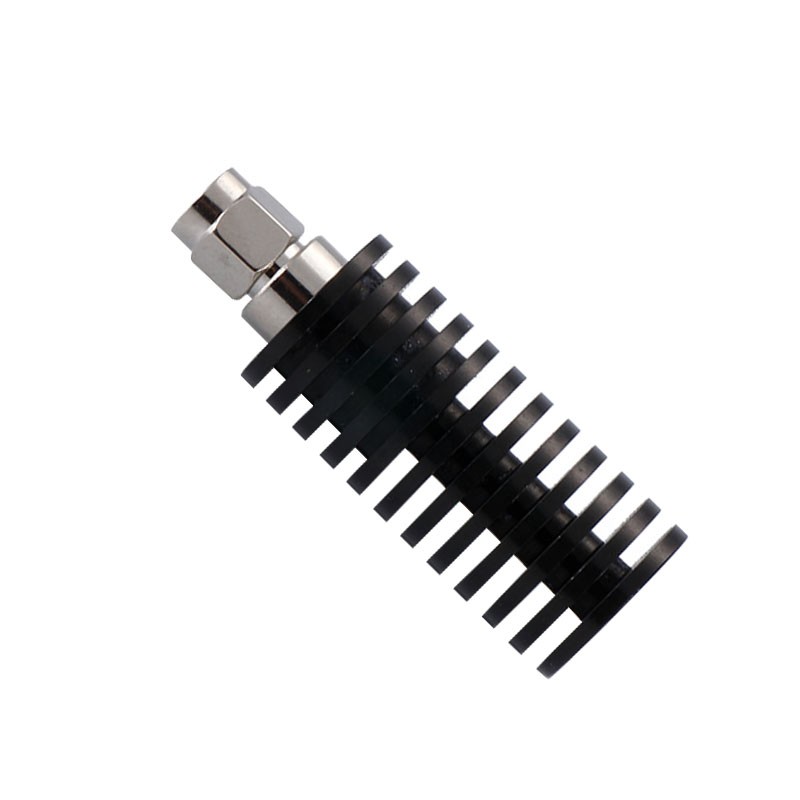

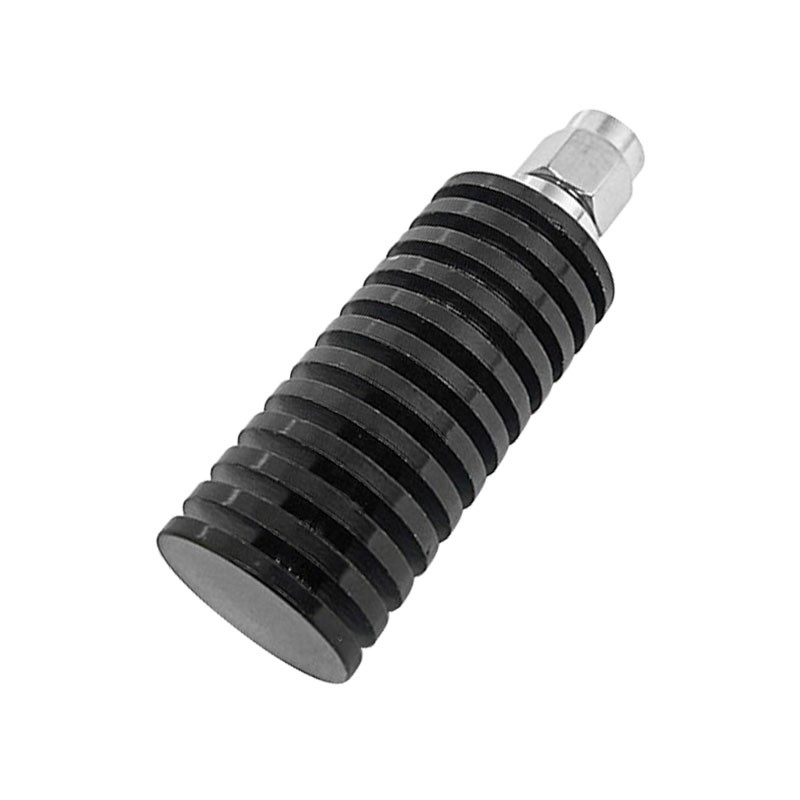

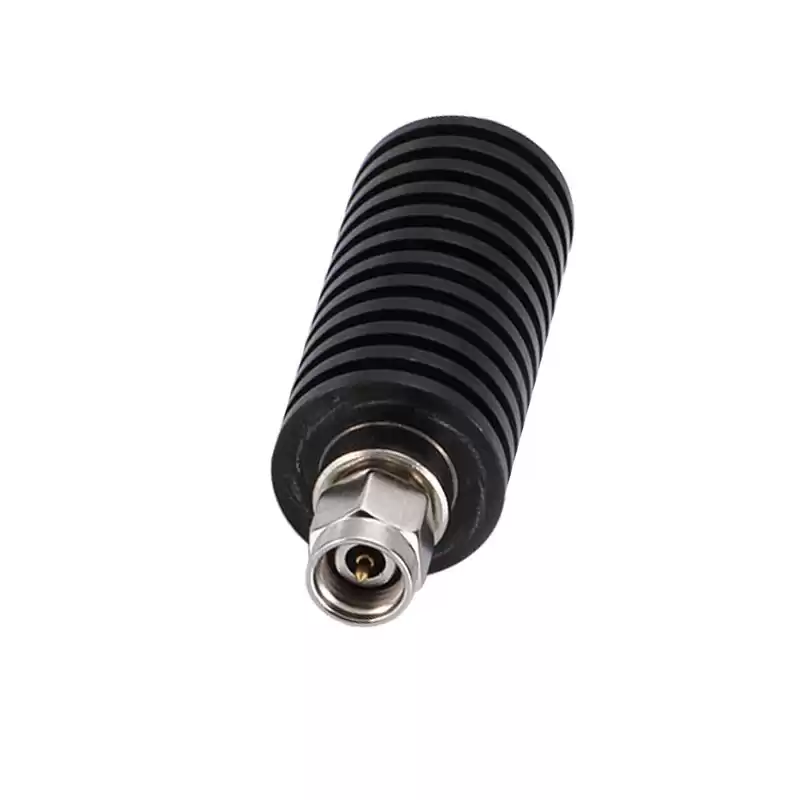

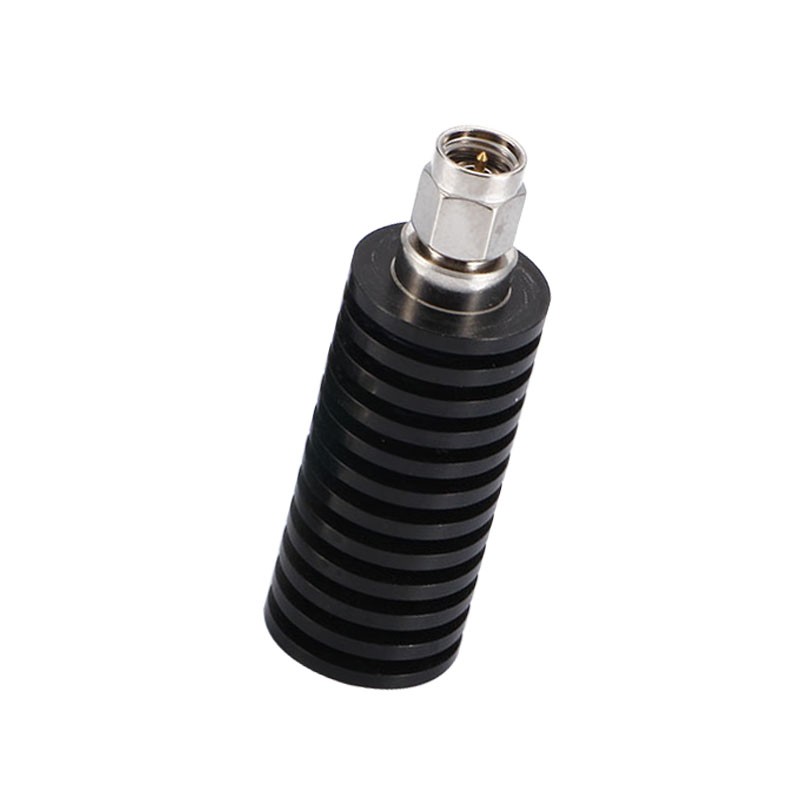

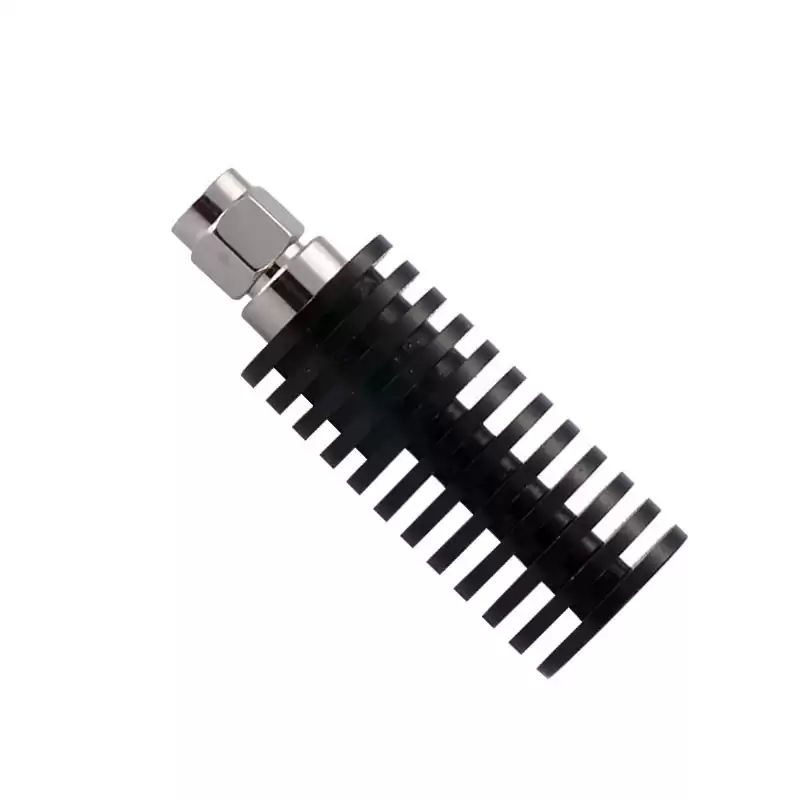

10W SMA Male DC-6GHz Up to 18GHz 50ohm RF Dummy Load Terminator Used for IBS DAS
The 10W SMA dummy load (also known as 10W SMA termination or 10W SMA RF load ) has a SMA connector that is male. This 10W SMA male load / termination is rated for a maximum frequency of 18GHz. ROHO's SMA male termination load is a rf load termination with a 50ohm impedance; The SMA coaxial termination / load has an average maximum VSWR of 1.2:1. 10W SMA male load termination is one of RF, microwave and millimeter wave components. ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
ELECTRICAL DATA | |
Frequency | DC~6GHz up to 18GHz |
Connector | SMA Male |
VSWR | ≤1.2 |
Power | 10W |
Impedance | 50Ω |
Temperature Range | -55℃~+125℃ |
MATERIAL DATA | |
Connector body | Brass,Plating Ni |
Insulator | PTFE |
Inner Conductor | Phosphor Bronze ,Plating Au |
Housing | Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
