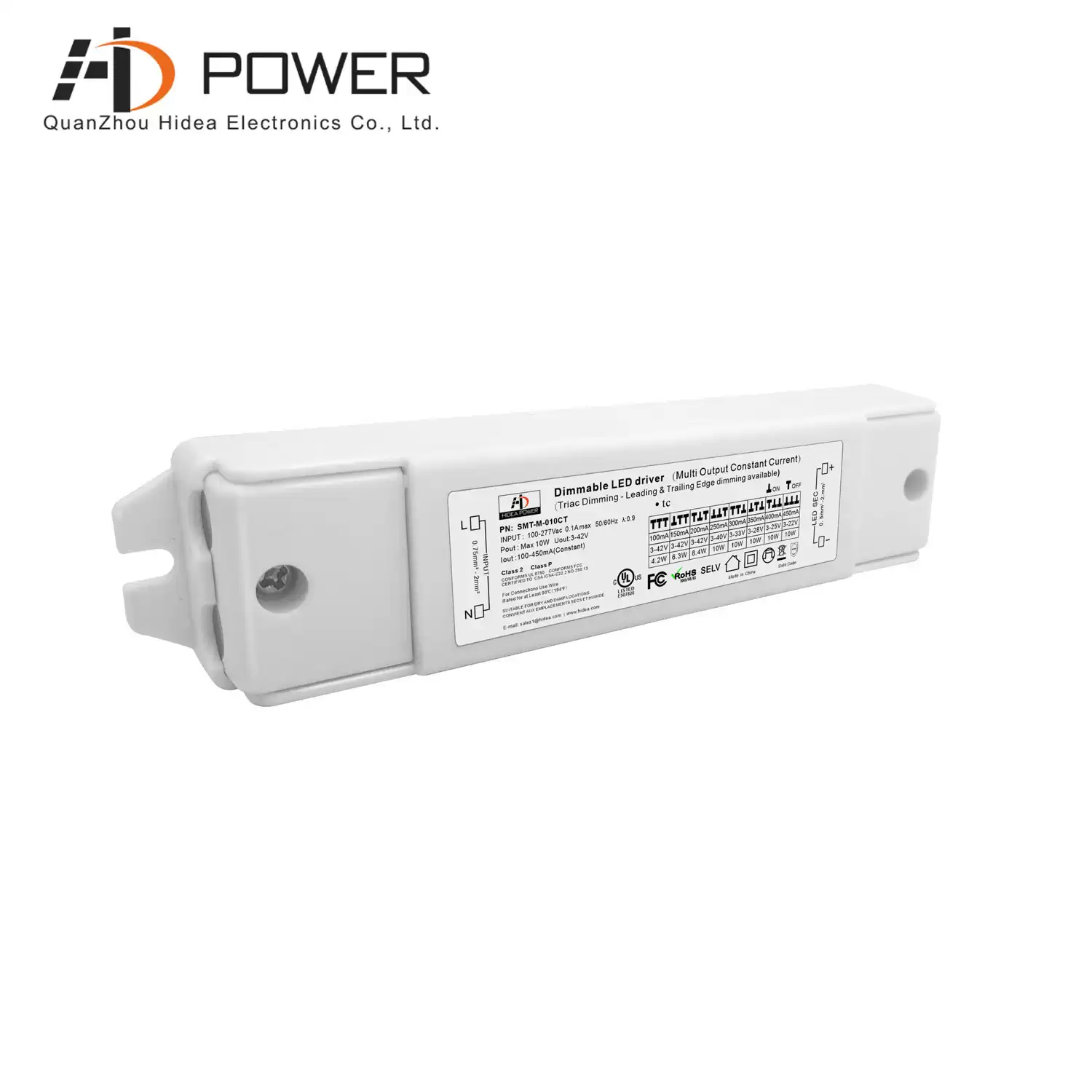

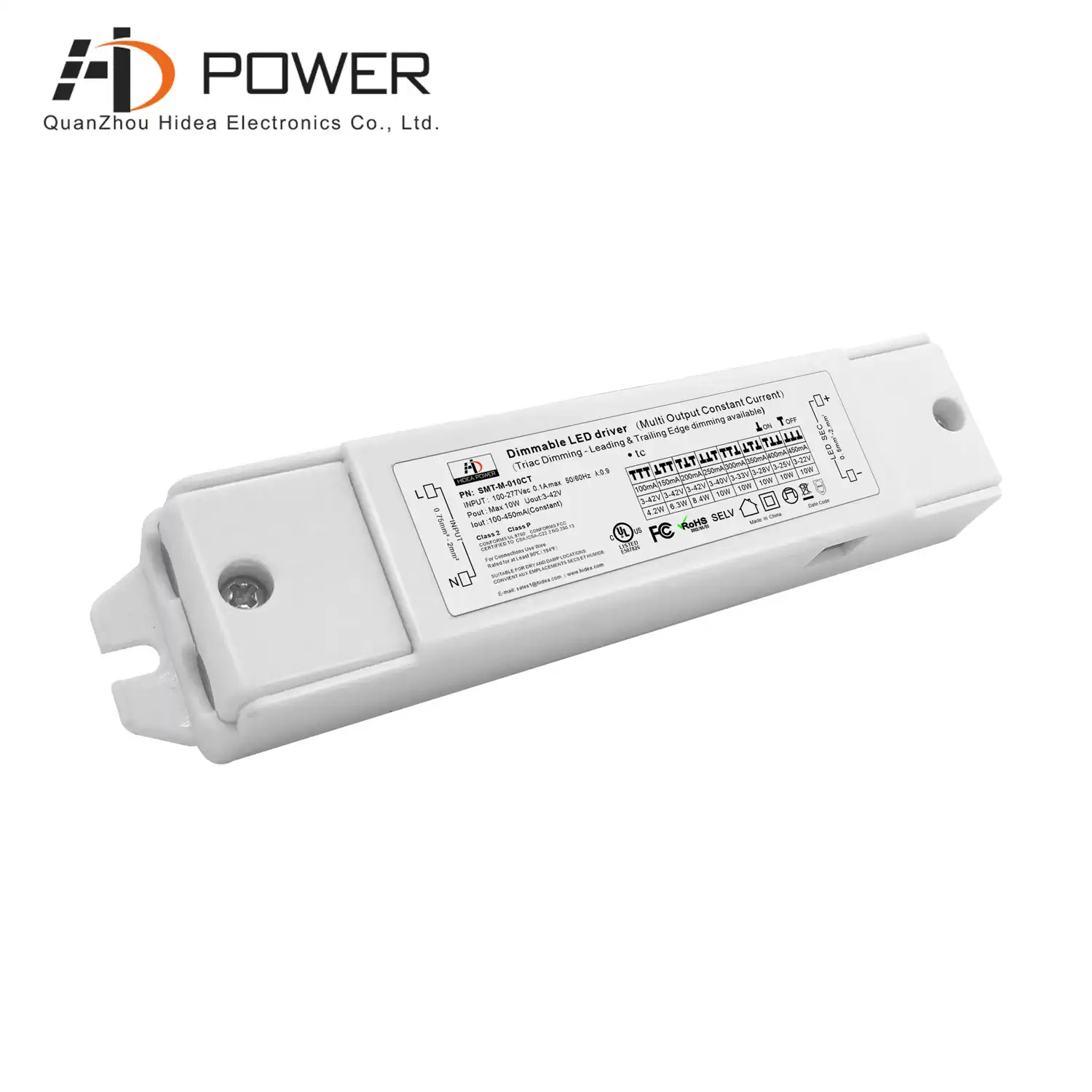

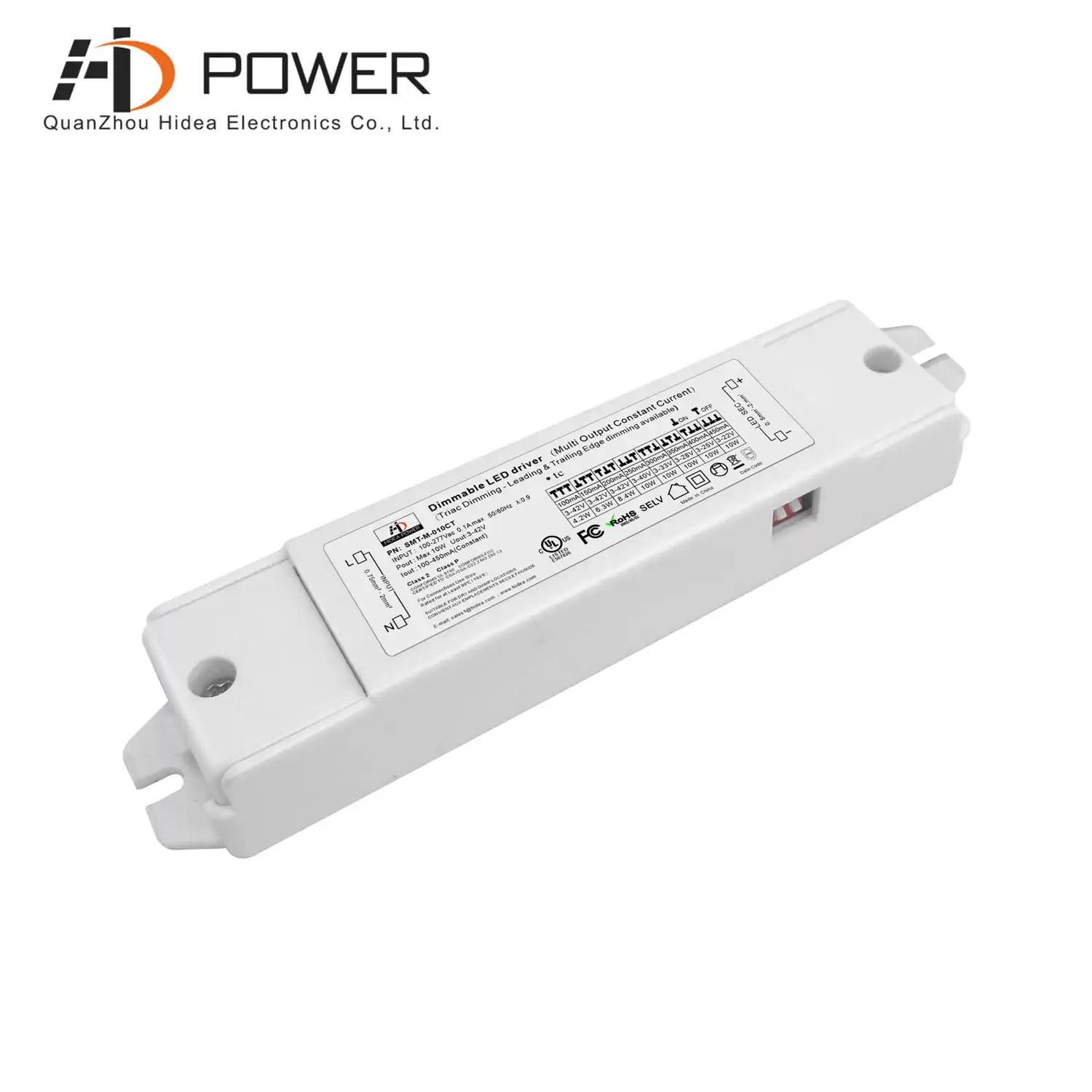

10W triac dimmable adjustable 100mA-450mA constant current led driver power supply

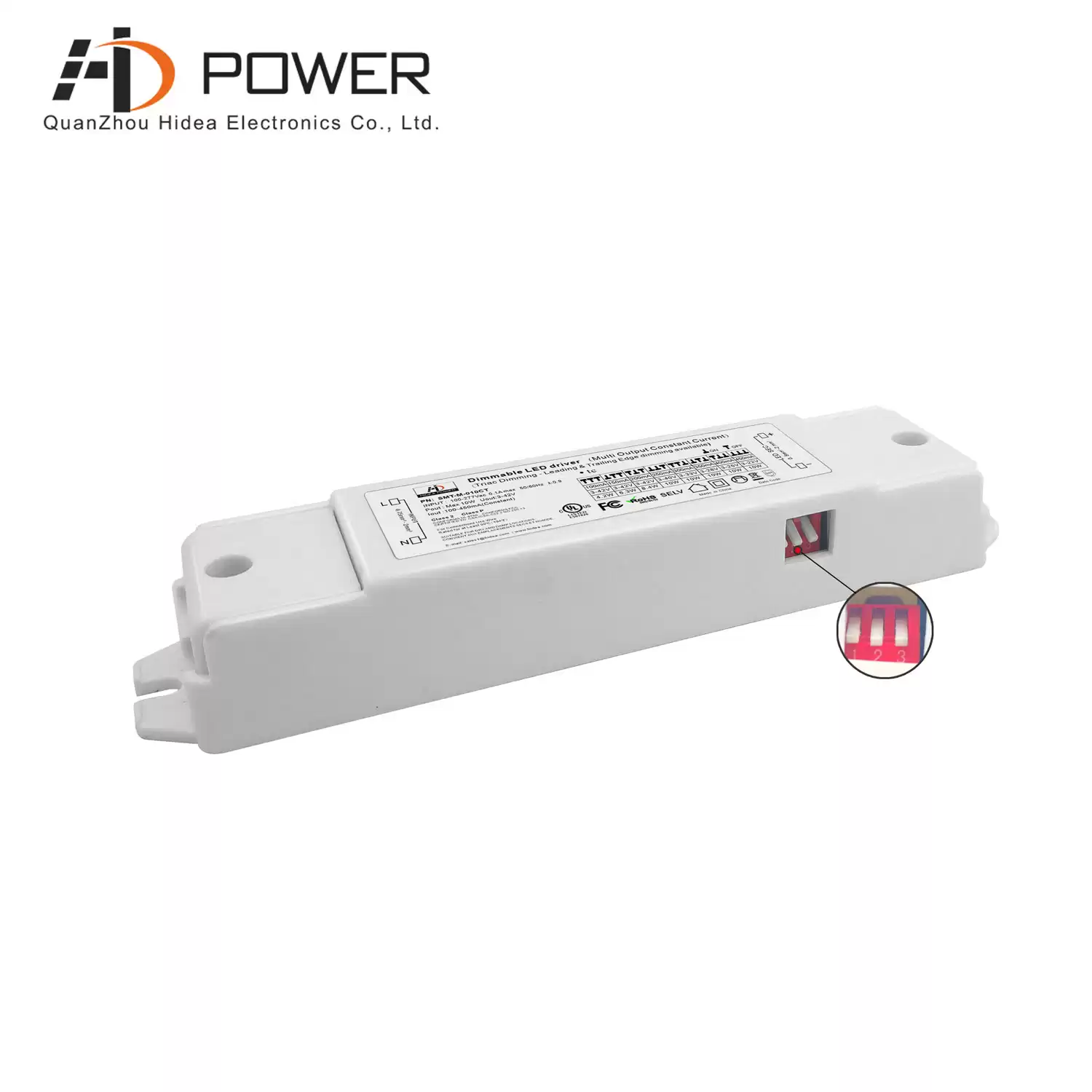

Hidea power's new dimmable constant current triac dimmable led driver has three dimmable buttons, can adjust eight levels of current, can meet the needs of users in the current range of 100mA-450mA, has a seven-year warranty, and can protect Lithonia Lighting's 10W LED downlight for longer time

Warranty7 Years
Weight130g
Size135*30*20mm
Output Current100mA-450mA
Output Power(Watt)10W
Shape & SizeStandard Size
Input Voltage100-277Vac
CertificationUL
Working ModeMulti-Output Current Driver
Dimming ModeTriac Dimming

Facebook Twitter Pinterest LinkedIn 分享

Description

This 10W dial code constant current power supply has passed the UL certification, the input current is 100-277vac, the size is only 135*30*20mm, it can adjust the current of eight gears in the range of 100mA-450mA, and it is suitable for indoor installation.

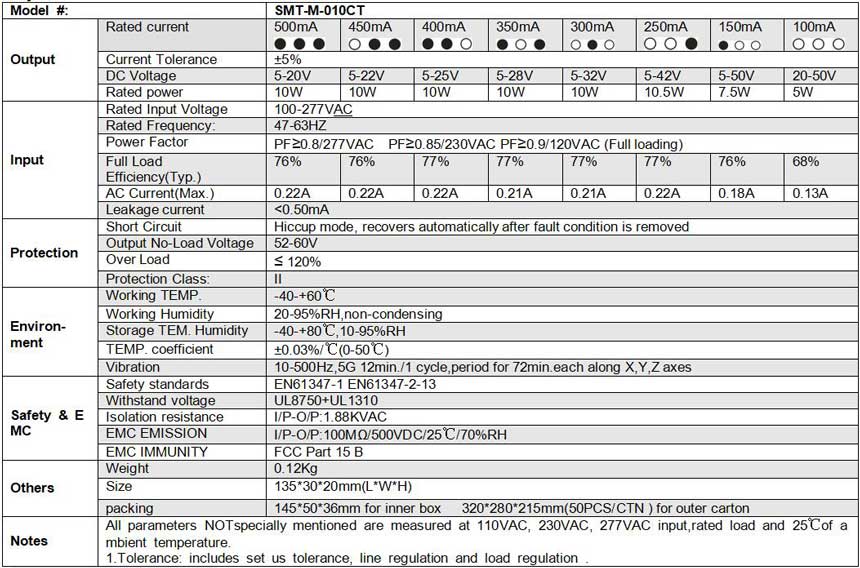

Specification

Compatible Light Type

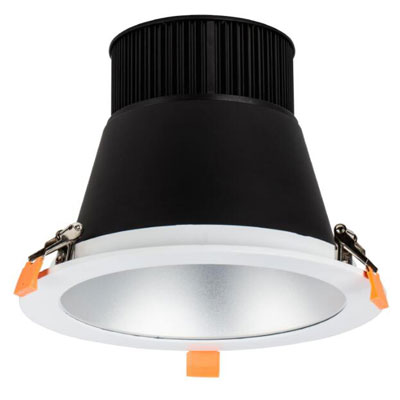

The TRIAC dimmable 10W dial code power supply can match the e-conolight's 10W led downlight very well. It has passed the UL certification and is complete, and the quality and safety are guaranteed.

10w dimmable led driver
