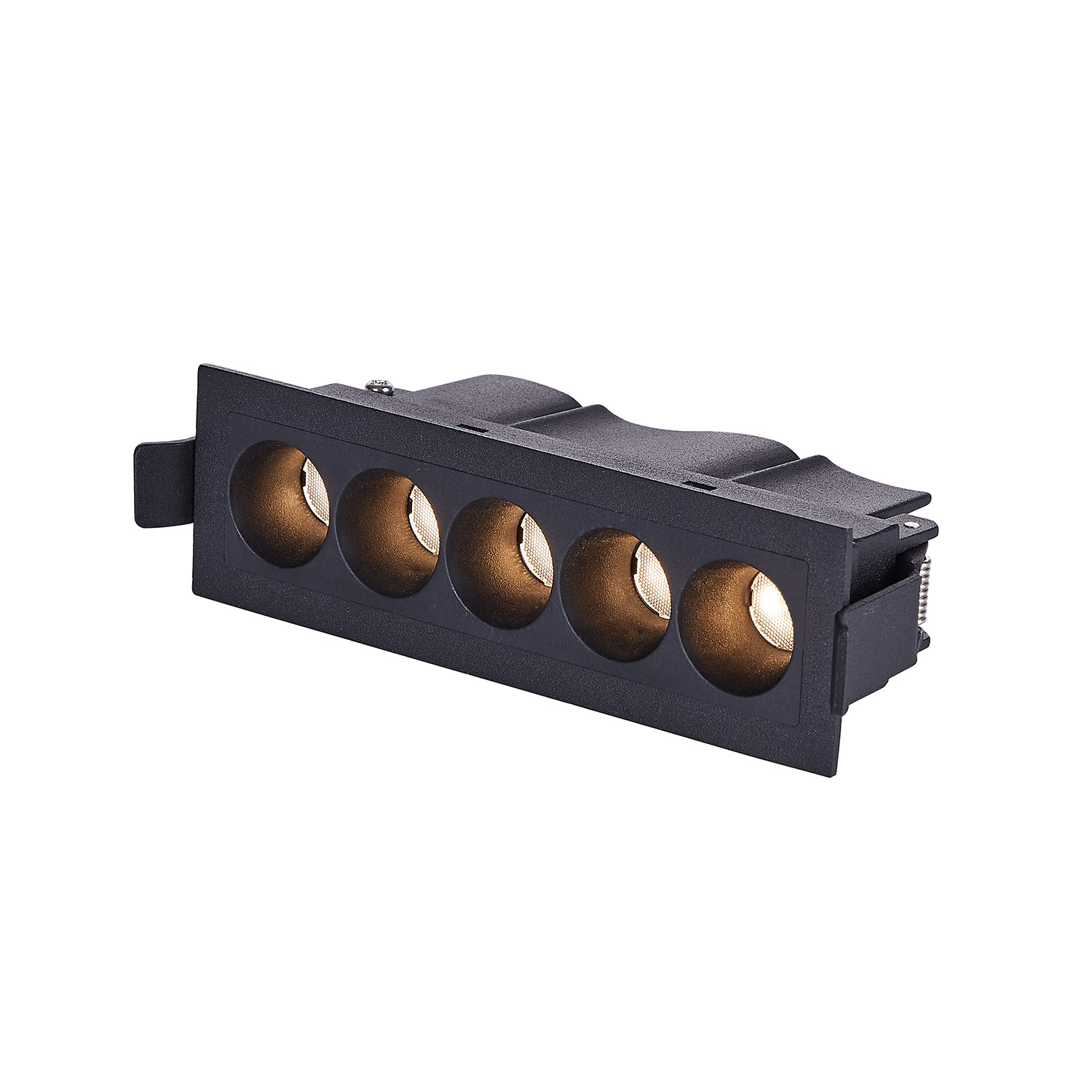

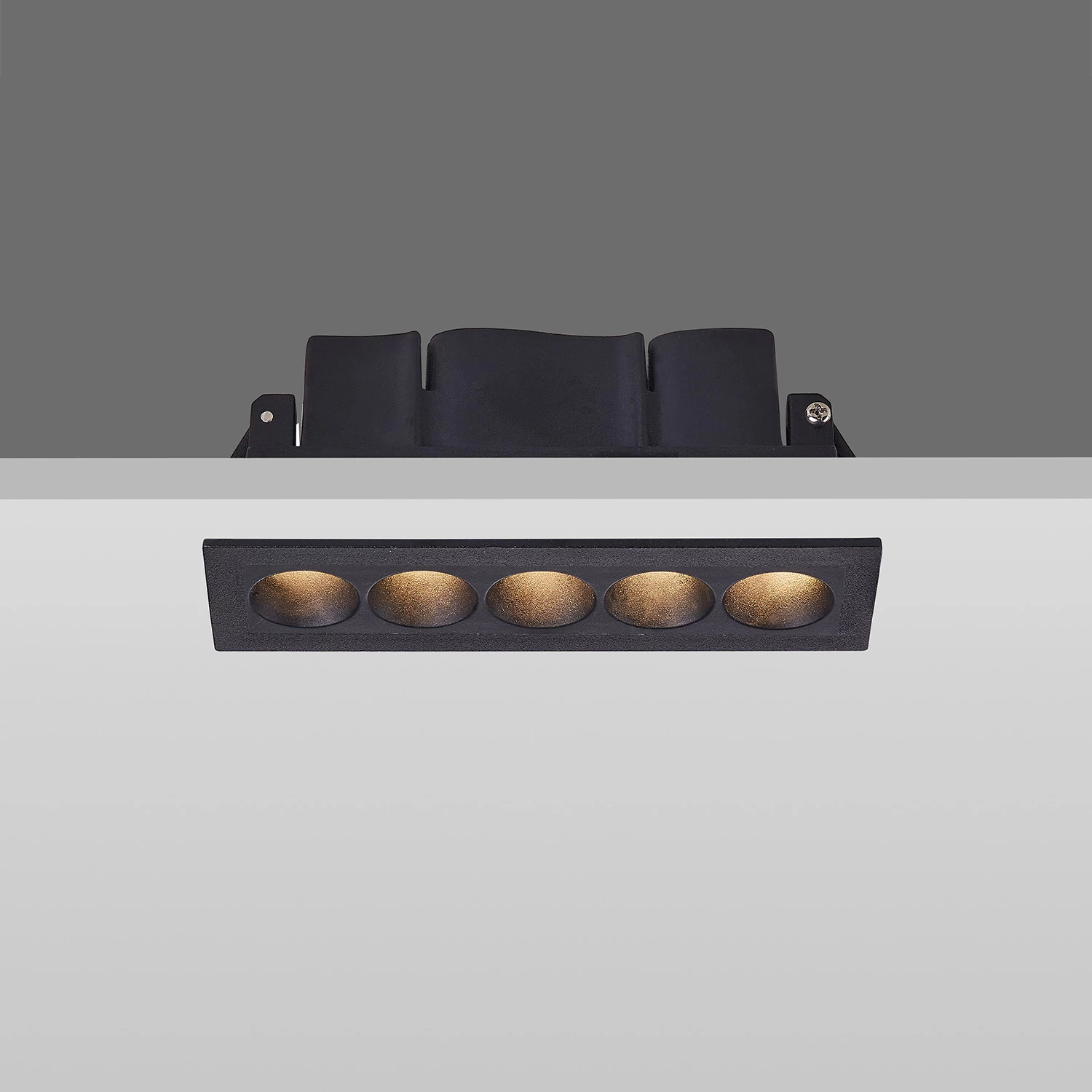

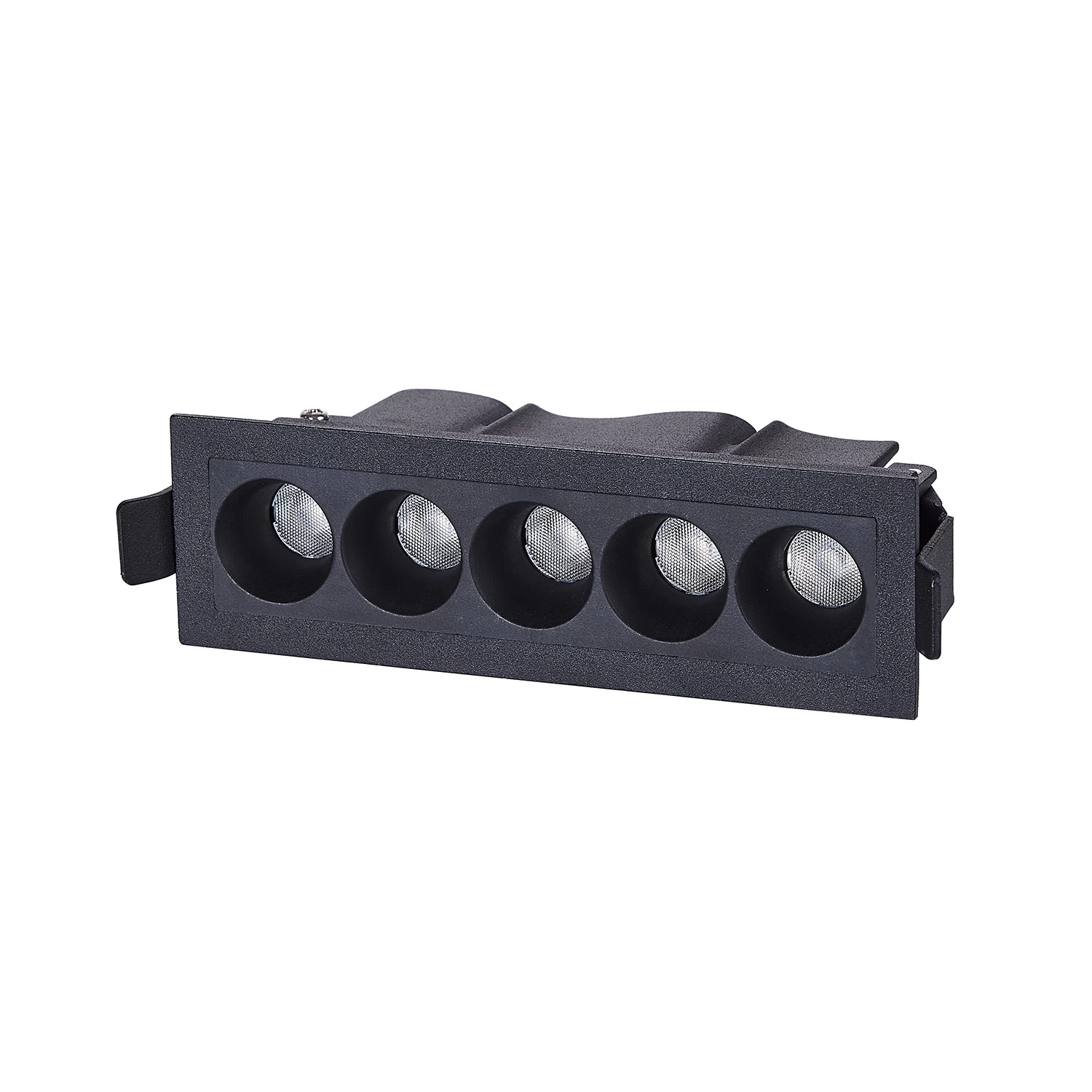

10W Trimless five heads LED Grille led Downlight

  • This product consists of aluminum die-cast front and main body, completing with powder coating or oil finishing.
  • By using the new generation COB LED chip, this product generates extreme low heat and offers an excellent lumen performance.


  • IP RateIP20

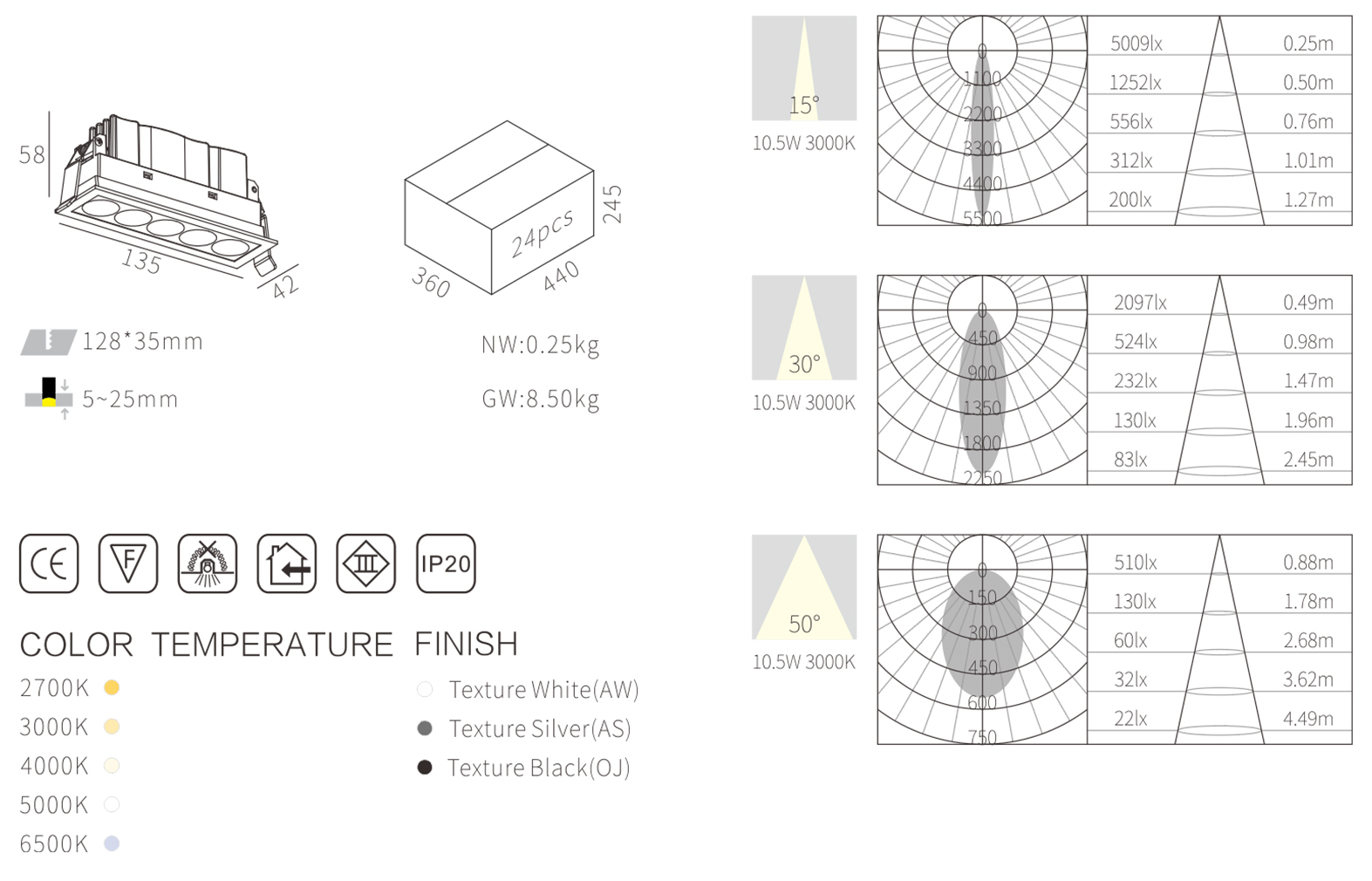

  • Beam angle15°/30°/50°
  • CCT3000K
  • Lumen 301-600lm
  • CRI>90
  • FinishWhite、Black、Silver

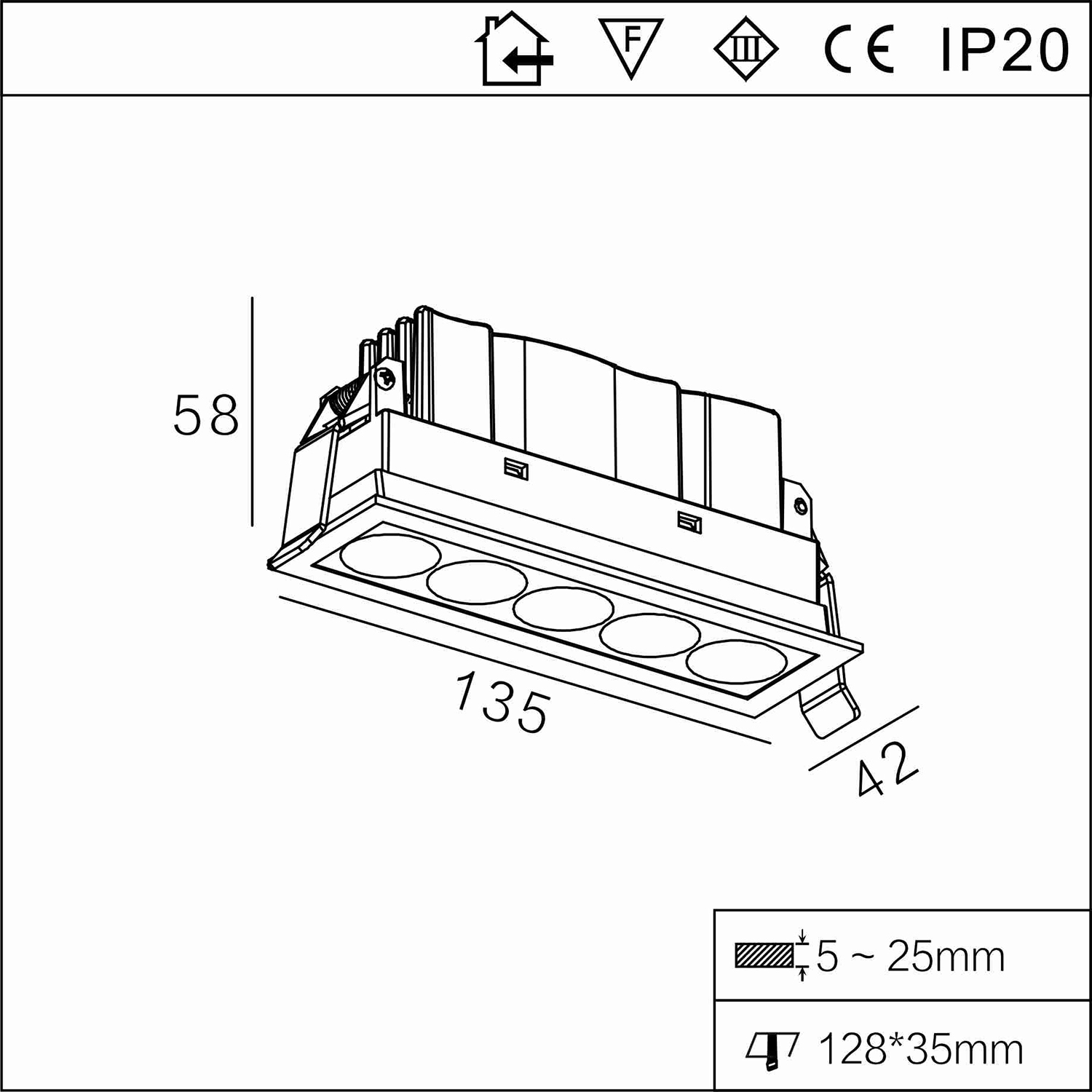

  • Product Size135*42*58 mm
  • Lamp Power10.5w
  • MaterialAluminum
  • Light sourceCOB

Model number

 R3B0749

Installation

 Recessed Mounted

Power

10.5W

Light source

 LED

Lumen

503lm

Material

Aluminum

Beam Angle

N/A

Electric Data

DC 15V  700mA

CCT

3000K

Finish

Texture:White、Black、Silver

IP

IP20

Certification

 CE、STD、RoHS

CRIRa>)

>90

Cutout shape/size

  128*35mm

Class

Class III

Requirements

  N/A


recessed light


  Application


lighting application cafe  lighting application club  lighting application hotel  lighting application office area  lighting application residence  lighting application restaurant  lighting application shopping mall  lighting application showroom  lighting application stroe  lighting application Villa
