10x10m pagoda tent for 70 people wedding party events banquets marquee

The 10x10m pagoda tent is popular for events , which is quick to set up and take down



eature of tent
1.Easy to set up and dismantle,best structure for temporary
and semi-permanent purpose.

2 Light weight and small volume which is convenient for transportation.

3.Not any pole inside that you can use the interior space 100%.

4.strong structure which allow the tent to resistance windload up to
100km/sqm .

Main frame
1.hard press extruded aluminum alloy GB6061/T6,Hardness 13HW ,long lifespan,
high strength,Anti rust.

2.The materials( size ,thickness ) will be change according to
width/clear span to make sure the tent is safty.

Connectors
1.Make from hot dip galvanized square steel pipe,the coated layer is up
to 60um high strength , anti-rust.

PVC cover
1.Roof cover , 850g/sqm light blockout double PVC coated polyester fabric
UV protection ,fireproof , waterproof.

2.Sidewall cover  650g/sqm translucent double PVC coated polyester fabric,
UV protection, fireproof, waterproof.

Transparent PVC cover
1.Roof cover, 0.8mm thickness transparent pvc film

2.Side wall cover, 0.5mm thickness transparent pvc film

Hard wall cover

1.Glass wall,aluminum frame 6mm tempered glass wall

2.ABS wall , 5mm ABS panel.

3.Sandwich wall, 50mm sandwich panel



<<<<<<<<<<<<<<<<<<<<< Popular size >>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Sizes (m) eave high(m) Top height(m) bay distance(m) main profile(mm) Shipment Volume (CBM)
3x3 2.5 4.3
3 65x65x2.5mm 0.5
4x4 2.5 4.7 4 65x65x2.6mm 0.6
5x5 2.5 5.4 5 65x65x2.5mm 0.7
6x6 2.5 5.9 6 65x65x2.5mm 0.8
8x8 2.6
6 4 122x66x3 1.6
10x10 2.6 6.5 5 122x66x3 2

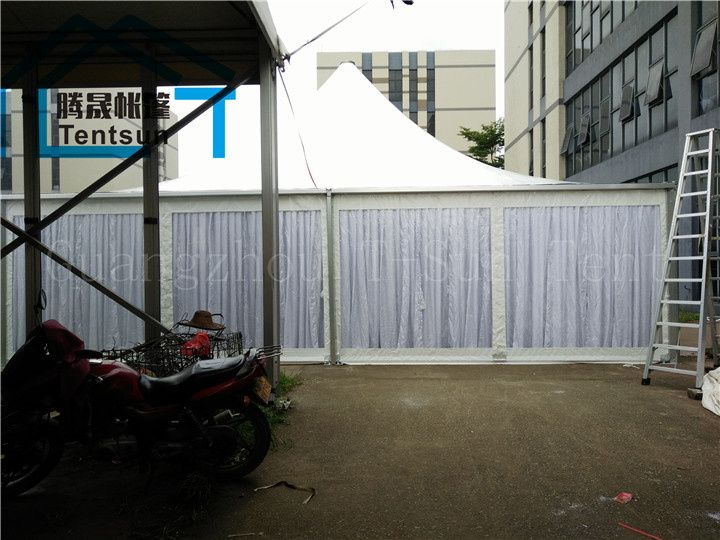

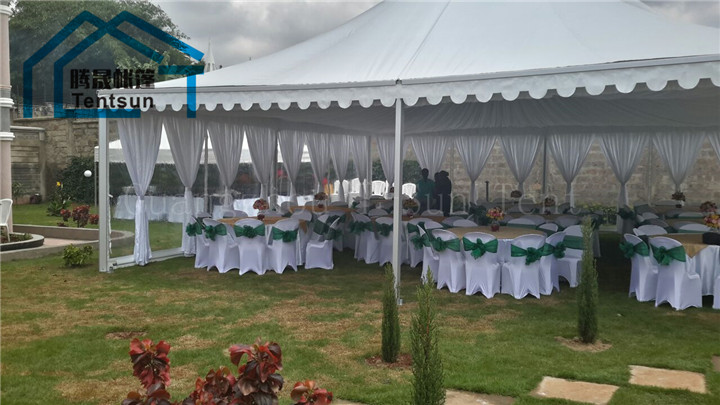

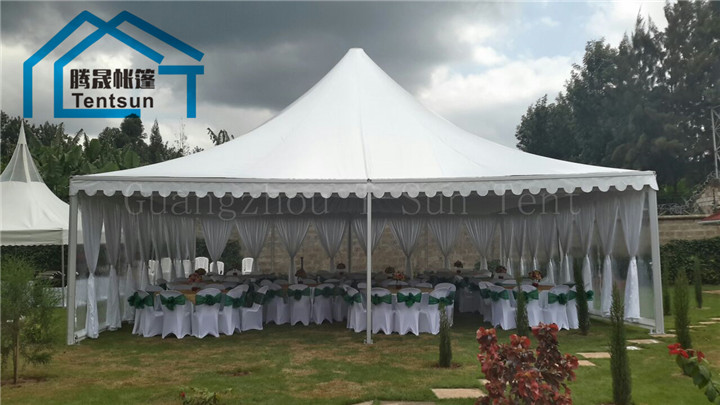

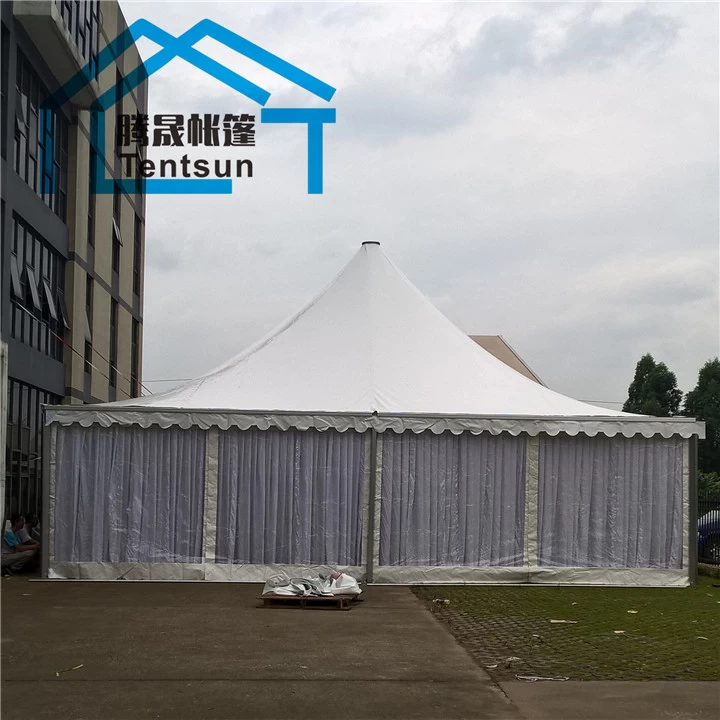

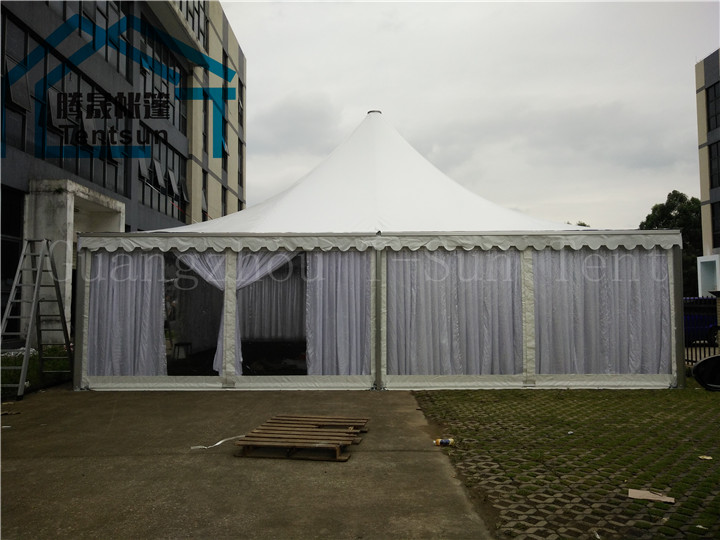

Pictures show



<<<<<<<<<<<<<<<<<<<<<   optional accessories >>>>>>>>>>>>>>>>>>>>>>>



.................................. cover colors :white , transparent .................................................



............Windows: clear PVC window, mesh  window, glass window for hard wall..........



...................wooden floorling systme: VIP cassette ,simple cassette...............................



...doors: double wing glass door , single wing glass door, PVC zip door ,rolling door....



..side wall: tempered glass sidewall, PVC sidewall, ABS side wall, sandwich sidewall...



......rain gutters (inner roof  beam rain gutters or rain gutters between two tents............



...........decoration: lining , curtains , various colors of satin fabric are available..............



...........................furnitures:  table, chair ,air condition.....................................................






              <<<<<<<<<<<<Packaging and shipping>>>>>>>>>>>>>>>



................. Roof cover & sidewall cover packaged with professional PVC carry bag.................



................ aluminum frame & galvanized steel connector packaged with plastic film................



.......glass wall and other accessories that easy to damage packaged with wooden box........






Our service

1.Guide you and help you to assemble your tent up,Wherever you come from, we can go to your home town to help you set the tent up.



2.Set the tent up and check the quality,Make sure all have to be done well before shipping.



3.More than 3 years Quality Warranty, and Free Repair  Under the term of Quality Warranty.



Company information

.png





FAQ

1.Does your company accept customized tent?



 Yes , we can make the tent according to our customers different need.



2.Does your company is a factory?



 Yes , we are a factory , so our price is really reasonable ,but have high quality.



3. Does your company provide any help to install the tent?



  Yes , usually we will send manul instruction and CD to help our customers to install the tent.



4, Does your tent can move to the other place after set up?



   Yes , the main frame of our tent is aluminum , so it is light in weight but with high strength, that is very easy to set up and dismantle.



5.How to buy your products?

Contact us that we will deal with your order quickly
Modi Mo ( Mr)
Mob/Whatsapp/Wechat  +0086  15602256056
Skype  live:moditentsun
Tel   +0086 020 39189050
GuangZhou T-Sun tent CO.,LTD    http:// www.tentsun.com
Address:      Building A3 , FengSheng Ke Yuan Industrial Park , BeiLong Road,
DaGang Town, NanSha District, GuangZhou City , GuangDong province , China
