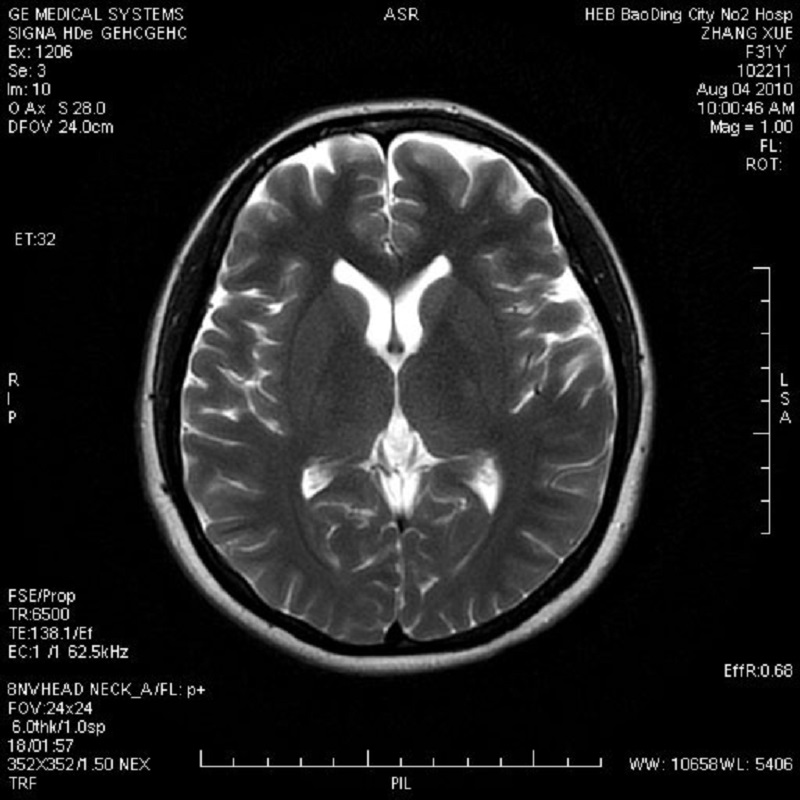

The film is thermal sensitive medical dry film for radiology department and digitally store after computer processing of medical imaging thermal printing, can accurately through the computer processing of all kinds of medical imaging, get rid of the traditional silver halide product show fixing bath processing program, eliminate the flushing processing waste liquid pollution to the environment.
Features
Low fog
High sharpness
High max density
Bright tone
Compatible with AGFA 3500 thermal printers.
Basic Parameters
Structure:Composed of the thermal layer,PET base material,and the protective layer
Maximum Transmission Density:≥3.0D
Minimum Transmission Desnsity:<0.25
Haze:≤30%
Storage
The original packaging should be stored in a dry, cool, clean indoor, prevent sunlight directly Irradiation,
acid-base gas.Specific requirements are as follows:
1. The temperature, humidity, temperature of 10 ºC to 23 ºC, relative humidity 30% ~ 65%, far away
Away from the heat source.
2. Gas: storage space can not have hydrogen sulfide, ammonia, sulfur dioxide and formaldehyde. Such as: acid-base gas.
3.Stacking form: standing should be stored, so as to avoid adverse effect by pressure.

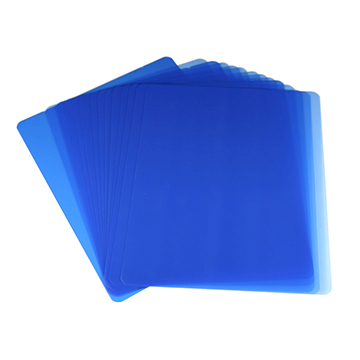

Specification
Model:
|
TMF1012
|
|
Size:
|
10x12 inch (254*305mm)
|
Color:
|
blue base
|
Material:
|
PET base
|
Thickness:
|
200 micron
|
Type:
|
thermal printing
|
Applicable model:
|
AGFA 3500
|
Application：
|
X-ray，CT,MRI,ect
|
Applicable hospitals:
|
hospital medical film printer use
|
Advantage:
|
good performance
|
Warranty:
|
24 months
|

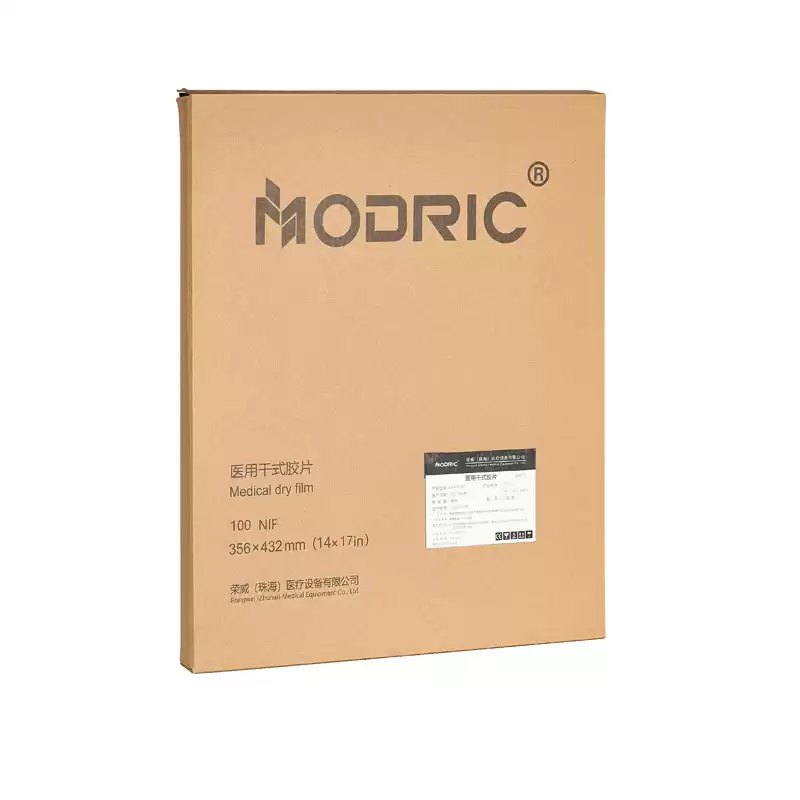

Packing:
|
100sheets/package
|
Certificate
