11.6 Inch IPS 1920(RGB)*1080 LCD screen 1200 or 500 nits brightness

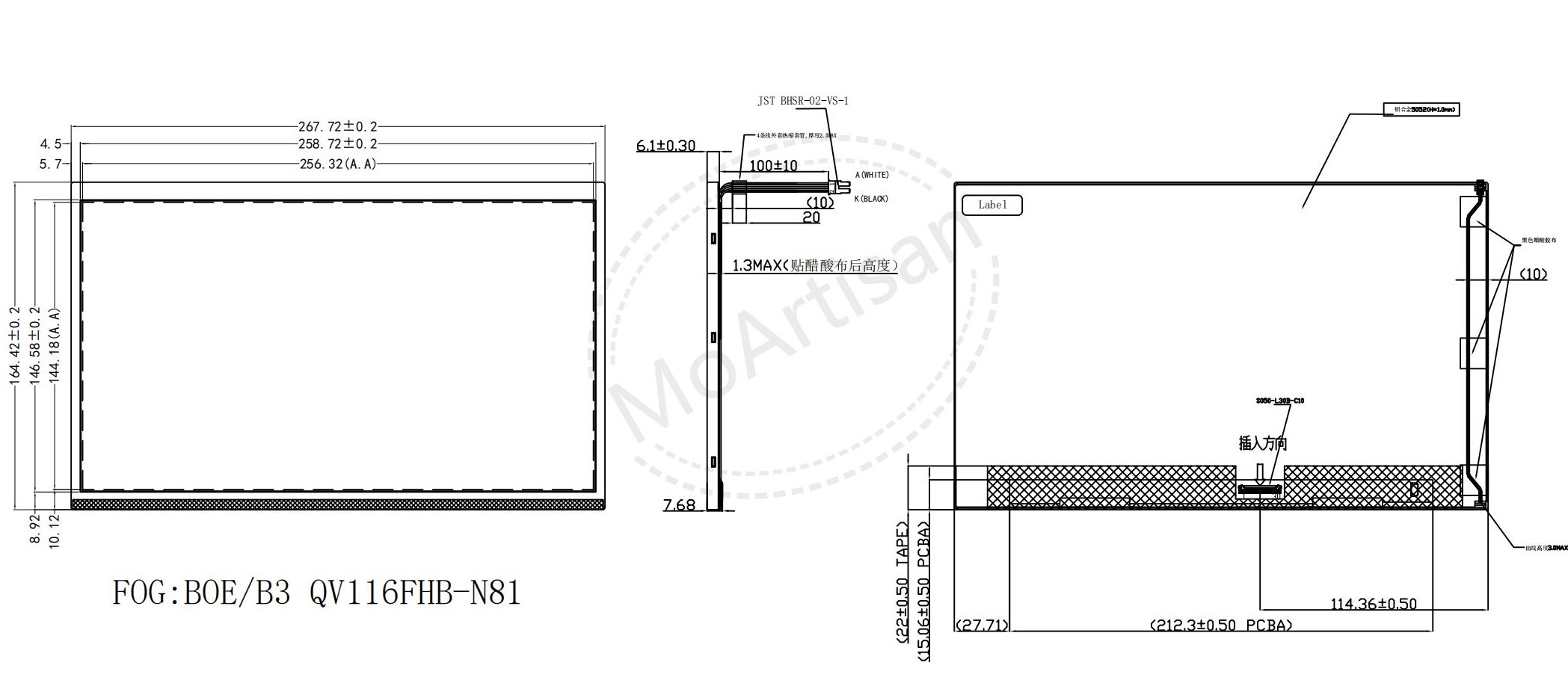

Production Drawings
WM116MO007FH-A and WM116MO007-D Introduction
-
11.6 (16:9) inch
diagonally measured active display area.
-
FHD (1920 horizontal by 1080 vertical pixel) resolution.
-
11.6 inch IPS lcd module sueface brightness is 1200 nits and the contrast ratio is 1000:1.
-
30 PIN CON, EDP interface.
-
WM116MO007FH-D module surface brightness is 500 nits.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module; MR---Module+RTP;
MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…; 001---Serial
Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
11.6
|
FHD, 1920RGB*1080, IPS, landscape view screen, with Up Bezel
|
267.72*164.42*6.1
|
4X10 LED (50K)
|
30 PIN Con, EDP
|
1200 nits
/1000
500 nits/1000
|
Topa: -20~+70 Tstg: -30~+80
|
85/85/85/85
|
WM116MO007FH-A
WM116MO007FH-D
|
Production Applications
Mobile, NB, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Notes:
WM116CP007FH-A is very popular of a standard full HD screen LCM.
It is one of main line of LCM with 1200 nits surface brightness.
