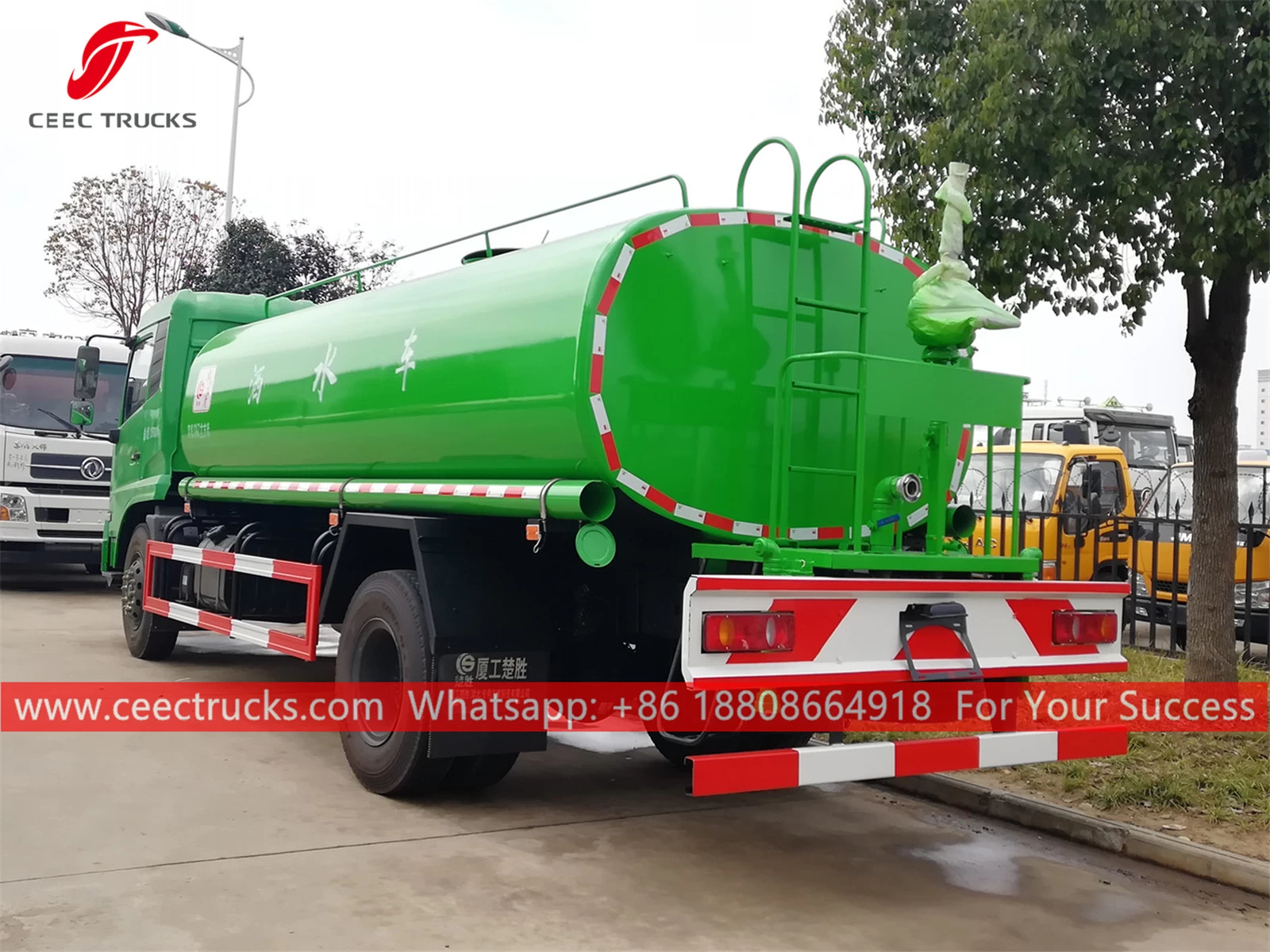

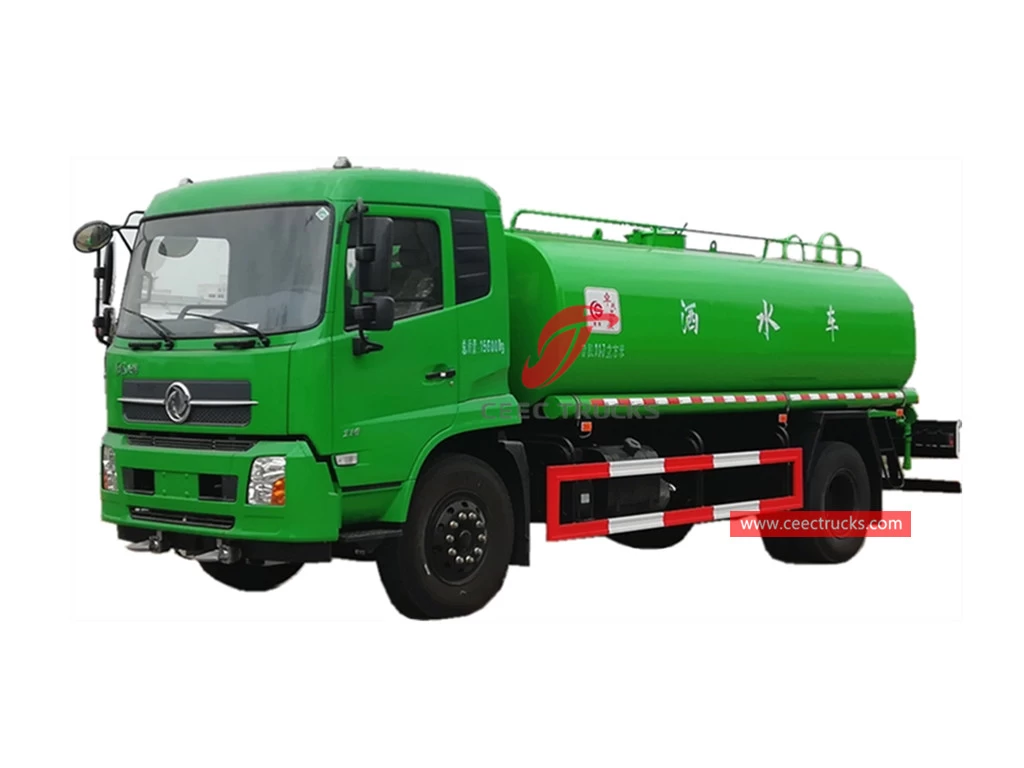

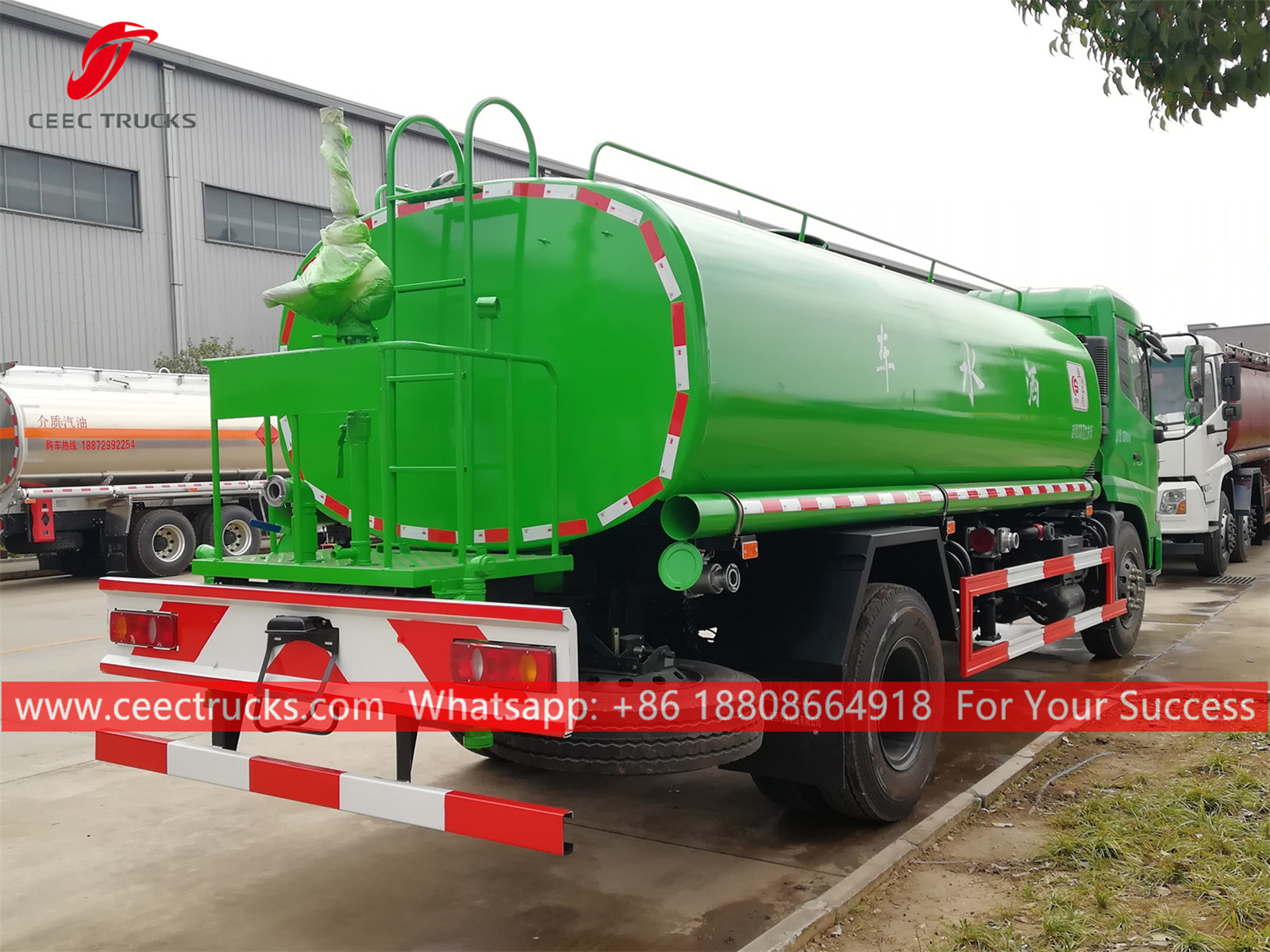

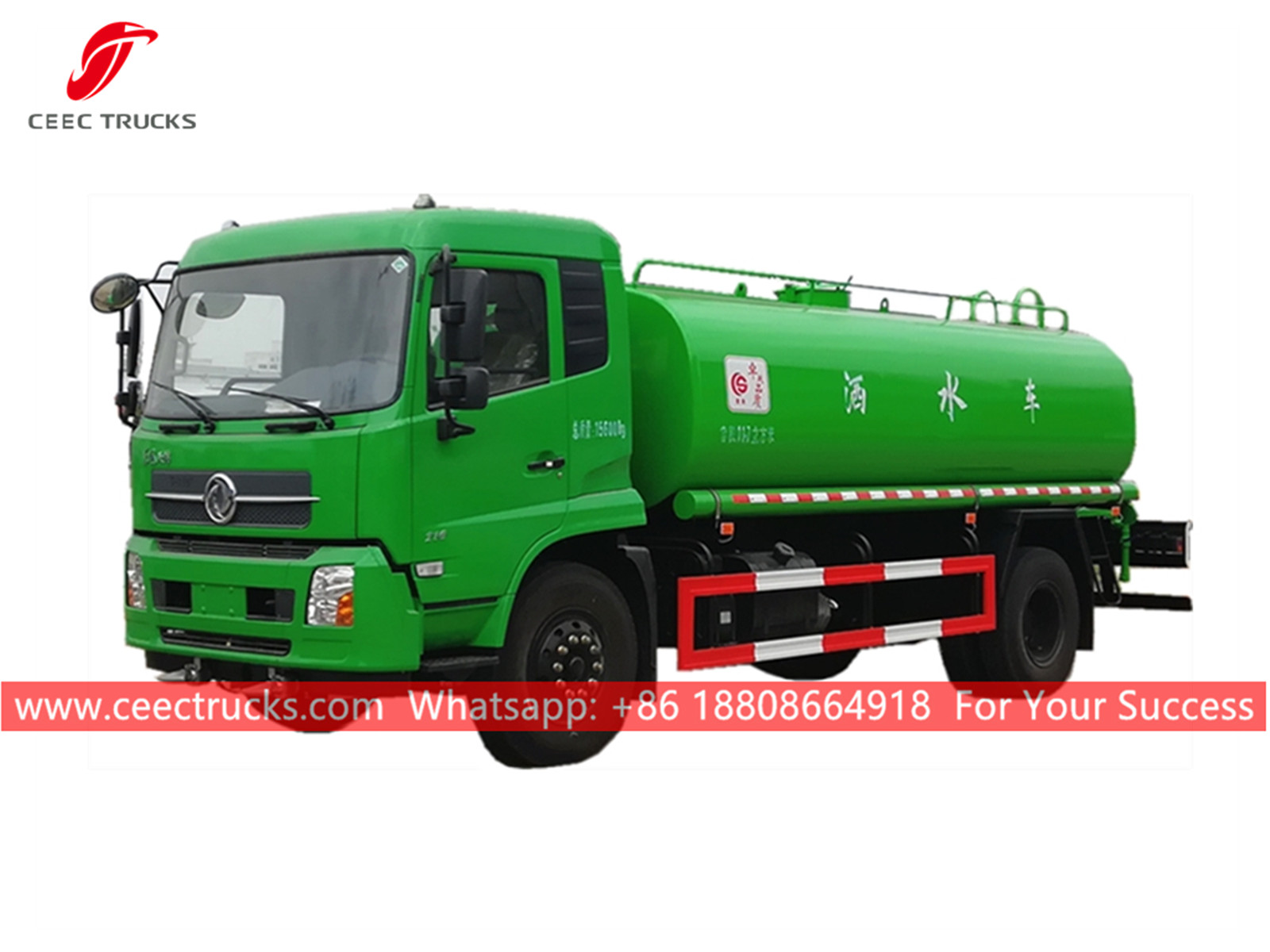

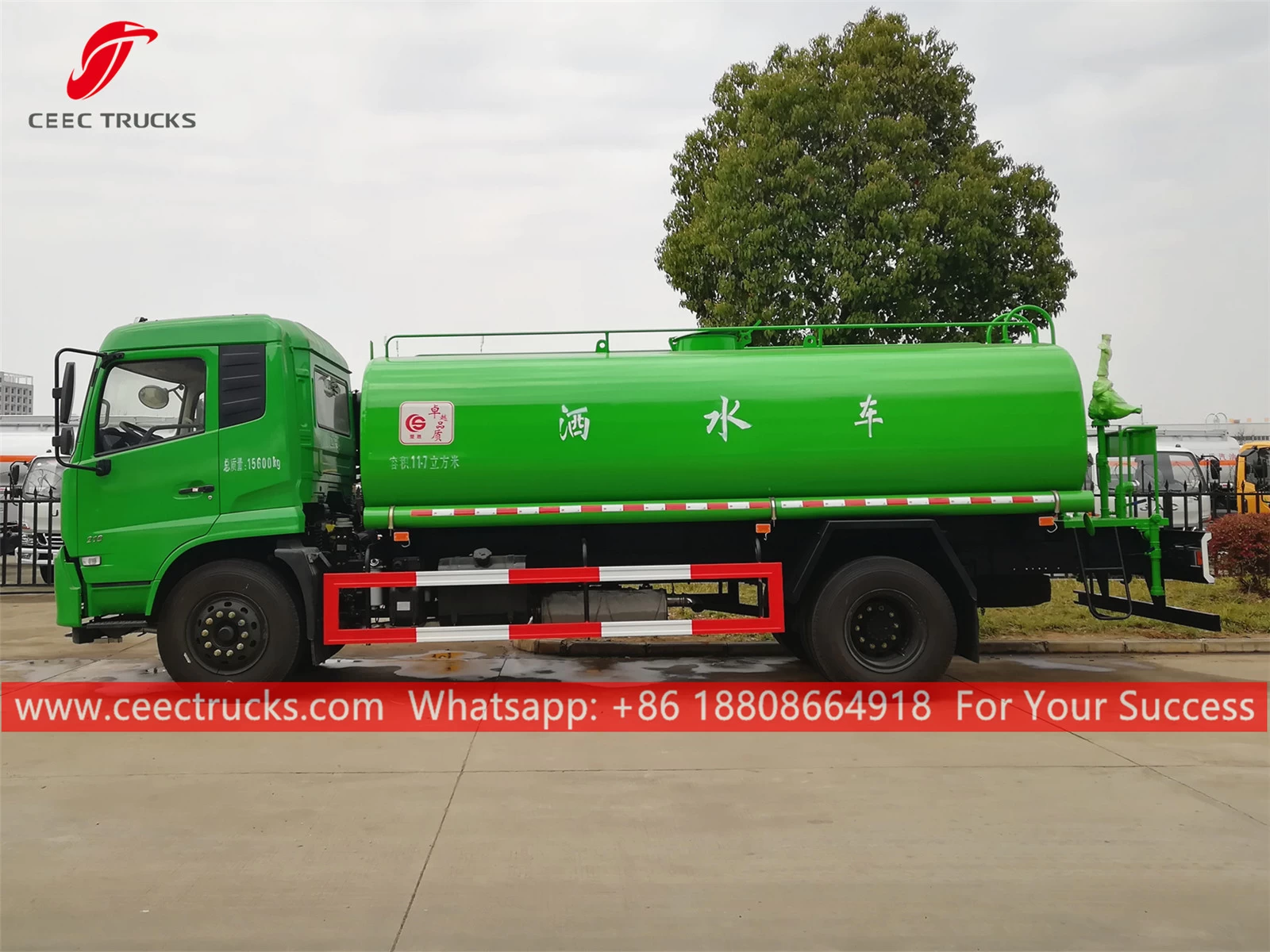

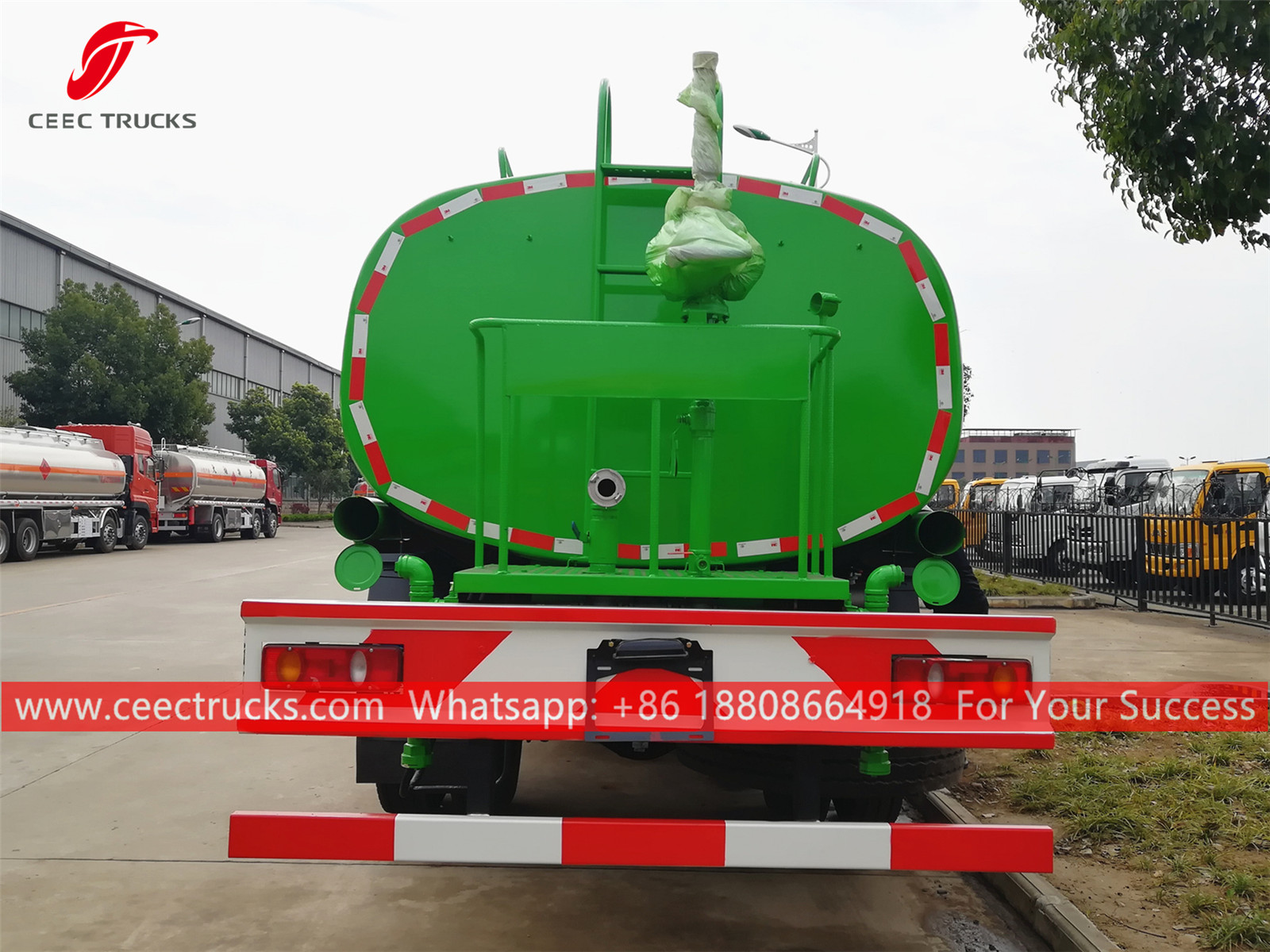

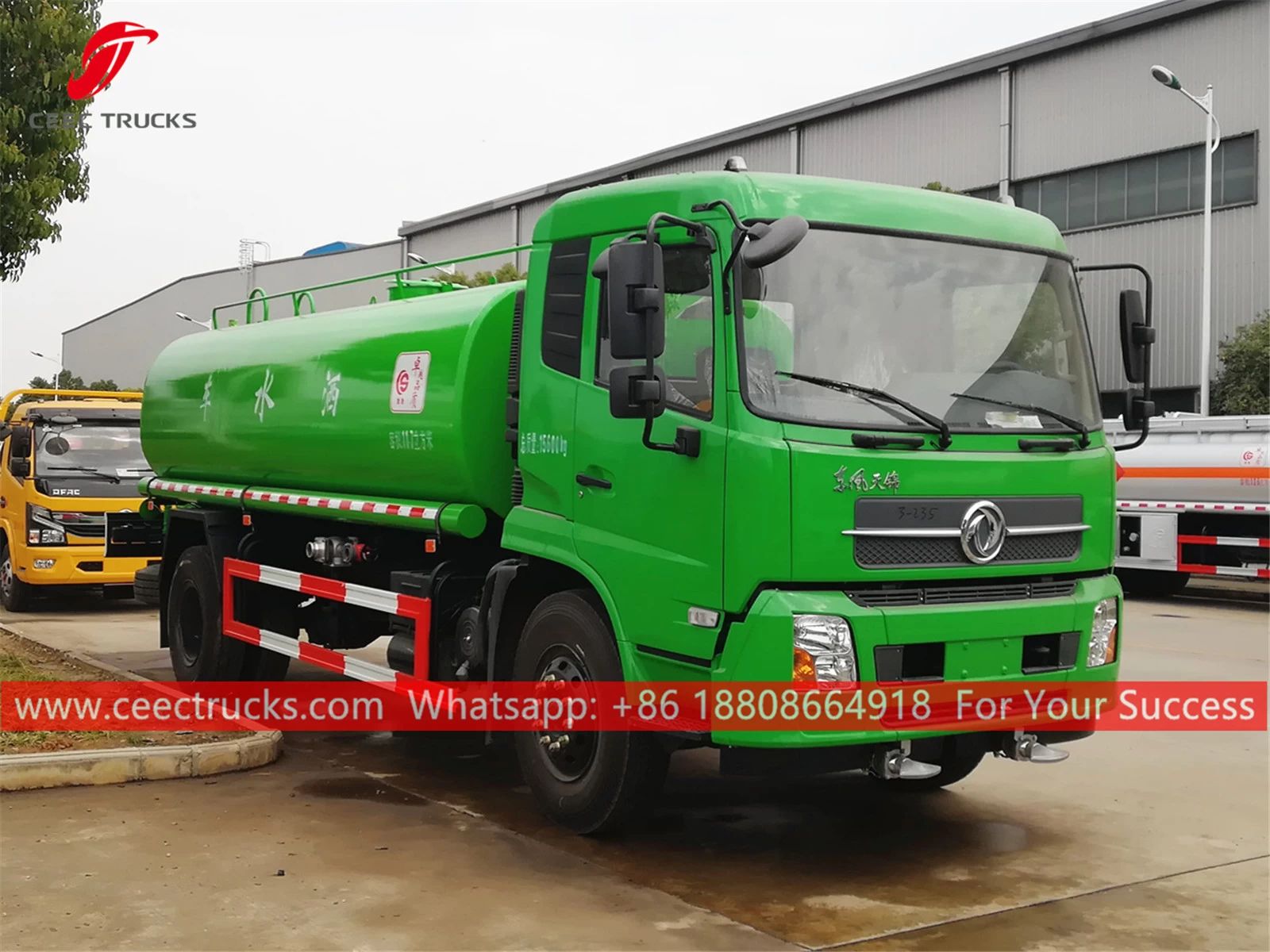

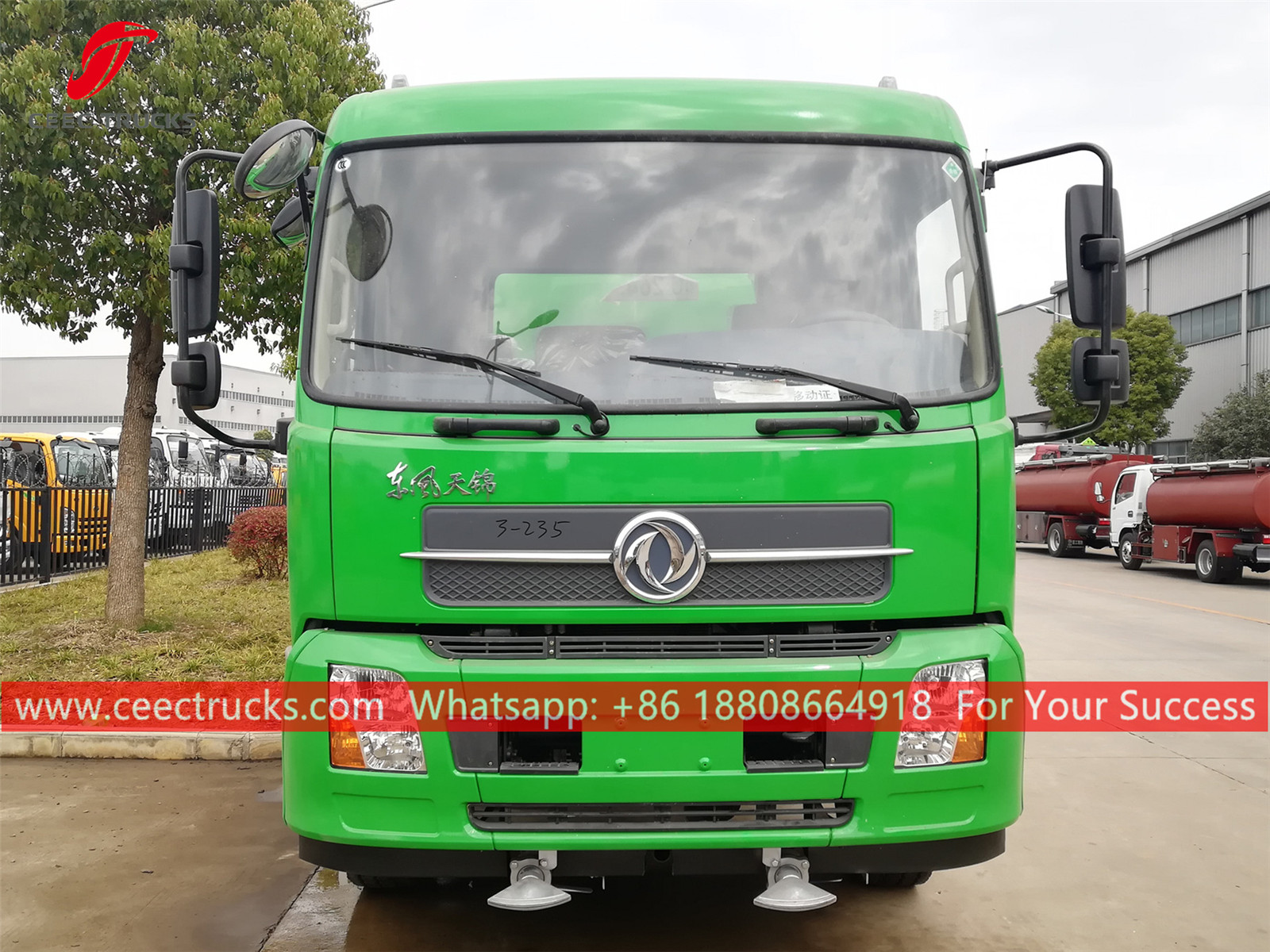

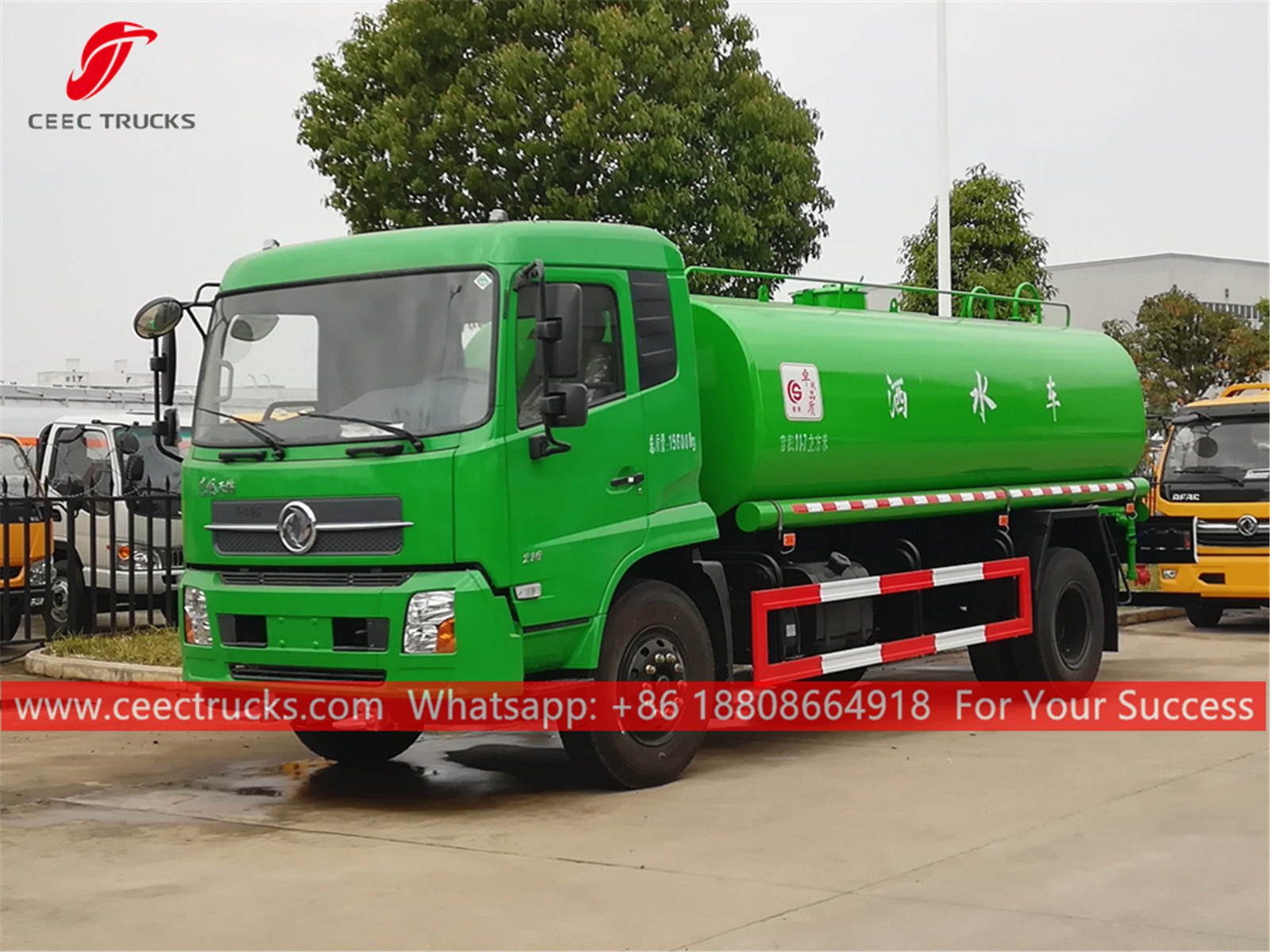

11.7 CBM Water Sprinkler Truck DONGFENG
DONGFENG 11,700L water transport truck, DONGFENG 4x2 left hand drive chassis, 6-shift manual gearbox, CUMMINS 210HP diesel engine, famous brand water pump, with front, middle and rear spraying nozzle optional, All painting and logos depend on requirement.
Applications:
11.7CBM Water spraying truck DONGFENG (also called Water Sprinkler Truck, Water spray truck, Water sprayer, Water tank lorry, Water tanker delivery truck) is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.
CEEC TRUCKS water truck is mainly composed of chassis, tanks, pumps, valves, and
the water pipe, sprinkler and other parts. Water truck is made of high
quality carbon steel sheet.
Key Features:
---- DONGFENG chassis, perfect performance
---- CUMMINS engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
|
Water Sprinkling Truck DONGFENG (11,700L) |
||
|
General |
Vehicle Brand |
CEEC TRUCKS |
|
Chassis Brand |
DONGFENG |
|
|
Overall Dimension |
8400 * 2480 * 3200 mm |
|
|
GVW / Kerb Weight |
15,600kg / 6,800kg |
|
|
Cab |
Cab Capacity |
2 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
CUMMINS |
|
|
Power |
210 HP (155 KW) |
|
|
Displacement |
5900 ml |
|
|
Emission Standard |
Euro 4 or 5 |
|
|
Chassis |
Drive Type |
4X2 (left hand drive) |
|
Transmission |
6 speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
4500 mm / 2 |
|
|
Tire Specification |
9.00R20 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
98 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Tank Capacity |
11,700 Liters |
|
Tank shape |
Ellipse |
|
|
Material |
Carbon steel, 4mm |
|
|
Body Material |
Whether resisting steel |
|
|
Water pump |
China famous brand |
|
|
Loading type |
Self loading |
|
|
Front spray bar |
YES |
|
|
Rear spray bar |
YES |
|
|
Water Canon |
28 meters |
|
|
Fire coupling |
Standard |
|
|
Control |
Manual (Optional air operated) |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… |
||
|
Optional |
** Backup alarm can be equipped. |
|
