With the
features of small volume, low energy consumption and light
weight, the mini furnace is convenient for every person hold one set in the
laboratory. It use electric resistance wire as heating element, adopted carbon
steel shell structure and intelligent temperature control system;
Main function and features:

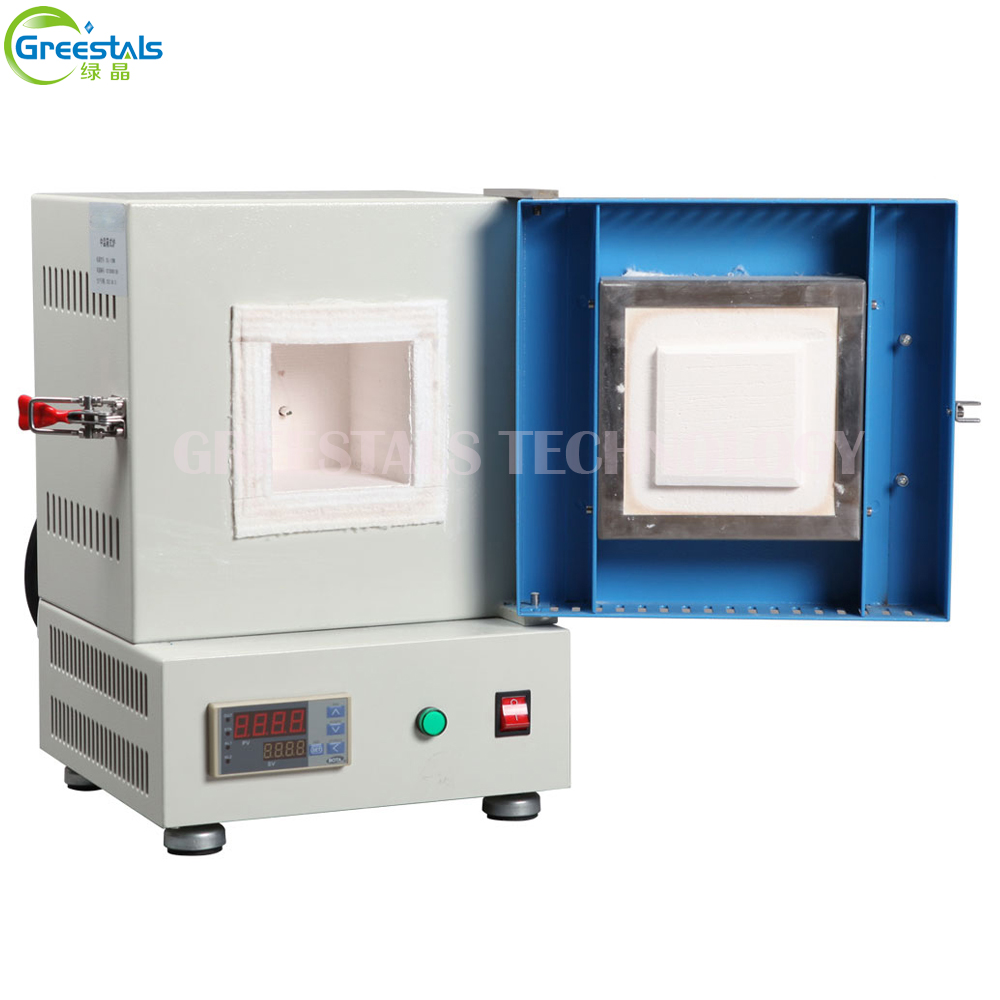

1. Furnace chamber adopted high quality alumina
polycrystalline fiber, which used Japanese technology (vac-sorb
forming alumina polycrystalline fiber) with good insulation and
durability properties, high tensile strength and no miscellaneous ball; So this
furnace much more energy saving than the furnace use common fiber materials.
2. Heating
elements use high quality alloy wire 0Cr27Al7Mo2.
3. Reserved
data transfer interface, can be connected with PC through software. It has
remote control, real time tracking, history recorder, and output report
function.
4. Over-temperature
will alarm and automatic cut off the power; and with leakage protection function,
operation very safe.
Main
applications:
Universities,
research institutes, industrial and mining enterprises to do the powder
sintering , sintering of ceramics, high temperature experiments, material
handling, quality inspection purposes.
Specification:
|
Model
|

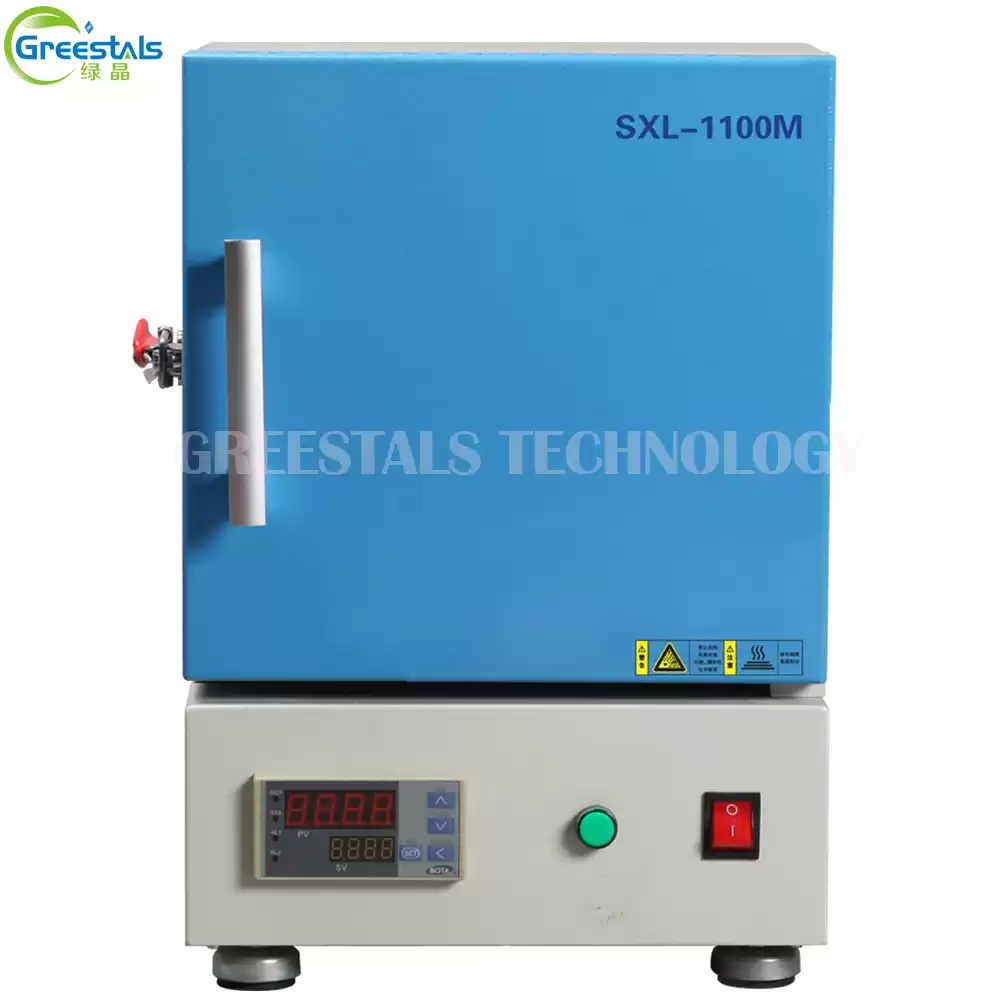

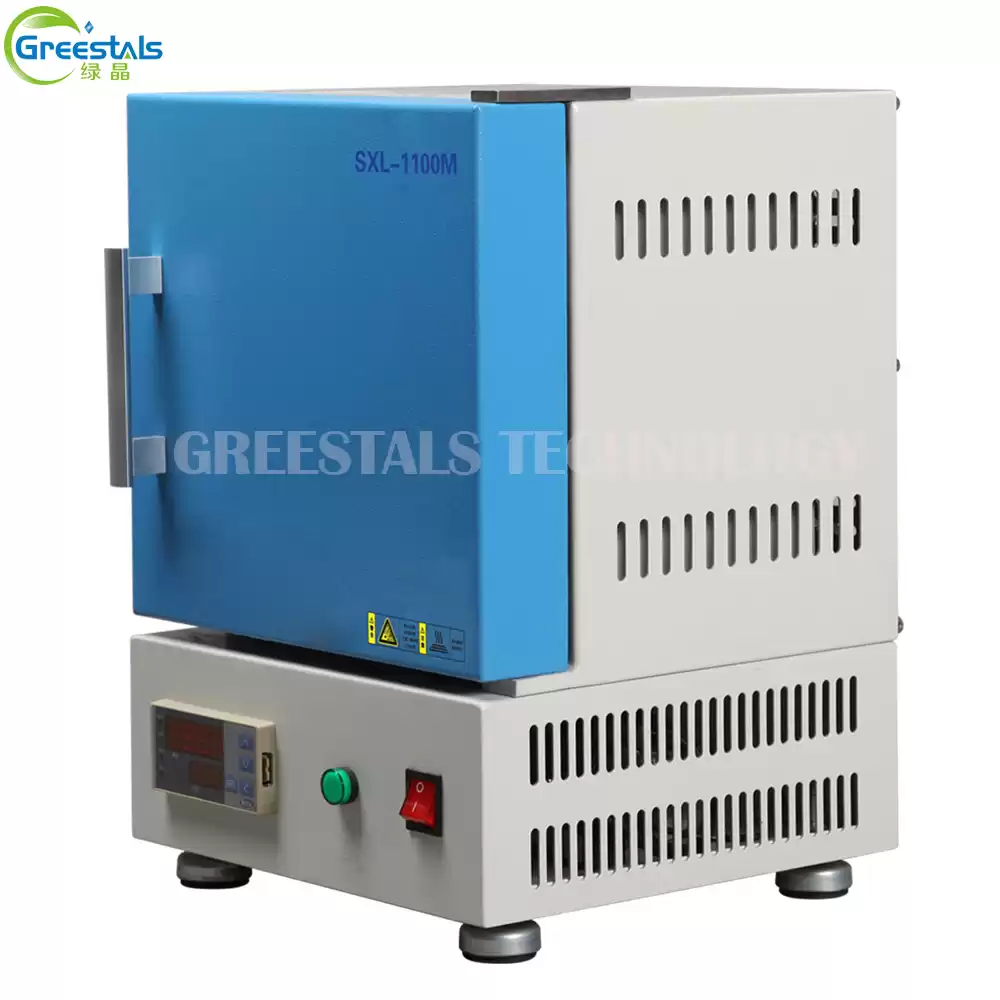

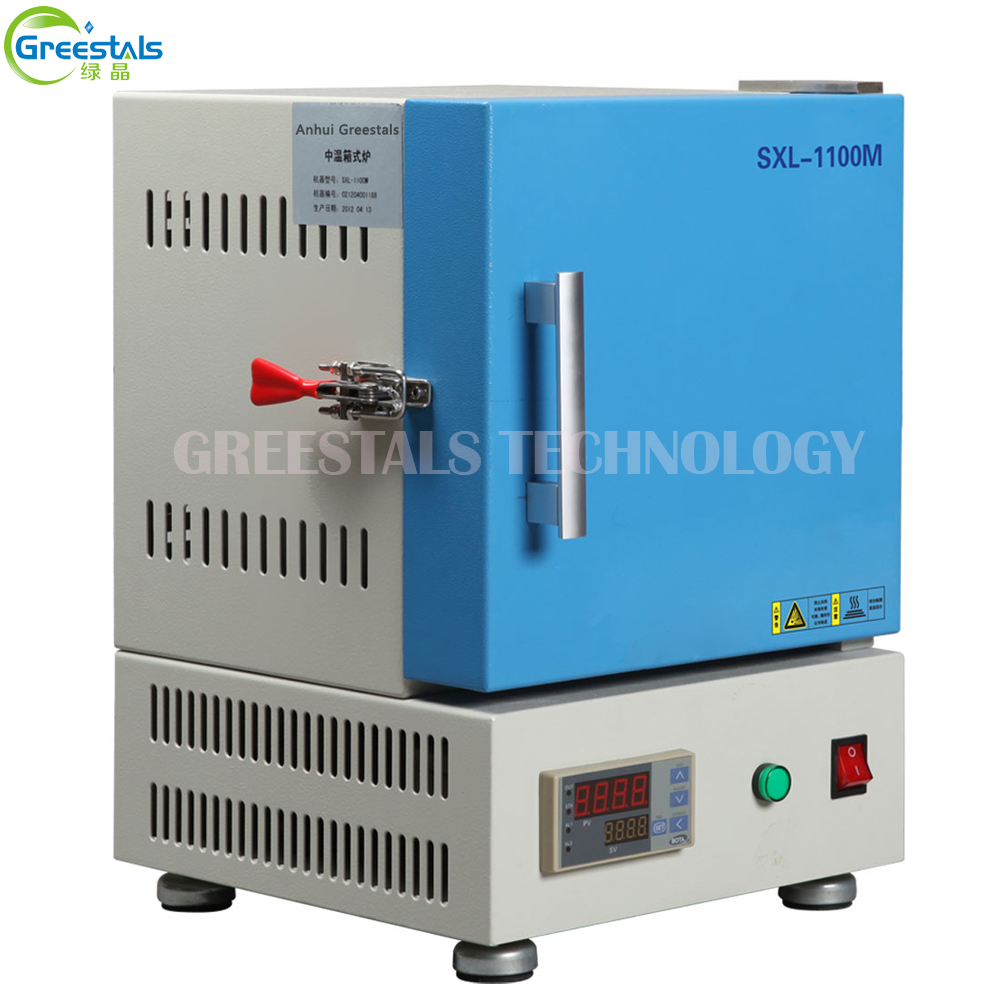

SXL-1100M (CE certificate No.: GB/1067/4189/12 Issue)
|
|
Furnace chamber (D x W x H)
|
100*100*100mm (capacity: 1 L)
|
|
Furnace shell structure
|
Double shell
|
|
Furnace door structure
|
Side open
|
|
Furnace chamber
|
vac-sorb
forming high quality alumina polycrystalline fiber
|
|
Heating elements
|
0Cr27Al7Mo2 alloy
wire
|
|
Working temperature
|
Continuous
working temperature ≤1000℃;
Max.
Temperature: 1050℃
|
|
Heating Rate
|
Max. :30℃/min; Recommend: 10℃/min
|
|
Cooling
rate
|
Above 500℃≤10℃/min
|
|
Temperature
control model
|
The temperature
control system adopted artificial intelligence technology, PID regulation,
self-tuning capabilities, 30 segment temperature control program
|
|
Temperature
control accuracy
|
±1℃
|
|
Thermocouple
|
Nmodel thermocouple
|
|
Power supply
|
AC220V /50HZ/60HZ
|
|
Rated
power
|
1KW
|
|
Size
|
Furnace size: 300*320*420mm (DxWxH)
Package size: 500*500*620mm (DxWxH)
|
|
Weight
|
Net weight: 25Kg
Gross weight: 55kg
|
|
Optional accessories
|
All
kinds of corundum, quartz crucible, computer control software, paperless
recorder, etc.
|
