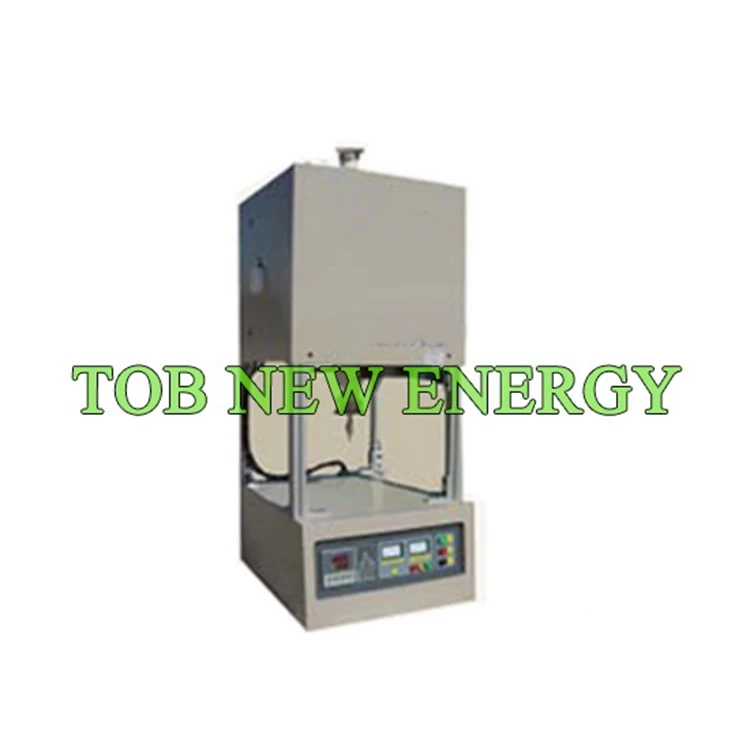

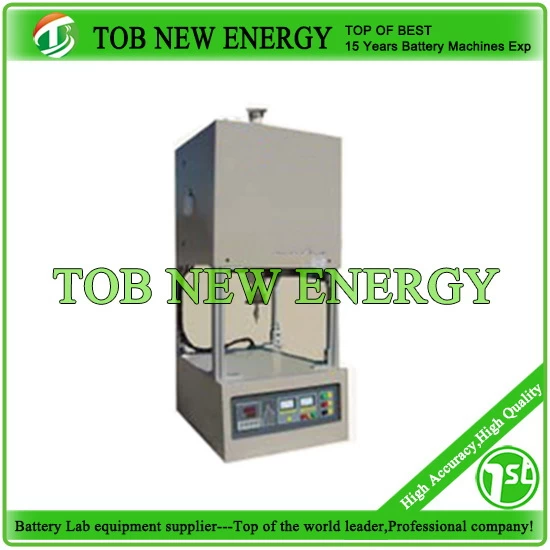

1100 Degree Vertical Tube Furnace With Vacuum Pump Optional And Quartz Tube Dia 50*1000mm
SPECIFICATIONS
The TOB-VTL1100vertical tube furnaceadopts Electric resistance wire as heating element with fast temperature rising. (up to 1000degrees within 20mins). 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment.
Thislaboratory tube furnaceis the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do High temperature atmosphere sintering, Atmosphere reduction, CVD experimental, vacuum annealing such as for preparing nano materials and film.
|
Model
|
Tube Size
|
Power
|
Voltage
|
Heating Zone
Length
|
Max Heating
Temperature
|
|
TOB-VTL1100-I
|
Φ50*1000mm
|
2.5kw
|
AC110V/220V
|
450mm
|
1100℃
|
|
TOB-VTL1100-II
|
Φ70*1000mm
|
4kw
|
|
TOB-VTL1100-II
|
Φ100*1000mm
|
7kw
|
|
Heating element
|
Electric resistance wire
|
|
Temperature controller
|
40 program temperature control system,
With over temperature, broken accidentally protection function,
6 groups of PID adjustment
Control precision of + / - 1 ℃
|
|
Furnace chamber
|
Polycrystal alumina fiber
|
|
Tube material
|
Gas refining quartz tube (or corundum tube)
|
|
Vacuum Flange &
Fitting Ports
|
Stainless steel flange with Gas nozzle, valve, pressure gauge
|
|
Pressure measure
system
|
Pressure gauge (Resistance vacuum gauge can be chosen according requirements)
|
|
Air intake control
|
Flow meter (Protons flow controller can be chosen according requirements )
|
|
Vacuum system
|
Vacuum pump can be chosen
|
|
Warranty
|
One year limited warranty with lifetime support
|
