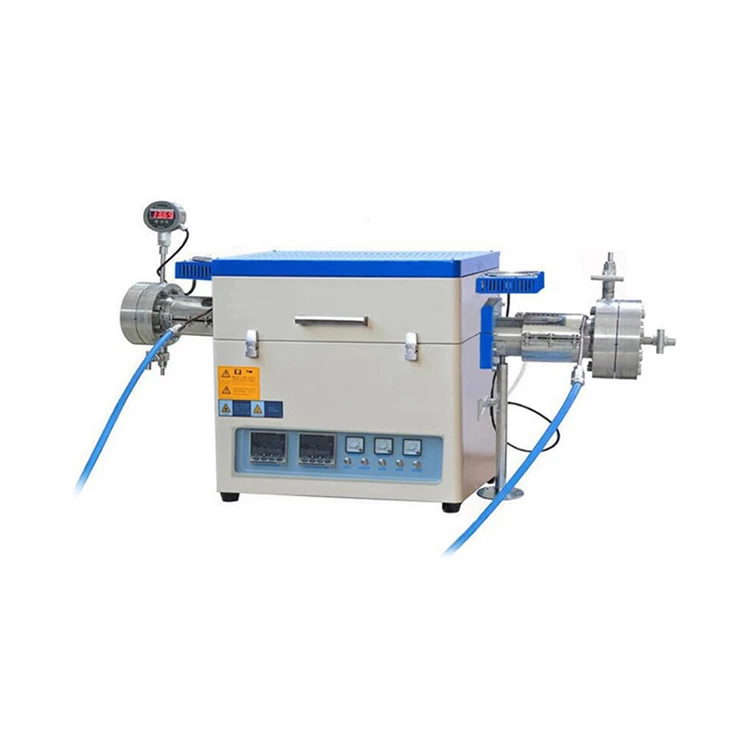

Model
|
TOB-DSP-1100℃-HPI
|
TOB-DSP-1100℃-HPII
|
|
Power
|
3.5 KW
|
3.5 KW
|
|
Furnace tube size(mm)
|
Material: nickel-based alloy steels Dia 50(ID30) X1000
|
Material: nickel-based alloy steels Dia 85(ID50) X1000
|
|
Dimension
|
580X370X515
|
580X420X565
|
|
Power supply voltage
|
220V
|
|
Phase number
|
Single-phase
|
|
Temperature control mode
|
一.Yudian temperature control
30 sections can only use PID temperature regulation.
二.FP93 temperature control (from Japan)
(Replace imported instruments, for an additional fee)
1,40 section program temperature control can be divided into 4,2,1 group program,
if the program is divided into four groups, each program segment 10,
2,6 group PID control, low, medium and high temperature can each with a set of PID,
such that each segment is capable of controlling the temperature is very accurate.
|
|
Control accuracy
|
+/- 1 ℃
|
|
Water-cooled
|
When furnace heating needs water-cooled,
Required water flow ≥ 35L / min, water temperature <30ºC;
water pressure> 25 PSI.
can optional water-cooled machine from our company
|
|
Trigger
|
Phase-shift trigger
|
|
SCR
|
106 / 16E Germany Simon Kang
|
|
The 1.2 temperature zone
max temperature
|
20Mpa temperature ≤800 ° C
12Mpa temperature ≤900 ° C
6Mpa temperatures ≤1000 ° C
4Mpa temperatures ≤1100 ° C
|
|
The 1.2 rated temperature
|
1100 ℃ ≤ 1h
1000 degrees can work long time
|
|
Heating rate
|
≤10 ℃/ Min (Available upon request modification)
|
|
Thermocouple Type
|
K type
|
|
The first temperature zone
heating section length
|
205mm
|
|
The second temperature zone
heating section length
|
205mm
|
|
Vacuum degree
（Optional）
|
1.General vacuum and drive gas out by:TW-1.5A
2.2XZ-2 Vacuum degree pumps can be able to get around 10Pa
3.TOB-DSP-VS 0.1vacuum system can pumped 0.1Pa
(and equipped with a resistive vacuum gauge display)
4、TOB-DSP-VS high vacuum system
(which is composed of molecules and mechanical pump)
enables vacuum degree pumped 10-3 Pa.
|
|
Pressure display
|
Digital pressure gauge, and with 4-20ml Model Output
|
|
Vacuum flange
|
CF flange
Oxygen-free copper gasket seal
|
|
Surrounding surface temperature
|
≤45℃
|
|
Security System
|
With the furnace air switch and fuse, when the current exceeds the rated current,
it will automatically jump open, effective protection electric stove.
|
|
Cap protection system
|
The furnace limit switch is installed, when the lid open relay
will automatically cut off the main power supply,
effectively ensure the safety of users
|
