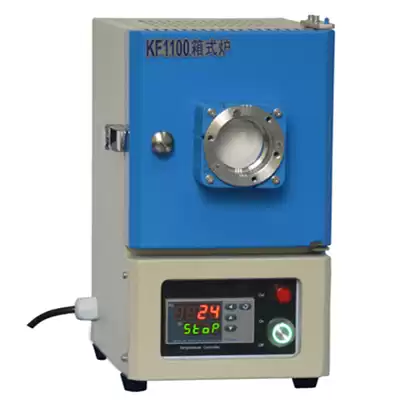

1100C Used in Glove Box Two in One Furnace with Both Box-type muffle and Tube
KTL1100-S is a small mixed
tube / box furnace. The size of the furnace is 100 × 100 × 100mm. As a simple
box furnace, the sample can be heat-treated in an air environment. This

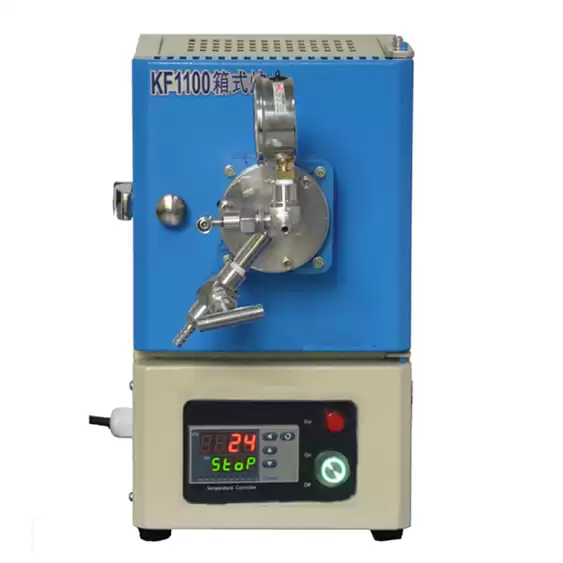

equipment is equipped with quartz tube and stainless steel sealing flange, which
can heat-treat samples under vacuum or atmosphere protection. The maximum
temperature of the equipment can reach 1100 ℃, and the power is only 1.2KW.
In addition, the device is small in size and can be put into a glove box for
operation.
Main technical parameters
|
Model
|
KTL1100-S
|
|
Power
|
1200W
|
|
Chamber size(mm)
|
100X100X100（LXWXH）1L
|
|
Tube size
|
OD50*180mm,
350ml
|
|
Dimension
|
500X250X410mm（LXWXH）
|
|
Main feature
|
Box-type tubular dual-use.
Small size, light weight, low power, can be used for
operation in glove box and fume hood.
The highest temperature can reach 1100℃.
Open the door on the side for easy operation.

Plug the furnace plug as box furnace Insert tube as tube furnace
|
|
Supply voltage
|
220V
|
|
Phase
|
single phase
|
|
Heating element
|
resistance wire
|
|
Control mode
|
30-step program temperature control
1. The temperature control of the 30-segment program
can only be adjusted by PID.
2. With over-temperature protection Broken-couple
protection When the over-temperature or even-coupled circuit is broken, the
heating circuit of the electric furnace is automatically cut off. (When the
temperature of the electric furnace exceeds 1120 degrees or the thermocouple
burns out, the AC relay on the main circuit will be automatically
disconnected, the main circuit is disconnected, the ON lamp on the panel is
off, the OFF lamp is on, and the electric furnace is limited to protect).
3. With 485 communication interface (standard
configuration when software is selected)
4. With power-off protection function, that is, when
the furnace is started after power-off, the program will not start from the
starting temperature, but will start to rise from the power off.
5. The instrument has the function of temperature
self-tuning.
|
|
control mode
|
intelligent
PID
|
|
over-temperature protection
|
Yes
|
|
overcurrent protection
|
Yes
|
|
· Broken pair
protection and display
|
Yes
|
|
· Furnace material
|
1. High-quality high-purity alumina polycrystalline
fiber curing furnace formed by vacuum suction filtration.
2. Formed using Japanese technology.
3. The spacing and pitch of the resistance wires
in the furnace are all arranged according to the best thermal engineering
technology in Japan, and the thermal field is simulated by the thermal
engineering software.
|
|
control accuracy
|
±1℃
|
|
Max. temp
|
1050℃
|
|
Rated temp
|
1000℃
|
|
· Thermocouple Type
|
K
|
|
silicon controlled
|
TRIAC
|
|
surface temp
|
≤45℃
|
|
Warranty
|
One year warranty and lifetime technical support.
Special note: Consumable parts such as heating
elements, sample crucibles, etc. are not covered by the warranty.
Damage caused by the use of corrosive gases is not
covered by the warranty.
|
|
Precautions
|
1. For safety, please put the stove in a ventilated
place.
2. In order to increase the service life of the
furnace, we recommend that the heating rate should not exceed 10℃/ min. The cooling rate does not exceed 5 ° C /
min.
3. The furnace has no vacuum tightness, and it is
forbidden to pass toxic or explosive gas.
4. It is forbidden to put the materials directly on
the brick at the bottom of the furnace.
5. When heating, the materials and crucible should
not touch the heating element and thermocouple.
6. When not used for a long time, please use the
oven again.
|
