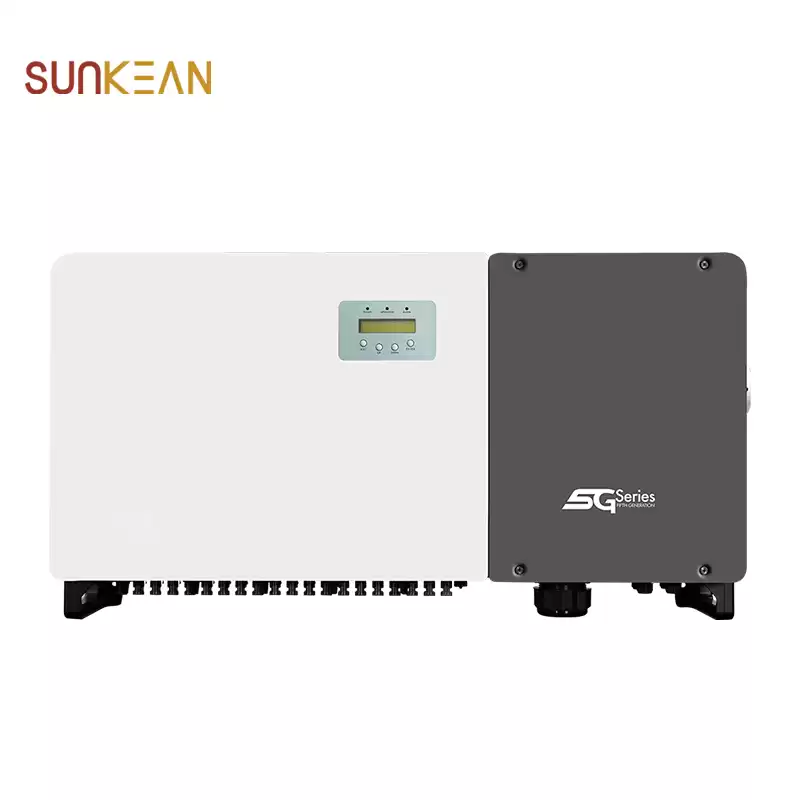

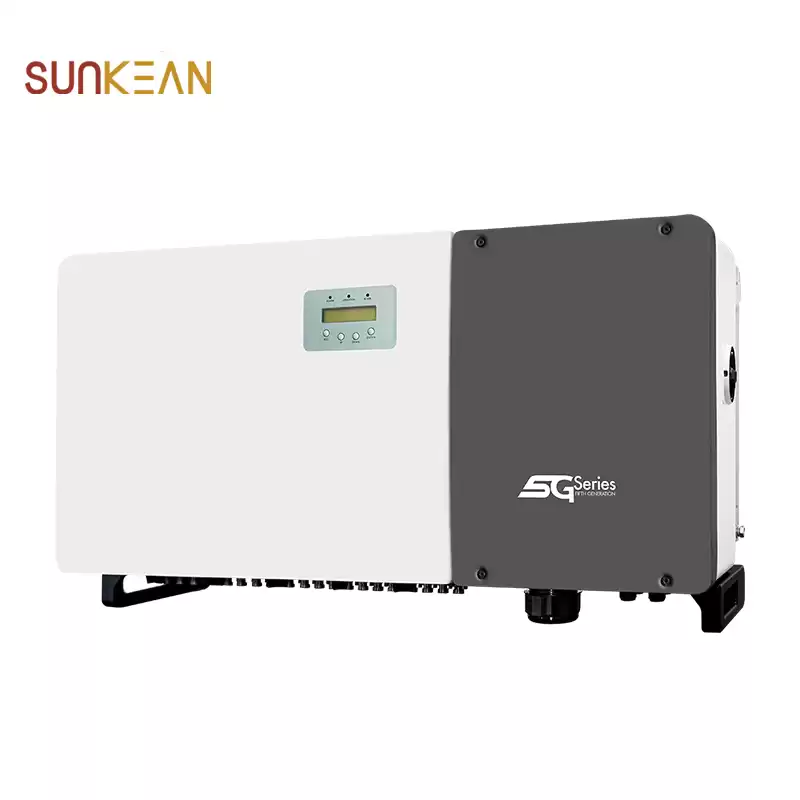

110KW Three Phase On Grid Solar Inverter
110kW 5G three phase series string inverter adopt 9/10 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rateand higher generation efficiency. Max. 13A per string, 150% DC overloading capability，Remote & local intelligent IV scan function.
Product Information:
|
Datasheet
|
|
Model Name
|
SKE-110K-5G
|
|
Input DC
|
|
Max. input voltage
|
1100V
|
|
Rated voltage
|
600V
|
|
Start-up voltage
|
195V
|
|
MPPT voltage range
|
180-1000V
|
|
Max. input current
|
10*26A
|
|
Max. short circuit current
|
10*40A
|
|
MPPT number/Max. Input strings number
|
10/20
|
|
Output AC
|
|
Rated output power
|
110kW
|
|
Max. apparent output power
|
121kVA
|
|
Max. output power
|
121kW
|
|
Rated grid voltage
|
3/N/PE. 220/380V, 230/400V
|
|
Rated grid frequency
|
50/60HZ
|
|
Rated grid output current
|
167.1A
|
|
Max. output current
|
183.8A
|
|
Power Factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
THDi
|
<3%
|
|
Efficiency
|
|
Max. efficiency
|
98.7%
|
|
EU efficiency
|
98.3%
|
|
Protection
|
|
DC reverse-polarity protection
|
Yes
|
|
Short circuit protection
|
Yes
|
|
Output over current protection
|
Yes
|
|
Surge protection
|
OC ,.ell/AC Type II (AC Type I optional)
|
|
Grid monitoring
|
Yes
|
|
Anti-islanding protection
|
Yes
|
|
Strings monitoring
|
Yes
|
|
1/V Curve scanning
|
Yes
|
|
Anti-PID function
|
Yes
|
|
Integrated DC switch
|
Yes
|
|

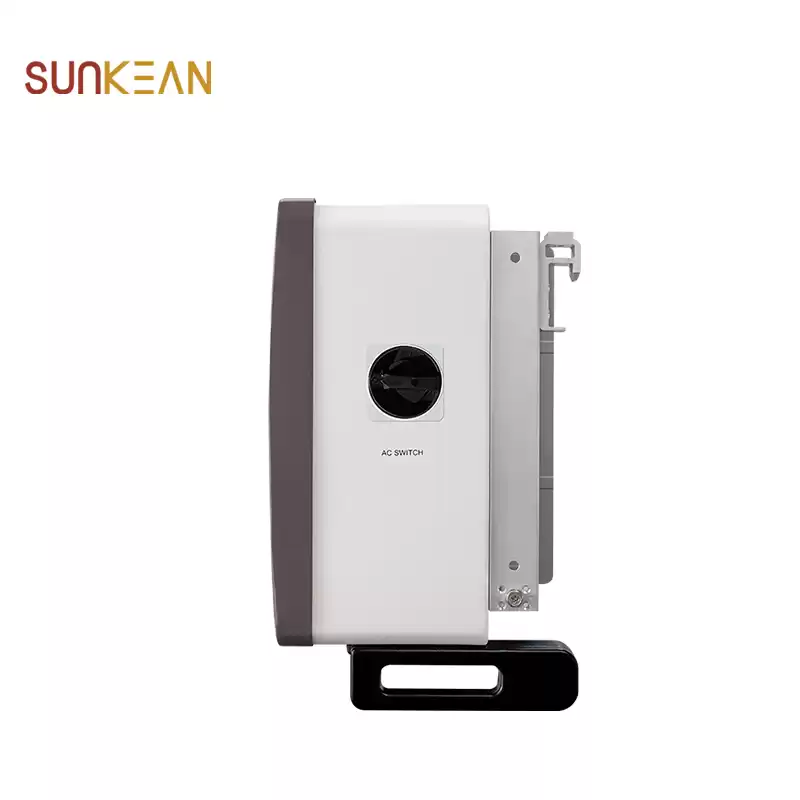

Integrated AC switch
|
Optional
|
|
General Data
|
|
Dimensions (W*H*D)
|
1099.5*567*344.5 mm (with AC switch)
|
|
Weight
|
84kg
|
|
Topology
|
Transformerless
|
|
Self consumption
|
<2W (night)
|
|
Operating ambient temperature range
|
-25~+60°C
|
|
Relative humidity
|
0-100%
|
|
Ingress protection
|
IP68
|
|
Cooling concept
|
Intelligent redundant fan-cooling
|
Max. operation altitude
|
4000m
|
Grid connection standard
|
VDE-AR-N 4105, VDE V 0124, VDEV 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98,G99,
EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727, DEWA
|
Safety/EMC standard
|
IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-4
|
Features
|

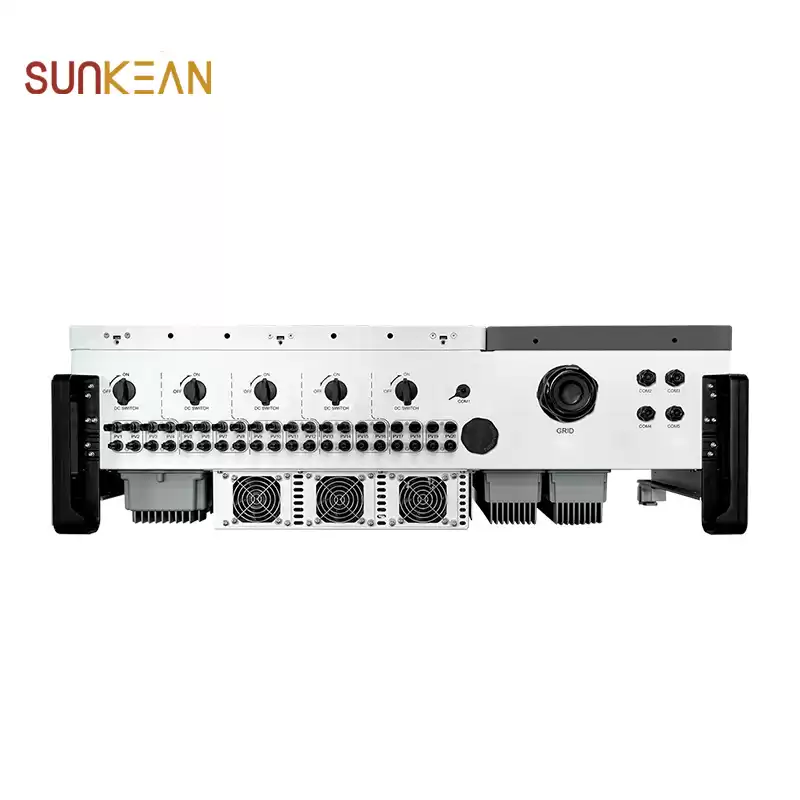

DC connection
|
MC4 connector
|
AC connection
|
OT terminal (max. 185 mm2)
|

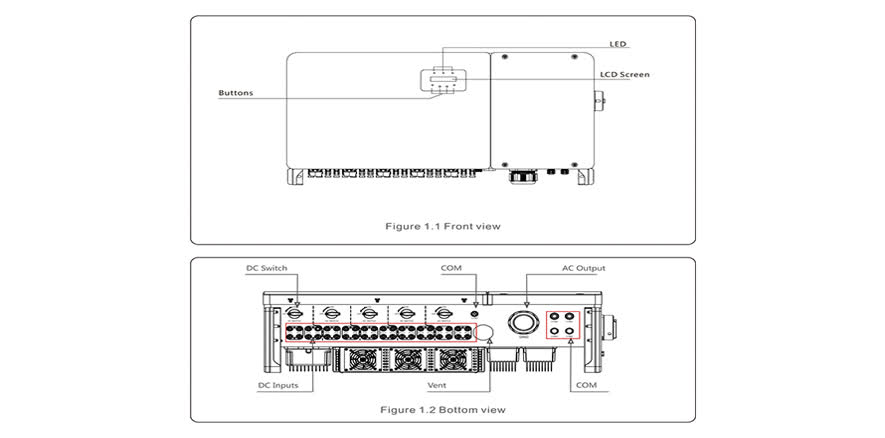

Display
|
LCD, 2x20 Z
|
Communication
|
RS485, Optional: Wi-Fi, GPRS, PLC
|
Product Features：
------Over 98.7% Max. Effciency;
------Wide voltage range and low startup voltage;
------10 MPPT design with precise MPPT algorithm;
------THDi<3%, low harmonic distortion against grid;
------Anti-resonance, supporting over 6MW parallelled in one transformer;
------Perfect commercial site monitoring solution;
------Intelligent redundant fan-cooling;
------Strings intelligent monitoring, Smart I-V Curve Diagnosis supported;
------Fuse free design to avoid fire hazard;
------Type II surge arrester for both DC and AC, type I surge arrestor optional;
------Leakage current repression technology;
------Volt-watt work mode integrated;
------DC input reverse alarm;
------Optional anti-PID function integrated;
------Integrated DC switches, AC switch optional.
