ETL open frame 200W 12V 16.7A switching power supply
Description:
The K18N-UP200S series is a 200W single output open frame power supply with PFC function，serves as a high price to performance power supply solution for LED lighting and industrial applications.
Features:
1, 200W high efficiency 12V switching power supply, low temperature rise;
2, Built-in filters power supply, low output noise;
3, Wide range of AC input voltage,12V 200W single output power supply;
4, Short circuit, overload, overvoltage protection;
5, 12V 16.7A smps used for LED stage lighting.
Parameter
|
|
Item NO
|
K18N-UP200S12
|
K18N-UP200S24
|
K18N-UP200S36
|
K18N-UP200S48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
16.7A
|
8.5A
|
5.6A
|
4.2A
|
|
Current Range
|
0-16.7A
|
0-8.5A
|
0-5.6A
|
0-4.2A
|
|
Rated Power
|
200.4W
|
204W
|
201.6W
|
201.6W
|
|
Ripple & Noise
|
200mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
88~264V AC
|
|
Input Current
|
1.2A@220V AC
|
|
Input Frequency
|
47~63Hz
|
|
Power Factor
|
＞0.99@110V,＞0.95@220V
|
|
Efficiency@220V AC
|
＞88%
|
＞88%
|
＞88%
|
＞88%
|
|
Inrush Current
|
Cold start 15A/115V,30A/230V
|
|
Leakage Current
|
<0.35mA@240V
|
|
Protection
|
Over Load Protection
|
110~200%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
Hiccup,automatic recovery
|
|
Over Temp., protection
|
95℃ Proteciton Type:Shut down o/p voltage,Auto-recover after temperature down
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950-1
|
|
Withstand Voltage
|
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
MEET EN55022 CLASS B，EN61000-3-2
|
|
Others
|
Dimension
|
127*82*45mm(L*W*H)
|
|
Weight
|
0.6kg
|
|
Notes
|
1.All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

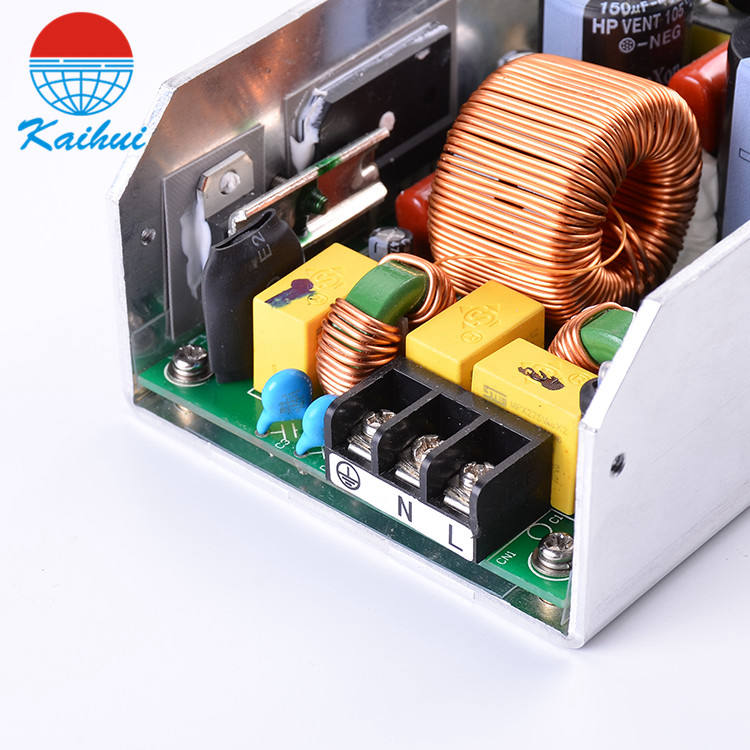

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
