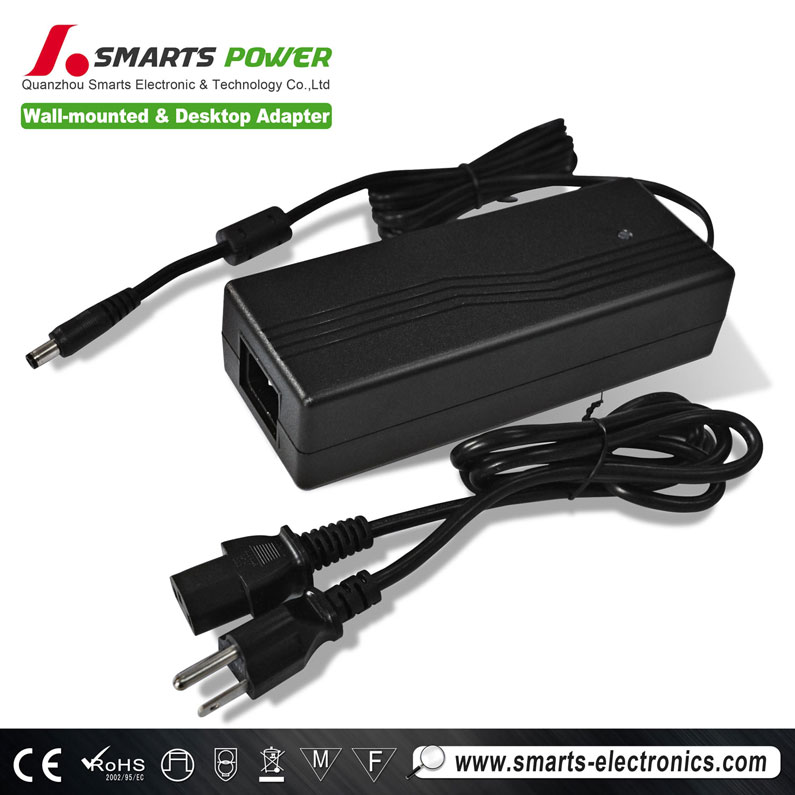

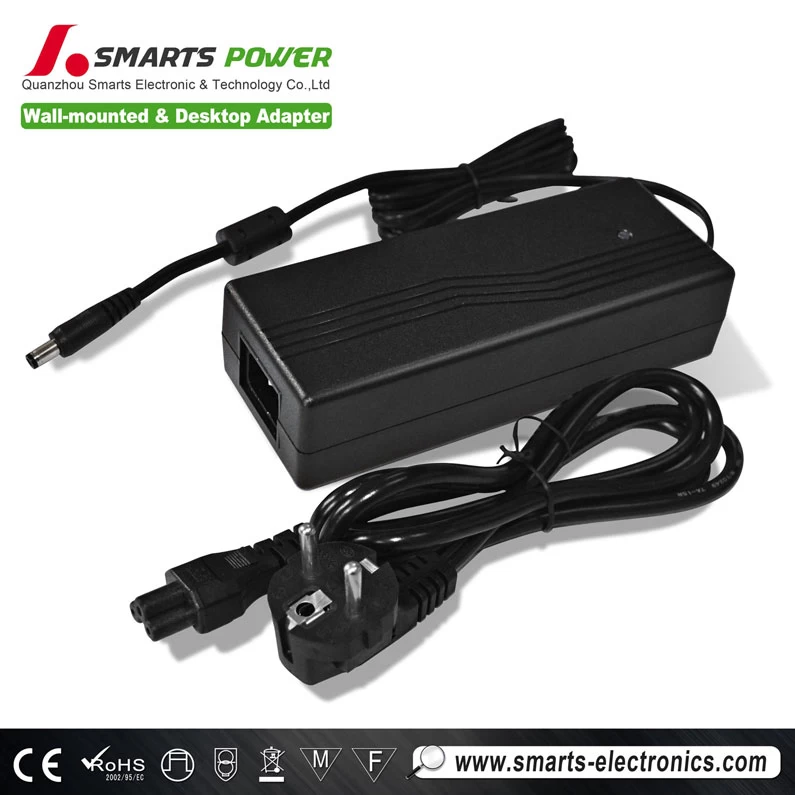

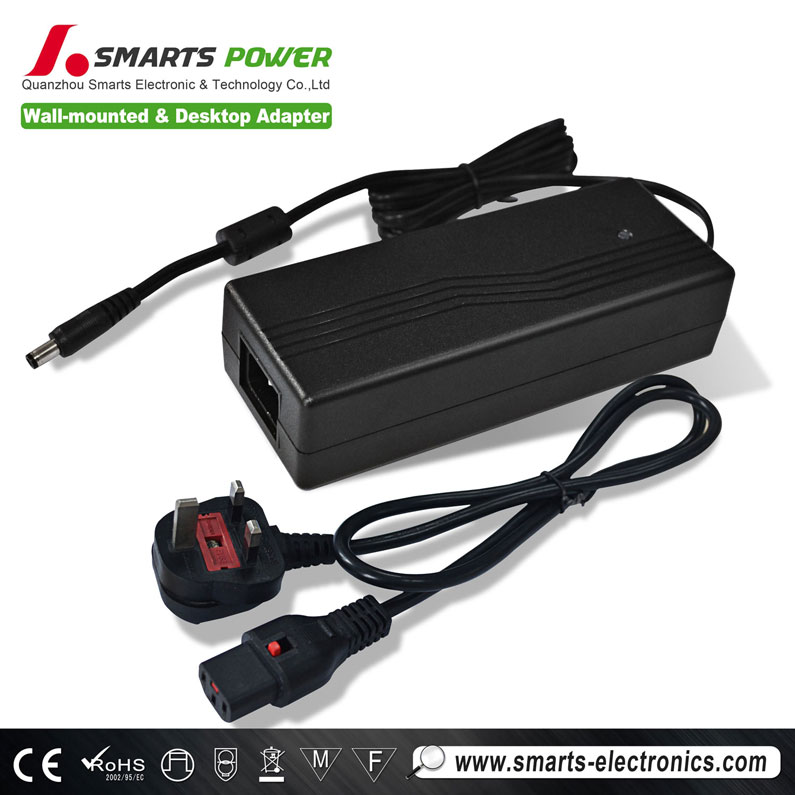

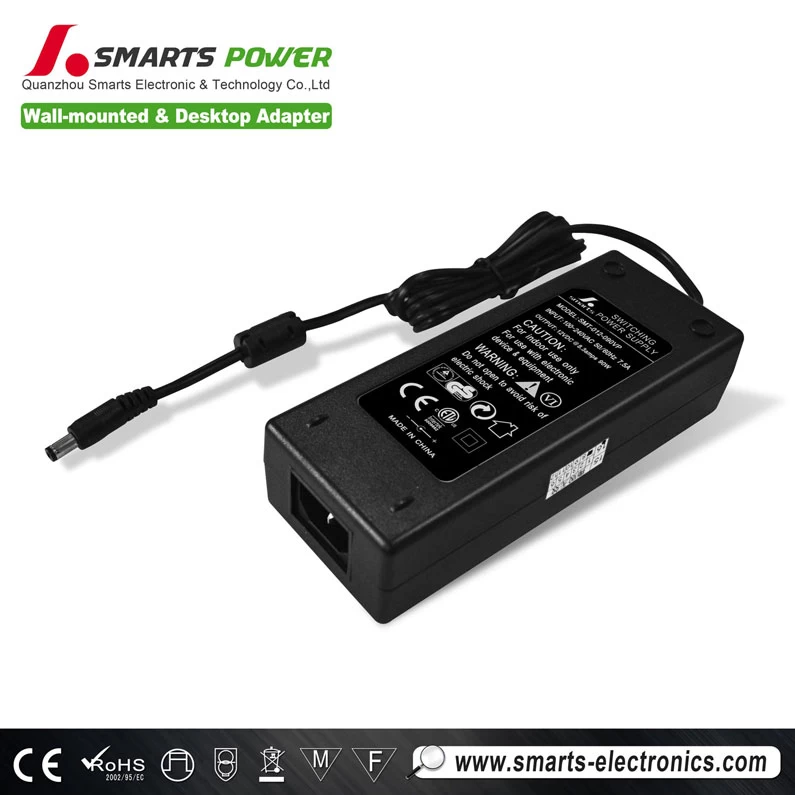

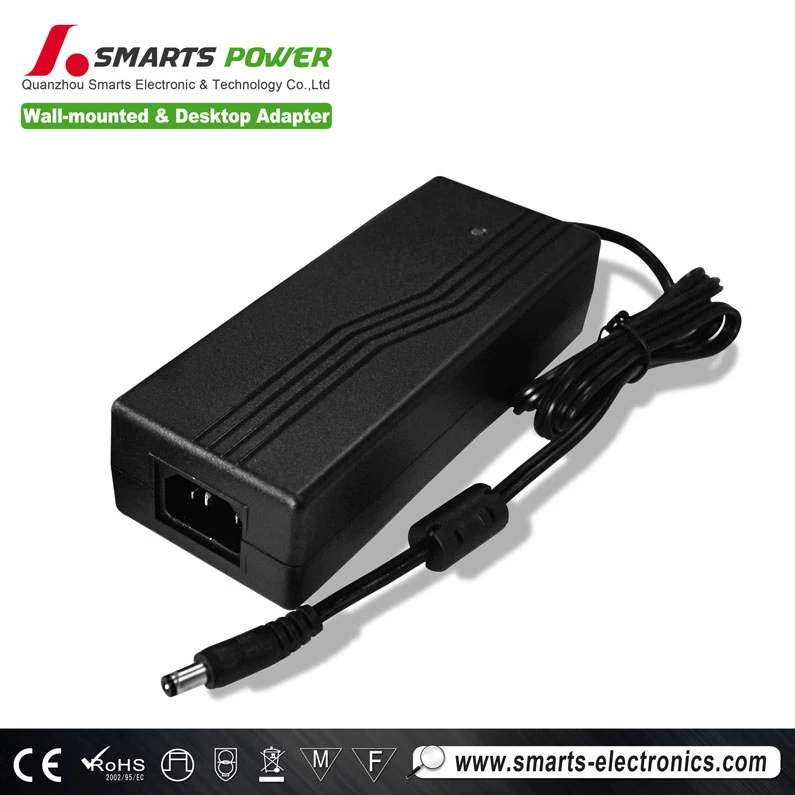

90W power adapter for desktop DC 24V constant voltage
Features :
• Universal AC input: 100~240Vac
• Protections: Short circuit / Overload
• No load power consumption < 0.5W /Over voltage
• 2 pole US / European type plug
• Fully enclosed plastic case
• Class II power (without earth pin)
• Pass LPS
• Full output 12v, 24v safety approved
• 18 months warranty
Feature:
AC-DC power adapter
output: ,24v ; Universal AC input:100-240v;47-63Hz
Low ripple&noise regulation
Ac cord;EU standard ac plug,
DC cord:1.2m EU standard cord with male plug
Protections: Short circuit / Overload
No load power consumption < 0.5W /Over voltage
2 or 3 pole US / European type plug
Fully enclosed plastic case IP20
Class II power (without earth pin)
CE approval
1.5 years warranty
desktop type LED strip power adapter:
• 2 or 3 pole AC inlet • Fully enclosed plastic case
• Class I power (with earth pin) • Pass LPS for 16~48V
• Full output 5V~48V safety approved • LED indicator for power on
• Protections: Short circuit / Overload / • Approvals: CE
Over voltage • 18 months warranty
General Specification:
AC input voltage range ............. 100~240VAC / 1.9A
AC inrush current (max.) ........... Cold start, <40A at 230VAC
Overload protection................... Hiccup mode, auto-recovery
Over voltage protection .............110~140% rated output voltage
Hold up time............................... 16ms at full load
Withstand voltage...................... I/P-O/P: 42VDC, 1minute
Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load
Safety standards........................ , TUV EN60950-1 approved
EMC standards.......................... EN55022-B, EN61000-3-2,3
Length of output cable................180cm of SPT-1,18AWG x2C
Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type
|
Item No.
|
output voltage
|
current
|
power
|
Tol.
|
R&N
|
Effi.
|
IP Rate
|
|
SMT-012-90VP
|
12V
|
7.5A
|
90W
|
±3%
|
80mV
|
>81%
|
IP20
|
|
SMT-024-90VP
|
24V
|
3.75A
|
90W
|
±2%
|
180mV
|
>81%
|
IP20
|
