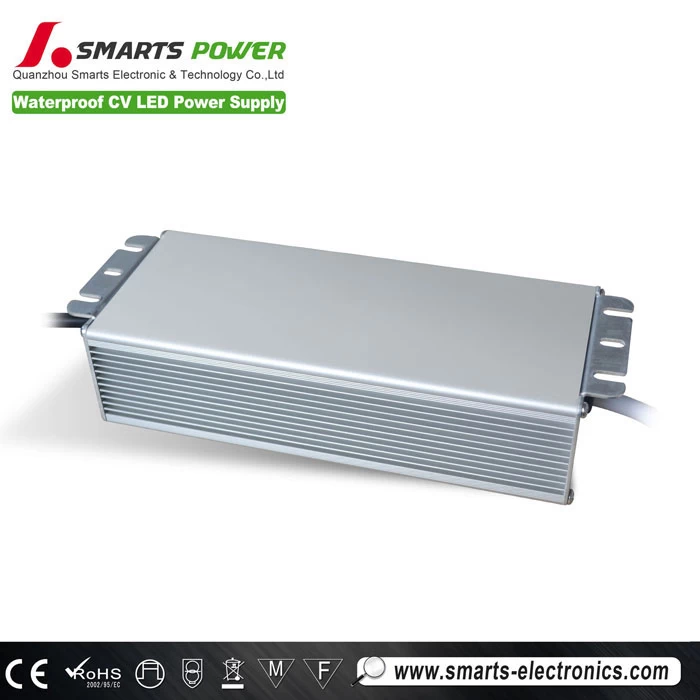

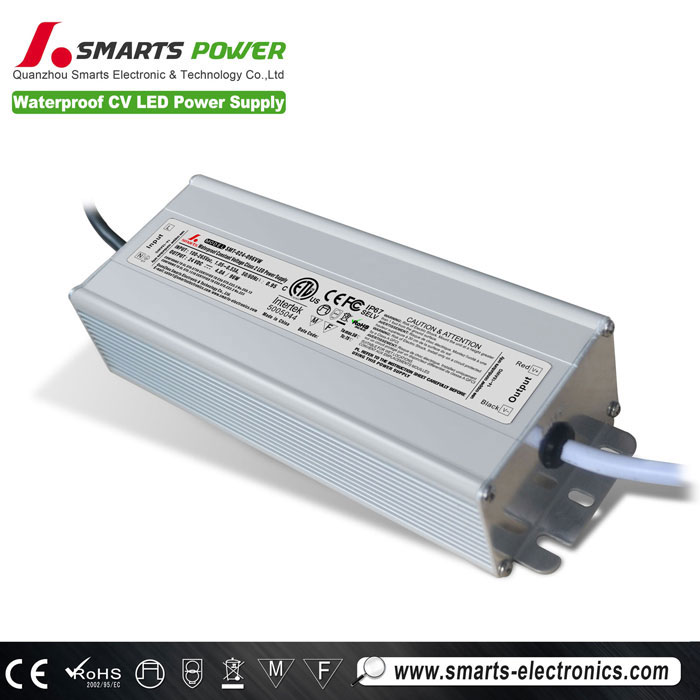

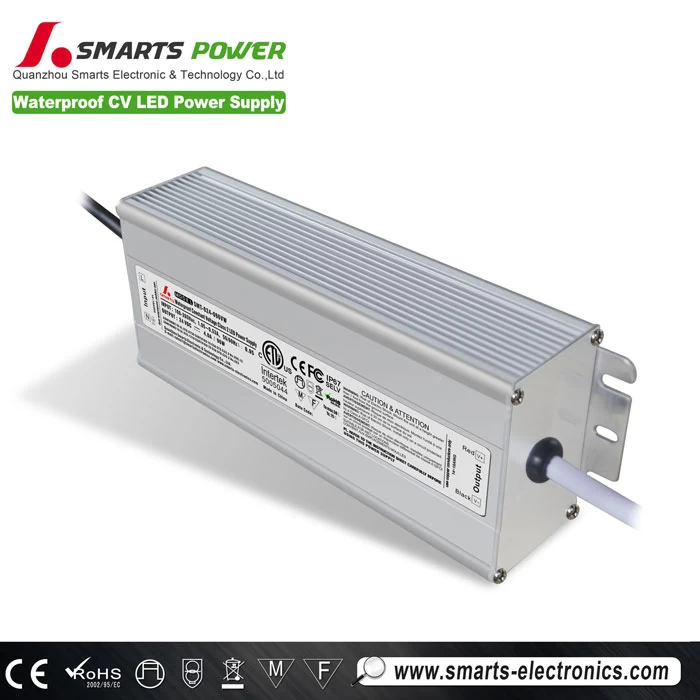

110v ac dc Constant voltage 100w 36V led driver 12v 24v led power driver

Constant voltage LED driver


  • Input Voltage100-265V
  • Output Voltage36VDC
  • Output Current2.78a
  • Working ModeConstant Voltage
  • CertificationETL CE ROHS
  • Warranty2 years


110v ac dc Constant voltage 100w 36V led driver 12v 24v led power driver



 SPECIFICAION

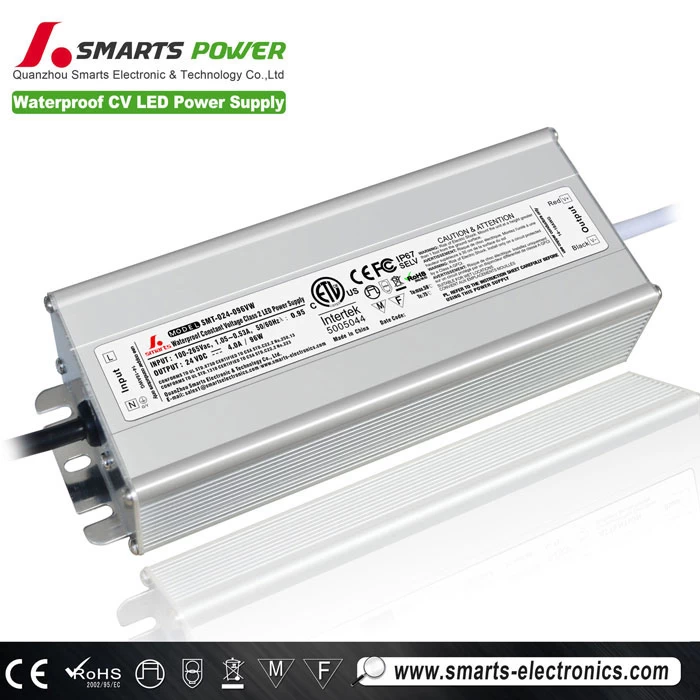

MODEL SMT-012-096VW SMT-024-096VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 8.33A 4A
CURRENT RANGE 0~8A 0~4A
RATED POWER 96W 96W
RIPPLE&NOISE(max) 150mV 150mV
VOLTAGE TOLERANCE ±0.5V ±0.5V
SETUP RISE TIME 80ms/110V,220VAC
HOLD UP TIME(Typ.) 60ms/110V,220VAC
INPUT VOLTAGE RANGE 100~265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.) 0.95
EFFICIENCY(Typ.) ﹥87%
AC CURRENT(Typ.) 0.92A/110VAC, 0.86A/220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110VAC, 220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof IP67)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS CE ETL Mark(LVD)
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
    capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver



 Features


  1. High efficiency,save energy ,protected environment.
  2. High stability and low ripple, increase light efficiency and decrease light attenuation.
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant voltage.
  5. Integrity protection,over loading, over voltage ,over current.
  6. 8Hrs and 100% full load burn-in test.



 Environment


      1.Working Temperature : -25 ~ +50°C

      2.Working Humidity : 20 ~ 90% RH non-condensing

      3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH

      4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)

      5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes




 Safety


      1.Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved

      2.Withstand Voltage : I/P-O/P: 3000KVAC

      3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC





 Applications


  • indoor LED illuminating lights
  • LED Neon
  • LED urban Decoration
  • LED Lighting Advertising
  • LED Display
  • Safety Protection Apparatus
  • Telecommunications
  • Networks
  • Vehicle Lights
  • Controller Panels
