5v 40a 200w smps switching power supply
Description:
AC DC 5V 40A 200w smps power supply unit CCC CE Approval for industrial appliance is a single output high efficiency AC/DC switching power supply, it is cased to protect the components.
Features:
1, 200W power supply high efficiency, low temperature rise;
2, 5v 40a Ultra-thin power supply;
3, 5v 200w power supply short circuit, overload, overvoltage protection.
|
Parameter
|
|
Item NO.
|
K10L-H200S5
|
|
Output
|
Output Voltage
|
+5V
|
|
Rated Current
|
40A
|
|
Current Range
|
0-40A
|
|
Rated power
|
200W
|
|
Ripple
|
100mVp-p
|
|
Adjustable output range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
2s,50ms,20ms
|
|
Input
|
Input Voltage range
|
176~300VAC;200~400V DC.
|
|
Input current
|
1.5A/230VAC
|
|
Input frequency
|
47~63Hz
|
|
Efficiency
|
85%
|
|
Power factor
|
>0.95@220V FULL LOAD
|
|
Inrush current
|
30A@230V
|
|
Leakage Current
|
0.5mA /240Vac
|
|
Protection
|
Over load
|
105~150%,Off type protection, automatic recovery
|
|
Short circuit
|
Off type protection, automatic recovery
|
|
Output overvoltage
|
6~7V,Off type protection, automatic recovery
|
|
Over Temp.
|
------
|
|
Function
|
Parallel function
|
Canbeworked in parallel withinstructions.
|
|
Shutdown function
|
Can be worked with signal when shut down
|
|
Environment
|
Working Temp.,Humidity
|
-40~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-40~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943.1-2011
|
|
Withstand voltage
|
I/P-O/P:3KV,I/P-FG:1.5KV,O/P-FG:0.5KVAC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
GB9254-2008 CLASS B,GB17625.1-2012
|
|
Others
|
Demension
|
215*110*30mm
|
|
Weight
|
0.6kg
|
|
Remarks
|
1.All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured;
6. do pressure test, you need to remove the internal surge suppression devices Z1.
|

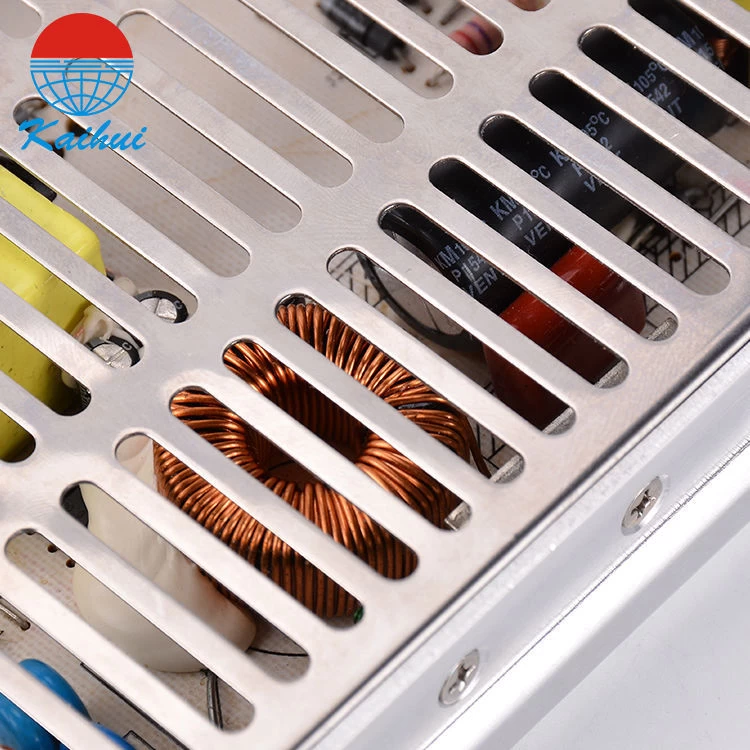

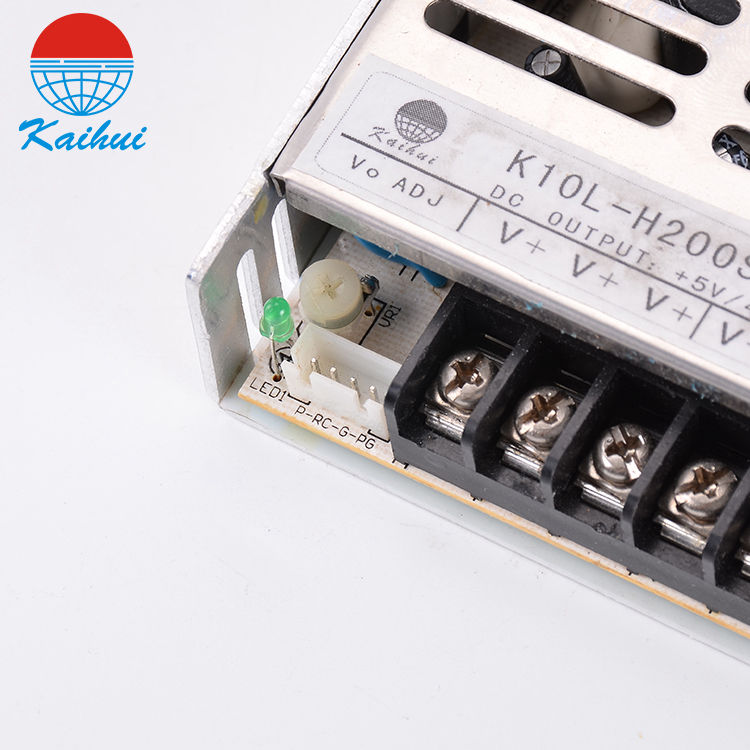

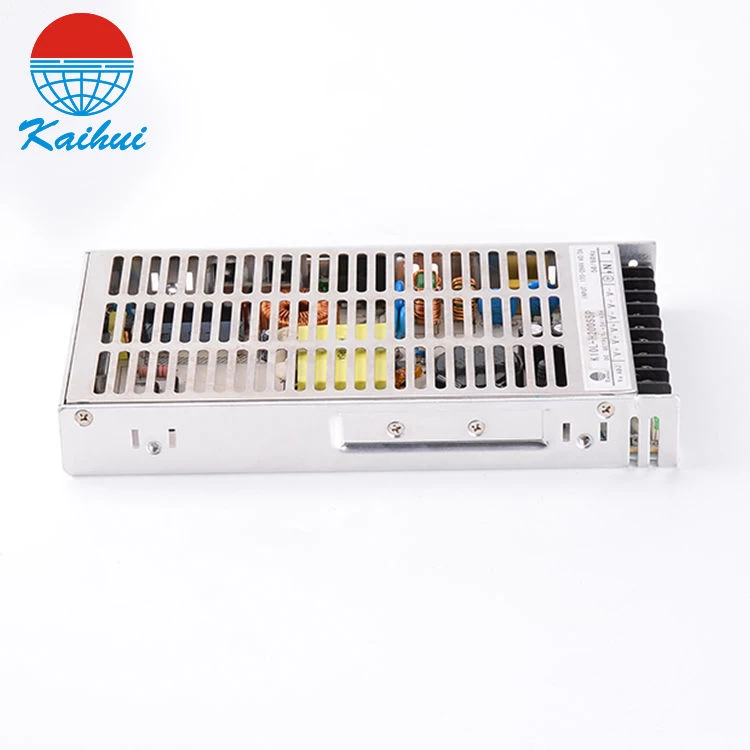

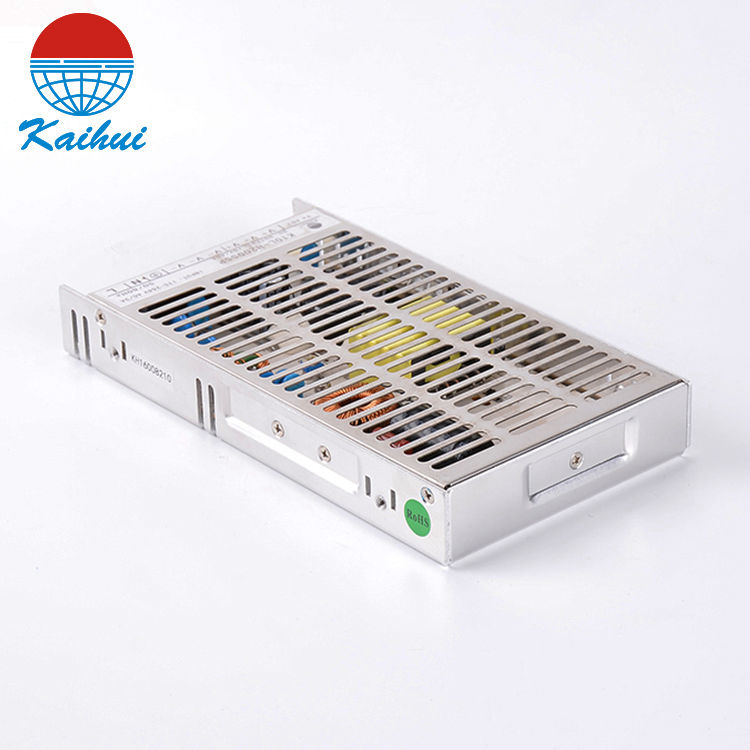

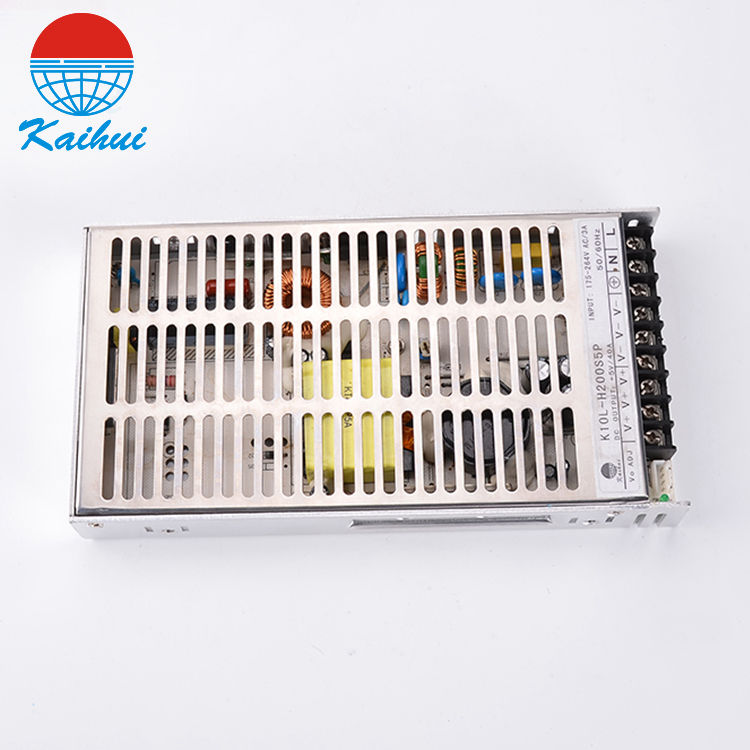

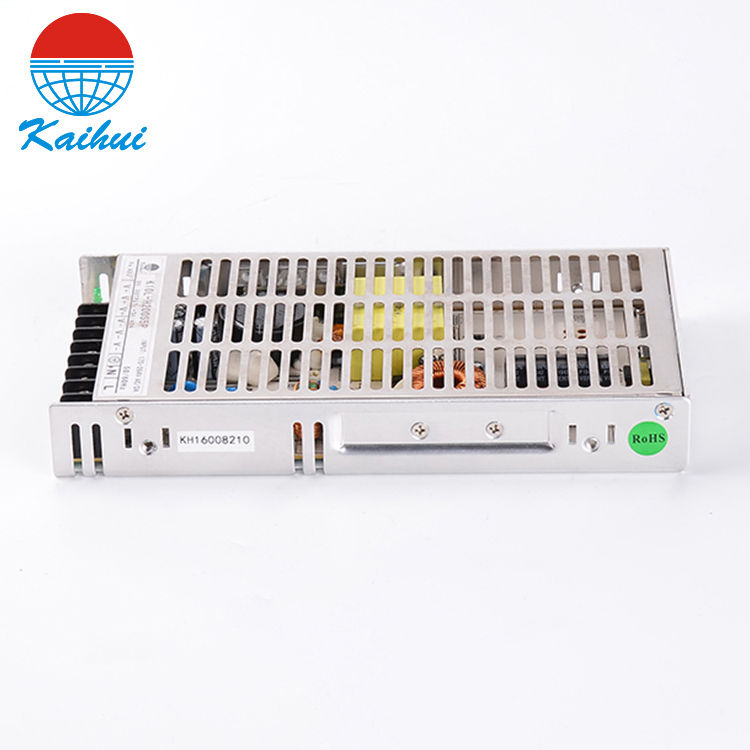

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
