115W Renewable Energy Flexible Monocrystalline Photovoltaic Solar Panel
|
Electrical Characteristics
|
|
|
Product code
|
FL-115W/20V
|
|
Maximum power(Pmax)
|
115W
|
|
Voltage at Pmax(Vmp)
|
19.8
|
|
Current at Pmax(Imp)
|
5.83
|
|
Open-circuit voltage(Voc)
|
23.4
|
|
Short -circuit current(Isc)
|
6.18
|
|
Power temperature coefficient
|
-0.38%/℃
|
|
Voltage temperature coefficient
|
-0.27%/℃
|
|
Cirrent temperature coefficient
|
+0.05%/℃
|
|
Cells Efficiency(%)
|
23.70%
|
|
The maximum system voltage
|
45VDC(IEC)
|
|
Output power tolerance
|
±3%
|
|
Cells
|
USA A grade solar cell
|
|

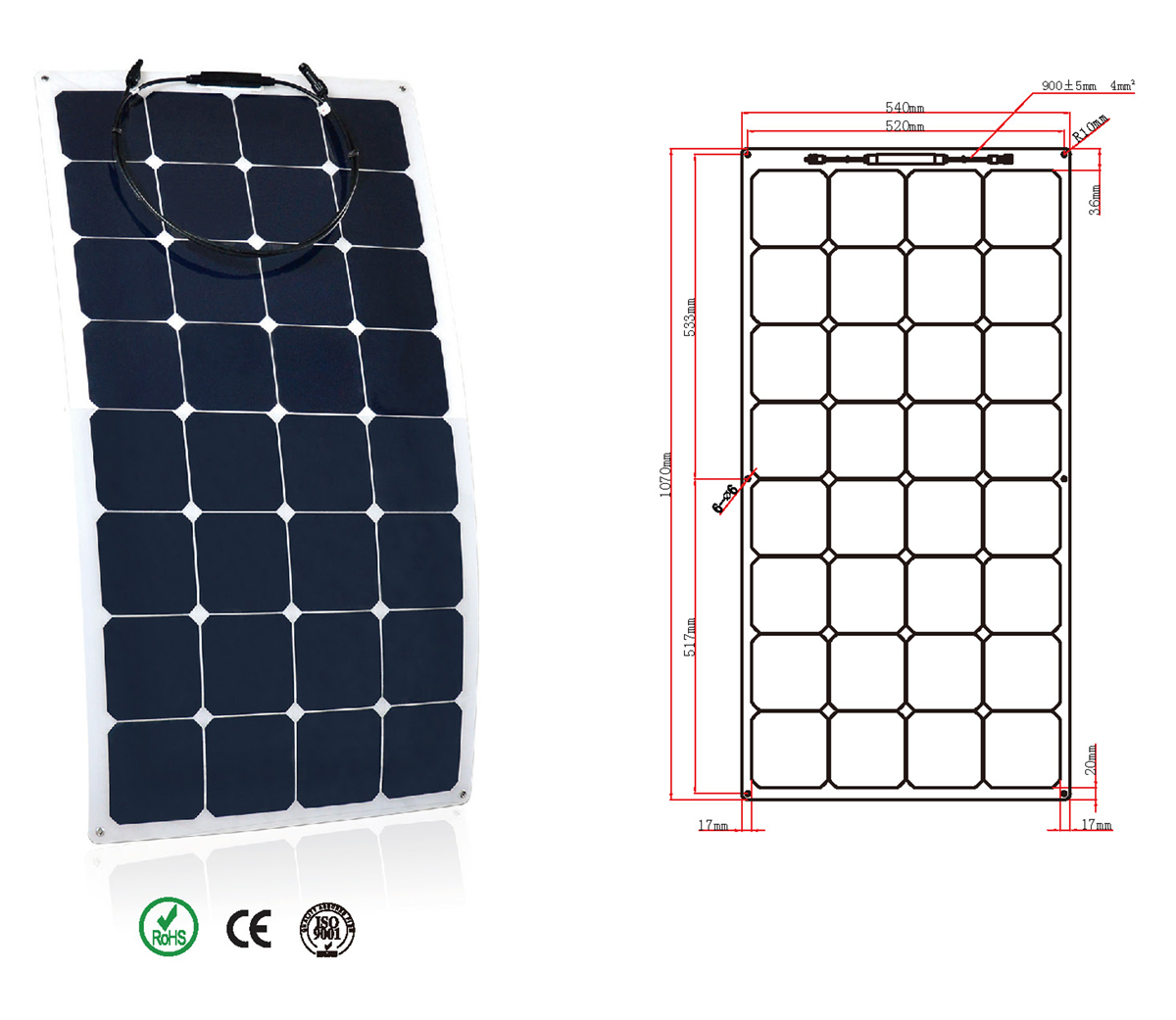

No.of cells and connections Module dimension
|
32(4X8)
|
|
Weight
|
540*1070*3mm
|
|
Certification
|
2.18KG CE,RoHS,ISO
|
Quality assurance:
1,All the solar cells A grade from Taiwan (Sunpower from USA)
2,TPT+EVA+PET
3,Warranty:3-5 years
4,Useing Life: 10-20 years
5,CE ROHS Certificates
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
-
After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
