Technical Specifications for 119524 119522 129708-01
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
1.9 Amperes
|
|
Part Number/Catalog No.
|
129708-01
|
Relative Humidity
|
5% to 95%
|
|
Module Type
|
Interface Board
|
I/O Capacity
|
850
|
|
Manufacture Year
|
2021
|
Input Voltage
|
120-240 Volts AC
|
|
Product Package
|
Original Package
|
UPC
|
10612494914749
|

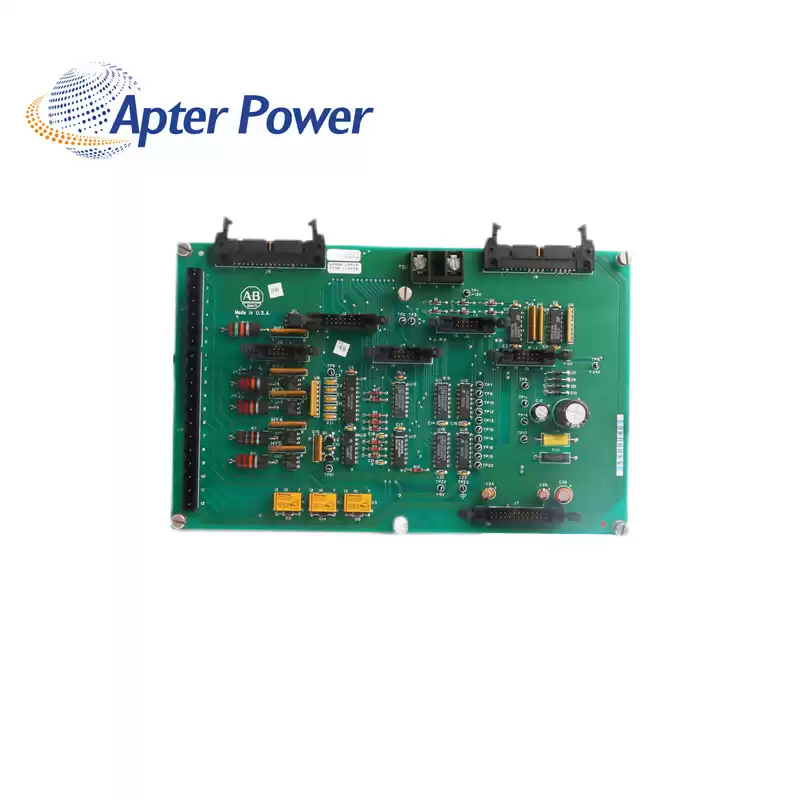

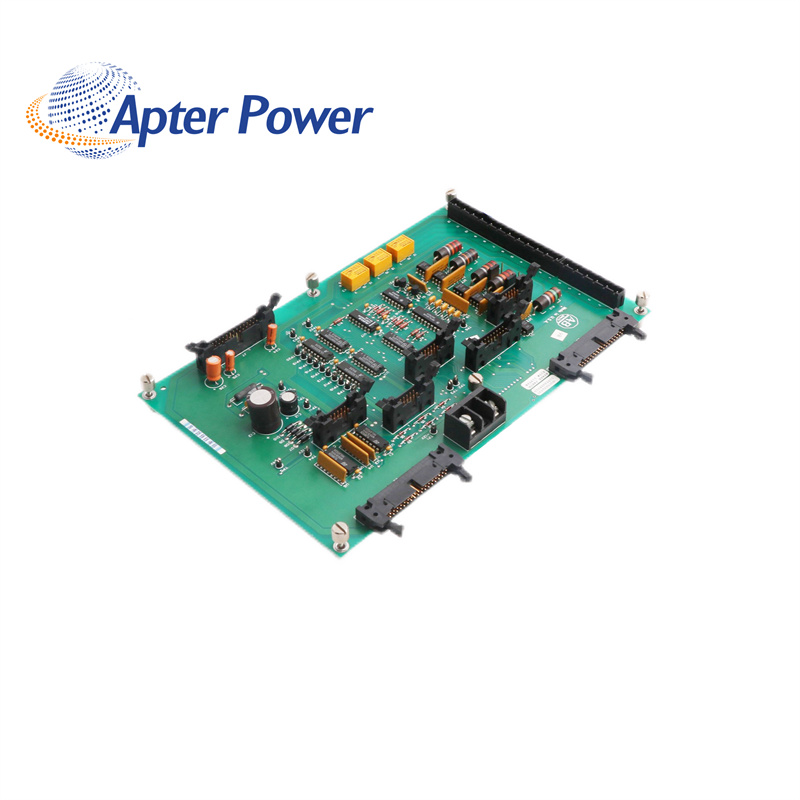

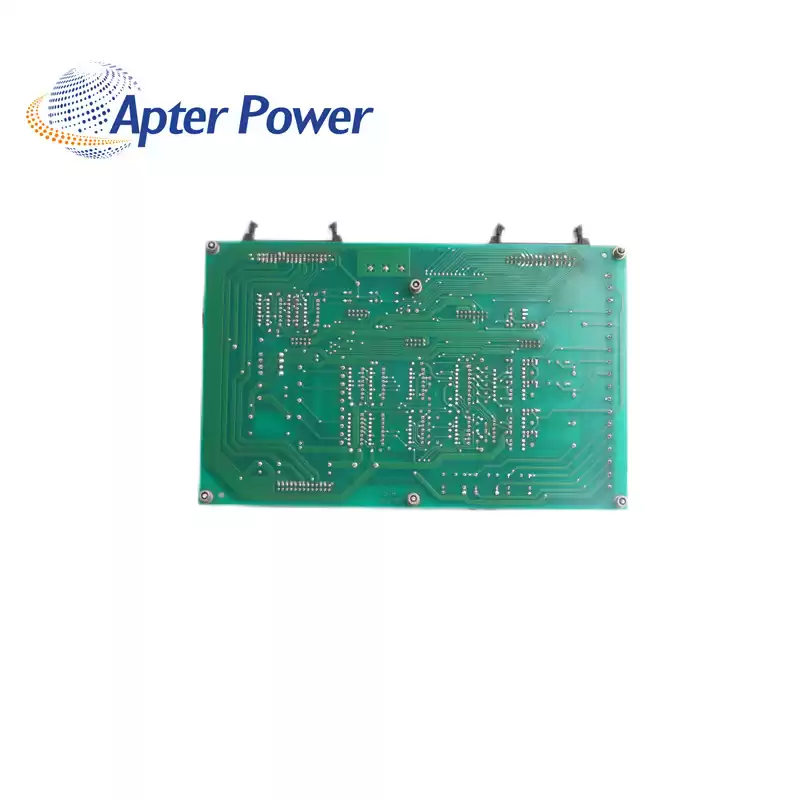

About 119524 119522 129708-01
|
The unit power supply board converts 115V AC input into regulated
+5V DC and ±12V DC control voltages. These control voltages are
routed through the power stage interface board to provide power to all
the printed circuit boards.The power stage interface board is used as the chief interface between
the main control board and other boards of the system.
This board is
responsible for distributing power and control signals to and from the
main control board, gate interface board, field-pulse transformer
board, feedback board, and unit power supply.The test points and jumpers shown in the diagram are used for startup
and troubleshooting procedures. Refer to the troubleshooting manual
for more information on test points and jumpers.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
