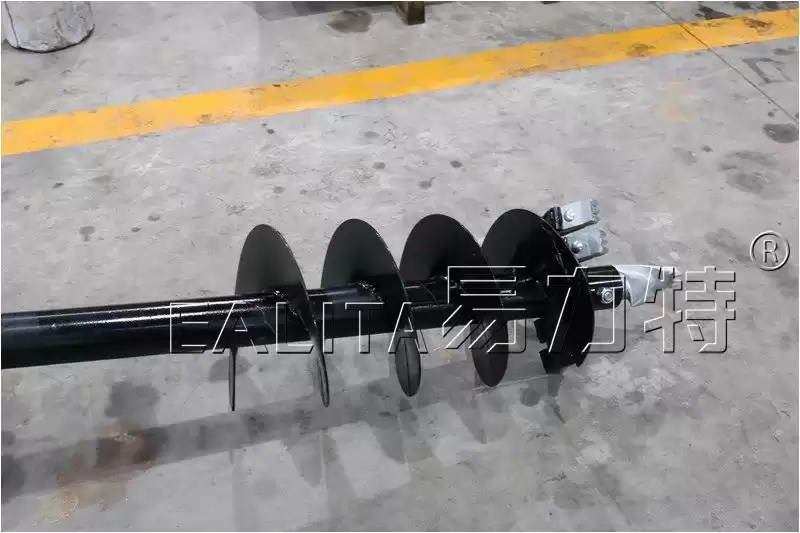

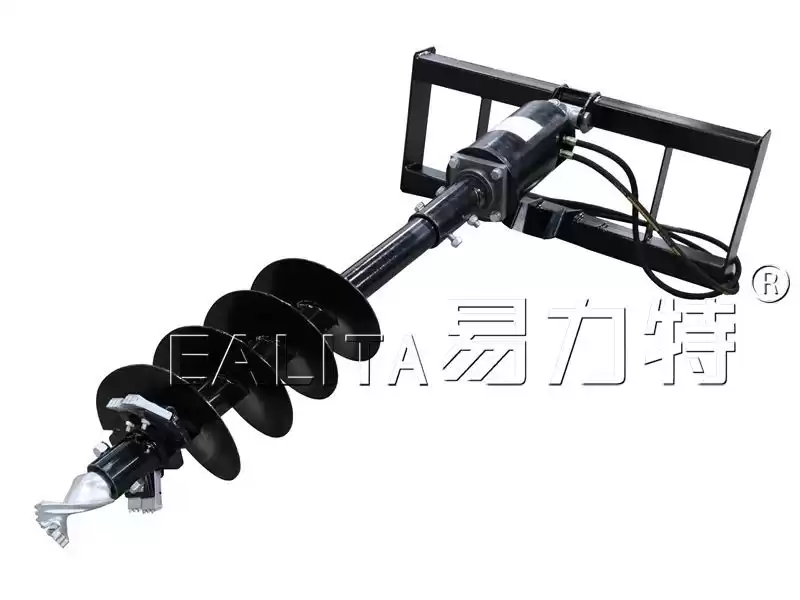

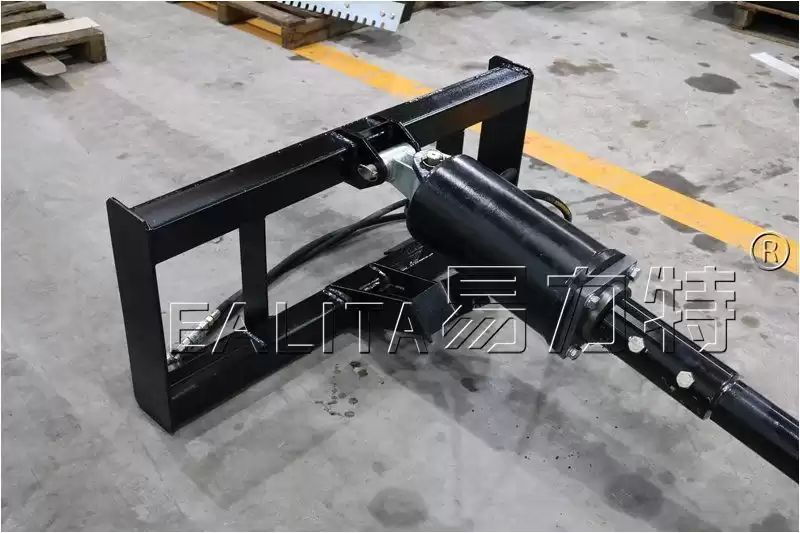

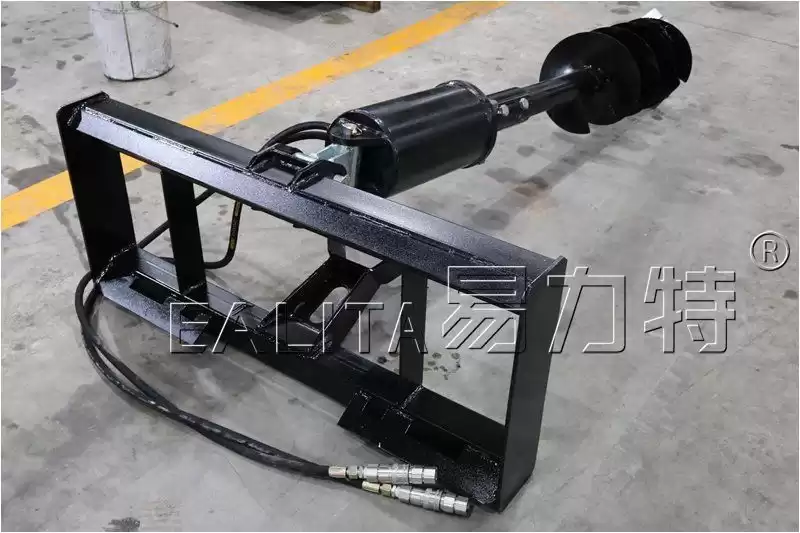

12'' & 18'' diameter compact drive & auger for skid steer loader. Takes the effort out of digging the right sized hole for the task at hand.
A hydraulic motor drives the auger through a sealed planetary gerar reduction. The heavy duty all gear design of our planetary drives give these units a long life with minimal maintenance and service costs.
Specification
· Auger Blade Diameter: 12'', 18''
· Hydraulic Flow Required: 6-15gpm
· Rated Output Torque: 950N.m
· Max Output Torque: 2500N.m
· Max Input Speed: 1000rpm
· Unit Weight: 250kg
