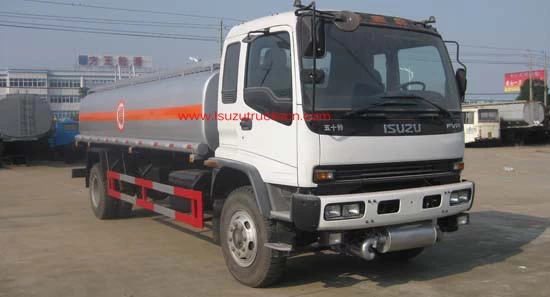

12,000L Petroleum Fuel Oil Tank Truck Isuzu

12,000L Petroleum Fuel Oil Tank Truck Isuzu, ISUZU 12000L Small Oil Tanker Truck for Transport Chemical Liquid, durable Isuzu fuel tank truck supplier



12,000L Petroleum Fuel Oil Tank Truck Isuzu

12,000L Petroleum Fuel Oil Tank Truck Isuzu


Description:

ISUZU Fuel Tank Trucks (also called Japan fuel tank truck, Africa fuel tank truck, Isuzu fuel truck, Diesel oil tank truck, Fuel tanker transport truck, Isuzu Engine oil tank truck, Oil tank with fuel dispenser, Refuel truck, Fuel refueling truck, Refueller tank truck, Gasoline tank truck, Fuel storage tank truck)  is used to transport oil, diesel, gasoline, kerosene,





Areas of Application and Use:

  Gasoline transport and delivery

  Diesel transport and delivery

  Kerosene transport and delivery

  Other liquid fuel material

  Mobile refueling vehicle of Filling stations





Key Features:

  World-class ISUZU heavy duty Chassis, High power and Fuel efficiency, Reliability, Uptime

  High-power, Lighten weight, Nice performance, widely used in oil station and some logistic companies

 We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.

  The liquid tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking.

  Carbon Steel, Stainless Steel, and Aluminum Tanks Available

  Colors can be customized.

  Tank capacity can be customized.   5000L to 25000Liters


Fuel Tank Body Work:

5 cubic meter Fuel tank truck Isuzu


5 cubic meter Fuel tank truck Isuzu


5 cubic meter Fuel tank truck Isuzu


5 cubic meter Fuel tank truck Isuzu




Details picture of ISUZU Fuel Tanker Truck


5 cubic meter Fuel tank truck Isuzu


5 cubic meter Fuel tank truck Isuzu


5 cubic meter Fuel tank truck Isuzu


5 cubic meter Fuel tank truck Isuzu


5 cubic meter Fuel tank truck Isuzu


5 cubic meter Fuel tank truck Isuzu


Optional Equipment of ISUZU Fuel Tanker Truck


 5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu   5 cubic meter Fuel tank truck Isuzu
 Computer Fuel Dispenser    API Adaptor Valve    Bottom Valve    Manhole Cover
 ISUZU FUEL TANK TRUCKS ELF    ISUZU FUEL TANK TRUCKS ELF    FUEL TANK TRUCK ISUZU    ISUZU FUEL TANK TRUCKS ELF
 Ball Valve    Three Ways Set Ball Valve    Level Gauge    Oil and Gas Recovery Valve



Main specifications:

Model

PT5160GJY

Driving Type

4x2    (Left hand drive)

Wheelbase

4175 mm

Engine

139 kw (190hp)

Tyre

8.25-20

Tank

Material:

Carbon steel(Q345)

Shell Body

5 mm nominal thickness

Head

6 mm nominal thickness

Baffles

3mm nominal thick, wave shape, four pieces with Ø 500mm service port

Tank shape

Ellipse

Capacity

Full capacity 10,000L~15,000L

Compartment

Optional

Shell Finish

Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.

Testing Pressure

36kPa, Water pressure test

Tank Fittings

Top inlet port

2pieces

Manhole Cover

Aluminum alloy, 20” self-latching manhole cover, with air-van.

Outlet port:

One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.

Pipe box:

It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)

Anti –Static System:

Static electricity plate , copper plate and earth cable reel

Tank Accessories

Ladder:

Stainless Steel ladder fixed at rear of tank

Walkway Platform:

It fixed on the top of tank with anti – skid surface treatment.

Handrail:

No

Fire Extinguisher Housing:

2 units, suitable for 4 kg’s fire extinguisher

Pump Device

Yes

Flow meter

Yes

Tool box

Small box

Color

As option


 10,000L Fuel Bowser ISUZU Truck

 10,000L Fuel Bowser ISUZU Truck
