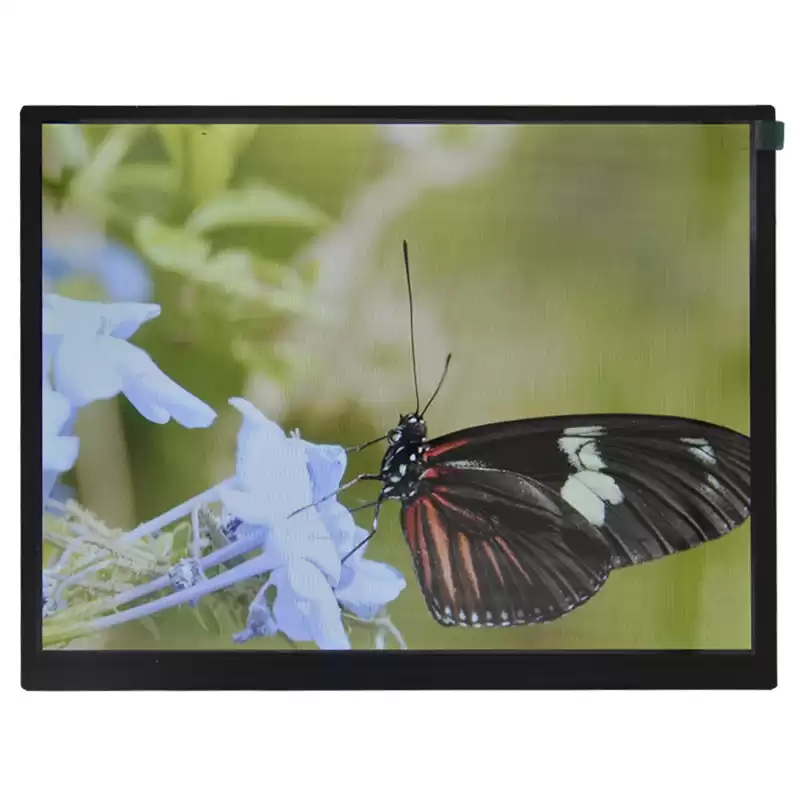

12.1 Inch IPS 1024(RGB)*768 4:3 screen 1000 nits brightness lcd

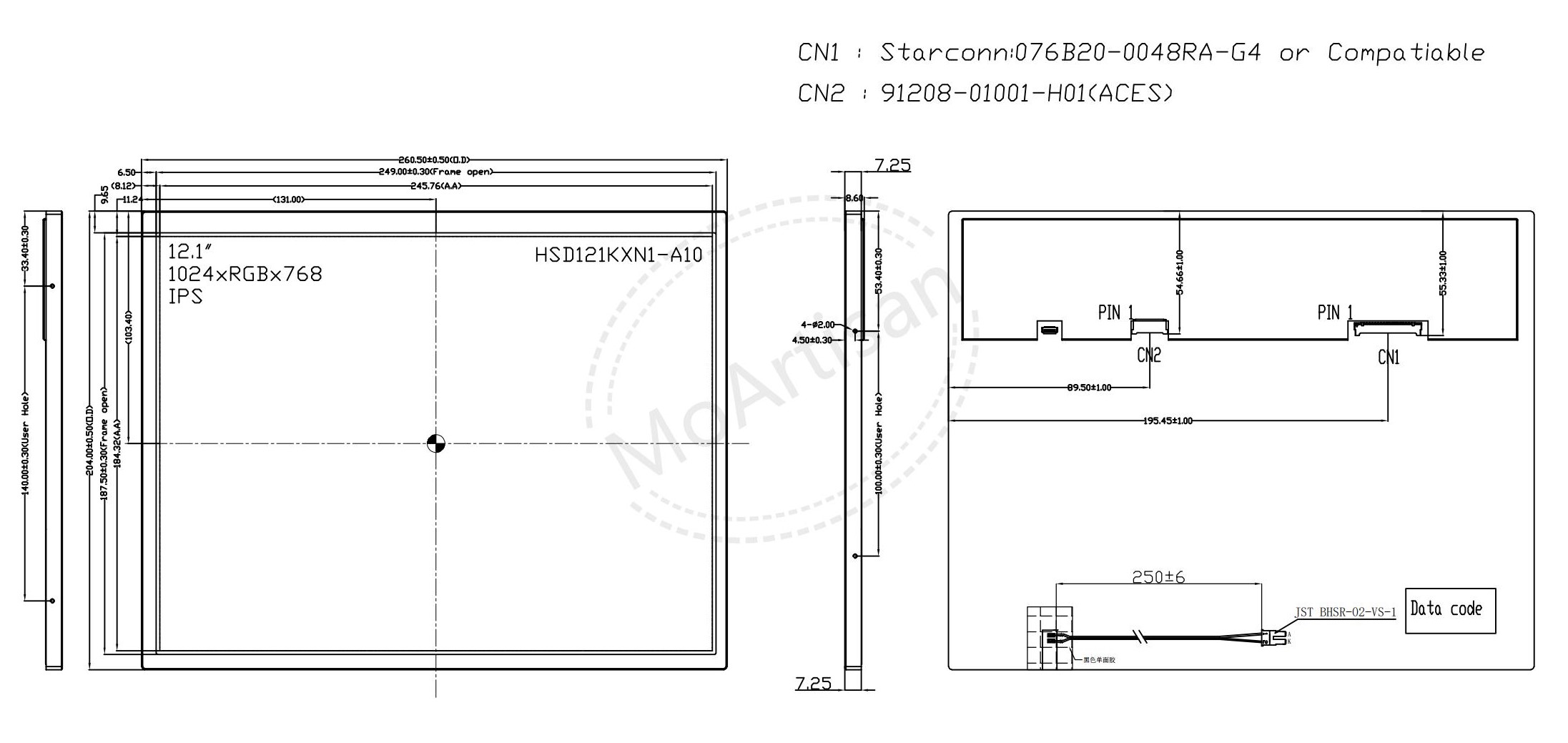

Production Drawings
WM121MO002XG-I Introduction
-
12.1 (4:3) inch
diagonally measured active display area.
-
XGA (1024 horizontal by 768 vertical pixel) resolution.
-
12.1 inch LCD module with 1000 nits brightness, 900 contrast ratio.
-
It is suitable for vehicle navigation and industrial application.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module; MR---Module+RTP;
MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…; 001---Serial
Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
12.1
|
XGA, 1024RGB*768, IPS, 4:3 screen, Wide Temp
|
260.5*204*8.6
|
4X10 LED (50K)
|
20 PIN Con, 6/8-bit, LVDS
|
1000 nits/900
|
Topa:
-30~+80 Tstg: -30~+80
|
85/85/85/85
|
WM121MO002XG-I
|
Production Applications
TFT LCD Monitor, Industrial application, Multimedia applications and Others AV system.
Production Customized
It can
be customized.
Lead time for samples: 3~4
weeks.
Notes:
The products is designed for vehicle, so it is also suitable for industrial machine.
It is a main line of LCM with high reliabilty and high durablity.
