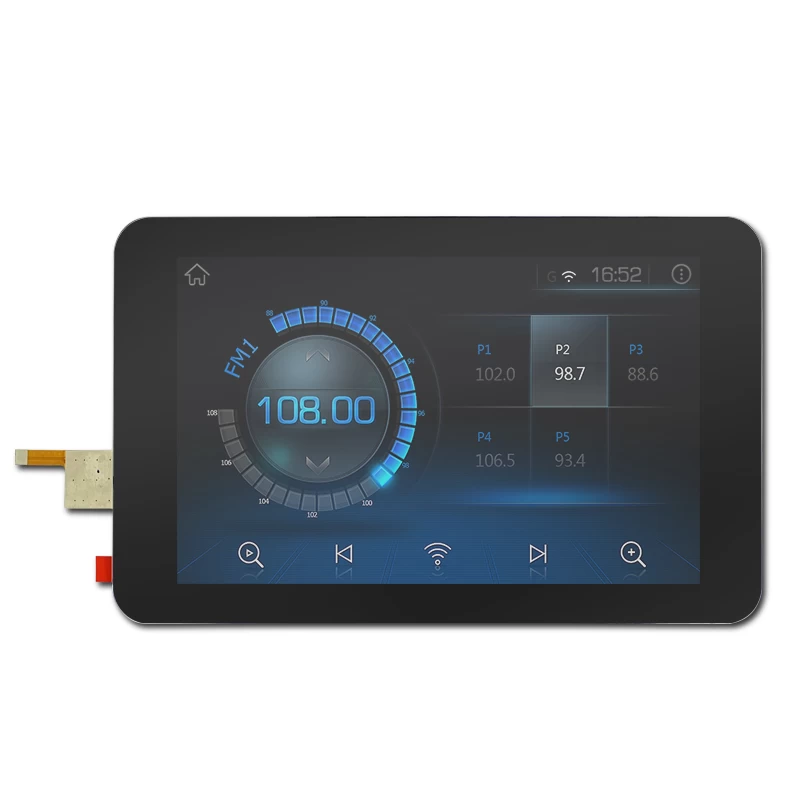

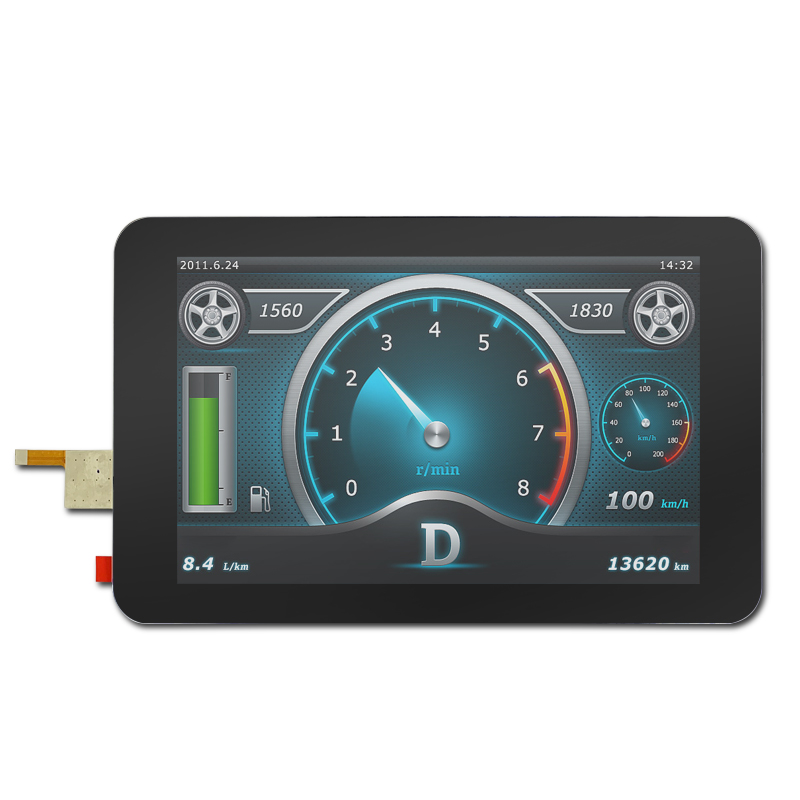

12.1 inch ips tft lcd 1280x800 resolution with Capacitive touch screen
| Specification | |
| LCD type |
12.1 inch ips display |
| Display type |
12.1 inch TFT, 16.7M color, normally black |
| Driver element | color active matrix thin film transistor |
|
Viewing angle |
All |
| Outline Dimension(mm) | 2777.7x180.6x8.7 mm |
| Active Area.(mm) | 261.12x163.2 mm |
| Resolution(dots) | 1280xRGBx800 |
|
Operating Voltage |
3.3V |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode |
Normally black |
| Luminance(cd/m2) | 400(typ.) |
| Contrast Ratio | 1200(typ.) |
| Application | Notebook, advertisement display, etc. |
|
Model Number |
TST121WXBH-01C |
| Interface |
LVDS |
| Module lifetime(Hours) | 50,000-100,000 |
