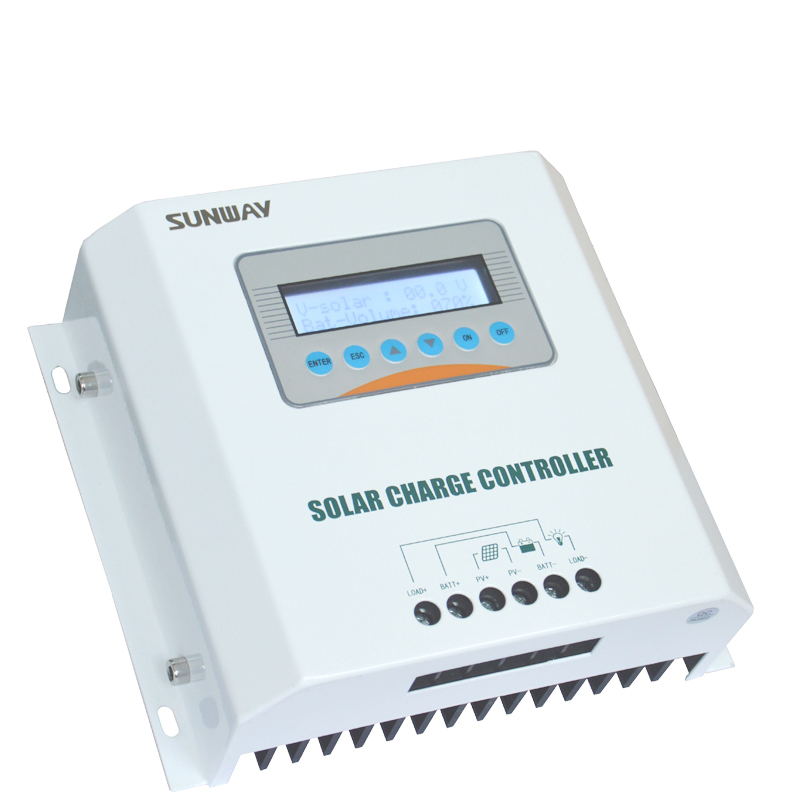

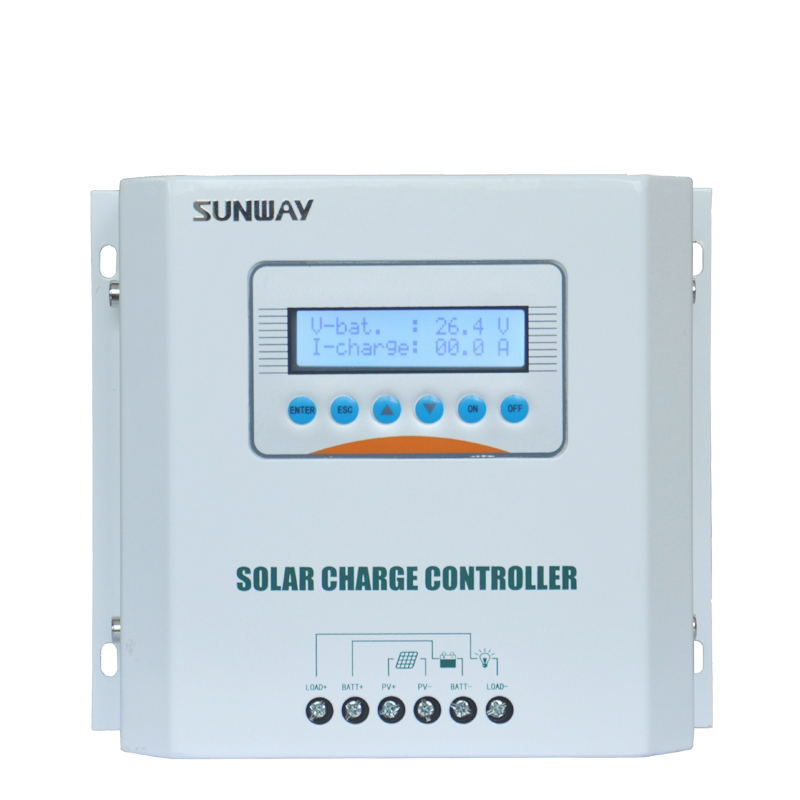

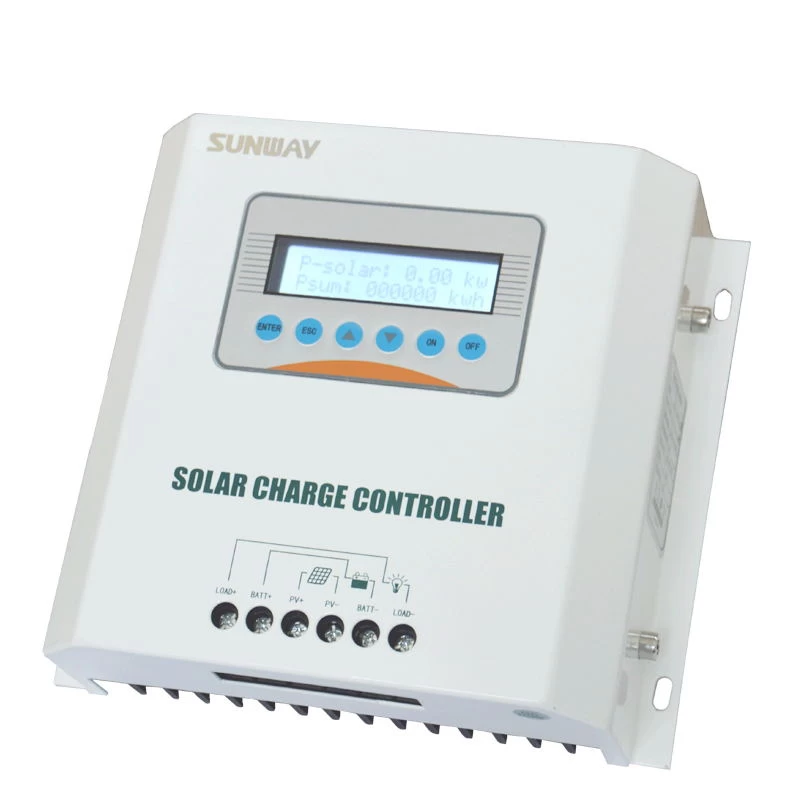

12 / 24 / 48v 10-60A Solar charge controller for solar power system

The controller features a smart tracking algorithm inside that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging. Charging process has been optimized for long battery life and improved system performance. Meanwhile, the comprehensive self-diagnostics and electronic protection functions can prevent damage from installation or system faults.



 12 / 24 / 48v 10-60A Solar charge controller for solar power system

2_01

Description of solar charge controller

    As a SME manufacture of solar controller, Sunway power using the most advanced technology to rise the efficiency of solar charging to the optimum level. This controller is for off-grid PV system to control the charging and discharging of the battery, especially suitable for street light system. The controller features a smart tracking algorithm inside that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging. Charging process has been optimized for long battery life and improved system performance. Meanwhile, the comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistake or system faults.

Feature of solar charge controller

1.) 12V/24V/36V/48V/72V auto detect

2.) Be suitable for Sealed, Gel and Li-Fe battery various kinds of batteries

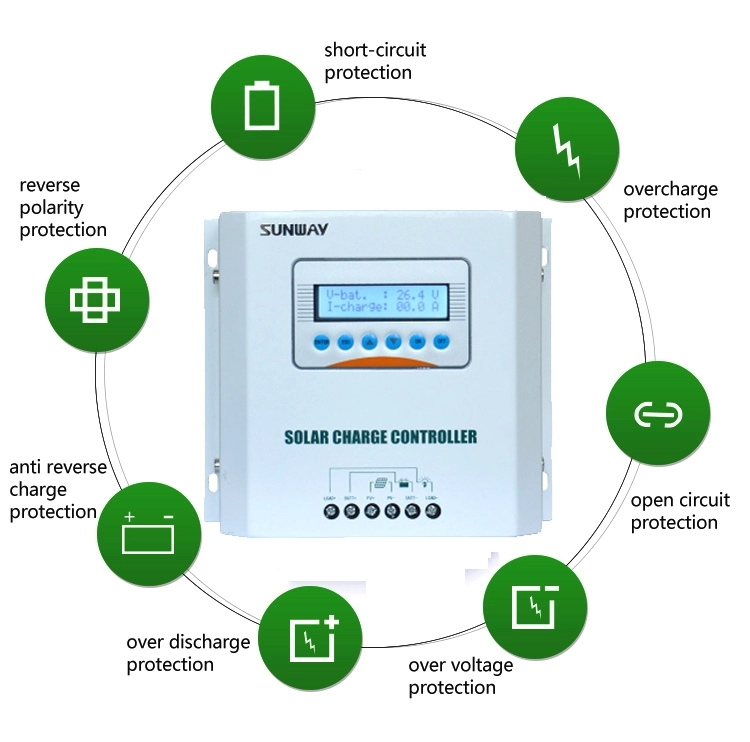

3.) With multi-functions of protection.

4.) Charging circuit and MCU Control circuit isolate completely

5.) Adopt wide range of new switching power chip, it also can optimize to maximize the use efficiency and reduce battery consumption

6.) The controller is equipped with an internal resettable fuse and varistor allows the controller to better cope with overvoltage caused by a variety of external environment and the flow through the emergency situations

7.) User can to modify the system parameters setting by keys

8.) Standard RS485 data communication function(optional)

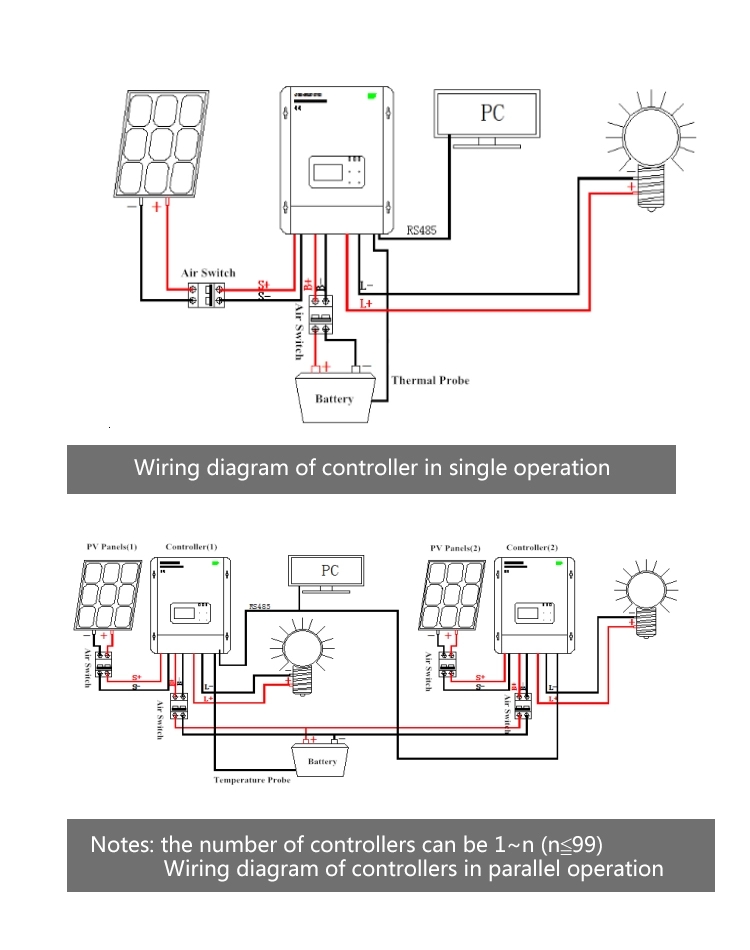

Topology of solar charge controller

Technical Data of solar charge controller


System Capability

Model type

SSCP-12243648-XXA-HA

Solar panels Vmp range [V]  (suggest value)

15--18

30--36

45--54

60--72

Solar panels Voc Max. [V]   (suggest value)

24V

48V

72V

100V

Input vol. of solar panels Max.

150V

Rated charging current [A]

o20   o30   o40   o50   o60

Rated battery bank voltage [V]

12V/24V/36V/48V Auto detect

Performance

Consumption at standby [mA]

30

Consumption at night [mA]

15

Efficiency of charging

95%

Peak of charging Efficiency

99%

Topology

Transformerless

OperatingTemperatureRange

-25 to +60 (45 to 60 with derating)

Cooling Method

Natural Convection

Ambient Humidity

0%98% Non-condensing

Altitude [m]

Up to 2000 (without power derating)

General Data

Terminal

Universal series

LCD Display

LCD (16X2charactersgreen backlight)

Display Language

English

Data communication (option)

RS485

Ingress Protection Class

IP20 (indoor)

Mounting

Wall mounting type

Dimensions (W*D*H) [mm]

186 *165 *62

Net weight [kg]

1.5

Standard Warranty [year]

3 (standard) / 5(optional)

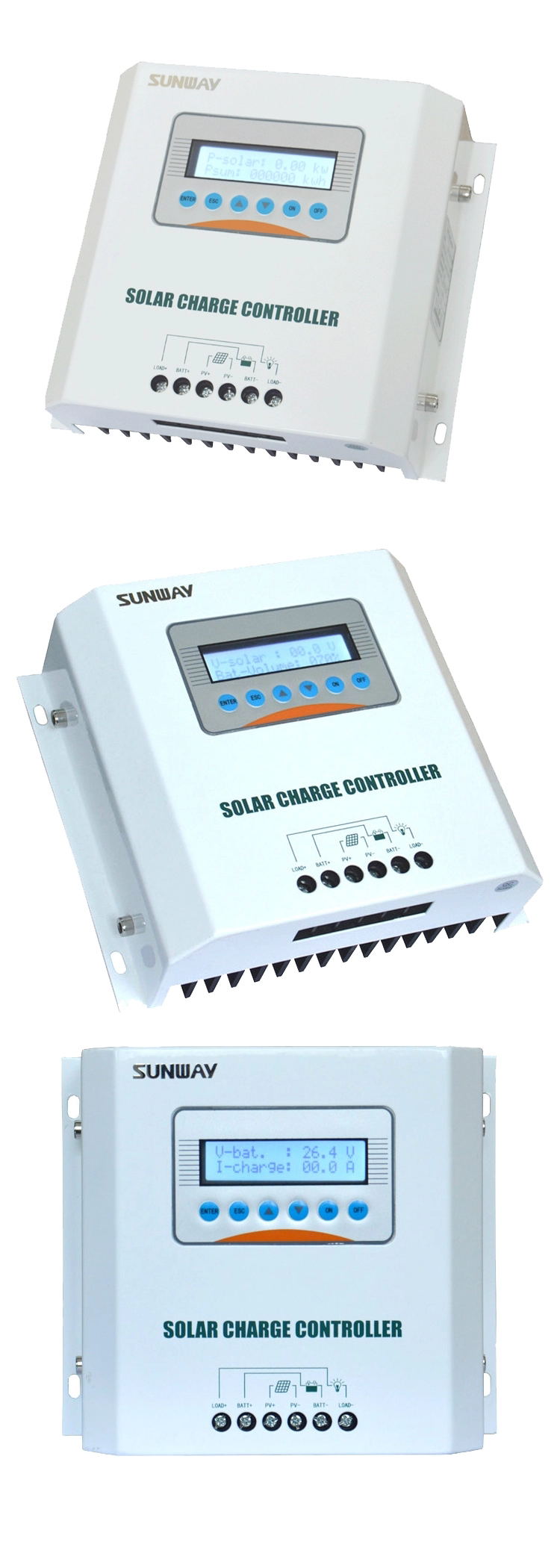

Product details of solar charge controller

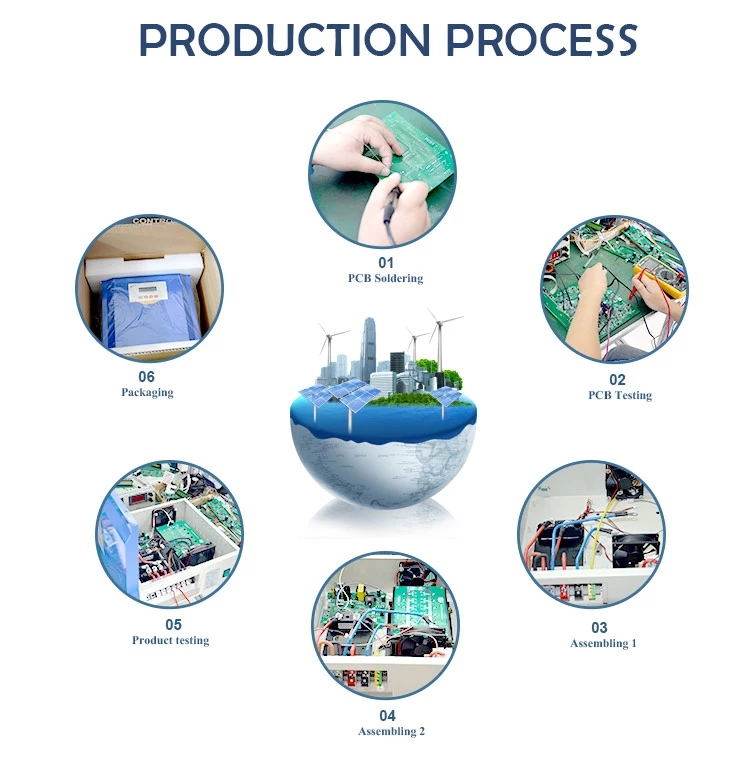

Assemly of  solar charge controller

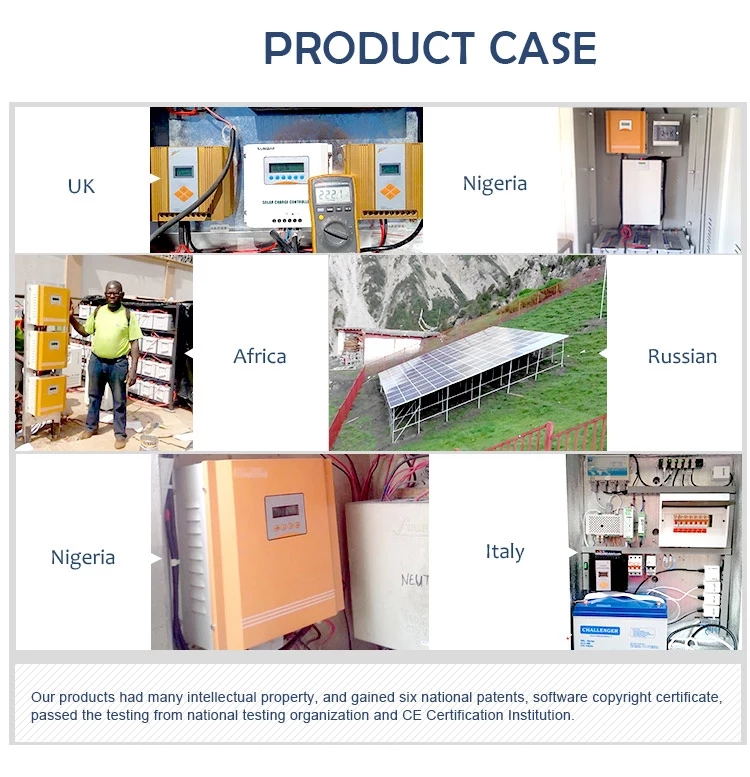

Project case of MPPT solar charge controller

Package and shippment of solar charge controller



Payment of solar charge controller

Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
